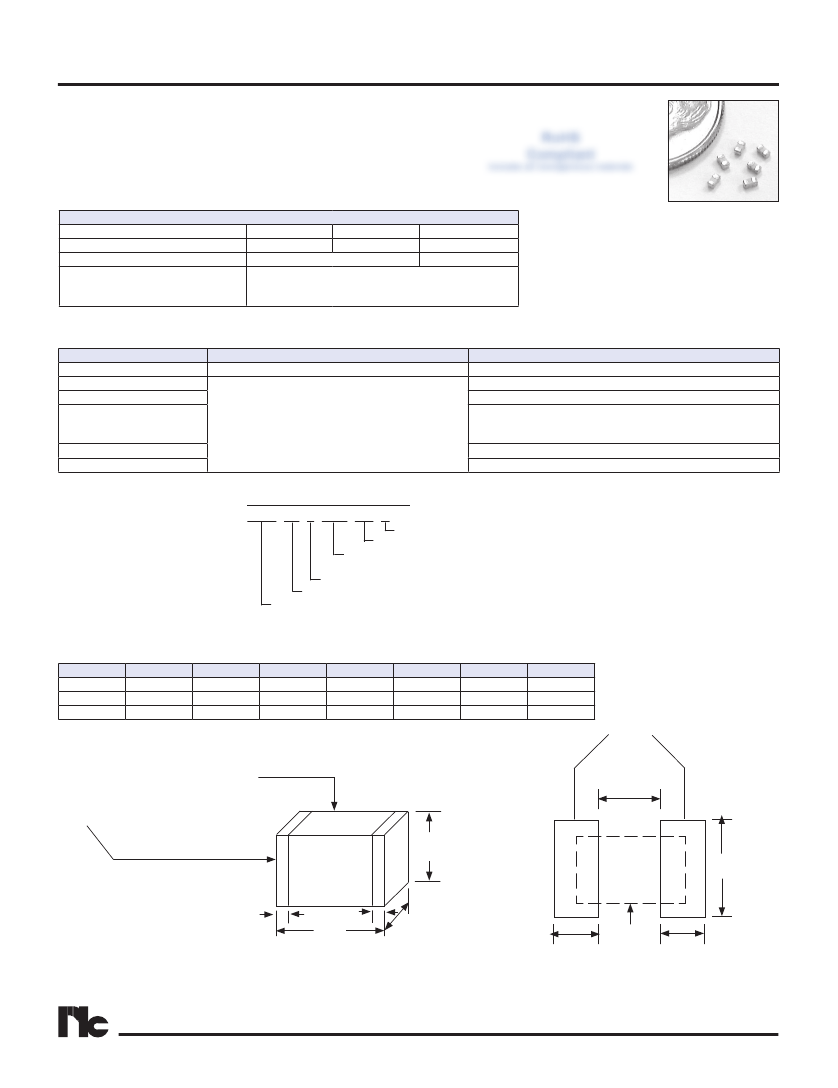

Multilayer Chip Inductors
FEATURES
• Designed for High Frequency Applications
• Available in EIA 0201, 0402 and 0603 Case Sizes
• High Q and SRF Characteristics
• Tight Tolerance From B (±0.1nH) to J ( ±5%)
• Tape and Reel Packaging for Automatic Pick & Place
SPECIFICATIONS
RoHS
Compliant
NML Series
includes all homogeneous materials
*See Part Number System for Details
NML
Multilayer High Frequency Inductors
Specifications
0201
0402
Inductance Range
0.6 ~ 10nH
0.6 ~ 270nH
Operating Temperature Range
-55°C ~ +125°C
Q-Factor, Self Resonant Frequency,
See Individual
DC Resistance, Rated DC Current
Product Listings
and Inductance Tolerance
0603
1 ~ 470nH
-40°C ~ 85°C
ENVIRONMENTAL CHARACTERISTICS
Test
Solderability
Humidity Resistance
Soldering Effect
Test Method & Condition
After 5 Sec. Dip in +230°C Solder Pot (Post Flux)
After 500 Hrs at +40°C and 90~95% RH (No Load)
After 10 Sec. at +270°C (1 Minute, 150°C Pre-Heat)
(1) No Evidence of Damage
After 5 Cycles
Thermal Shock
(2) Inductance Shall Be Within ±10% of Initial Value
0201 & 0402: -55°C ~ +125°C within 3 minutes
(3) Q Factor Shall Be Within ±20% of Initial Value
0603: -40°C ~ +85°C within 3 minutes
High Temperature Load Life
After 500 hours at +85°C with Rated DC Current
Humidity Load Life
After 500 Hrs at +40°C with 90~95% RH at Rated DC Current
Specification
75% Min. Coverage
PART NUMBER SYSTEM
NML 04 J 22N TR F
RoHS compliant
Packaging: TR = Tape/Reel
Inductance Code (N=decimal point) in nano-henries
(Ex. 2N2 = 2.2nH, 33N=33nH, R10=100nH)
Tolerance Code (B=±0.1nH, C=±0.2nH, D=±0.3nH, G=±2%, H=±3%, J=±5%)
Size Code: 02=0201, 04=0402, 06=0603
Series
COMPONENT AND LAND PATTERN DIMENSIONS
Series
NML02
NML04
NML06
L
0.6 ± 0.03
1.0 ± 0.05
1.6 ± 0.15
W
0.3 ± 0.03
0.5 ± 0.05
0.8 ± 0.15
H
0.33 max.
0.5 ± 0.05
0.8 ± 0.15
t
0.1 ~ 0.2
0.1 ~ 0.3
0.2 ~ 0.6
A
B
C
0.20 ~ 0.30 0.25 ~ 0.30 0.15 ~ 0.35
0.35 ~ 0.45 0.40 ~ 0.50 0.30 ~ 0.50
0.70 ~ 0.80 0.60 ~ 0.80 0.70 ~ 1.00
Solder
Pads
Body Composition:
Al
2
O
3
/B
2
O
3
/SiO
2
Termination Material:
Sn over NI barrier over Ag base
C
H
B
t
t
L
w
A
Component
A
1
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Multilayer Chip Inductors
NML02 SERIES
NIC
P/N
NML Series
Typical Q Factor
DCR
(ohms)
Rated
DC Current
Max. (mA) Max.
800
600
600
600
600
550
550
500
500
500
450
450
450
450
450
450
450
450
450
450
450
450
450
450
400
400
400
400
400
400
350
350
350
350
300
300
300
250
250
250
VALUES AND SPECIFICATIONS
'Q'
L&Q
SRF SRF
'L' Tolerance
Factor Test Freq. GHz GHz
(nH)
(std)*
(min.)
(MHz)
(min.) (typ.)
100 500 800 900 1.8
2.0
2.4
MHz MHz MHz MHz GHZ GHZ GHZ Typ.
NML02_0N6TRF 0.6
C, B
4
100
10
>13
6
15
19
20
33
36
40 0.05 0.08
NML02_1N0TRF 1.0
D, C, B
4
100
10
>13
5
13
17
18
28
30
33 0.09 0.14
NML02_1N1TRF 1.1
D, C, B
4
100
10
>13
6
14
18
20
30
32
34 0.09 0.14
NML02_1N2TRF 1.2
D, C, B
4
100
10
>13
6
14
18
19
28
30
32 0.09 0.14
NML02_1N3TRF 1.3
D, C, B
4
100
10
>13
6
13
17
18
27
28
31 0.10 0.14
NML02_1N4TRF 1.4
D, C, B
4
100
10
>13
6
14
18
20
30
32
34 0.10 0.18
NML02_1N5TRF 1.5
D, C, B
4
100
10
>13
6
14
18
20
30
32
34 0.10 0.18
NML02_1N6TRF 1.6
D, C, B
4
100
10
>13
6
14
18
20
28
30
31 0.12 0.18
NML02_1N7TRF 1.7
D, C, B
4
100
10
>13
6
14
18
20
28
30
31 0.13 0.19
NML02_1N8TRF 1.8
D, C, B
4
100
10
>13
6
14
18
20
28
30
31 0.13 0.19
NML02_1N9TRF 1.9
D, C, B
4
100
10
>13
6
14
18
19
28
29
31 0.14 0.20
NML02_2N0TRF 2.0
D, C, B
4
100
10
>13
6
14
18
19
28
29
31 0.14 0.20
NML02_2N1TRF 2.1
D, C, B
4
100
10
>13
6
13
17
18
26
28
30 0.15 0.20
NML02_2N2TRF 2.2
D, C, B
4
100
10
>13
6
13
17
18
26
28
30 0.15 0.22
NML02_2N3TRF 2.3
D, C, B
4
100
10
>13
6
13
17
18
26
28
30 0.15 0.22
NML02_2N4TRF 2.4
D, C, B
4
100
10
11.70
6
14
18
20
28
29
31 0.15 0.24
NML02_2N5TRF 2.5
D, C, B
4
100
10
11.70
6
14
18
20
28
29
31 0.15 0.24
NML02_2N6TRF 2.6
D, C, B
4
100
10
11.34
6
14
18
19
28
29
31 0.17 0.25
NML02_2N7TRF 2.7
D, C, B
5
100
10
11.34
6
14
18
19
28
29
31 0.17 0.25
NML02_2N9TRF 2.9
D, C, B
5
100
9.5 11.00
6
14
18
19
28
29
31 0.20 0.28
NML02_3N0TRF 3.0
D, C, B
5
100
9.5 11.00
7
15
19
21
30
31
33 0.20 0.28
NML02_3N1TRF 3.1
D, C, B
5
100
9.5 11.00
7
15
19
21
30
31
33 0.20 0.28
NML02_3N2TRF 3.2
D, C, B
5
100
9.5 10.80
6
14
19
20
29
30
32 0.20 0.30
NML02_3N3TRF 3.3
D, C, B
5
100
9.5 10.40
6
14
19
20
29
30
32 0.20 0.30
NML02_3N4TRF 3.4
D, C, B
5
100
8.0 10.00
6
14
19
20
29
30
32 0.22 0.30
NML02_3N5TRF 3.5
D, C, B
5
100
8.0
9.00
6
14
18
20
28
29
31 0.23 0.30
NML02_3N6TRF 3.6
D, C, B
5
100
8.0
9.00
6
14
18
20
28
29
31 0.23 0.30
NML02_3N7TRF 3.7
D, C, B
5
100
8.0
9.00
6
14
18
20
28
29
31 0.23 0.30
NML02_3N8TRF 3.8
D, C, B
5
100
6.5
8.79
6
15
19
20
28
29
31 0.23 0.30
NML02_3N9TRF 3.9
D, C, B
5
100
6.5
8.79
6
15
19
20
28
29
31 0.23 0.30
NML02_4N3TRF 4.3
H, D, C
5
100
6.5
8.00
6
14
18
19
27
28
29 0.24 0.40
NML02_4N7TRF 4.7
H, D, C
5
100
6.5
7.75
6
14
19
19
26
27
29 0.26 0.40
NML02_5N1TRF 5.1
H, D, C
5
100
6.5
7.21
6
13
17
18
25
25
26 0.26 0.40
NML02_5N6TRF 5.6
H, D, C
5
100
6.0
6.68
7
14
18
19
26
27
27 0.32 0.40
NML02_6N2TRF 6.2
H, D, C
5
100
6.0
6.80
6
14
18
19
26
26
30 0.32 0.44
NML02_6N8TRF 6.8
J, H
5
100
5.4
6.80
7
14
18
19
26
26
26 0.34 0.50
NML02_7N5TRF 7.5
J, H
5
100
4.8
6.00
6
15
18
20
25
25
25 0.36 0.53
NML02_8N2TRF 8.2
J, H
5
100
4.8
5.80
7
15
18
19
19
24
24 0.38 0.55
NML02_9N1TRF 9.1
J, H
5
100
4.5
5.00
6
13
16
17
21
20
18 0.38 0.62
NML02_10NTRF 10
J, H
5
100
4.5
4.86
6
13
16
17
20
20
18 0.40 0.65
Tolerance Code (B=±0.1nH, C=±0.2nH, D=±0.3nH, G=±2%, H=±3%, J=±5%). Contact NIC for availability of other values and tolerances
not shown.
2
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Multilayer Chip Inductors
NML04 SERIES
NIC
P/N
NML Series
SRF
GHz
(typ.)
Typical Q Factor
DCR
(ohms)
Rated
DC Current
Max. (mA) Max.
380
380
380
380
380
380
380
380
380
380
380
380
380
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
200
200
200
200
200
200
200
150
140
130
120
110
VALUES AND SPECIFICATIONS
'Q'
L&Q
SRF
'L' Tolerance
Factor Test Freq. GHz
(nH)
(std)*
(min.)
(MHz) (min.)
100 500 800 900 1.8
2.0
2.4
MHz MHz MHz MHz GHZ GHZ GHZ Typ.
NML04_0N6TRF 0.6
B
8
100
10.0 >13.0
12
40
60
65
100 120 140 0.02 0.08
NML04_1N0TRF 1.0
D, C, B
8
100
10.0 >13.0
12
29
38
41
63
71
75 0.02 0.08
NML04_1N1TRF 1.1
D, C, B
8
100
10.0 >13.0
11
29
37
40
60
67
72 0.03 0.08
NML04_1N2TRF 1.2
D, C, B
8
100
10.0 >13.0
11
29
38
41
61
68
73 0.03 0.09
NML04_1N3TRF 1.3
D, C, B
8
100
10.0 >13.0
11
30
38
41
61
67
72 0.04 0.09
NML04_1N5TRF 1.5
D, C, B
8
100
10.0 >13.0
11
27
35
38
57
63
68 0.05 0.10
NML04_1N6TRF 1.6
D, C, B
8
100
10.0 >13.0
11
28
35
38
57
64
68 0.05 0.10
NML04_1N8TRF 1.8
D, C, B
8
100
10.0 12.22
11
26
33
36
53
58
61 0.05 0.12
NML04_2N0TRF 2.0
D, C, B
8
100
10.0 12.89
10
23
29
31
45
49
52 0.06 0.12
NML04_2N2TRF 2.2
D, C, B
8
100
10.0 12.43
10
24
31
33
48
52
55 0.06 0.13
NML04_2N4TRF 2.4
D, C, B
8
100
10.0 12.32
10
25
31
34
49
53
57 0.07 0.13
NML04_2N7TRF 2.7
D, C, B
8
100
6.0
10.07
11
27
35
37
54
58
60 0.09 0.16
NML04_3N0TRF 3.0
D, C, B
8
100
6.0
8.76
10
25
32
34
49
53
55 0.09 0.16
NML04_3N3TRF 3.3
D, C, B
8
100
6.0
8.12
11
25
32
35
50
54
56 0.09 0.16
NML04_3N6TRF 3.6
D, C, B
8
100
6.0
8.20
10
24
31
33
46
49
49 0.10 0.20
NML04_3N9TRF 3.9
D, C, B
8
100
6.0
8.39
11
24
30
33
46
49
51 0.10 0.20
NML04_4N3TRF 4.3
D, C, B
8
100
6.0
7.50
11
26
33
35
50
53
54
0.11 0.20
NML04_4N7TRF 4.7
D, C, B
8
100
6.0
7.01
11
25
32
35
49
51
53
0.11 0.20
NML04_5N1TRF 5.1
D, C, B
8
100
5.3
6.34
11
25
32
35
46
48
49 0.13 0.23
NML04_5N6TRF 5.6
D, C, B
8
100
4.5
5.76
11
25
32
35
46
48
49 0.13 0.23
NML04_6N2TRF 6.2
D, C, B
8
100
4.5
5.49
11
26
32
34
46
48
49 0.15 0.25
NML04_6N8TRF 6.8
J, H, G
8
100
4.5
5.43
11
26
32
35
46
48
48 0.14 0.25
NML04_7N5TRF 7.5
J, H, G
8
100
4.2
5.00
11
26
32
35
46
48
48 0.16 0.28
NML04_8N2TRF 8.2
J, H, G
8
100
3.7
4.66
11
26
32
34
42
42
40 0.17 0.28
NML04_9N1TRF 9.1
J, H, G
8
100
3.4
4.40
11
25
31
34
42
42
40 0.22 0.30
NML04_10NTRF 10
J, H, G
8
100
3.4
4.12
11
23
29
31
37
37
34 0.24 0.31
NML04_12NTRF 12
J, H, G
8
100
3.0
3.82
11
24
31
33
37
36
30 0.30 0.45
NML04_13NTRF 13
J, H, G
8
100
3.0
3.82
11
24
31
33
37
36
30 0.35 0.50
NML04_15NTRF 15
J, H, G
8
100
2.5
3.35
11
23
30
32
35
33
28 0.38 0.55
NML04_18NTRF 18
J, H, G
8
100
2.2
2.97
11
23
28
29
30
28
22 0.37 0.65
NML04_22NTRF 22
J, H, G
8
100
1.9
2.64
11
22
27
28
22
18
6
0.45 0.70
NML04_24NTRF 24
J, H
8
100
1.7
2.64
11
22
27
28
22
18
6
0.45 0.70
NML04_27NTRF 27
J, H
8
100
1.7
2.37
11
22
26
27
16
11
4
0.49 0.80
NML04_33NTRF 33
J, H
8
100
1.6
2.04
11
22
25
26
12
5
-
0.63 0.90
NML04_39NTRF 39
J, H
8
100
1.2
1.80
11
20
22
22
-
-
-
0.70 1.00
NML04_47NTRF 47
J, H
8
100
1.1
1.66
11
20
21
21
-
-
-
0.82 1.10
NML04_56NTRF 56
J, H
8
100
1.0
1.56
11
19
19
18
-
-
-
0.84 1.10
NML04_68NTRF 68
J, H
8
100
0.80
1.33
11
18
17
15
-
-
-
0.99 1.20
NML04_82NTRF 82
J, H
8
100
0.60
1.16
11
18
15
12
-
-
-
1.09 1.30
NML04_R10TRF 100
J, H
8
100
0.60
1.02
11
17
12
9
-
-
-
1.19 1.60
NML04_R12TRF 120
J
8
100
0.50
0.86
11
16
7
-
-
-
-
1.31 1.60
NML04_R15TRF 150
J
8
100
0.55
0.80
11
14
-
-
-
-
-
2.00 3.20
NML04_R18TRF 180
J
8
100
0.50
0.81
12
-
-
-
-
-
-
2.97 3.70
NML04_R22TRF 220
J
8
100
0.45
0.70
12
-
-
-
-
-
-
3.29 4.20
NML04_R27TRF 270
J
8
100
0.40
0.60
12
-
-
-
-
-
-
3.92 4.80
Tolerance Code (B=±0.1nH, C=±0.2nH, D=±0.3nH, G=±2%, H=±3%, J=±5%). Contact NIC for availability of other values and tolerances
not shown.
3
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Multilayer Chip Inductors
NML06 SERIES
NIC
P/N
NML Series
Typical Q Factor
DCR
(ohms)
VALUES AND SPECIFICATIONS
'Q'
L&Q
SRF
'L' Tolerance
Factor Test Freq. GHz
(nH)
(std)*
(min.)
(MHz) (min.)
SRF
GHz
(typ.)
100 500 800 900 1.8
2.0
2.4
MHz MHz MHz MHz GHZ GHZ GHZ Typ.
NML06_1N0TRF 1.0
D, B
8
100
10
>13.0
14
40
53
60
93
32
174 0.01 0.05
NML06_1N2TRF 1.2
D, B
8
100
10
>13.0
14
38
49
54
84
32
143 0.02 0.05
NML06_1N5TRF 1.5
D, B
8
100
10
>13.0
12
31
39
43
62
33
88 0.03 0.10
NML06_1N8TRF 1.8
D, C, B
8
100
10
>13.0
13
34
42
46
68
37
97 0.04 0.10
NML06_2N0TRF 2.0
D, B
8
100
8.0
11.69
14
36
46
50
73
42
101 0.05 0.10
NML06_2N2TRF 2.2
D, C, B
8
100
8.0
11.69
14
36
46
50
73
42
101 0.05 0.10
NML06_2N4TRF 2.4
D, B
8
100
7.0
9.00
14
36
47
45
72
45
94 0.06 0.13
NML06_2N7TRF 2.7
D, B
10
100
7.0
8.93
14
36
47
45
72
45
94 0.06 0.13
NML06_3N0TRF 3.0
D, B
10
100
6.0
6.44
14
37
47
50
67
47
77 0.07 0.13
NML06_3N3TRF 3.3
D, B
10
100
6.0
6.44
14
37
47
50
67
47
77 0.07 0.13
NML06_3N6TRF 3.6
D, B
10
100
6.0
6.88
14
36
45
49
66
48
80 0.08 0.15
NML06_3N9TRF 3.9
D, B
10
100
6.0
7.28
15
36
46
49
66
48
81 0.08 0.15
NML06_4N7TRF 4.7
D, B
10
100
5.0
6.47
15
39
50
53
70
53
80 0.09 0.20
NML06_5N6TRF 5.6
D, B
10
100
4.0
5.23
15
39
50
54
67
52
69 0.10 0.23
NML06_6N8TRF 6.8
J, G
10
100
4.0
5.47
15
38
49
52
66
53
66
0.11 0.25
NML06_8N2TRF 8.2
J, G
10
100
4.0
4.46
16
37
48
50
59
49
54 0.14 0.28
NML06_10NTRF 10
J, G
12
100
3.0
4.36
16
39
49
52
60
50
52 0.15 0.30
NML06_12NTRF 12
J, G
12
100
3.0
3.48
16
36
46
48
47
39
31 0.17 0.35
NML06_15NTRF 15
J, G
12
100
2.0
3.31
17
40
50
52
49
41
31 0.19 0.40
NML06_18NTRF 18
J, G
12
100
2.0
3.08
17
39
48
50
43
35
21 0.21 0.45
NML06_22NTRF 22
J, G
12
100
2.0
2.67
17
39
46
47
29
19
1
0.29 0.50
NML06_27NTRF 27
J, G
12
100
1.0
2.27
18
39
45
46
19
8
-
0.27 0.55
NML06_33NTRF 33
J, G
12
100
1.0
1.97
18
39
43
43
-
-
-
0.36 0.60
NML06_39NTRF 39
J, G
12
100
1.0
1.83
19
36
39
37
-
-
-
0.37 0.65
NML06_47NTRF 47
J, G
12
100
0.90
1.67
17
34
36
34
-
-
-
0.47 0.70
NML06_56NTRF 56
J, G
12
100
0.90
1.53
19
35
34
31
-
-
-
0.46 0.75
NML06_68NTRF 68
J, G
12
100
0.70
1.36
18
33
29
25
-
-
-
0.51 0.85
NML06_82NTRF 82
J, G
12
100
0.60
1.29
19
32
25
20
-
-
-
0.57 0.95
NML06_R10TRF 100
J
12
100
0.60
1.09
18
30
19
12
-
-
-
0.69 1.0
NML06_R12TRF 120
J
8
50
0.50
1.03
19
28
14
-
-
-
-
0.74 1.2
NML06_R15TRF 150
J
8
50
0.50
0.82
18
21
-
-
-
-
-
0.78 1.2
NML06_R18TRF 180
J
8
50
0.40
0.69
17
17
-
-
-
-
-
0.92 1.3
NML06_R20TRF 200
J
8
50
0.40
0.63
16
13
-
-
-
-
-
1.19 1.5
NML06_R22TRF 220
J
8
50
0.40
0.63
16
13
-
-
-
-
-
1.19 1.5
NML06_R27TRF 270
J
8
50
0.40
0.52
16
-
-
-
-
-
-
1.19 1.9
NML06_R33TRF 330
J
8
50
0.35
0.45
14
-
-
-
-
-
-
1.50 2.1
NML06_R39TRF 390
J
8
50
0.35
0.40
14
-
-
-
-
-
-
1.80 2.3
NML06_R47TRF 470
J
8
50
0.30
0.36
13
-
-
-
-
-
-
2.04 2.6
Tolerance Code (B=±0.1nH, C=±0.2nH, D=±0.3nH, G=±2%, H=±3%, J=±5%). Contact NIC for availability of other values and tolerances
not shown.
Rated
DC Current
Max. (mA) Max.
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
600
600
600
600
600
600
600
600
600
600
500
500
500
400
300
300
300
300
300
300
300
200
200
150
150
4
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE

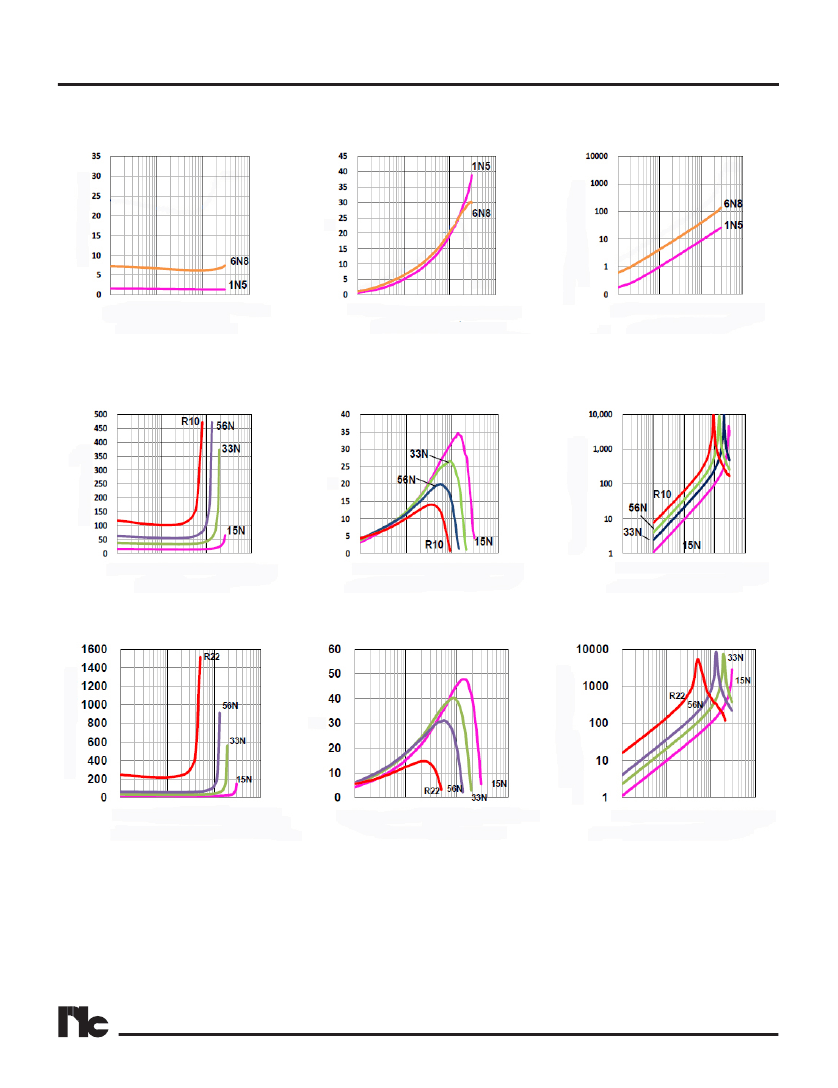

Renesas Electronics MCUs
京公网安备 11010802033920号
EEWORLD
