940-015M22-38P4 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 940-015M22-38P4

940-015M22-38P4: DescriptionCircular Connector Adapter; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

940-015M22-38P4 Overview

Circular Connector Adapter

940-015M22-38P4 Parametric

Parameter Name	Attribute value
Objectid	2085069286
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	CIRCULAR CONNECTOR ADAPTER
Manufacturer's serial number	940-015

Preview

Download Datasheet

View All

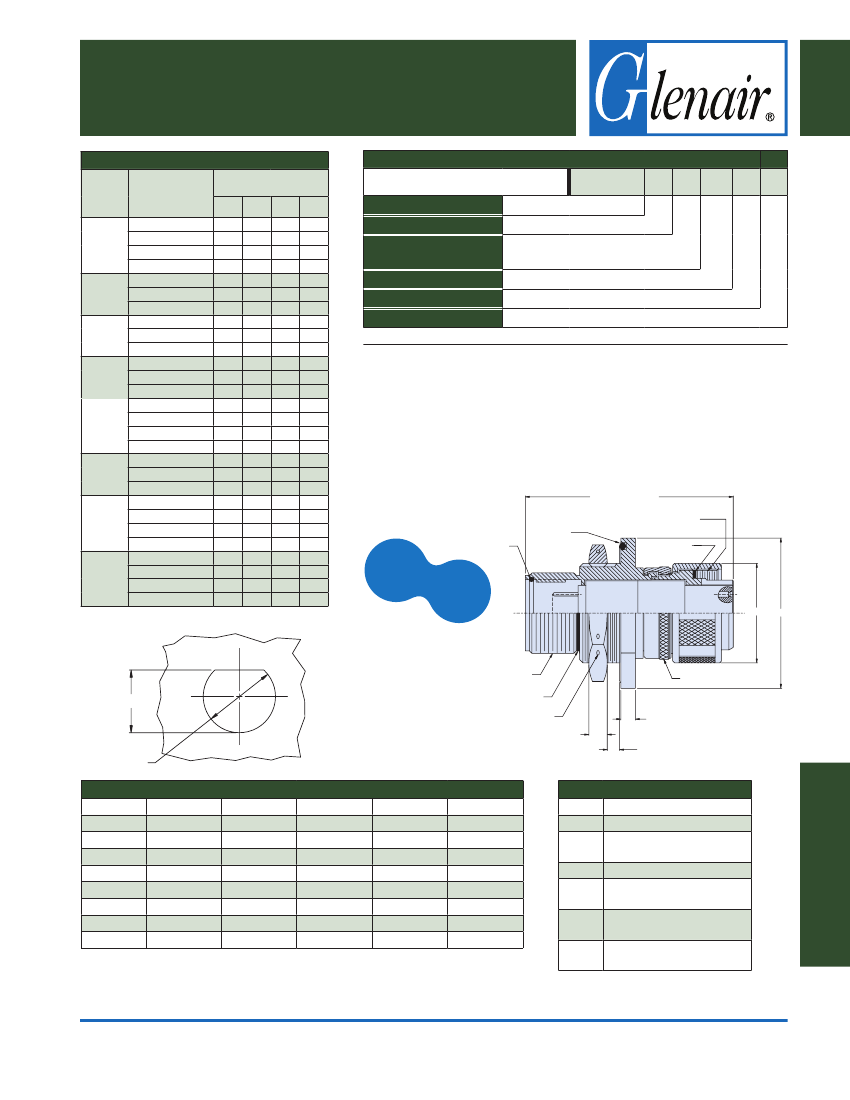

940-015

High-Pressure Environemental Jam Nut Mount

Sav-Con® Connector Saver

Table I: Insert Arrangements

Shell

Size

Insert

Arrangement

Dash No

-2

-4

-6

-13

-8

-10

-22

-12

-19

--37

-19

-26

-55

-11

-22

-32

-66

-41

-79

-38

-50

-55

-85

-24

-48

-61

-100

Contact Size and

Quantity

100

O-ring

How To Order

Sample Part Number

Series No.

Finish Symbol

Shell Size

Insert Arrangement

Contact Style

Alternate Key Position

940-015

B, J, M, N, NF, T, Z1

See Table III

10, 12, 14, 16, 18, 20, 22, 24

See Table II

See Table I

= Pin,

= Socket

N, 1, 2, 3 or 4

940-015

-61

Notes

1. Assembly identified with manufacturer's name and P/N, space permitting.

2. Glenair 940-014 connector saver is designed to mate with Glenair Series 22

Geo-Marine®connectors.

3. Material/finish:

Barrel, shell, coupling & jam nut - Al alloy/see Table III.

Contacts - copper alloy/gold plate.

Insulators - high grade rigid dielectric/n.a. O-ring & seals - silicone/n.a.

2.62 (66.55) Max

A Thread

Class 2B

Compression

Seal

MATES

WITH SERIES

A Thread

Class 2A

Knurl Style

Mfr Option - Typ

Red Color Band For Visual

Indication Of Full Mate

Hole For .032 Dia Safety

Wire, 3 Equally Spaced

.16 (4.06)

.156 (3.96) Max

.50 Max. Panel Accommodation

E Dia.

Table II: Dimensions

Table III: Finishes

.835 (21.21)

.960 (24.38)

1.085 (27.56)

1.210 (30.73)

1.335 (33.91)

1.460 (37.08)

1.585 (40.26)

1.710(43.43)

.885 (22.48)

1.010 (27.94)

1.135 (28.83)

1.260 (32.00)

1.385 (35.18)

1.510 (38.35)

1.635 (41.53)

1.760(44.70)

Sym

Finish Description

Cadmium Plate/Olive Drab

Gold Iridite Over Cadmium

Plate Over Nickel

Electroless Nickel

Cadmium Plate/Olive Drab

Over Nickel

Cad/O. D. Over Electroless

Nickel (500 Hour Salt Spray)

Cadmium Plate/Bright Dip

Over Nickel

Recommended Panel

Cut Out

Shell Size

A Thread

Dia

.750-.1P-.1L

.875-.1P-.1L

1.000-.1P-.1L

1.125-.1P-.1L

1.250-.1P-.1L

1.375-.1P-.1L

1.500-.1P-.1L

1.625-.1P-.1L

1.000 (25.40)

1.125 (28.58)

1.250 (31.75)

1.375 (34.93)

1.594 (40.49)

1.719 (43.66)

1.894 (48.11)

1.969 (50.01)

C Dia

1.25 (31.75)

1.38 (35.05)

1.50 (38.10)

1.63 (41.40)

1.75 (44.45)

1.88 (47.75)

2.00 (50.80)

2.12 (53.85)

Series 22 Geo-Marine

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

D-9

E-Mail: sales@glenair.com
