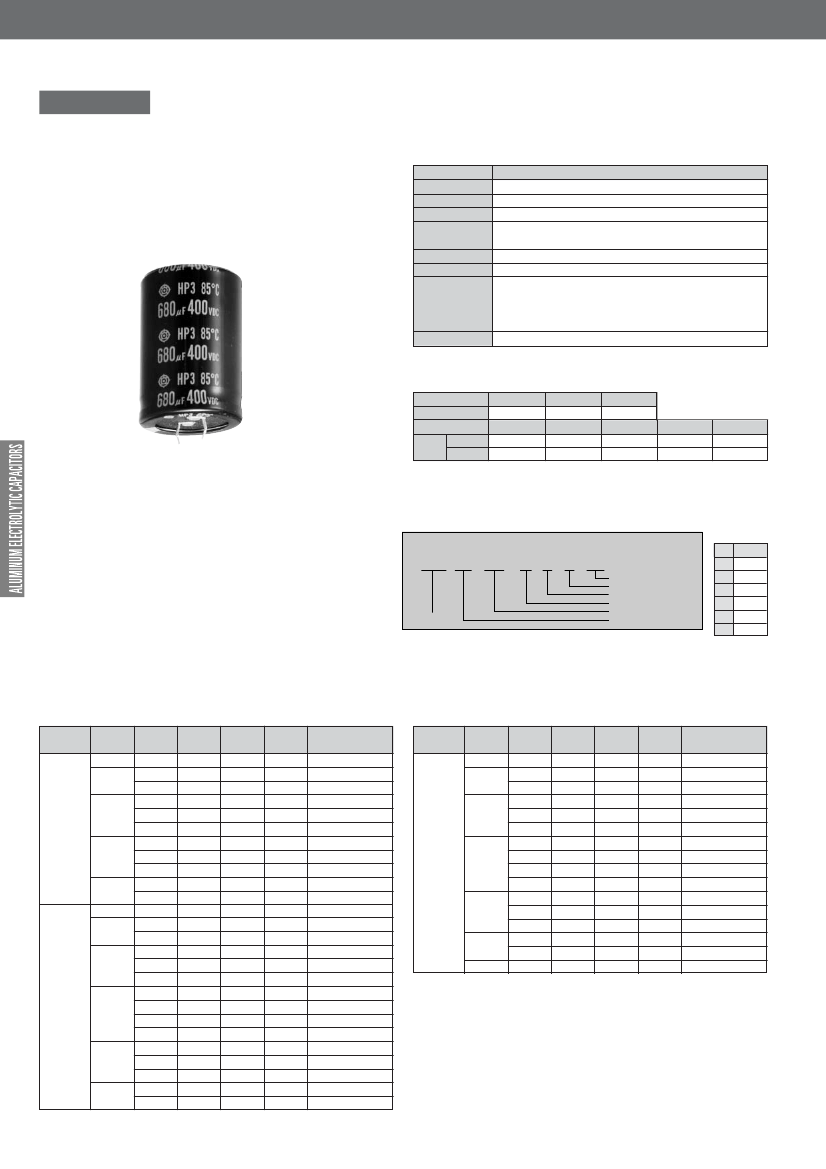

SNAP MOUNT TYPE ALUMINUM ELECTROLYTIC CAPACITORS

HP3 Series

• Conform RoHS

Useful of 4,000 hours at 85°C (Warranty of 2,000 hours at 85°C)

Features

• Rendered about 20% to 30% smaller than the

preceding HPR and HFR type predecessor

thanks to etching foil magnification increase.

Product Specifications

Items

Specifications

Temperature range –40°C ~ +85°C

Capacitance tolerance ±20% (20°C,120Hz)

Rated voltage 16 ~ 450V.DC

0.02CV (µA) or 3mA, whichever is smaller or less

Leakage current

[C = nominal capacitance (µF), V = rated voltage (V)]

Dissipation factor Less than the value specified in the standard products table. (20˚C,120Hz)

Permissible ripple current As specified in the standard products table. (85˚C,120Hz)

High temp.

Load life test

Others

After 85°C, 2000h, rated voltage with specified ripple current application

16 ~ 350V.DC / Capacitance variation

: Initial value ±15%

Dissipation factor

: 175% of less specified initial value

Leakage current

: Not greater than the specified initial value

400 ~ 450V.DC / Capacitance variation

: Initial value ±20%

Dissipation factor

: 200% of less specified initial value

Leakage current

: Not greater than the specified initial value

JIS C 5101-4.

Ripple current correction coefficient

Temperature (°C)

Correction coefficient

Frequency (Hz)

Correction 16~100V

coefficient 160~450V

60

1.4

50/60

0.7

70

1.2

120

1.0

85

1.0

300

1.1

1K

1.2

1.3

≥10K

1.2

1.4

A continuous load should be avoided over 10 A at the terminal in accordance with

the permissible current.

Product code : (Example) HP3 Series 16V 10,000µF

±20%

HP3 1C 103

M C X PF

Lead-Free (standard)

Case dia code

Terminal code

Capacitance tolerance code

Capacitance code

Rated voltage code

Type of series

Case dia code

øD Code

20

W

22

X

25

Y

30

Z

35

A

40

B

Refer to page (82) for other terminal shape available on request

Standard Products Table

Rated Voltage

Code

(Surge Voltage)

(V. DC)

Ripple current ESR(typ.)

Capacitance Case size

tanδ

(Arms) 20°C,100Hz

(µF) øDXL(mm) 20°C,120Hz

85°C,120Hz

(mΩ)

Product name

HP31C682MCXPF

HP31C103MCXPF

HP31C103MCYPF

HP31C153MCXPF

HP31C153MCYPF

HP31C153MCZPF

HP31C223MCYPF

HP31C223MCZPF

HP31C223MCAPF

HP31C333MCZPF

HP31C333MCAPF

HP31E472MCXPF

HP31E682MCXPF

HP31E682MCYPF

HP31E103MCXPF

HP31E103MCYPF

HP31E103MCZPF

HP31E153MCXPF

HP31E153MCYPF

HP31E153MCZPF

HP31E153MCAPF

HP31E223MCYPF

HP31E223MCZPF

HP31E223MCAPF

HP31E333MCZPF

HP31E333MCAPF

Rated Voltage

Code

(Surge Voltage)

(V. DC)

Ripple current ESR(typ.)

Capacitance Case size

tanδ

(Arms) 20°C,100Hz

(µF) øDXL(mm) 20°C,120Hz

85°C,120Hz

(mΩ)

Product name

HP31V332MCXPF

HP31V472MCXPF

HP31V472MCYPF

HP31V682MCXPF

HP31V682MCYPF

HP31V682MCZPF

HP31V103MCXPF

HP31V103MCYPF

HP31V103MCZPF

HP31V103MCAPF

HP31V153MCYPF

HP31V153MCZPF

HP31V153MCAPF

HP31V223MCZPF

HP31V223MCAPF

HP31V333MCAPF

6800

10000

16

1C

(20)

15000

22000

33000

4700

6800

10000

25

1E

(32)

15000

22000

33000

22×25

22×30

25×25

22×40

25×30

30×25

25×45

30×30

35×25

30×45

35×35

22×25

22×30

25×25

22×35

25×30

30×25

22×45

25×35

30×30

35×25

25×45

30×35

35×30

30×50

35×40

0.50

0.40

1.78

1.94

1.92

2.65

2.52

3.52

3.23

4.28

4.12

1.48

1.89

1.87

2.06

2.78

2.67

3.52

3.41

4.45

4.31

51

41

28

22

17

88

70

48

32

22

17

3300

4700

6800

35

1V

(44)

10000

15000

22000

33000

22×25

22×30

25×25

22×35

25×30

30×25

22×45

25×35

30×30

35×25

25×50

30×35

35×30

30×45

35×40

35×50

0.35

0.40

1.38

1.57

1.56

2.01

2.27

2.18

3.03

2.82

3.73

3.76

4.67

165

115

80

55

35

25

20

Hitachi AIC Inc.

88

SNAP MOUNT TYPE ALUMINUM ELECTROLYTIC CAPACITORS

Rated Voltage

Code

(Surge Voltage)

(V. DC)

50

1H

(63)

63

1J

(79)

80

1K

(100)

100

2A

(125)

Ripple current ESR(typ.)

Capacitance Case size

tanδ

Product name

(Arms) 20°C,100Hz

(µF) øDXL(mm) 20°C,120Hz

85°C,120Hz

(mΩ)

108

22×25

0.30

1.13

HP31H222MCXPF

2200

72

22×30

0.30

1.47

HP31H332MCXPF

3300

72

25×25

0.30

1.46

HP31H332MCYPF

50

22×35

0.30

1.67

HP31H472MCXPF

50

25×30

0.30

1.67

HP31H472MCYPF

4700

50

30×25

0.30

1.67

HP31H472MCZPF

35

22×50

0.30

2.31

HP31H682MCXPF

35

25×40

0.30

2.21

HP31H682MCYPF

6800

35

30×30

0.30

2.13

HP31H682MCZPF

35

35×25

0.30

2.13

HP31H682MCAPF

32

25×50

0.35

2.48

HP31H103MCYPF

32

30×35

0.35

2.30

HP31H103MCZPF

10000

32

35×30

0.35

2.30

HP31H103MCAPF

25

30×50

0.35

3.21

HP31H153MCZPF

15000

25

35×40

0.35

3.10

HP31H153MCAPF

159

22×25

0.25

1500

1.08

HP31J152MCXPF

108

22×30

0.25

1.20

HP31J222MCXPF

2200

108

25×25

0.25

1.19

HP31J222MCYPF

80

22×35

0.25

1.56

HP31J332MCXPF

80

25×30

0.25

3300

1.56

HP31J332MCYPF

80

30×25

0.25

1.56

HP31J332MCZPF

60

22×45

0.25

1.84

HP31J472MCXPF

60

25×35

0.25

1.77

HP31J472MCYPF

4700

60

30×30

0.25

1.77

HP31J472MCZPF

60

35×25

0.25

1.77

HP31J472MCAPF

40

25×50

0.25

2.42

HP31J682MCYPF

40

30×35

0.25

6800

2.25

HP31J682MCZPF

40

35×30

0.25

2.25

HP31J682MCAPF

35

30×45

0.35

2.52

HP31J103MCZPF

10000

35

35×40

0.35

2.53

HP31J103MCAPF

30

35×50

15000

0.35

3.36

HP31J153MCAPF

230

22×25

0.20

1000

0.88

HP31K102MCXPF

155

22×30

0.20

1.15

HP31K152MCXPF

1500

155

25×25

0.20

1.13

HP31K152MCYPF

105

22×40

0.20

1.34

HP31K222MCXPF

105

25×30

0.20

2200

1.28

HP31K222MCYPF

105

30×25

0.20

1.28

HP31K222MCZPF

70

22×50

0.25

1.80

HP31K332MCXPF

70

25×40

0.25

1.72

HP31K332MCYPF

3300

70

30×30

0.25

1.65

HP31K332MCZPF

70

35×25

0.25

1.65

HP31K332MCAPF

50

25×50

0.25

2.01

HP31K472MCYPF

50

30×40

0.25

4700

1.96

HP31K472MCZPF

50

35×30

0.25

1.87

HP31K472MCAPF

35

30×50

0.25

2.56

HP31K682MCZPF

6800

35

35×40

0.25

2.47

HP31K682MCAPF

180

22×30

0.20

0.94

HP32A102MCXPF

1000

180

25×25

0.20

0.93

HP32A102MCYPF

120

22×35

0.20

1.22

HP32A152MCXPF

120

25×30

1500

0.20

1.22

HP32A152MCYPF

120

30×25

0.20

1.22

HP32A152MCZPF

82

22×50

0.20

1.47

HP32A222MCXPF

82

25×40

0.20

1.41

HP32A222MCYPF

2200

82

30×30

0.20

1.35

HP32A222MCZPF

82

35×25

0.20

1.35

HP32A222MCAPF

60

25×50

0.20

1.88

HP32A332MCYPF

60

30×40

3300

0.20

1.83

HP32A332MCZPF

60

35×30

0.20

1.75

HP32A332MCAPF

45

30×50

0.25

2.12

HP32A472MCZPF

4700

45

35×40

0.25

2.05

HP32A472MCAPF

35

35×50

6800

0.25

2.68

HP32A682MCAPF

Rated Voltage

Code

(Surge Voltage)

(V. DC)

160

2C

(200)

180

2P

(225)

Ripple current ESR(typ.)

Capacitance Case size

tanδ

Product name

(Arms) 20°C,100Hz

(µF) øDXL(mm) 20°C,120Hz

85°C,120Hz

(mΩ)

365

22×25

0.15

1.50

HP32C391MCXPF

390

305

22×30

0.15

1.76

HP32C471MCXPF

470

305

25×25

0.15

1.74

HP32C471MCYPF

255

22×35

0.15

2.03

HP32C561MCXPF

560

255

25×30

0.15

2.02

HP32C561MCYPF

210

22×40

0.15

2.36

HP32C681MCXPF

210

25×30

0.15

2.24

HP32C681MCYPF

680

210

30×25

0.15

2.24

HP32C681MCZPF

175

22×45

0.15

2.72

HP32C821MCXPF

175

25×35

0.15

2.61

HP32C821MCYPF

820

175

30×30

0.15

2.61

HP32C821MCZPF

145

22×50

0.15

3.13

HP32C102MCXPF

145

25×40

0.15

3.00

HP32C102MCYPF

1000

145

30×30

0.15

2.88

HP32C102MCZPF

145

35×25

0.15

2.88

HP32C102MCAPF

120

25×45

0.15

3.44

HP32C122MCYPF

120

30×35

0.15

3.34

HP32C122MCZPF

1200

120

35×30

0.15

3.34

HP32C122MCAPF

95

30×40

0.15

3.91

HP32C152MCZPF

1500

95

35×35

0.15

3.96

HP32C152MCAPF

80

30×45

0.15

4.47

HP32C182MCZPF

1800

80

35×35

0.15

4.34

HP32C182MCAPF

375

330

22×25

0.15

1.38

HP32P331MCXPF

320

22×30

0.15

1.60

HP32P391MCXPF

390

320

25×25

0.15

1.58

HP32P391MCYPF

265

22×30

0.15

1.76

HP32P471MCXPF

470

265

25×25

0.15

1.74

HP32P471MCYPF

225

22×35

0.15

2.03

HP32P561MCXPF

225

560

25×30

0.15

2.03

HP32P561MCYPF

225

30×25

0.15

2.03

HP32P561MCZPF

185

22×40

0.15

2.36

HP32P681MCXPF

185

680

25×35

0.15

2.35

HP32P681MCYPF

185

30×25

0.15

2.24

HP32P681MCZPF

155

22×45

0.15

2.72

HP32P821MCXPF

155

25×40

0.15

2.72

HP32P821MCYPF

820

155

30×30

0.15

2.61

HP32P821MCZPF

155

35×25

0.15

2.61

HP32P821MCAPF

125

25×45

0.15

3.14

HP32P102MCYPF

125

1000

30×35

0.15

3.04

HP32P102MCZPF

125

35×25

0.15

2.88

HP32P102MCAPF

105

25×50

0.15

3.59

HP32P122MCYPF

105

1200

30×40

0.15

3.49

HP32P122MCZPF

105

35×30

0.15

3.34

HP32P122MCAPF

85

30×45

0.15

4.08

HP32P152MCZPF

1500

85

35×35

0.15

3.96

HP32P152MCAPF

70

35×40

0.15

4.50

HP32P182MCAPF

1800

70

40×36

0.15

4.56

HP32P182MSBPF

89

Hitachi AIC Inc.

SNAP MOUNT TYPE ALUMINUM ELECTROLYTIC CAPACITORS

Rated Voltage

Code

(Surge Voltage)

(V. DC)

200

2D

(250)

250

2E

(300)

Ripple current ESR(typ.)

Capacitance Case size

tanδ

Product name

(Arms) 20°C,100Hz

(µF) øDXL(mm) 20°C,120Hz

85°C,120Hz

(mΩ)

485

22×25

0.15

1.36

HP32D221MCXPF

220

395

22×25

0.15

1.50

HP32D271MCXPF

270

325

22×30

0.15

1.76

HP32D331MCXPF

330

325

25×25

0.15

1.75

HP32D331MCYPF

275

22×30

0.15

1.92

HP32D391MCXPF

390

275

25×25

0.15

1.90

HP32D391MCYPF

230

22×35

0.15

2.23

HP32D471MCXPF

230

25×30

0.15

2.23

HP32D471MCYPF

470

230

30×25

0.15

2.23

HP32D471MCZPF

190

22×40

0.15

2.57

HP32D561MCXPF

190

25×35

0.15

2.57

HP32D561MCYPF

560

190

30×25

0.15

2.44

HP32D561MCZPF

160

22×45

0.15

2.98

HP32D681MCXPF

160

25×35

0.15

2.86

HP32D681MCYPF

680

160

30×30

0.15

2.86

HP32D681MCZPF

160

35×25

0.15

2.86

HP32D681MCAPF

130

25×40

0.15

3.26

HP32D821MCYPF

130

30×30

0.15

3.13

HP32D821MCZPF

820

130

35×25

0.15

3.13

HP32D821MCAPF

110

25×50

0.15

3.92

HP32D102MCYPF

110

30×35

0.15

3.64

HP32D102MCZPF

1000

110

35×30

0.15

3.66

HP32D102MCAPF

90

30×40

0.15

4.19

HP32D122MCZPF

1200

90

35×35

0.15

4.25

HP32D122MCAPF

75

35×40

0.15

4.93

HP32D152MCAPF

1500

75

40×36

0.15

4.99

HP32D152MSBPF

70

35×50

0.15

5.84

HP32D182MCAPF

1800

70

40×41

0.15

5.66

HP32D182MSBPF

485

22×25

220

0.15

1.36

HP32E221MCXPF

395

22×30

0.15

1.60

HP32E271MCXPF

270

395

25×25

0.15

1.58

HP32E271MCYPF

325

22×35

0.15

1.87

HP32E331MCXPF

330

325

25×30

0.15

1.86

HP32E331MCYPF

275

22×35

0.15

2.04

HP32E391MCXPF

275

25×30

390

0.15

2.04

HP32E391MCYPF

275

30×25

0.15

2.04

HP32E391MCZPF

230

22×40

0.15

2.35

HP32E471MCXPF

230

25×35

0.15

2.35

HP32E471MCYPF

470

230

30×25

0.15

2.24

HP32E471MCZPF

230

35×25

0.15

2.38

HP32E471MCAPF

190

22×50

0.15

2.81

HP32E561MCXPF

190

25×40

0.15

2.69

HP32E561MCYPF

560

190

30×30

0.15

2.59

HP32E561MCZPF

190

35×25

0.15

2.59

HP32E561MCAPF

160

25×45

0.15

3.11

HP32E681MCYPF

160

680

30×35

0.15

3.01

HP32E681MCZPF

160

35×30

0.15

3.01

HP32E681MCAPF

130

25×50

0.15

3.55

HP32E821MCYPF

130

820

30×40

0.15

3.47

HP32E821MCZPF

130

35×30

0.15

3.31

HP32E821MCAPF

110

30×45

0.15

4.00

HP32E102MCZPF

1000

110

35×35

0.15

3.88

HP32E102MCAPF

90

30×50

0.15

4.55

HP32E122MCZPF

90

1200

35×40

0.15

4.40

HP32E122MCAPF

90

40×36

0.15

4.46

HP32E122MSBPF

75

35×50

0.15

5.34

HP32E152MCAPF

1500

75

40×41

0.15

5.29

HP32E152MSBPF

65

1800

40×51

0.15

6.11

HP32E182MSBPF

Rated Voltage

Code

(Surge Voltage)

(V. DC)

350

2V

(400)

400

2G

(450)

Ripple current ESR(typ.)

Capacitance Case size

tanδ

Product name

(Arms) 20°C,100Hz

(µF) øDXL(mm) 20°C,120Hz

85°C,120Hz

(mΩ)

1065 HP32V101MCXPF

22×25

0.15

0.76

100

885

22×30

0.15

0.89

HP32V121MCXPF

120

885

25×25

0.15

0.88

HP32V121MCYPF

710

22×30

0.15

0.99

HP32V151MCXPF

150

710

25×25

0.15

0.98

HP32V151MCYPF

590

22×35

0.15

1.15

HP32V181MCXPF

590

25×30

0.15

1.15

HP32V181MCYPF

180

590

30×25

0.15

1.15

HP32V181MCZPF

485

22×40

0.15

1.34

HP32V221MCXPF

485

25×35

0.15

1.34

HP32V221MCYPF

220

485

30×25

0.15

1.28

HP32V221MCZPF

395

22×50

0.15

1.63

HP32V271MCXPF

395

25×40

0.15

1.56

HP32V271MCYPF

270

395

30×30

0.15

1.50

HP32V271MCZPF

395

35×25

0.15

1.50

HP32V271MCAPF

325

25×45

0.15

1.80

HP32V331MCYPF

325

30×35

0.15

1.75

HP32V331MCZPF

330

325

35×30

0.15

1.75

HP32V331MCAPF

275

25×50

0.15

2.04

HP32V391MCYPF

275

30×40

0.15

1.99

HP32V391MCZPF

390

275

35×30

0.15

1.90

HP32V391MCAPF

230

30×40

0.15

2.19

HP32V471MCZPF

470

230

35×35

0.15

2.22

HP32V471MCAPF

190

30×50

0.15

2.59

HP32V561MCZPF

190

35×40

0.15

2.54

HP32V561MCAPF

560

190

40×36

0.15

2.54

HP32V561MSBPF

165

35×45

0.15

2.88

HP32V681MCAPF

680

165

40×41

0.15

2.90

HP32V681MSBPF

20×25

1065 HP32G101MCWS2PF

100

0.20

0.89

HP32G121MCWS3PF

20×30

885

0.20

1.04

120

HP32G121MCXS2PF

22×25

885

0.20

1.00

HP32G151MCWS4PF

20×35

710

0.20

1.24

HP32G151MCXS3PF

22×30

710

150

0.20

1.20

HP32G151MCYS2PF

25×25

710

0.20

1.18

HP32G181MCXS4PF

22×35

590

0.20

1.38

180

HP32G181MCYS3PF

25×30

590

0.20

1.38

HP32G221MCXS5PF

22×40

485

0.20

1.62

HP32G221MCYS3PF

25×30

485

220

0.20

1.52

HP32G221MCZS2PF

30×25

485

0.20

1.52

HP32G271MCXS6PF

22×45

395

0.20

1.88

HP32G271MCYS4PF

25×35

395

0.20

1.78

270

HP32G271MCZS3PF

30×30

395

0.20

1.79

HP32G271MCAS2PF

35×25

395

0.20

1.79

HP32G331MCXS7PF

22×50

325

0.20

2.17

HP32G331MCYS5PF

25×40

325

0.20

2.07

330

HP32G331MCZS3PF

30×30

325

0.20

1.98

HP32G331MCAS2PF

35×25

325

0.20

1.98

HP32G391MCYS6PF

25×45

275

0.20

2.36

390

HP32G391MCZS4PF

30×35

275

0.20

2.27

HP32G391MCAS3PF

35×30

275

0.20

2.28

HP32G471MCZS5PF

30×40

230

0.20

2.61

470

HP32G471MCAS4PF

35×35

230

0.20

2.63

HP32G561MCZS6PF

30×45

190

0.20

2.98

560

HP32G561MCAS4PF

35×35

190

0.20

2.87

680

HP32G681MCAS5PF

35×40

165

0.20

3.31

820

HP32G821MCAS7PF

35×50

137

0.20

3.94

Hitachi AIC Inc.

90

SNAP MOUNT TYPE ALUMINUM ELECTROLYTIC CAPACITORS

Rated Voltage

Code

(Surge Voltage)

(V. DC)

420

420V

(470)

Ripple current ESR(typ.)

Capacitance Case size

tanδ

Product name

(Arms) 20°C,100Hz

(µF) øDXL(mm) 20°C,120Hz

85°C,120Hz

(mΩ)

1340 HP3420V820MCWS2PF

20×25

0.20

82

0.81

1100 HP3420V101MCWS3PF

20×30

0.20

0.95

100

1100 HP3420V101MCXS2PF

22×25

0.20

0.92

915

HP3420V121MCWS3PF

20×30

0.20

120

1.04

735

HP3420V151MCWS4PF

20×35

0.20

1.24

735

HP3420V151MCXS3PF

22×30

0.20

150

1.20

735

HP3420V151MCYS2PF

25×25

0.20

1.18

610

HP3420V181MCXS4PF

22×35

0.20

1.39

610

HP3420V181MCYS3PF

25×30

0.20

180

1.38

610

HP3420V181MCZS2PF

30×25

0.20

1.38

500

HP3420V221MCXS5PF

22×40

0.20

1.62

500

HP3420V221MCYS4PF

25×35

0.20

220

1.61

500

HP3420V221MCZS2PF

30×25

0.20

1.52

407

HP3420V271MCXS7PF

22×50

0.20

1.96

407

HP3420V271MCYS5PF

25×40

0.20

1.87

270

407

HP3420V271MCZS3PF

30×30

0.20

1.79

407

HP3420V271MCAS2PF

35×25

0.20

1.79

335

HP3420V331MCYS6PF

25×45

0.20

2.17

335

HP3420V331MCZS4PF

30×35

330

0.20

2.08

335

HP3420V331MCAS3PF

35×30

0.20

2.10

283

HP3420V391MCYS7PF

25×50

0.20

2.46

283

HP3420V391MCZS5PF

30×40

390

0.20

2.38

283

HP3420V391MCAS3PF

35×30

0.20

2.28

235

HP3420V471MCZS6PF

30×45

0.20

2.73

470

235

HP3420V471MCAS4PF

35×35

0.20

2.63

200

HP3420V561MCZS7PF

30×50

0.20

3.10

560

200

HP3420V561MCAS5PF

35×40

0.20

3.01

170

HP3420V681MCAS6PF

35×45

680

0.20

3.45

135

HP3420V821MCAS7PF

35×50

820

0.20

3.94

Rated Voltage

Code

(Surge Voltage)

(V. DC)

450

2W

(500)

Ripple current ESR(typ.)

Capacitance Case size

tanδ

Product name

(Arms) 20°C,100Hz

(µF) øDXL(mm) 20°C,120Hz

85°C,120Hz

(mΩ)

1340 HP32W820MCWS2PF

20×25

0.20

0.81

82

1100 HP32W101MCWS3PF

20×30

0.20

0.95

100

1100 HP32W101MCXS2PF

22×25

0.20

0.92

915

HP32W121MCWS4PF

20×35

0.20

1.11

915

HP32W121MCXS3PF

22×30

0.20

120

1.07

915

HP32W121MCYS2PF

25×25

0.20

1.06

735

HP32W151MCXS4PF

22×35

0.20

1.26

735

HP32W151MCYS3PF

25×30

0.20

150

1.26

735

HP32W151MCZS2PF

30×25

0.20

1.26

610

HP32W181MCXS5PF

22×40

0.20

1.46

610

HP32W181MCYS3PF

25×30

0.20

180

1.38

610

HP32W181MCZS2PF

30×25

0.20

1.38

500

HP32W221MCXS6PF

22×45

0.20

1.70

500

HP32W221MCYS4PF

25×35

0.20

1.61

220

500

HP32W221MCZS3PF

30×30

0.20

1.62

500

HP32W221MCAS2PF

35×25

0.20

1.62

407

HP32W271MCXS7PF

22×50

0.20

1.96

407

HP32W271MCYS5PF

25×40

0.20

1.87

270

407

HP32W271MCZS3PF

30×30

0.20

1.79

407

HP32W271MCAS2PF

35×25

0.20

1.79

335

HP32W331MCYS7PF

25×50

0.20

2.26

330

335

HP32W331MCZS4PF

30×35

0.20

2.08

283

HP32W391MCZS5PF

30×40

0.20

2.38

390

283

HP32W391MCAS3PF

35×30

0.20

2.28

235

HP32W471MCZS6PF

30×45

0.20

2.73

470

235

HP32W471MCAS4PF

35×35

0.20

2.63

200

HP32W561MCAS5PF

35×40

560

0.20

3.01

170

HP32W681MCAS6PF

35×45

680

0.20

3.45

Life time graph

Useful life depending on ambient temperature Ta and ripple current operating conditions Ir versus rated ripple current at 85℃,120Hz

1,000,000

Series

HP3

100,000

Useful life (h)

10,000

Ta=70℃

Ta=70

Ta=85℃

Ta=85

Ta=60℃

Ta=60

1,000

0

0.5

1

1.5

Ripple Current of Diminishing Ratio(I/Ir,85

Ratio(I/Ir,85℃)

2

91

Hitachi AIC Inc.

Parameter Name	Attribute value
Objectid	913779469
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Other Terminal Shape Also Available
diameter	25 mm
dielectric materials	ALUMINUM
ESR	105 mΩ
length	30 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	80 V
ripple current	1280 mA
series	HP3(80V)

HP31K222MCYPF

HP31K222MCYPF Overview

HP31K222MCYPF Parametric

Preview

Recommended Resources
