463F3100JEM1M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 463F3100JEM1M

463F3100JEM1M: DescriptionFilm Capacitor; CategoryPassive components capacitor; File Size964KB，19 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

463F3100JEM1M Overview

Film Capacitor

463F3100JEM1M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1809916235
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.18
Other features	SAFETY CLASS X2
capacitance	0.1 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	12 mm
JESD-609 code	e3
length	13 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	BULK
positive tolerance	20%
Rated (AC) voltage (URac)	310 V
Rated (DC) voltage (URdc)	630 V
Guideline	CQC; CUL; ENEC; UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal pitch	10 mm
Terminal shape	WIRE
width	6 mm

Preview

Download Datasheet

View All

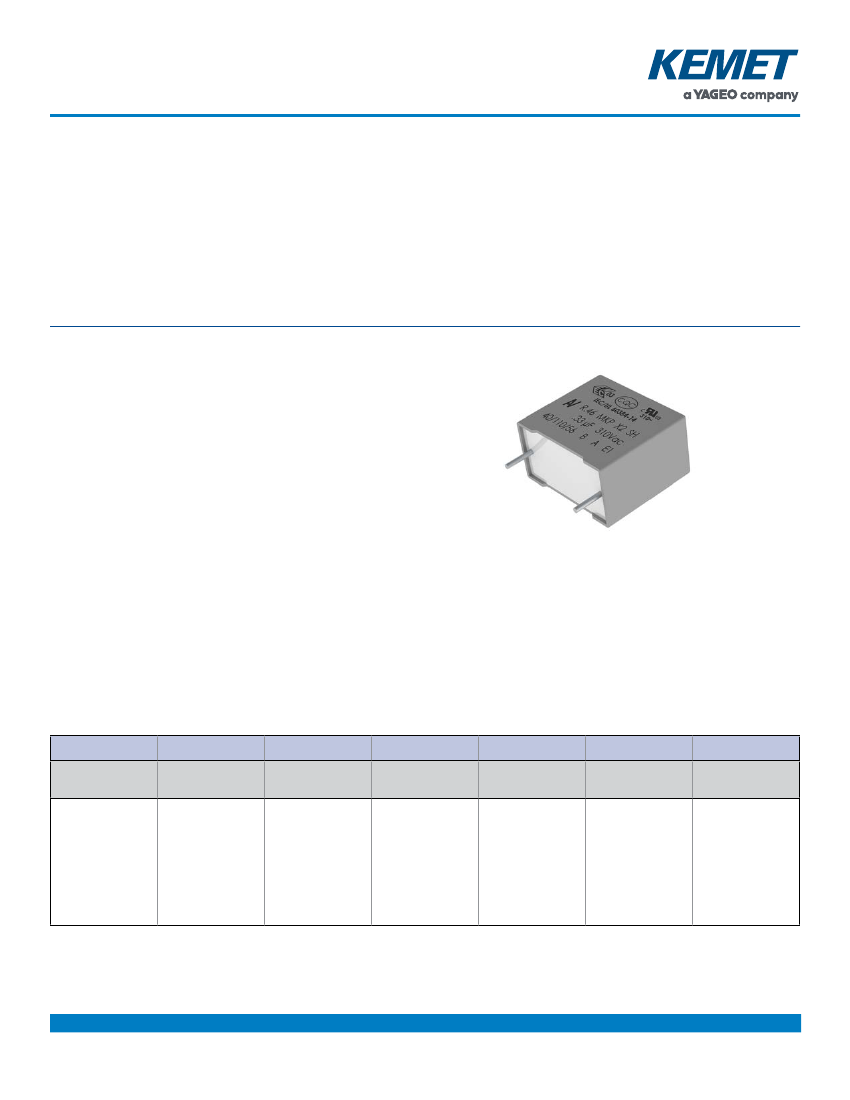

Metallized Polypropylene Film EMI Suppression Capacitors

R46, Class X2, 310 VAC, 110°C

Overview

Applications

For worldwide use in electromagnetic interference (EMI)

suppression in across-the-line applications that require X2

safety classification. Intended for use in situations in which

capacitor failure would not result in exposure to electric

shock. Not for use in "series with mains" type applications.

The R46 series is constructed of metallized polypropylene

film encapsulated with self-extinguishing resin in a box of

material that meets the requirements of UL 94 V–0.

Benefits

• Approvals: ENEC, UL, cUL, CQC

• X2 CLASS (IEC 60384-14)

• Rated voltage: 310 VAC 50/60 Hz

• Capacitance range: 0.01 – 10 µF

• Lead spacing: 10.0 – 37.5 mm

• Capacitance tolerance: ±20%, ±10%

• Climatic category 40/110/56, IEC 60068–1

• Tape & Reel in accordance with IEC 60286–2

• RoHS compliant and lead-free terminations

• Operating temperature range of −40°C to +110°C

• 100% screening factory test at 2,200 VDC/1,500 VAC

• Self healing properties

Part Number System

R46

Series

X2, Metallized

Polypropylene

Rated Voltage

(VAC)

3 = 310

Lead Spacing

(mm)

F = 10.0

I = 15.0

N = 22.5

R = 27.5

W = 37.5

3150

Capacitance

Code (pF)

The last three

digits represent

significant figures.

The first digit

specifies number

of zeros to be

added.

Packaging

See Ordering

Options Table

Internal Use

Capacitance

Tolerance

K = ±10%

M = ±20%

Built Into Tomorrow

Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com

KEM_F3095_R46_X2_310_110C • 1/13/2022
