General Purpose Metallized Polyester Film Capacitors
R60, Radial, 10.0 – 37.5 mm Lead Spacing,
50 – 1,000 VDC (Automotive Grade)
Overview

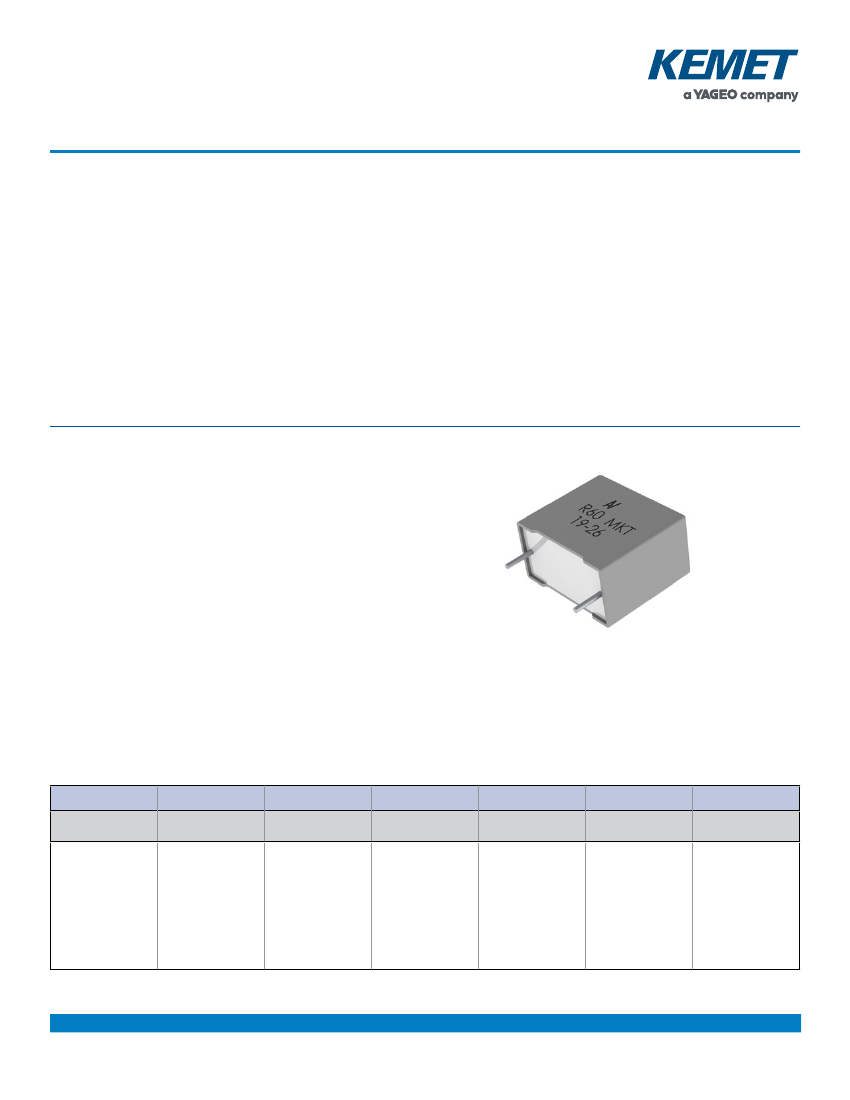

The R60 is constructed of metallized polyester film (wound
or stacked technology) with radial leads of tinned wire.
Radial leads are electrically welded to the contact metal
layer on the ends of the capacitor winding. The capacitor
is encapsulated with thermosetting resin in a box material
meeting the UL 94V–0 requirements.
R60 components (up to lead spacing 22.5 mm) meet the
demanding Automotive Electronics Council's AEC–Q200
qualification requirements.
Applications
Typical applications include blocking, coupling, decoupling,
bypassing and interference suppression in low voltage
applications such as automotive. Not suitable for across-
the-line application (see suppressor capacitors).
Benefits
• Voltage range: 50 – 1,000 VDC
• Capacitance range: 0.001 – 150.0 µF
• Lead spacing: 10.0 – 37.5 mm
• Capacitance tolerance: ±5%, ±10%, ±20%
• Climatic category: 55/105/56
• Operating temperature range of −55°C to +105°C
• RoHS compliance and lead (Pb)-free terminations
• Tape and reel packaging in accordance with IEC 60286–2
• Self-healing
• Automotive (AEC–Q200) grades up to pitch 22.5 mm
Part Number System
R60
Series
Metallized
Polyester
M
C = 50
D = 63
E = 100
G = 160
I = 250
M = 400
P = 630
Q = 1,000
F
F = 10.0
I = 15.0
N = 22.5
R = 27.5
W = 37.5
2470
Capacitance Code
(pF)
The last three
digits represent
significant figures.
First digit specifies
the number of zeros
to be added.
AA
Packaging
See Ordering
Options Table
60
Internal Use
00
01
30
40
50
6A
L0
L1
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
Rated Voltage (VDC) Lead Spacing (mm)
Built Into Tomorrow
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3103_R60 • 9/7/2021
1
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
R60, Radial, 10.0 – 37.5 mm Lead Spacing, 63 – 1,000 VDC (Automotive Grade)
Ordering Options Table
Lead Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Standard Reel Ø 355mm)
Tape & Reel (Large Reel Ø 500mm)
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Other Lead and Packaging Options
Tape & Reel (Large Reel Ø 500mm)
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Other Lead and Packaging Options
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Short Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
Bulk (Tray) – Long Leads
4 +2/−0
2.7 +0.5/−0
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
18 ±1
30 +5/−0
25 +2/−1
AA
JA
JB
JE
JH
JM
40
50
H0=18.5 ±0.5
2.7 +0.5/−0
3.5 +0.5/−0
4.0 +0.5/−0
3.2 +0.3/−0.2
18 ±1
30 +5/−0
25 +2/−1
CK
1
JA
JB
JE
JH
JM
40
50
4 +2/−0
AA
H0=18.5 ±0.5
H0=18.5 ±0.5
2.7 +0.5/−0
3.5 +0.5/−0
10 ±1
4.0 +0.5/−0
3.2 +0.3/−0.2
18 ±1
17 +1/−2
30 +5/−0
25 +2/−1
GY
CK
JA
JB
JC
JE
JH
JM*
Z3**
40***
50
4 +2/−0
H0=18.5 ±0.5
AA
DQ
LL Lead Length
(mm)
Lead and
Packaging
Code
10
15
22.5
27.5
37.5
* Only available for lead spacing ≥15 mm.
** Only available for 10 mm lead spacing.
*** Not available for Stacked Capacitor Technology with 10 mm Lead Spacing.
1
Not for all dimensions (see table "Packging Quantity")
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3103_R60 • 9/7/2021
2
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
R60, Radial, 10.0 – 37.5 mm Lead Spacing, 63 – 1,000 VDC (Automotive Grade)
Dimensions – Millimeters
FRONT VIEW
L
SIDE VIEW
T
H
S
F
LL
S
Nominal
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
37.5
T
Tolerance
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
±0.4
H
Tolerance
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.2/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
L
Tolerance
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.5
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
+0.1/−0.7
F
Tolerance
+0.2/−0.5
+0.2/−0.5
+0.2/−0.5
+0.3/−0.5
+0.3/−0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.5
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
+0.3/−0.7
Nominal
4.0
5.0
6.0
5.0
6.0
7.5
8.5
9.0
10.0
11.0
13.0
6.0
7.0
8.5
10.0
11.0
13.0
9.0
11.0
13.0
13.0
14.0
18.0
22.0
24.0
11.0
13.0
16.0
19.0
20.0
24.0
24.0
24.0
30.0
Nominal
9.0
11.0
12.0
11.0
12.0
13.5
14.5
12.5
16.0
19.0
12.0
15.0
16.0
17.0
18.5
20.0
22.0
17.0
20.0
12.0
22.0
28.0
33.0
37.0
15.0
22.0
24.0
28.5
32.0
40.0
15.0
19.0
44.0
45.0
Nominal
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
32.0
41.5
41.5
41.5
41.5
41.5
41.5
41.5
41.5
41.5
Nominal
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Tolerance
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
±0.05
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3103_R60 • 9/7/2021
3
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
R60, Radial, 10.0 – 37.5 mm Lead Spacing, 63 – 1,000 VDC (Automotive Grade)
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related Documents
Rated Voltage V
R
(VDC)
Rated Voltage V
R
(VAC)
Capacitance Range (µF)
Capacitance Values
Capacitance Tolerance
Operating Temperature
Range
Rated Temperature T
R
Voltage Derating
Climatic Category
Polyester film (polyethylene terephthalate)
Metal layer deposited by evaporation under vacum
Non-inductive type
Tinned wire
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to
UL 94.
IEC 60384–2
50
30
1.5 – 5.6
63
40
0.68 – 100
100
63
0.33 – 150
160
90
0.22 – 150
250
160
0.1 – 68
400
200
0.022 – 33
630
220
0.0047 – 10
1,000
250
0.001 – 4.7
E6 series (IEC 60063) measured at 1 kHz and +20 ±1°C
±5%, ±10%, ±20%
−55°C to +105°C
Upper operating temperature of +125°C is allowed for a maximum operating time of 1,000 hours.
+85°C
Above +85°C DC and AC voltage derating is 1.25%/°C
55/105/56 IEC 60068–1
Storage time: ≤ 24 months from the date marked on the label package
Average relative humidity per year ≤ 70%
Storage Conditions
RH ≤ 85% for 30 days randomly distributed throughout the year
Dew is absent
Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below)
Test Voltage
Capacitance Drift
Reliability
(Reference IEC-61709)
1.6 x V
R
VDC for 2 seconds (between terminations) at +25°C ±5°C
Maximum 3% after a 2 year storage period at a temperature of +10°C to +40°C and a relative humidity of 40%
to 60%
Operational life > 200,000 hours
Failure rate ≤ 1 FIT, T = +40°C, V = 0.5 x V
R
Failure criteria: open or short circuit, capacitance change > 10%, DF 2 times the catalog limits,
IR < 0.005 x initial limit
dV/dt according to Table 1. For peak to peak voltages lower than rated voltage (Vpp <V
R
), the specified dv/dt
can be multiplied by the factor V
R
/Vpp
+400 (±200) ppm/°C at 1 kHz
Lead Spacing
(mm)
L (nH)
10
9
15
10
22.5
18
27.5
18
37.5
22
Maximum Pulse Steepness
Temperature Coefficient
Self Inductance
(Lead Length ~ 2 mm)
Maximum 1 nH per 1 mm lead and capacitor length.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
F3103_R60 • 9/7/2021
4
Film Through-Hole Capacitors – General Purpose Metallized Polyester Film Capacitors
R60, Radial, 10.0 – 37.5 mm Lead Spacing, 63 – 1,000 VDC (Automotive Grade)
Performance Characteristics cont.
Maximum Values at 25°C ±5°C
Dissipation Factor tanδ
Frequency
1 kHz
10 kHz
C ≤ 1 μF
1.00%
1.50%
Measured at +25°C ±5°C, according to IEC 60384–2
Minimum Values Between Terminals
Insulation Resistance
Voltage Charge/Time
50 VDC for V
R
≤ 100 VDC
1 minute
100 VDC for V
R
> 100 VDC
1 minute
C ≤ 0.33 μF
≥ 3,750 MΩ
(≥ 50,000 MΩ ) *
≥ 30,000 MΩ
(≥ 50,000 MΩ ) *
C > 0.33 μF
≥ 1,250 MΩ • µF
(≥ 5,000 MΩ • µF ) *
≥ 10,000 MΩ • µF
(≥ 17,000 MΩ • µF ) *
C > 1 µF
1.00%
–
* typical value
100
90
80
70
Maximum Humidity in Storage Condition
45
40
35
30
Maximum Overtemperature
∆T
lim
vs T
h
Relative Humidity (%)
∆T
lim
(°C)
30 Days
Annual Average
−40
−20
0
60
50
40
30
20
10
0
20
40
60
80
25
20
15
10
5
0
Temperature (°C)
T
h
is the maximum ambient temperature surrounding the capacitor or hottest contact point (e.g. tracks), whichever is higher, in the worst operation
conditions in °C.
Qualification
Automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their
website at www.aecouncil.com.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
115
Temperature T
h
(°C)
F3103_R60 • 9/7/2021
5
Domestic Chip Exchange
京公网安备 11010802033920号
EEWORLD
