Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T419 MIL-PRF-55365/11 (CWR19 Style)
Overview

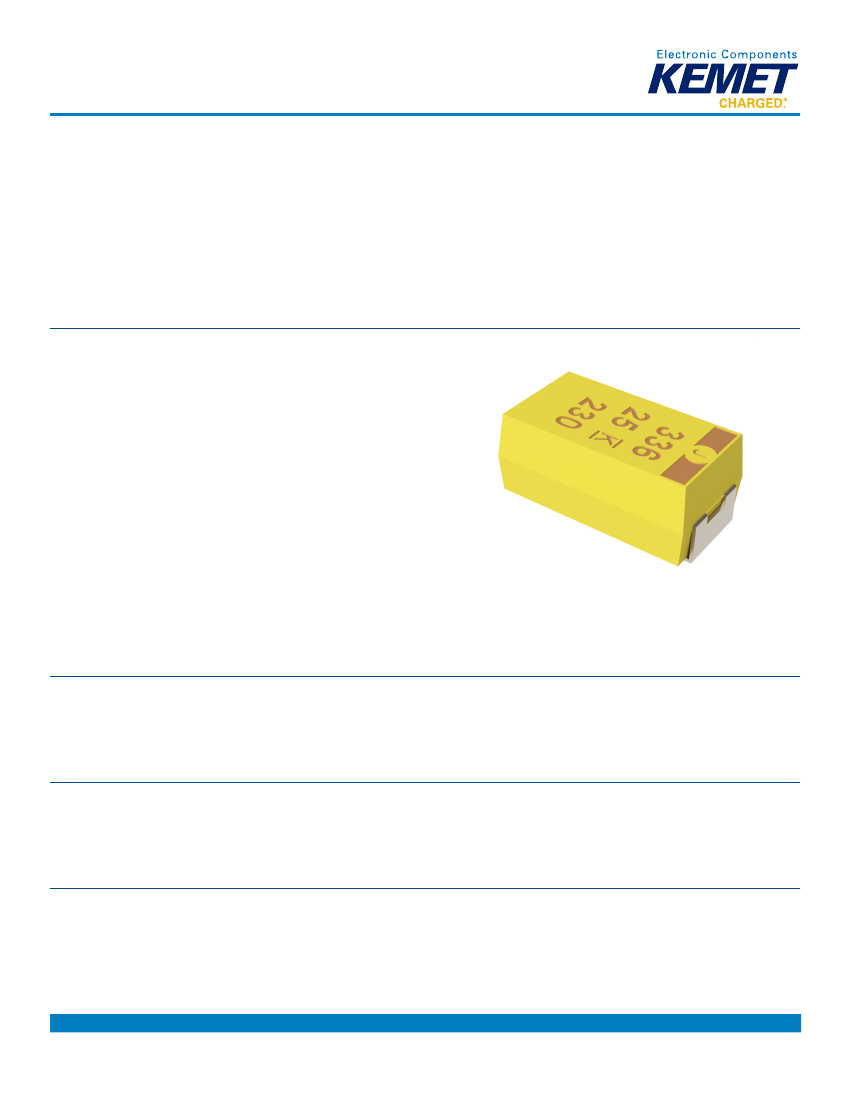

The KEMET T419 is approved to MIL-PRF-55365/11
(CWR19 Style) with Weibull failure rates of B level (0.1%
failures per 1,000 hours), C level (0.01% failures per 1,000
hours), D level (0.001% failures per 1,000 hours), or T level
(0.01% failures per 1,000 hours, Option C surge current,
DPA, radiographic inspection, 100% visual inspection, DCL
and ESR measurements within +3 standard deviations, and
Group C inspection). This CWR19 product is a precision-
molded device with compliant terminations and indelible
laser marking. Tape and reeling per EIA 481 is standard.
Benefits
• Established reliability options
• Taped and reeled per EIA 481
• Symmetrical, compliant terminations
• Laser-marked case
• 100% surge current test available on all case sizes
• Qualified to MIL-PRF-55365/11 (CWR19 Style)
• Termination options B, C, H, and K
• Weibull failure options B, C, D, and T
• Exponential failure rates M, P, R, and S
• Voltage rating of 4 – 35 VDC
• Operating temperature range of −55°C to +125°C
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering in military and aerospace applications requiring CWR19 devices.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn Solder.
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2002_T419 • 8/27/2018
1
Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T419 MIL-PRF-55365/11 (CWR19 Style)
KEMET
Ordering Information
T
Capacitor
Class
419
Series
A
225
K
004
A
Failure Rate/Design
Weibull
A = non-ER
B = (0.1%/1, 000 hours)
C = (0.01%/1,000 hours)
D = (0.001%/1,000 hours)
T = T Level*
(0.01%/1,000 hours)
Exponential
M = (1.0%/1,000 hours)
P = (0.1%/1,000 hours)
R = (0.01%/1,000 hours)
S = (0.001%/1,000 hours)
H
Termination
Finish
C = Hot solder
dipped
H = Standard
solder-coated
(SnPb 5% Pb
minimum)
B = Gold-plated
K = Solder fused
4251
Surge
Blank = No
surge
4250 = 25°C
after Weibull
4251 = −55°C
and 85°C after
Weibull
4252 = −55°C
and 85°C
before Weibull
TLVL = Weibull
grade level "T"
7280
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
7610 = Bulk bag
7005 = Moisture
bags
7640 = Bulk
plastic box
WAFL = Waffle
pack
Rated
Case Capacitance Capacitance
Voltage
Size
Code (pF)
Tolerance
(VDC)
T=
CWR19
A First two digits J = ±5%
004 = 4
Tantalum Established B
represent
K = ±10%
006 = 6.3
reliability
C
significant
M = ±20% 010 = 10
D
figures. Third
015 = 15
digit specifies
E
020 = 20
F
number of
025 = 25
G
zeros.
035 = 35
H
X
Ordering Information – Defense MIL-PRF-55365/11
CWR19
Capacitor Style
Per
MIL-
PRF-55365/11
K
Rated
Voltage
(VDC)
C=4
D = 6
F = 10
H = 15
J = 20
K = 25
M = 35
H
Termination Finish
225
Capacitance
Code (pF)
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
C
Reliability Level
Weibull
A = non-ER
B = (0.1%/1,000 hours)
C = (0.01%/1,000 hours)
D = (0.001%/1,000 hours)
T = T Level* (0.01%/1,000 hours)
Exponential
M = (1.0%/1,000 hours)
P = (0.1%/1,000 hours)
R = (0.01%/1,000 hours)
S = (0.001%/1,000 hours)
D
A
Case
Surge Current Option
Code
A
B
C
D
E
F
G
H
X
A = +25°C after
Weibull
B = −55°C +85°C
after Weibull
C = −55°C +85°C
before Weibull
Z = None
B = Gold-plated
First two digits
C = Hot solder dipped
represent
H = Solder plated
significant
K = Solder fused
figures. Third
digit specifies
number of
zeros.
* When T Level is ordered, no Surge Current Option is needed
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
0.33 – 330 µF at 120 Hz/25°C
J Tolerance (5%), K Tolerance (10%), M Tolerance (20%)
4 – 35 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
T2002_T419 • 8/27/2018
2
Performance Characteristics
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T419 MIL-PRF-55365/11 (CWR19 Style)
Qualification
Test
Endurance
Condition
Δ C/C
85°C at rated voltage, 2,000 hours
125°C at 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL-STD-202, Method 107, Condition B, mounted,
−55°C to 125°C, 1,000 cycles
DF
DCL
ESR
+25°C
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +125°C, +25°C
Δ C/C
DF
DCL
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage)
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
−55°C
±10%
IL
N/A
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±15%
1.5 x IL
12 x IL
Storage Life
125°C at 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
Mechanical Shock/Vibration
Additional qualification
tests per MIL-PRF-55365/11
*IL = Initial limit
MIL-STD-202, Method 213, Condition I, 100 G Peak
MIL-STD-202, Method 204, Condition D, 10 Hz to 2,000
Hz, 20 G peak
Please contact KEMET for more information.
Certification
MIL-PRF-55365/11
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2002_T419 • 8/27/2018
3
Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T419 MIL-PRF-55365/11 (CWR19 Style)
Electrical Characteristics
ESR vs. Frequency
1,000
T419D106/15_IMP
Capacitance vs. Frequency
1,000
T419D106/15
T419F336/15
Impedance, ESR (Ohms)
T419F336/15_IMP
T419D106/15_ESR
T419F336/15_ESR
T419F107/15_ESR
Capacitance (µF)
100
T419H107/15_IMP
100
T419H107/15
10
10
1
1
0.1
0
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2002_T419 • 8/27/2018
4
Tantalum Surface Mount Capacitors – MIL-PRF (CWR Style)
T419 MIL-PRF-55365/11 (CWR19 Style)
Dimensions – Millimeters (Inches)
Metric will govern
SIDE VIEW
L
H
P
P
Termination cutout
at KEMET's option,
either end
END VIEW
W
Solderable
Surfaces
BOTTOM VIEW
H
2
W
2
½ H
2
Min.
Case Size
KEMET
A
B
C
D
E
F
G
H
X
L ±0.38 (0.015)
2.54 (0.100)
3.81 (0.150)
5.08 (0.200)
3.81 (0.150)
5.08 (0.200)
5.59 (0.220)
6.73 (0.265)
7.24 (0.285)
6.93 (0.273)
Component
W ±0.38 (0.015) H ±0.38 (0.015)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
2.54 (0.100)
2.54 (0.100)
3.43 (0.135)
2.79 (0.110)
3.81 (0.150)
5.41 (0.213)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.78 (0.070)
2.79 (0.110)
2.79 (0.110)
2.74 (0.108)
P +0.25 (0.010),
-0.13 (0.005)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
1.27 (0.050)
1.27 (0.050)
1.19 (0.047)
W
2
1.27 ±0.13
(0.050 ±0.005)
1.27 ±0.13
(0.050 ±0.005)
1.27 ±0.13
(0.050 ±0.005)
2.41 +0.13,−0.25
(0.095 +0.005,−0.010)
2.41 +0.13,−0.25
(0.095 +0.005,−0.010)
3.30 ±0.13
(0.130 ±0.005)
2.67 ±0.13
(0.105 ±0.005)
3.68 +0.013,−0.51
(0.145 +0.005,−0.020)
3.05 ±0.13
(0.120 ±0.005)
H
2
Minimum
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
1.02 (0.040)
1.52 (0.060)
1.52 (0.060)
1.22 (0.048)
Typical Weight
(mg)
39.91
68.73
146.5
264.12
421.63
173.63
266.42
349.01
590.44
Note: When solder coated terminations are required, add an additional 0.38 mm (0.015 inch) to the above tolerances for "L", "W", "H", "P" ,"W
2
" and "H
2
."
These weights are provided as reference. If exact weights are needed, please contact your KEMET sales representative.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2002_T419 • 8/27/2018
5
