MAX508BCWP+T

Description
digital to analog converters - dac 12-bit precision dac
CategoryAnalog mixed-signal IC    converter
File Size368KB,12 Pages
ManufacturerMaxim
Websitehttps://www.maximintegrated.com/en.html
Environmental Compliance
Download Datasheet Parametric Compare View All

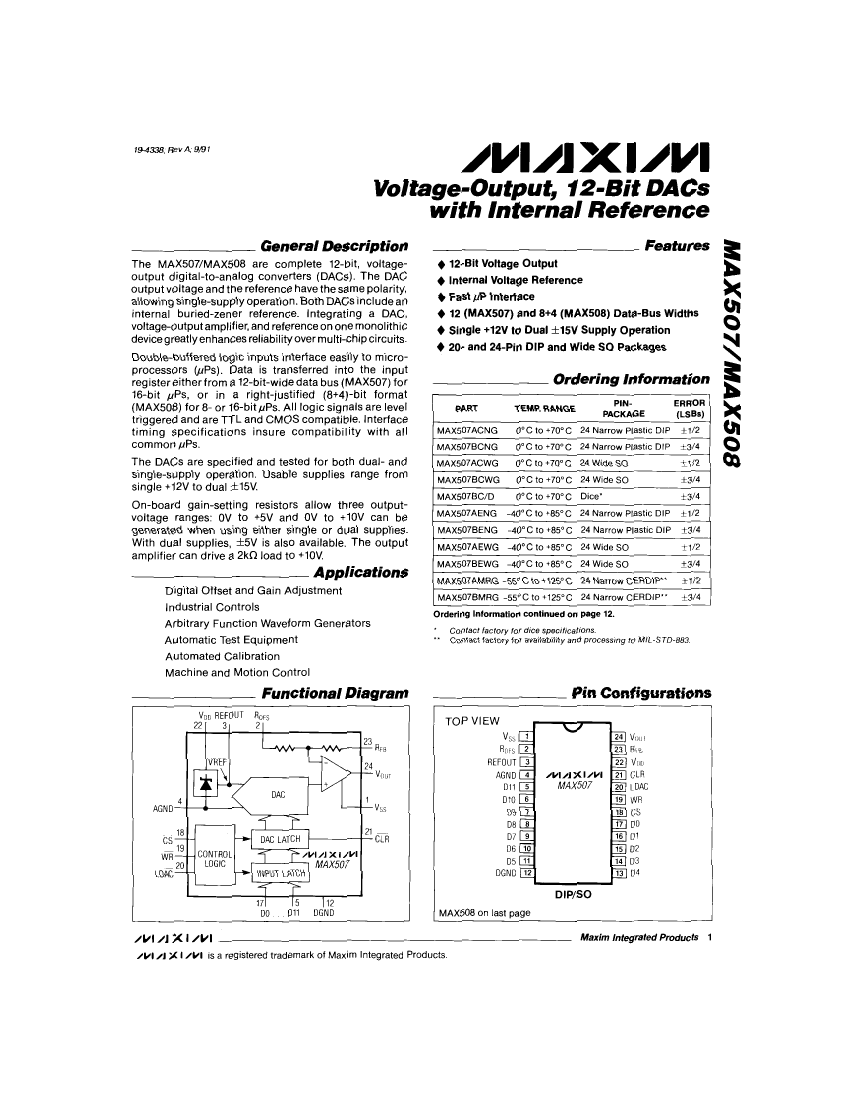

MAX508BCWP+T Overview

digital to analog converters - dac 12-bit precision dac

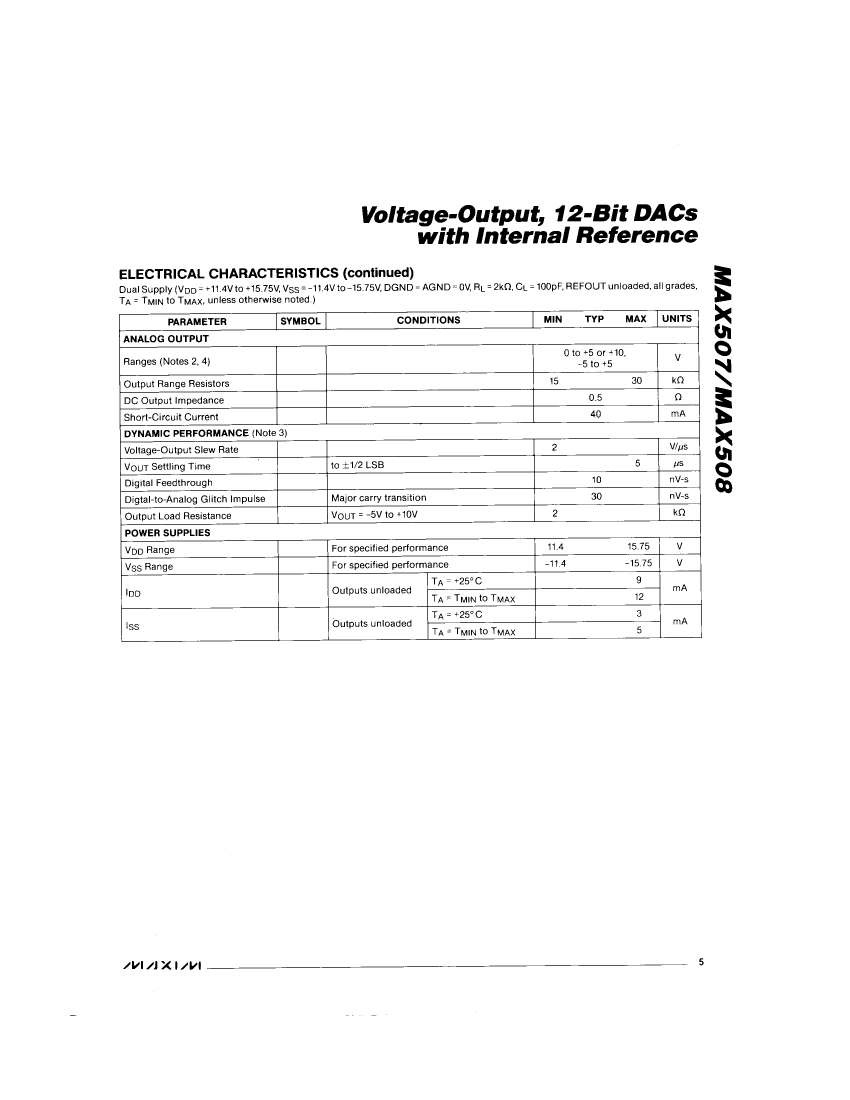

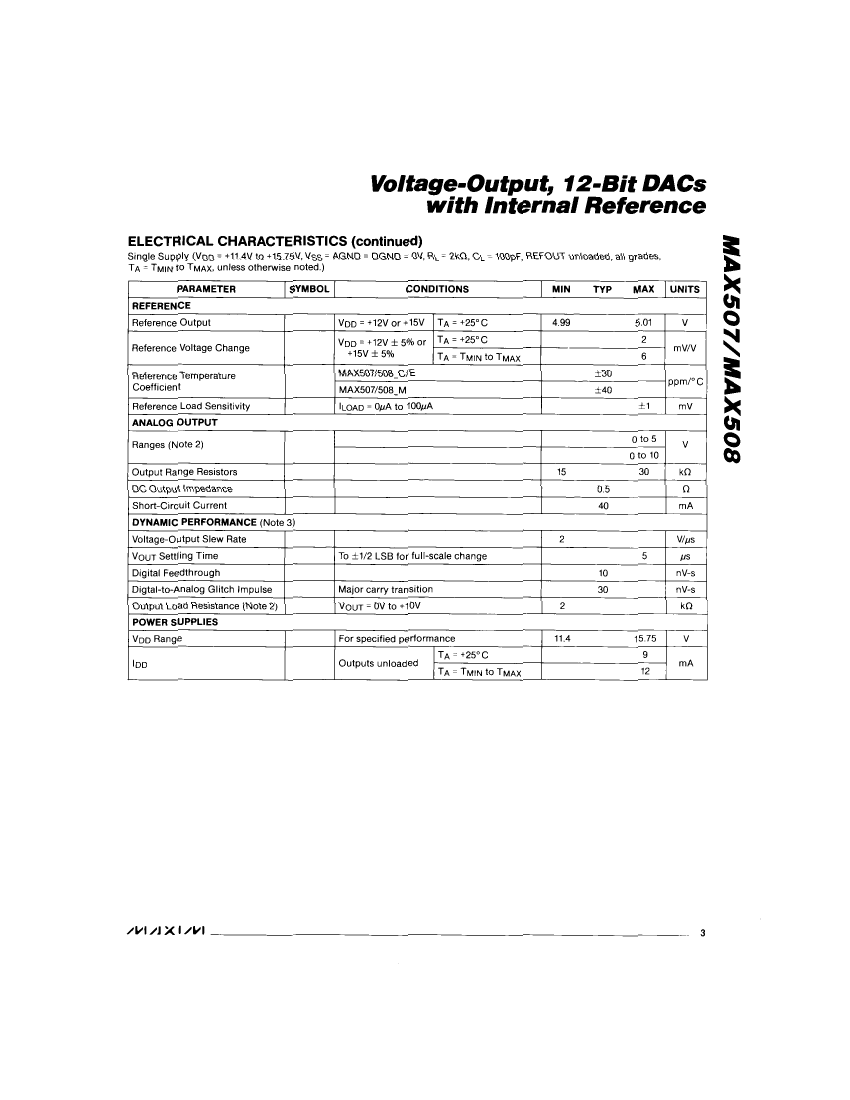

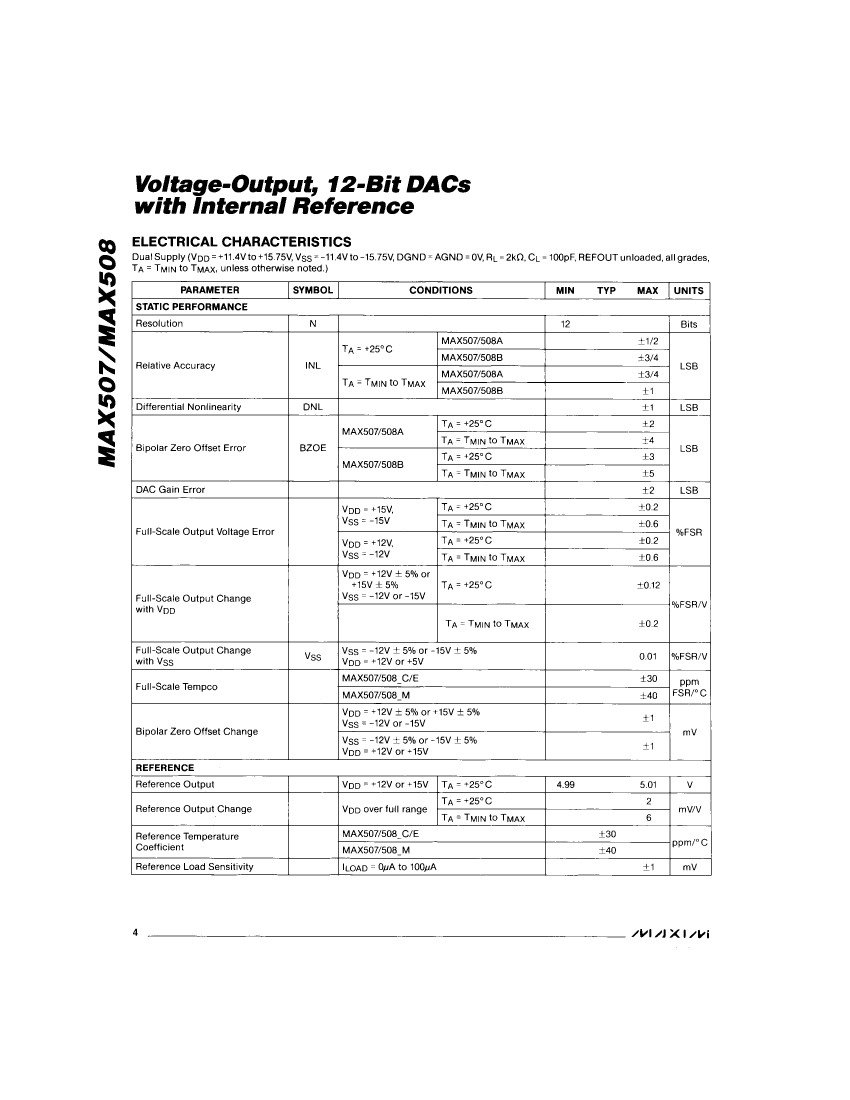

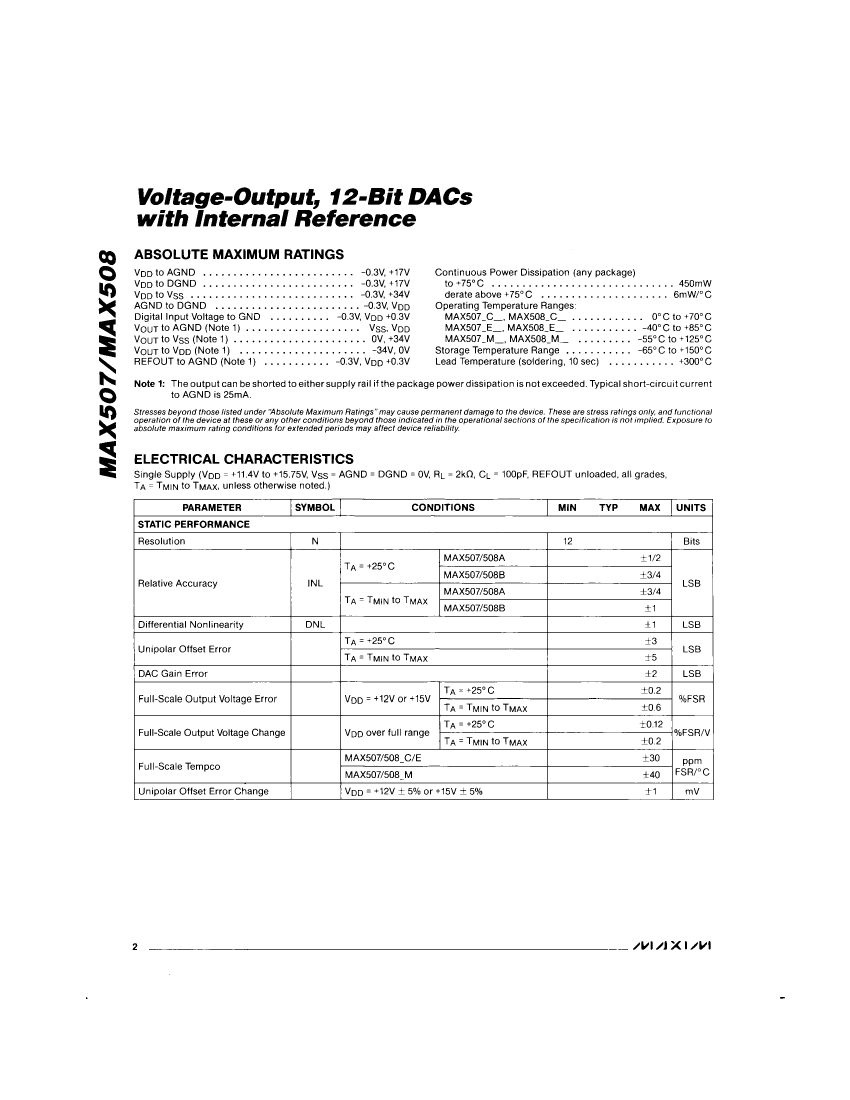

MAX508BCWP+T Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMaxim
Parts packaging codeSOIC
package instructionSOP, SOP20,.4
Contacts20
Reach Compliance Codecompli
Maximum analog output voltage10 V
Minimum analog output voltage
Converter typeD/A CONVERTER
Enter bit codeBINARY, OFFSET BINARY
Input formatPARALLEL, WORD
JESD-30 codeR-PDSO-G20
JESD-609 codee3
length12.8 mm
Maximum linear error (EL)0.024%
Number of digits12
Number of functions1
Number of terminals20
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP20,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
power supply12/+-15 V
Certification statusNot Qualified
Maximum seat height2.65 mm
Maximum stabilization time5 µs
Maximum slew rate12 mA
Nominal supply voltage12 V
surface mountYES
Temperature levelCOMMERCIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.5 mm

MAX508BCWP+T Related Products

MAX508BCWP+T MAX508ACWP+ MAX507BCWG+ MAX507AEWG+T MAX508BEPP+ MAX507AENG+ MAX508AEWP+ MAX508ACPP+ MAX507BCWG+T
Description digital to analog converters - dac 12-bit precision dac digital to analog converters - dac 12-bit precision dac digital to analog converters - dac 12-bit precision dac digital to analog converters - dac 12-bit precision dac digital to analog converters - dac 12-bit precision dac digital to analog converters - dac 12-bit precision dac digital to analog converters - dac 12-bit precision dac digital to analog converters - dac 12-bit precision dac digital to analog converters - dac 12-bit precision dac
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to
package instruction SOP, SOP20,.4 SOP, SOP20,.4 SOP, SOP24,.4 SOP, SOP24,.4 DIP, DIP20,.3 , SOP, SOP20,.4 DIP, DIP20,.3 SOP, SOP24,.4
Reach Compliance Code compli compli compli compli compli compli compli compli compli
Converter type D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3
Number of digits 12 12 12 12 12 12 12 12 12
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Is it lead-free? Lead free Lead free Lead free Lead free Lead free - Lead free Lead free Lead free
Maker Maxim - Maxim Maxim Maxim Maxim Maxim Maxim Maxim
Parts packaging code SOIC SOIC SOIC SOIC DIP - SOIC DIP SOIC
Contacts 20 20 24 24 20 - 20 20 24
Maximum analog output voltage 10 V 10 V 10 V 10 V 10 V - 10 V 10 V 10 V
Enter bit code BINARY, OFFSET BINARY BINARY, OFFSET BINARY BINARY, OFFSET BINARY BINARY, OFFSET BINARY BINARY, OFFSET BINARY - BINARY, OFFSET BINARY BINARY, OFFSET BINARY BINARY, OFFSET BINARY
Input format PARALLEL, WORD PARALLEL, WORD PARALLEL, WORD PARALLEL, WORD PARALLEL, WORD - PARALLEL, WORD PARALLEL, WORD PARALLEL, WORD
JESD-30 code R-PDSO-G20 R-PDSO-G20 R-PDSO-G24 R-PDSO-G24 R-PDIP-T20 - R-PDSO-G20 R-PDIP-T20 R-PDSO-G24
length 12.8 mm 12.8 mm 15.4 mm 15.4 mm 26.16 mm - 12.8 mm 26.16 mm 15.4 mm
Maximum linear error (EL) 0.024% 0.018% 0.024% 0.018% 0.024% - 0.018% 0.018% 0.024%
Number of functions 1 1 1 1 1 - 1 1 1
Number of terminals 20 20 24 24 20 - 20 20 24
Maximum operating temperature 70 °C 70 °C 70 °C 85 °C 85 °C - 85 °C 70 °C 70 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP SOP DIP - SOP DIP SOP
Encapsulate equivalent code SOP20,.4 SOP20,.4 SOP24,.4 SOP24,.4 DIP20,.3 - SOP20,.4 DIP20,.3 SOP24,.4
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE IN-LINE - SMALL OUTLINE IN-LINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260 260 260 260 - 260 260 260
power supply 12/+-15 V 12/+-15 V 12/+-15 V 12/+-15 V 12/+-15 V - 12/+-15 V 12/+-15 V 12/+-15 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified - Not Qualified Not Qualified Not Qualified
Maximum seat height 2.65 mm 2.65 mm 2.65 mm 2.65 mm 4.572 mm - 2.65 mm 4.572 mm 2.65 mm
Maximum stabilization time 5 µs 5 µs 5 µs 5 µs 5 µs - 5 µs 5 µs 5 µs
Maximum slew rate 12 mA 12 mA 12 mA 12 mA 12 mA - 12 mA 12 mA 12 mA
Nominal supply voltage 12 V 12 V 12 V 12 V 12 V - 12 V 12 V 12 V
surface mount YES YES YES YES NO - YES NO YES
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL INDUSTRIAL INDUSTRIAL - INDUSTRIAL COMMERCIAL COMMERCIAL
Terminal form GULL WING GULL WING GULL WING GULL WING THROUGH-HOLE - GULL WING THROUGH-HOLE GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 2.54 mm - 1.27 mm 2.54 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL DUAL - DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 7.5 mm 7.5 mm 7.5 mm 7.5 mm 7.62 mm - 7.5 mm 7.62 mm 7.5 mm
ECCN code - EAR99 EAR99 EAR99 EAR99 - EAR99 EAR99 EAR99
Humidity sensitivity level - 1 1 1 1 - 1 1 1
Factory Lead Time - - 12 weeks 15 weeks 14 weeks 15 weeks - 14 weeks 15 weeks
