Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
LMK212AB7225MD-T
Features
Item Summary
2.2uF±20%, 10V,
X7R, 0805/2012 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 4000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
2.2 uF ± 20 %
0805/2012
10 V
5%
X7R
-55 to +125 ℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
2.0 +0.15/-0.05 mm
1.25 +0.15/-0.05 mm
0.85 ±0.10 mm
0.50 ±0.25 mm
2018.11.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

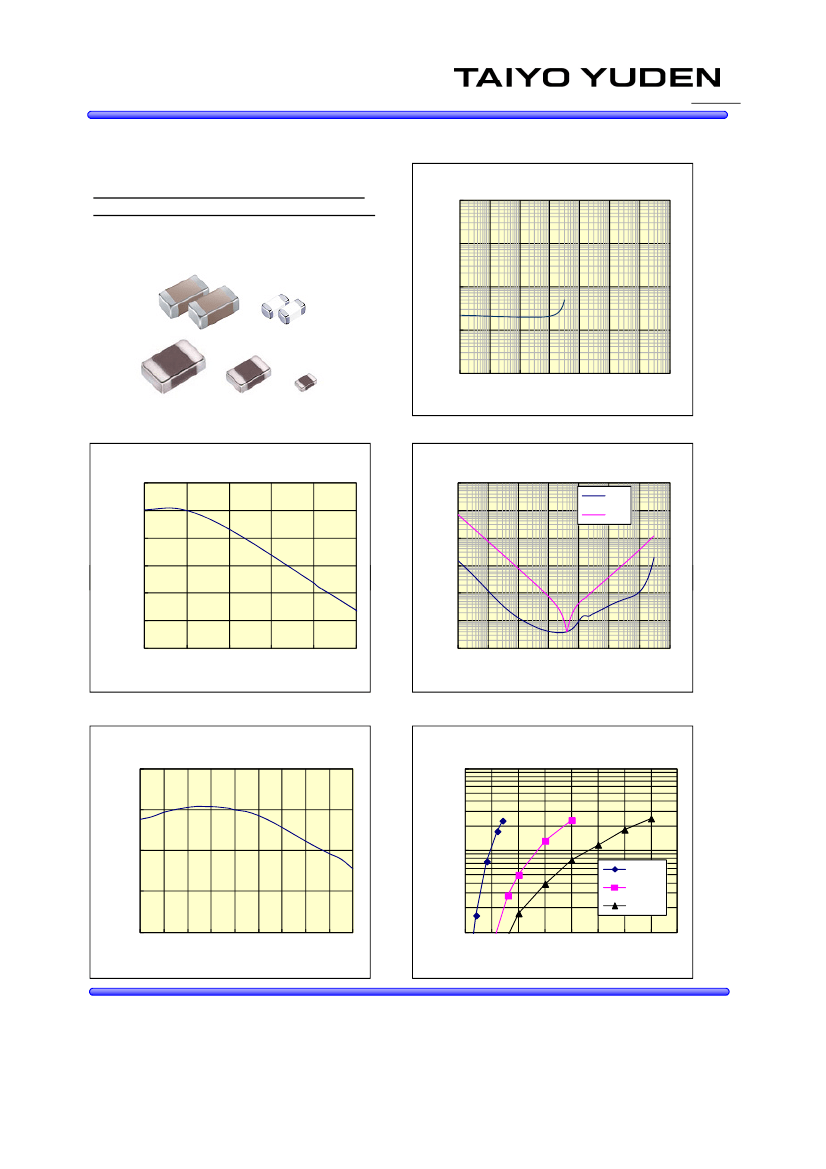

Multi Layer Ceramic Capacitor
○LMK212AB7225MD
10V 2012 X7R 2.2uF +/- 20% t=0.95mmMAX
10V 0805 X7R 2.2uF +/- 20% t=0.037inchMAX
1000
-Electrical Characteristics Data-
16QA04
RoHS compliance product
LMK212AB7225MD
Capacitance Freq.
100
Capacitance[uF]
10
1
0.1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
10
0
-10
LMK212AB7225MD
DC Bia s Cha r.
1000
100
LMK212AB7225MD
Impedance,ESR Freq.
ESR
Z
-20
-30
-40
-50
0
2
4
6
8
DC Bias Voltage[V]
10
Z,ESR[O
Z,ESR[OHM]
10
1
dC/C
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
LMK212AB7225MD
Ca pacitance Temp.
10
100
LMK212AB7225MD
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
1
0
0.5
1
1.5 2 2.5 3
Ripple Current[Arms]
3.5
4
