LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Features
*
*
*
*
*
*
*
Lead (Pb) free product – RoHS compliant.
High luminous intensity output.
Low power consumption.
High efficiency.
Uniform light pattern: 36°
Versatile mounting on P.C. board or panel.
I.C. Compatible / low current requirements

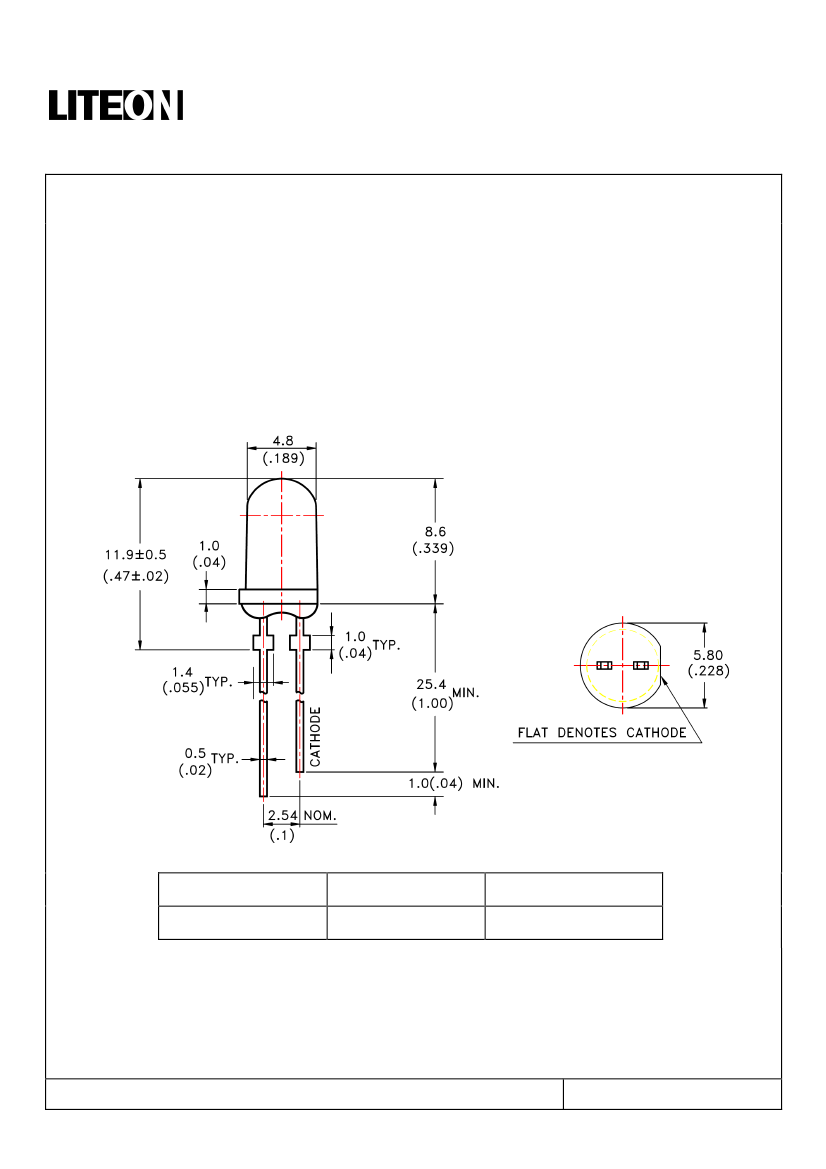

Package Dimensions
Part No.
LTL2V3EUJS-S
Lens
Water clear
Source Color
AlInGaP Red
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (.010") unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
Part No. : LTL2V3EUJS-S
BNS-OD-C131/A4
Page :
1
of
10
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Absolute Maximum Ratings at T
A
=25
℃
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 1ms Pulse Width)
Continuous Forward Current
Derating Linear From 60℃
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[2.0 mm(.078") From Body]
260°C for 5 Seconds
150
50
0.67
5
-40°C to + 100°C
-55°C to + 100°C
mA
mA
mA/℃
V
Maximum Rating
120
Unit
mW
Part No. : LTL2V3EUJS-S
BNS-OD-C131/A4
Page :
2
of
10
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Electrical / Optical Characteristics at T
A
=25
°C
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
I
F
= 20mA
Note 1,5
Note 2 (Fig.5)
Measurement
@Peak (Fig.1)
Note 4
Luminous Intensity
I
V
2500
4200
mcd
Viewing Angle
2θ
1/2
36
deg
Peak Emission Wavelength
λ
P
626
nm
Dominant Wavelength
λ
d
620
625
630
nm
Spectral Line Half-Width
∆λ
17
nm
Forward Voltage
V
F
1.9
2.1
2.4
V
I
F
= 20mA
Reverse Current
I
R
100
µA
V
R
= 5V
Capacitance
C
40
pF
V
F
= 0 , f = 1MHz
NOTE: 1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE
eye-response curve.
2.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
3. Iv classification code is marked on each packing bag.
4. The dominant wavelength,
λd
is derived from the CIE chromaticity diagram and represents the single
wavelength which defines the color of the device.
5. The Iv guarantee should be added ±15% .
Part No. : LTL2V3EUJS-S
BNS-OD-C131/A4
Page :
3
of
10
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

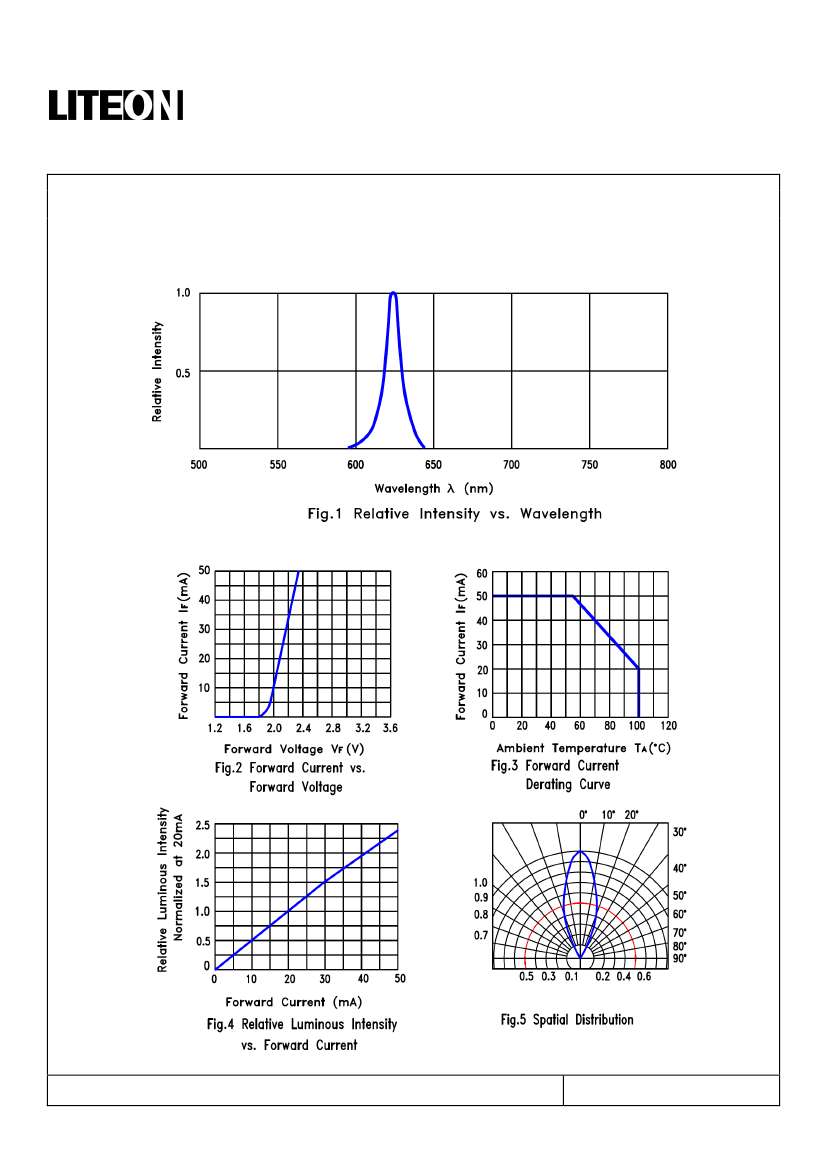

Typical Electrical / Optical Characteristics Curves
(25°C Ambient Temperature Unless Otherwise Noted)
Part No. : LTL2V3EUJS-S
BNS-OD-C131/A4
Page :
4
of
10
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only

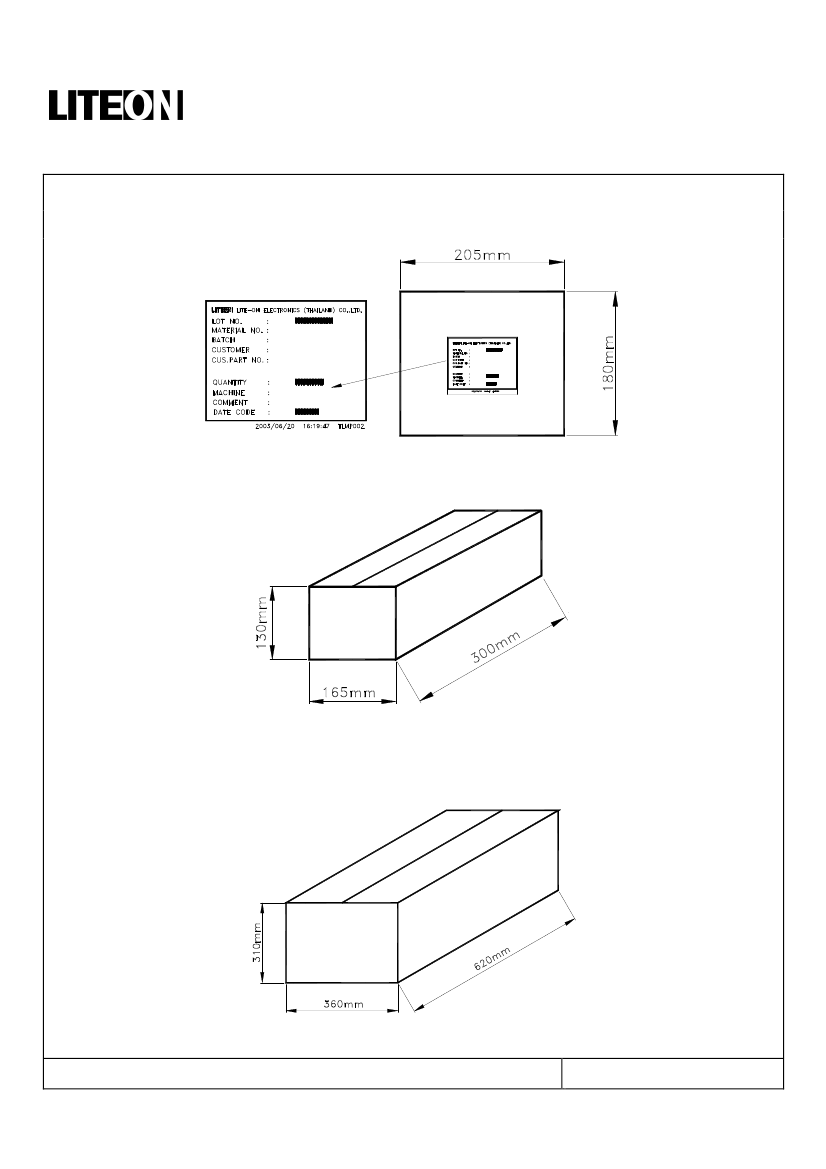

Packing Spec
1000, 500 or 250 pcs per packing bag
8 packing bags per inner carton
total 8000 pcs per inner carton
8 Inner cartons per outer carton
total 64000 pcs per outer carton
In every shipping lot, only the last pack will be non-full packing
Part No. : LTL2V3EUJS-S
BNS-OD-C131/A4
Page :
5
of
10
