FEATURES
1. This specification shall be applied to photocoupler. Model No. LTV-816 as an option.
2. Applicable Models (Business dealing name)
* Dual-in-line package :
LTV816-V : 1-channel type / LTV826-V : 2-channel type /
LTV846-V : 4-channel type
* Wide lead spacing package :
LTV816M-V : 1-channel type / LTV826M-V : 2-channel type /
LTV846M-V : 4-channel type
* Surface mounting package :
LTV816S-V : 1-channel type / LTV826S-V : 2-channel type /
LTV846S-V : 4-channel type
* Tape and reel packaging :
LTV816STA1-V, LTV826STA1-V
3. The relevant models are the models Approved by VDE
according to DIN VDE 0884:1992-06
Approved Model No.: LTV-816 / LTV-826 / LTV-846 / LTV-816M / LTV-826M /
LTV-846M / LTV-816S / LTV-826S / LTV-846S
VDE approved No.: 094722
(According to the specification DIN VDE 0884:1992-06)
* Operating isolation voltage V
IORM
: 850V (Peak)
* Transient voltage V
TR
: 6000V (Peak)
* Pollution : 2 (According to VDE 0110-1 : 1997-04)
* Clearances distance (Between input and output) : 7.0mm (MIN.)
* Creepage distance (Between input and output) : 7.0mm (MIN.)
* Isolation thickness between input and output : 0.4mm (MIN.)
* Safety limit values Current (Isi) : 400mA (Diode side)
Power (Psi) : 700mW (Phototransistor side)
Temperature(Tsi) : 175
o
C
In order to keep safety electric isolation of photocoupler, please set the protective
circuit to keep within safety limit values when the actual application equipment
troubled.
* Indication of VDE 0884 approval prints "
4
" for 4-pin and "
package.
" for 8 & 16 pin on sleeve
Part No. :
LTV816 / 826 / 846 (M, S, STA1)-V
BNS-OD-C131/A4
Page :
1 of 15
LITE-ON TECHNOLOGY CORPORATION
Property of LITE-ON Only

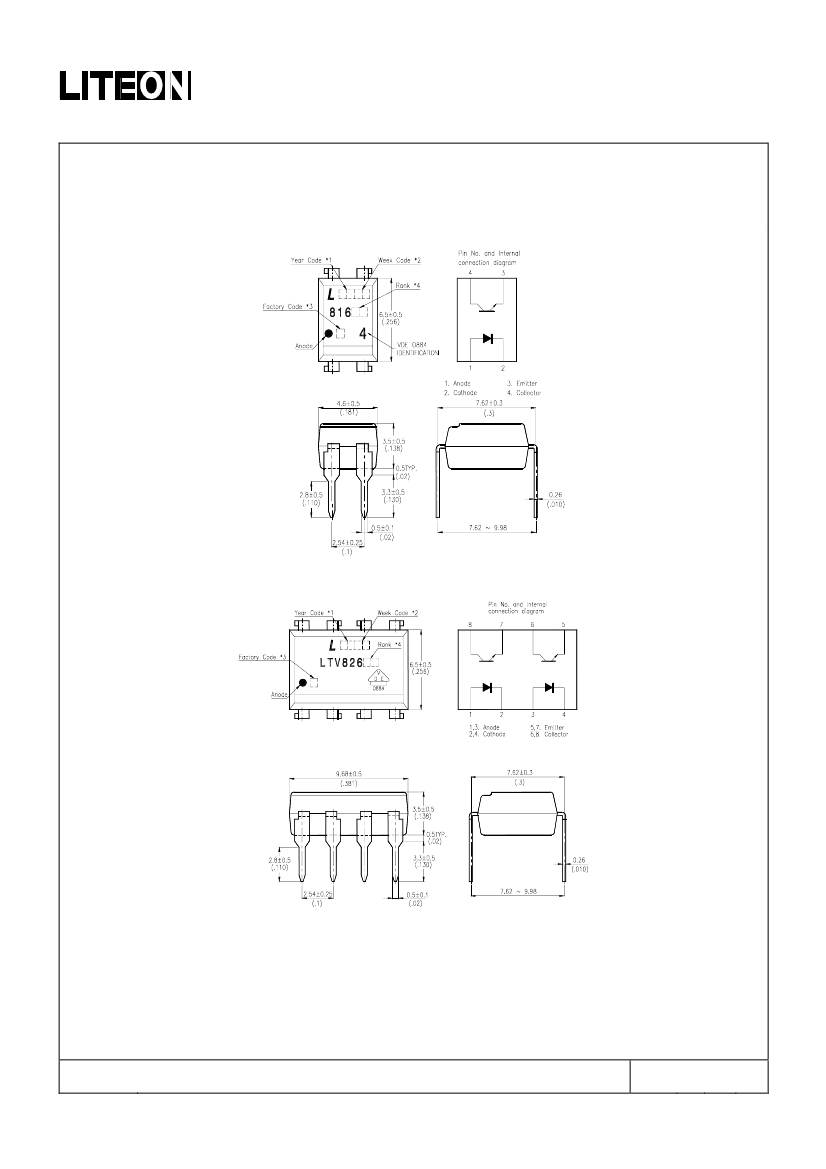

OUTLINE DIMENSIONS
LTV816-V :
LTV826-V :
*1.
*2.
*3.
*4.
Year date code.
2-digit work week.
Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China).
Rank shall be or shall not be marked.
Part No.
:
LTV816 / 826 / 846 (M, S, STA1)-V
BNS-OD-C131/A4
Page
:
2 of 15
LITE-ON TECHNOLOGY CORPORATION
Property of LITE-ON Only

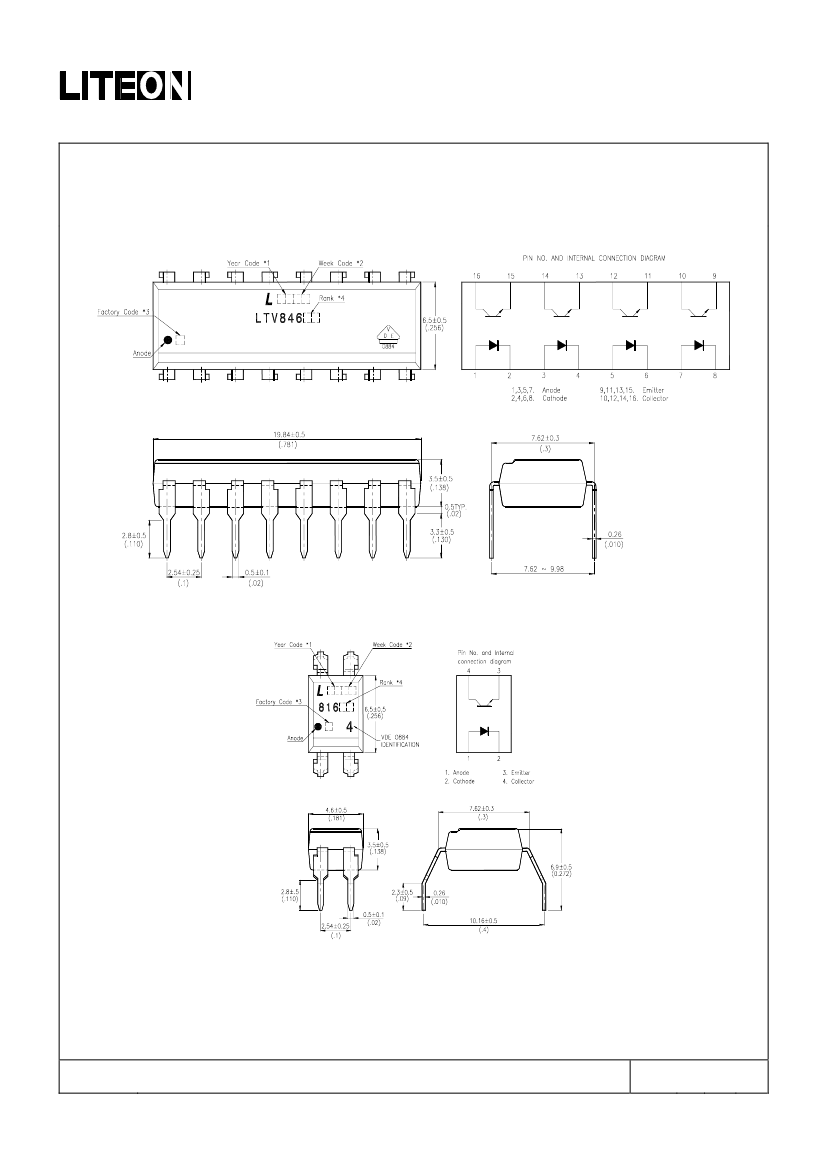

OUTLINE DIMENSIONS
LTV846-V :
LTV816M-V :
*1.
*2.
*3.
*4.
Year date code.
2-digit work week.
Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China).
Rank shall be or shall not be marked.
Page
:
3 of 15
Part No.
:
LTV816 / 826 / 846 (M, S, STA1)-V
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of LITE-ON Only

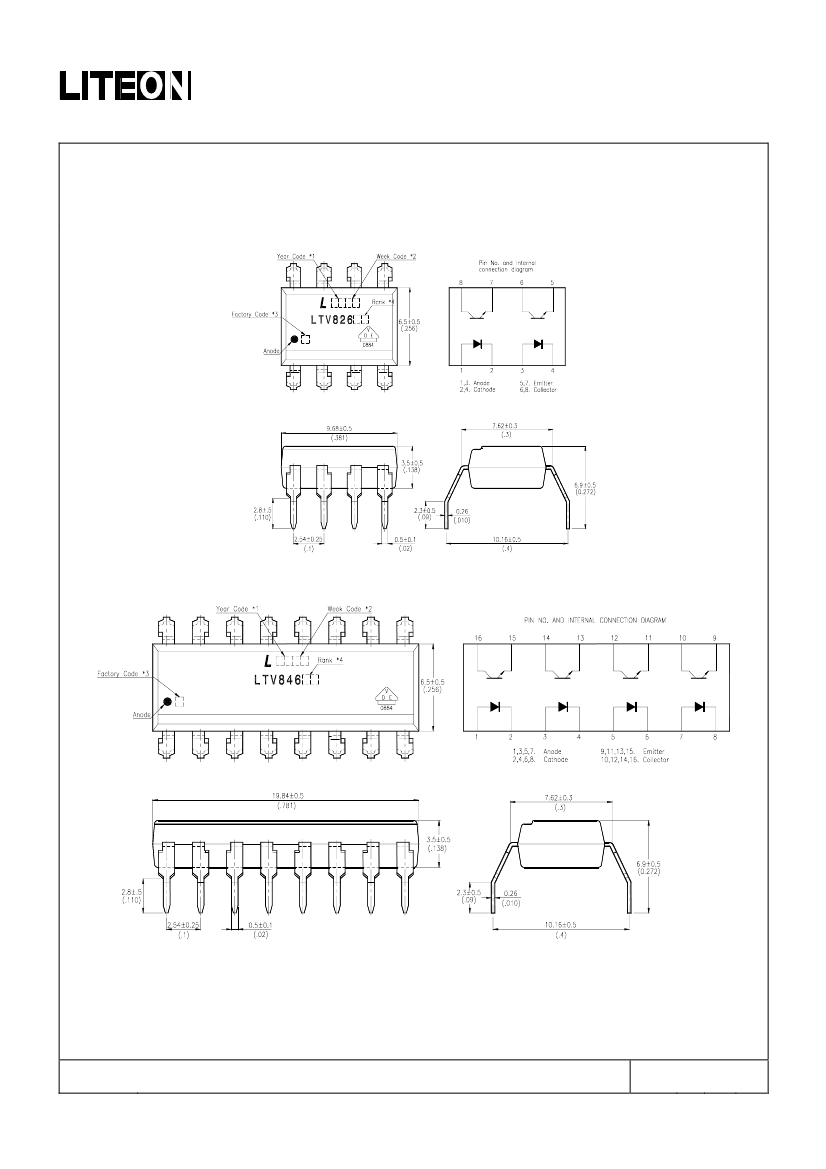

OUTLINE DIMENSIONS
LTV826M-V :
LTV846M-V :
*1.
*2.
*3.
*4.
Year date code.
2-digit work week.
Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China).
Rank shall be or shall not be marked.
Page
:
4 of 15
Part No.
:
LTV816 / 826 / 846 (M, S, STA1)-V
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of LITE-ON Only

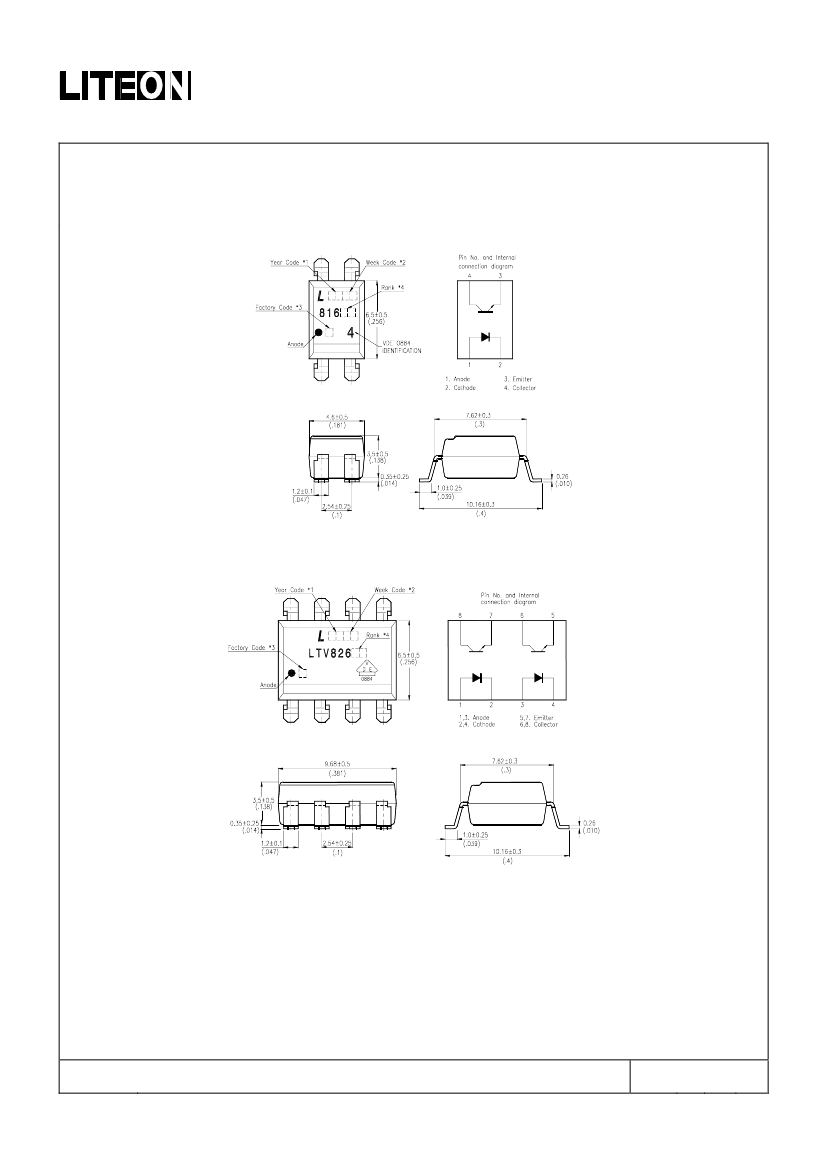

OUTLINE DIMENSIONS
LTV816S-V :
LTV826S-V :
*1.
*2.
*3.
*4.
Year date code.
2-digit work week.
Factory identification mark shall be marked (Z : Taiwan, Y : Thailand, X : China).
Rank shall be or shall not be marked.
Part No.
:
LTV816 / 826 / 846 (M, S, STA1)-V
BNS-OD-C131/A4
Page
:
5 of 15
