LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Features
* Package in 12mm tape on 7" diameter reels.
* Compatible with automatic placement equipment.
*
Compatible with infrared and vapor phase reflow solder process.
* EIA STD package.
* I.C. compatible.
* Meet green product and Pb-free(According to RoHS)

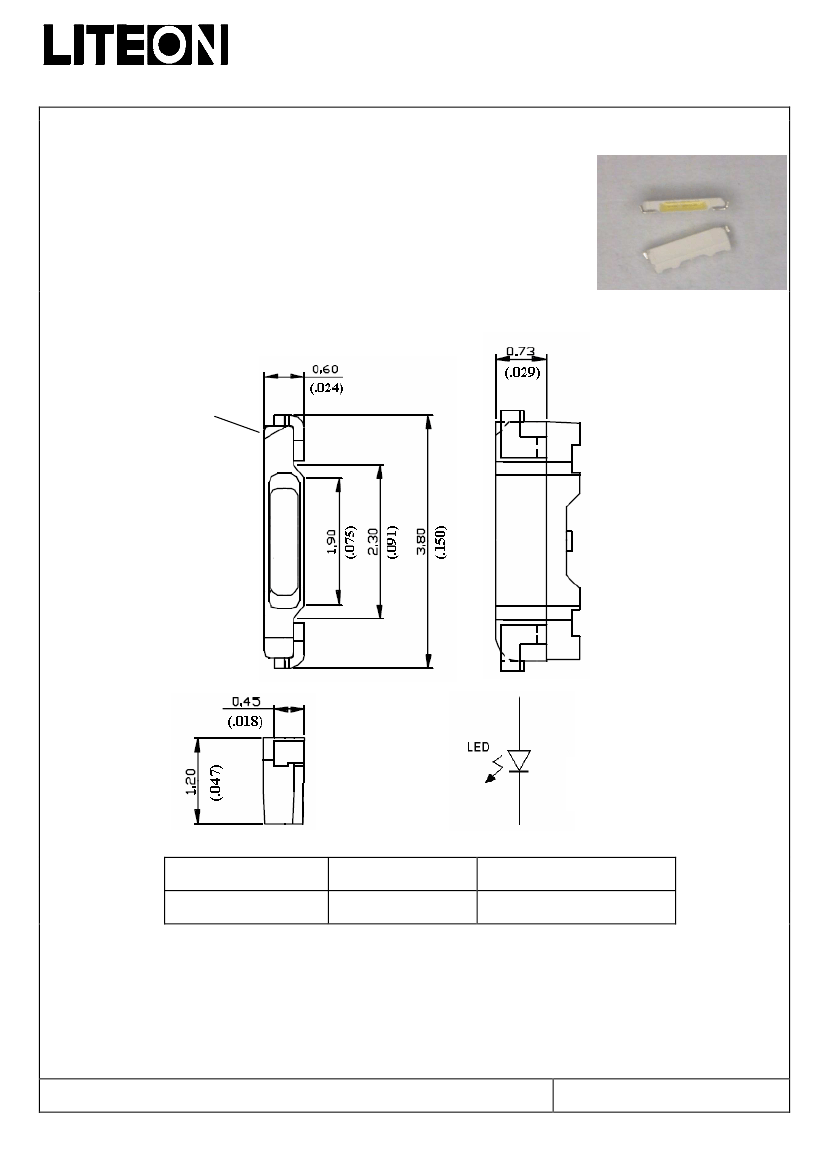

Package
Dimensions
Anode
Part No.
LTW-006DCG-5
Lens Color
Yellow
Source Color
InGaN White
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.1
mm (.004") unless otherwise noted.
Part No. : LTW-006DCG-5
BNS-OD-C131/A4
Page :
1
of
11
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Absolute Maximum Ratings at Ta=25
℃
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
DC Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Reflow Soldering Condition
LTW-006DCG-5
120
Unit
mW
100
30
5
-30℃ to + 85℃
-40℃ to + 100℃
260℃ For 10 Seconds
mA
mA
V
Note: Operating the LED (in an application) under reverse bias condition might result in damage
or failure of the component.
Suggest IR Reflow Condition :

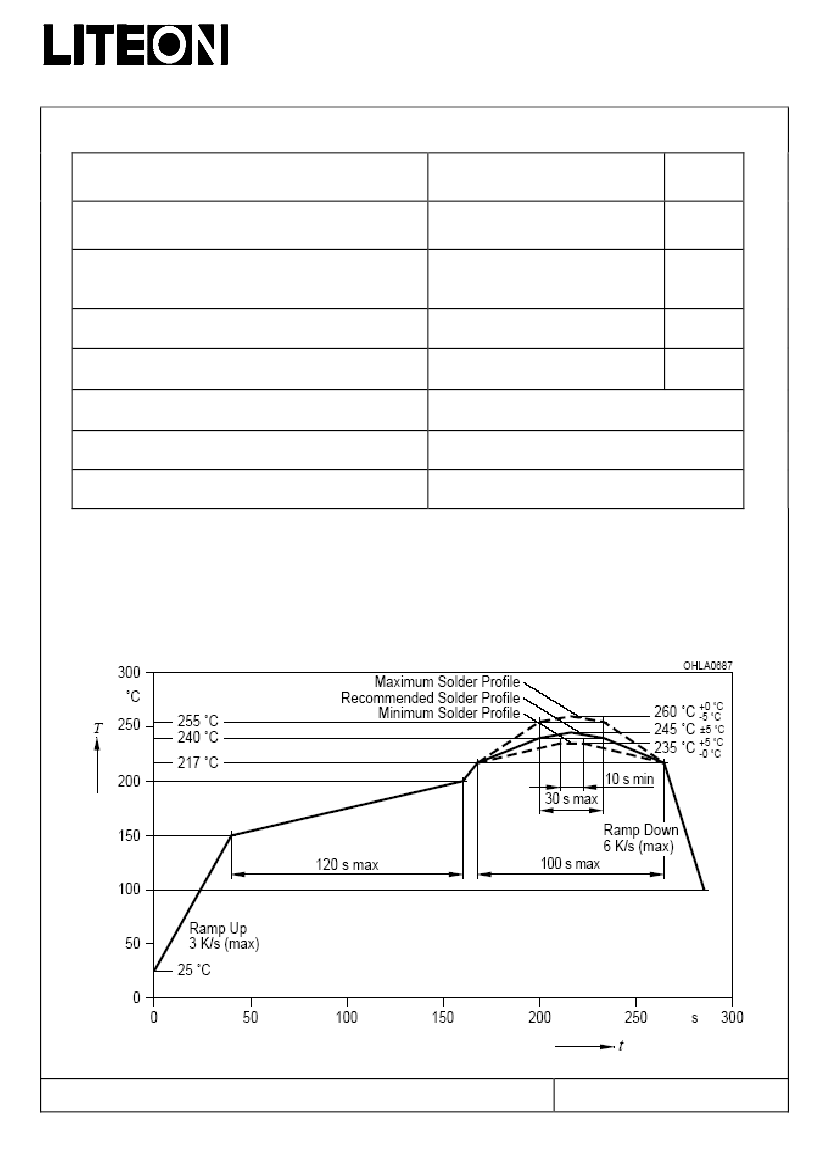

R-Reflow Soldering Profile for lead free soldering
(Acc. to J-STD-020D)
Part No. : LTW-006DCG-5
BNS-OD-C131/A4
Page :
2
of
11
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Electrical
Optical
Characteristics
At
Ta=25℃
℃
Parameter
Symbol
Part No.
LTW-
006DCG-5
Min.
Typ.
Max.
Unit
Test Condition
IF = 5mA
Note 1, 2, 5
Fig.6
IF = 5mA
Note 3, 5
Fig.1
Luminous Intensity
IV
450
750
mcd
Viewing Angle
2θ1/2
x
006DCG-5
110
0.277
deg
Chromaticity Coordinates
y
Forward Voltage
VF
006DCG-5
0.255
006DCG-5
2.65
3.25
V
IF = 5mA
ESD-Withstand Voltage
ESD
006DCG-5
200
V
HBM
Note : 1. Luminous intensity is measured with a light sensor and filter combination that approximates the
CIE eye-response curve.
2. Iv classification code is marked on each packing bag.
3. The chromaticity coordinates (x, y) is derived from the 1931 CIE chromaticity diagram.
4. Caution in ESD:
Static Electricity and surge damages the LED. It is recommend to use a wrist band or
anti-E2lectrostatic glove when handling the LED. All devices, equipment and machinery
must be properly grounded.
5. CAS140B is the test standard for the chromaticity coordinates (x, y) & IV.
6. The chromaticity coordinates (x, y) guarantee should be added +/- 0.007 tolerance.
Part
No. : LTW-006DCG-5
Page :
3
of
11
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Bin Code List
VF Spec. Table
VF Bin
V0
V1
V2
V3
V4
V5
V6
Tolerance on each Forward Voltage bin is +/-0.10 volt
IV Spec. Table
Luminous Intensity (mcd) at IF = 5mA
IV Bin
S41
S42
S51
S52
S61
S62
S71
S72
S81
S82
Min.
450
500
550
600
650
700
750
800
850
900
Max.
500
550
600
650
700
750
800
850
900
950
Forward Voltage (V) at IF = 5mA
Min.
2.65
2.75
2.85
2.95
3.05
3.15
Max.
2.75
2.85
2.95
3.05
3.15
3.25
Tolerance on each Luminous Intensity bin is +/- 7%.
Part
No. : LTW-006DCG-5
Page :
4
of
11
BNS-OD-C131/A4
LITE-ON TECHNOLOGY CORPORATION
Property of Lite-On Only
Color Ranks Table
Ranks
C12
C21
C22
C31
C32
B12
B21
B22
B31
B32
x
y
x
y
x
y
x
y
x
y
x
y
x
y
x
y
x
y
x
y
Color bin limits at IF = 5mA
CIE 1931Chromaticity coordinates
0.265
0.237
0.27
0.245
0.275
0.253
0.28
0.261
0.285
0.269
0.265
0.224
0.27
0.232
0.275
0.24
0.28
0.248
0.285
0.256
0.27
0.245
0.275
0.253
0.28
0.261
0.285
0.269
0.29
0.277
0.27
0.232
0.275
0.24
0.28
0.248
0.285
0.256
0.29
0.264
0.27
0.258
0.275
0.266
0.28
0.274
0.285
0.282
0.29
0.29
0.27
0.245
0.275
0.253
0.28
0.261
0.285
0.269
0.29
0.277
0.265
0.25
0.27
0.258
0.275
0.266
0.28
0.274
0.285
0.282
0.265
0.237
0.27
0.245
0.275
0.253
0.28
0.261
0.285
0.269
Tolerance on each Hue (x, y) bin is +/- 0.007.
C. I. E. 1931 Chromaticity Diagram @5mA
0.300
0.295
0.290
0.285
0.280
0.275
0.270
0.265
0.260
0.255
0.250
0.245
0.240
0.235
0.230
0.225
0.220
0.215
0.210
0.260
0.265
C32
C31
C22
C21
C12
B21
B12
B31
B22
B32
Y-coordinate
0.270
0.275
0.280
0.285
0.290
0.295
X-coordinate
Part
No. : LTW-006DCG-5
Page :
5
of
11
BNS-OD-C131/A4
