MAX336CAI+T: Descriptionmultiplexer switch ics 16:1 low leakage cmos mux; CategoryAnalog mixed-signal IC The signal circuit; File Size169KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX336CAI+T Overview

multiplexer switch ics 16:1 low leakage cmos mux

MAX336CAI+T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SSOP
package instruction	SSOP, SSOP28,.25
Contacts	28
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	9 weeks
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G28
JESD-609 code	e3
length	10.2 mm
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-20 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	16
Number of functions	1
Number of terminals	28
Nominal off-state isolation	82 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	400 Ω
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP28,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	12/+-15 V
Certification status	Not Qualified
Maximum seat height	1.99 mm
Maximum signal current	0.03 A
Maximum supply current (Isup)	1.11 mA
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	500 ns
Maximum connection time	500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	5.29 mm

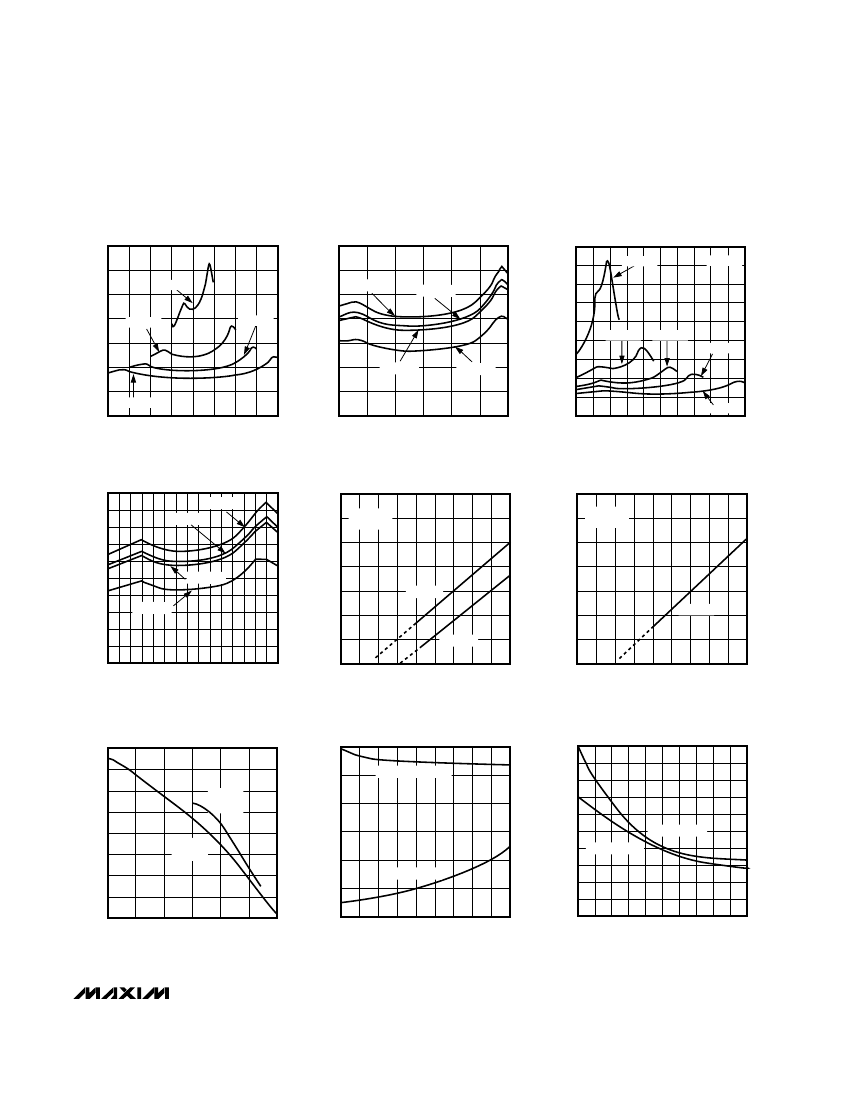

Preview

Download Datasheet

View All

19-1193; Rev 0; 4/97

16-Channel/Dual 8-Channel,

Low-Leakage, CMOS Analog Multiplexers

_______________General Description

The MAX336/MAX337 are monolithic, CMOS analog

multiplexers (muxes). The 16-channel MAX336 is

designed to connect one of 16 inputs to a common out-

put by control of a 4-bit binary address. The dual,

8-channel MAX337 is designed to connect one of eight

inputs to a common output by control of a 3-bit binary

address. Both devices can be used as either a mux or

a demux. On-resistance is 400Ω (max), and the devices

conduct current equally well in both directions.

These muxes feature extremely low off leakages (less

than 20pA at +25°C) and on-channel leakages (less than

50pA at +25°C). The new design offers guaranteed low

charge injection (3.5pC typical) and electrostatic dis-

charge (ESD) protection greater than 2000V, per method

3015.7. These improved muxes are pin-compatible

upgrades for the industry-standard DG506 and DG507.

The MAX336/MAX337 operate from a single +4.5V to

+30V supply or from dual ±4.5V to ±20V supplies. All

control inputs (whether address or enable) are TTL

compatible (0.8V to 2.4V) over the full specified temper-

ature range and over the ±4.5V to ±18V supply range.

____________________________Features

<400Ω (max) On-Resistance

<500ns Transition Time

<10Ω On-Resistance Match

<20pA NO-Off Leakage Current at +25°C

3.5pC Charge Injection

+4.5V to +30V Single Supply

±4.5V to ±20V Dual Supplies

Plug-In Upgrade for Industry-Standard

DG506/DG507

Bidirectional Rail-to-Rail

Signal Handling

TTL/CMOS-Logic Compatible

>2000V ESD Protection, per Method 3015.7

MAX336/MAX337

______________Ordering Information

PART

MAX336CPI

MAX336CWI

MAX336CAI

MAX336C/D

TEMP. RANGE

0°C to +70°C

PIN-PACKAGE

28 Plastic DIP

28 Wide SO

28 SSOP

Dice*

________________________Applications

Precision Data Acquisition

Precision Signal Routing

Test Equipment

Ordering Information continued at end of data sheet.

Contact factory for dice specifications.

_____________________Pin Configurations/Functional Diagrams/Truth Tables

TOP VIEW

V+ 1

N.C. 2

N.C. 3

NO16 4

NO15 5

NO14 6

NO13 7

NO12 8

NO11 9

NO10 10

NO9 11

GND 12

N.C. 13

A3 14

28 COM

27 V-

26 NO8

25 NO7

NO1

NO2

NO3

NO4

NO5

NO6

NO7

NO8

NO9

NO10

NO11

NO12

NO13

NO14

NO15

NO16

CMOS DECODERS/DRIVERS

V+

V-

GND

MAX336

SWITCH

NONE

MAX336

24 NO6

23 NO5

22 NO4

21 NO3

20 NO2

19 NO1

18 EN

17 A0

16 A1

15 A2

COM

LOGIC “0” = V

≤

0.8V, LOGIC “1” = V

≥

2.4V

DIP/SO/SSOP

N.C. = NO INTERNAL CONNECTION

MAX336 16-CHANNEL SINGLE-ENDED MULTIPLEXER

Continued at end of data sheet.

Rail-to-Rail is a registered trademark of Nippon Motorola Ltd.

________________________________________________________________

Maxim Integrated Products

For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800
