MAX358CWE+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MAX358CWE+

MAX358CWE+: Descriptionmultiplexer switch ics 8:1 fault-protected analog mux; CategoryAnalog mixed-signal IC The signal circuit; File Size438KB，11 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX358CWE+ Overview

multiplexer switch ics 8:1 fault-protected analog mux

MAX358CWE+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	6 weeks
Samacsys Descripti	Maxim MAX358CWE+, Multiplexer Single 8:1, 16-Pin SOIC
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
Humidity sensitivity level	1
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-4.5 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	2.642 mm
Maximum signal current	0.02 A
Maximum supply current (Isup)	1 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.6745 mm

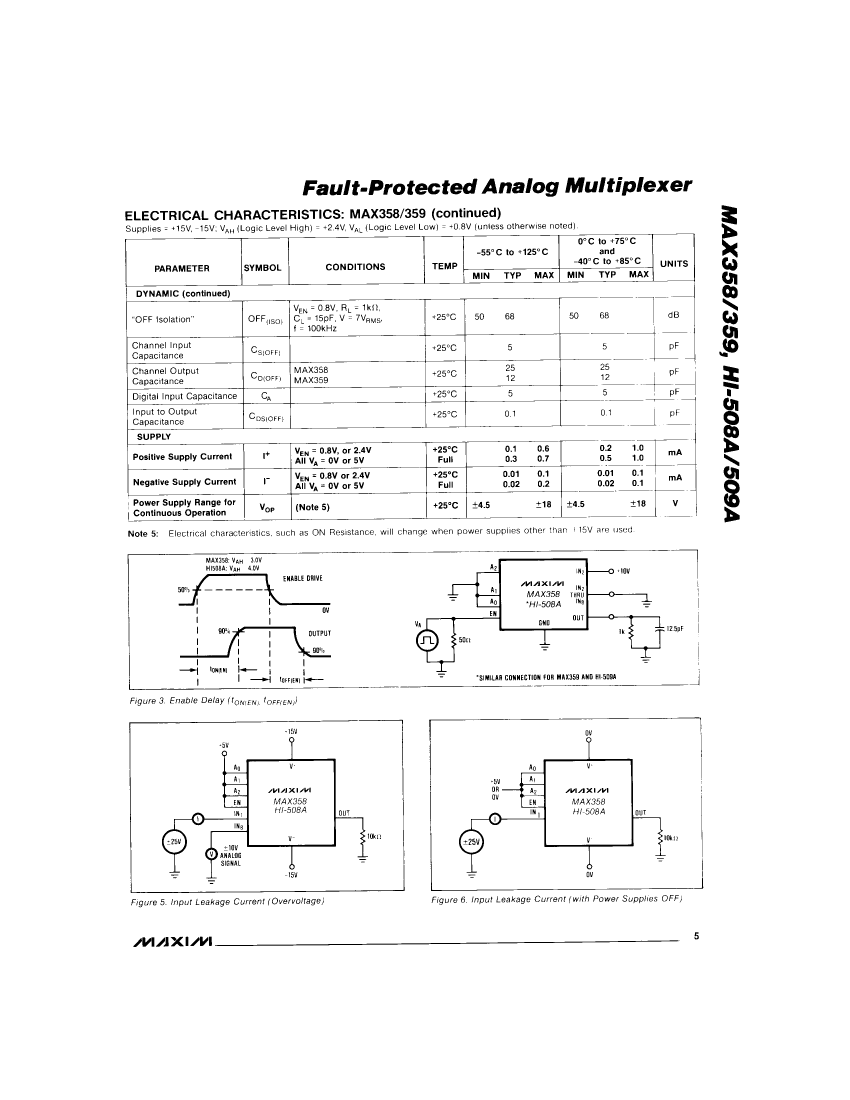

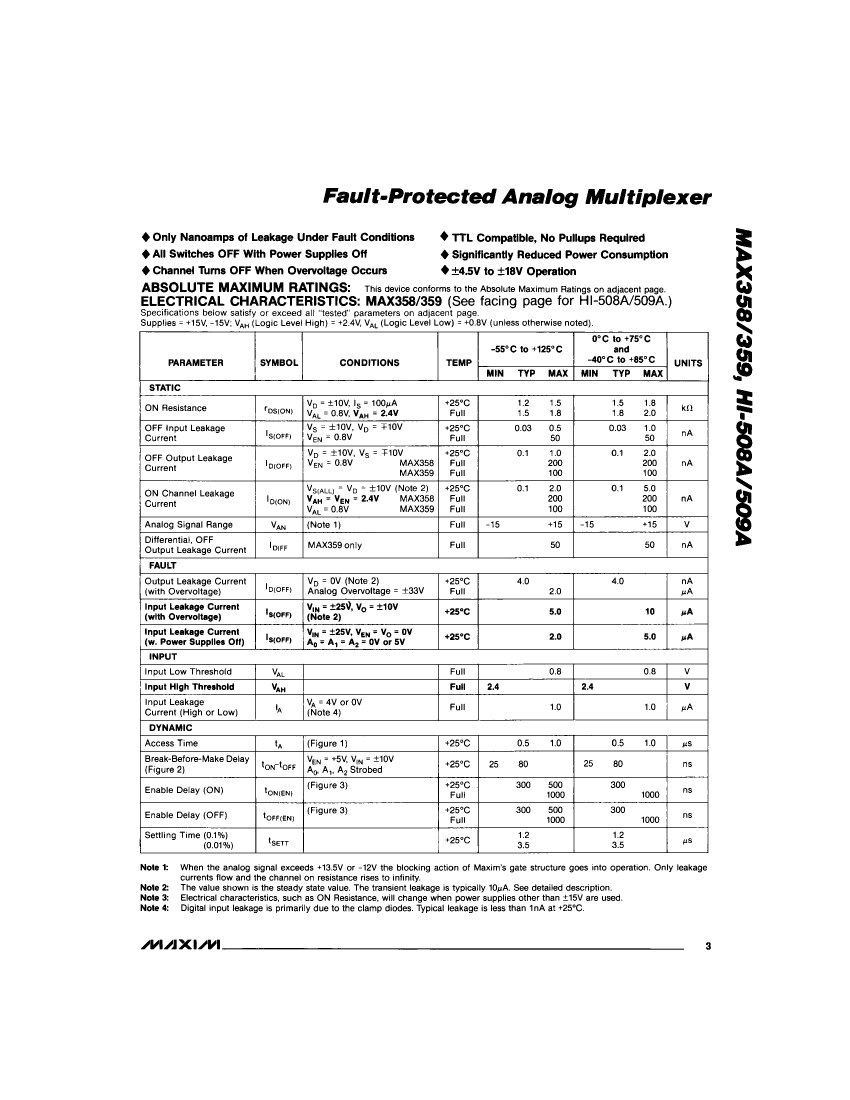

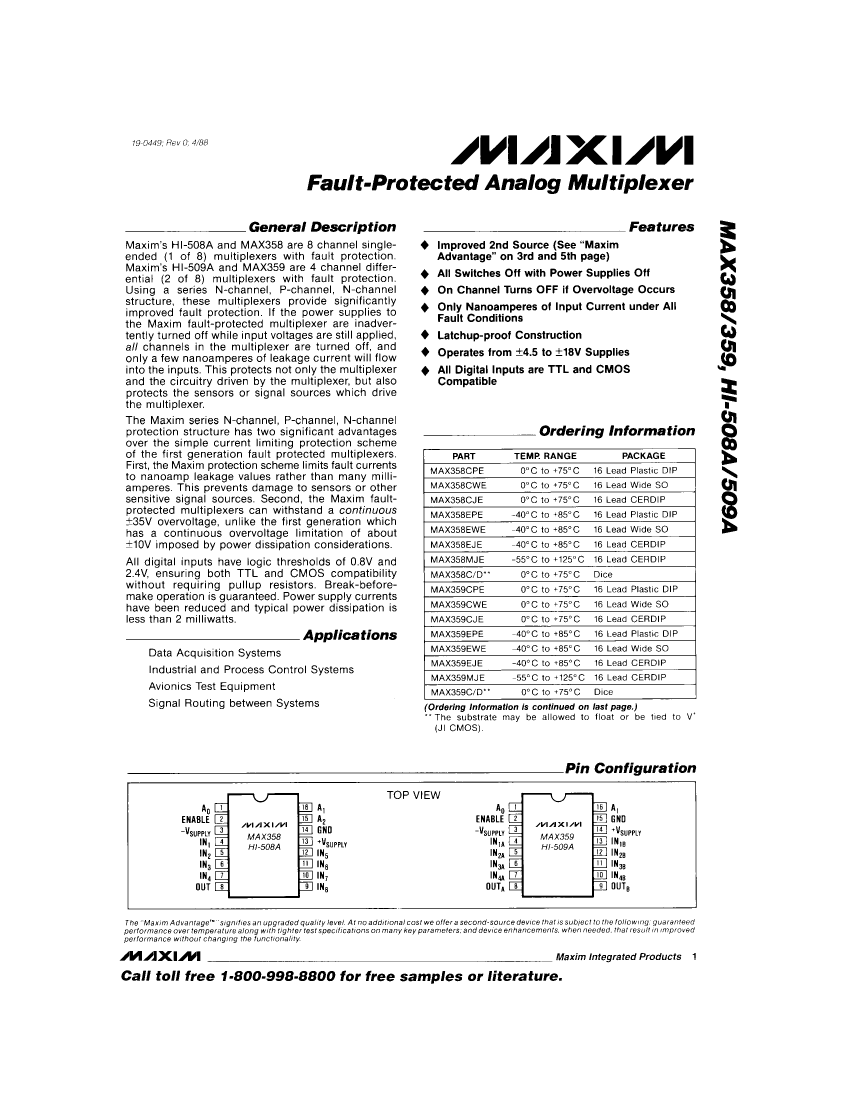

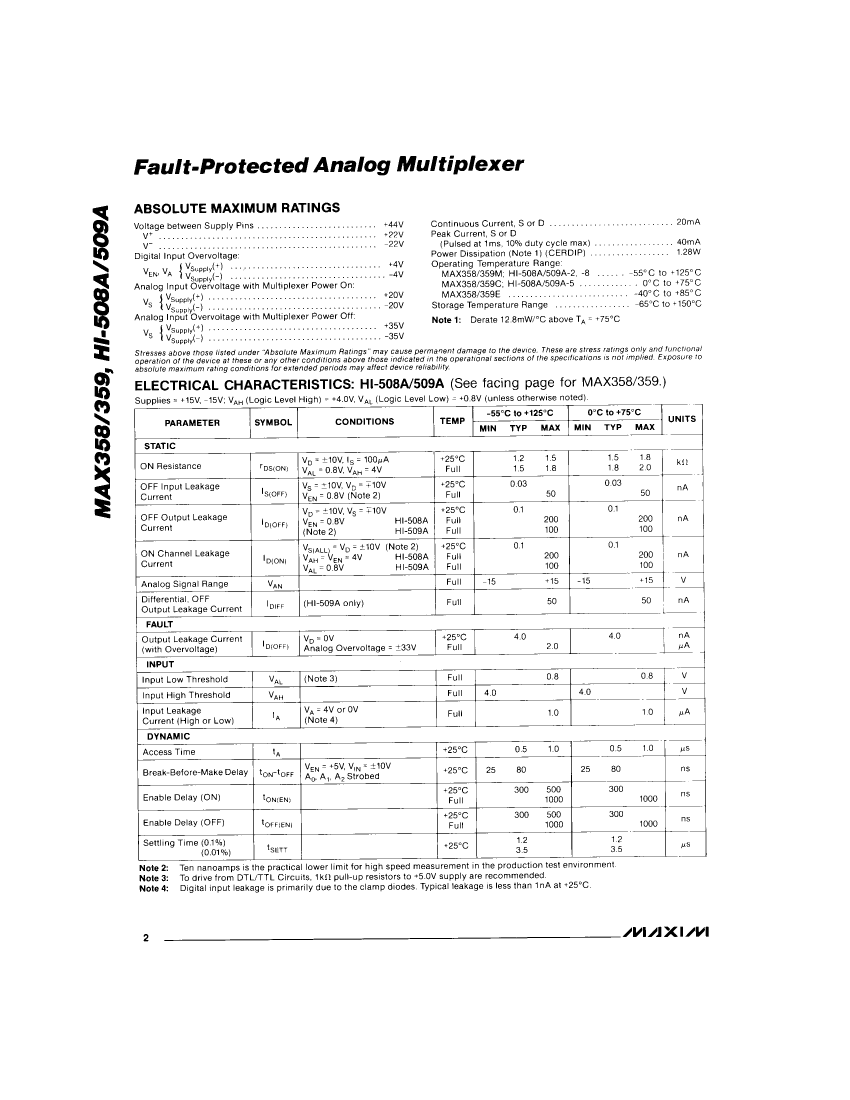

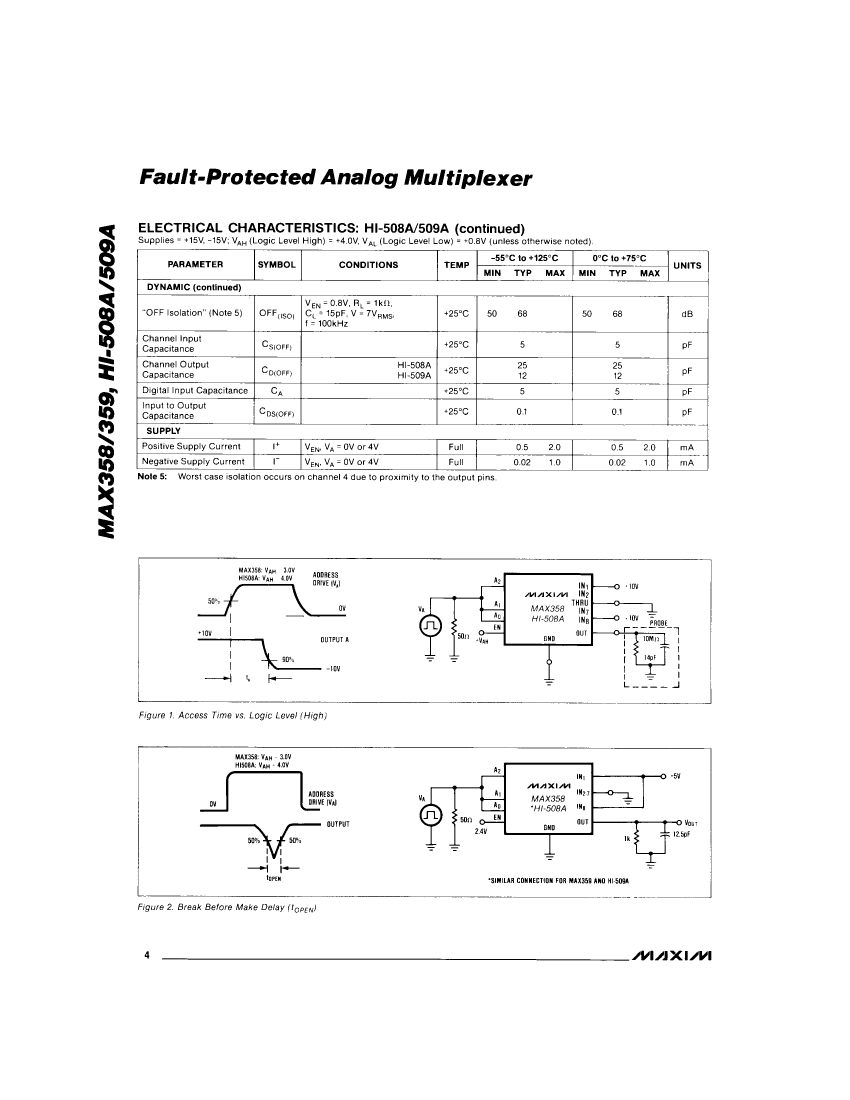

Preview

Download Datasheet

View All

MAX358CWE+ Related Products

	MAX358CWE+	MAX359CWE+	MAX359EWE+	MAX358EWE+	MAX359EWE+T	MAX358EWE+T	MAX358CPE+
Description	multiplexer switch ics 8:1 fault-protected analog mux	multiplexer switch ics 4:1 2ch fault-prtct analog mux	multiplexer switch ics 4:1 2ch fault-prtct analog mux	multiplexer switch ics 8:1 fault-protected analog mux	multiplexer switch ics 4:1 2ch fault-prtct analog mux	multiplexer switch ics 8:1 fault-protected analog mux	multiplexer switch ics 8:1 fault-protected analog mux
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	DIP
package instruction	SOP, SOP16,.4	SOP, SOP16,.4	SOP, SOP16,.4	SOP, SOP16,.4	SOP, SOP16,.4	SOP, SOP16,.4	DIP, DIP16,.3
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	6 weeks	6 weeks	6 weeks	6 weeks	8 weeks	6 weeks	10 weeks
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1	1	1	1
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	8	4	4	8	4	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16
Nominal off-state isolation	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB	68 dB
Maximum on-state resistance (Ron)	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω
Maximum operating temperature	75 °C	75 °C	85 °C	85 °C	85 °C	85 °C	75 °C
Minimum operating temperature	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	DIP
Encapsulate equivalent code	SOP16,.4	SOP16,.4	SOP16,.4	SOP16,.4	SOP16,.4	SOP16,.4	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.642 mm	2.642 mm	2.642 mm	2.642 mm	2.642 mm	2.642 mm	4.572 mm
Maximum signal current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum supply current (Isup)	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	YES	YES	NO
Maximum disconnect time	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns
Maximum connection time	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL EXTENDED
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.6745 mm	7.6745 mm	7.6745 mm	7.6745 mm	7.6745 mm	7.6745 mm	7.62 mm
Maximum negative supply voltage (Vsup)	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V	-
Negative supply voltage minimum (Vsup)	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-
