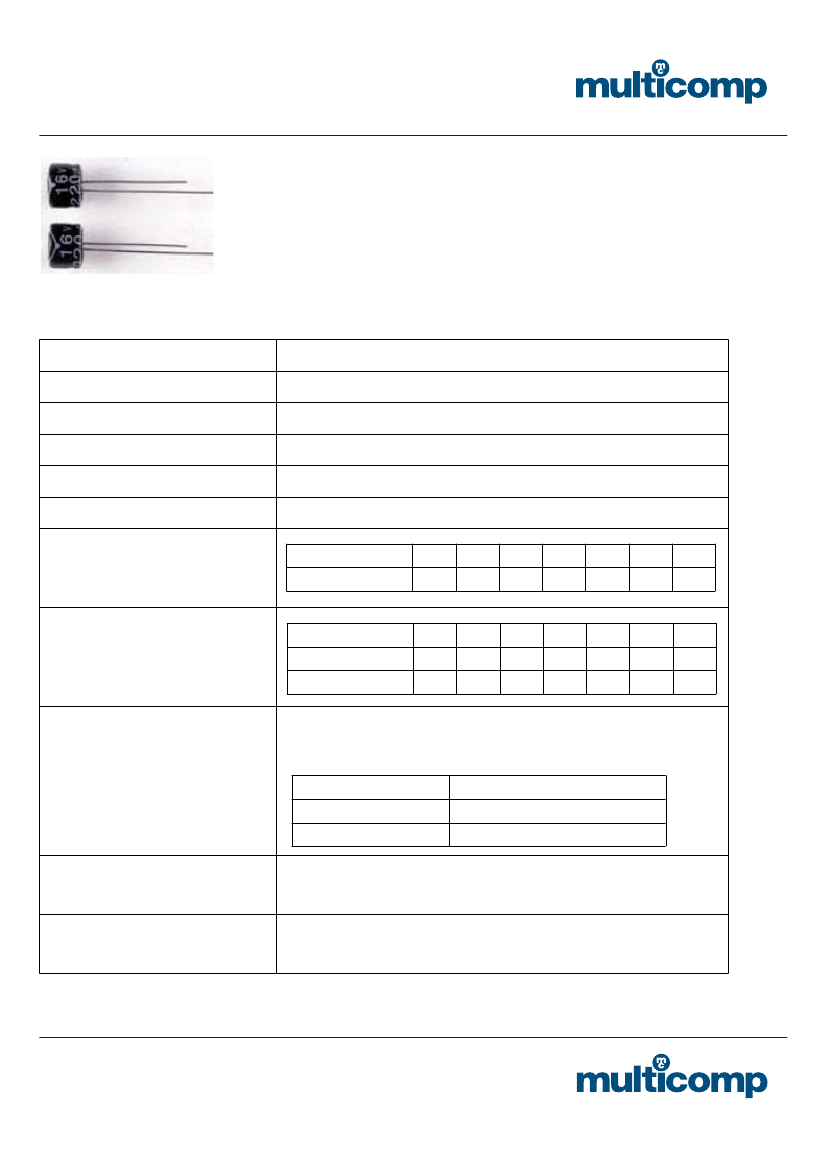

5mm 85°C MCUMR Series
Features:
•
•
Developed short body length to 5 m/m, for the demand of smaller and thinner electronic
equipment
Most suitable for high-density electronic equipment, such as:
automatic office machines, pocket calculators, car stereos and mini-audio sets, VCR,
camera, CD-ROM, notebook
Specifications:
Item
Operating temperature range
Rated working voltage range
Nominal capacitance range
Capacitance tolerance
Leakage current
Performance
-40°C to +85°C
4 to 50 V dc
0.1 to 470
µF
±20% (at +20°C,120 Hz)
I = 0.01CV or 3(µA) after two minutes
Working voltage (V)
Maximum tan
δ
4
0.35
6.3
0.24
10
0.2
16
0.16
25
0.14
35
0.12
50
0.1
Dissipation factor (tan
δ)
(120 Hz
\+20°C)
Working voltage (V)
Characteristics at high and low
temperature (stability at 120 Hz)
-25°C /+20°C
-40°C /+20°C
4
7
15
6.3
4
8
10
3
6
16
2
4
25
2
4
35
2
3
50
2
3
After 1,000 hours application of DC rated working voltage at +85°C,
The capacitor shall meet the following limits :
Post test requirements at +20°C
High temperature loading
Leakage current
Capacitance change
Dissipation factor (tan
δ)
£ the initial specified value
£ ±20% of initial measured value
£ 200% of initial specified value
Shelf life
After storage for 500 hours at +85°C with no voltage applied
Post test requirements at +20°C
same limits as high temperature loading
This capacitor can withstand circuit-board cleaning within 5 minutes
dipped in Freon TE, TES at 40°C (ultrasonic also permitted)
or in the steam of these cleaners
Solvent proof
www.element14.com
www.farnell.com
www.newark.com
Page <1>
19/01/12 V1.1

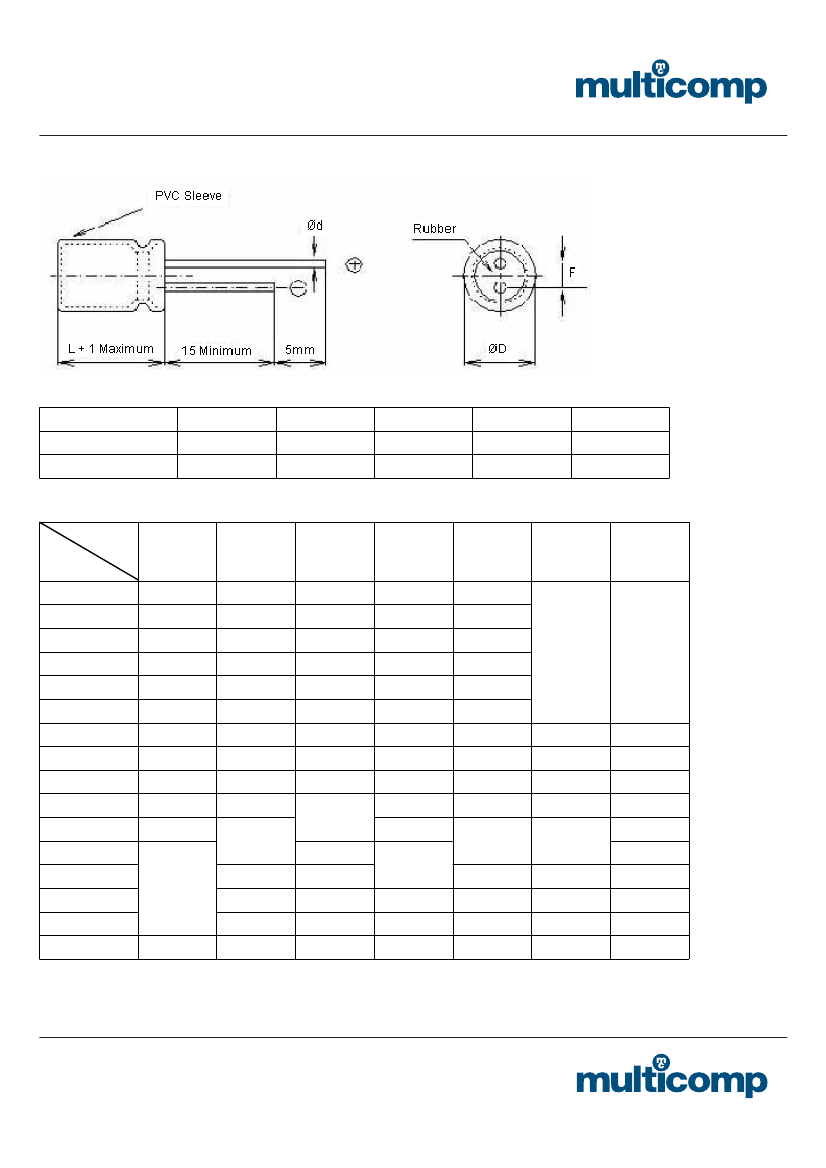

5mm 85°C MCUMR Series
Part Number Table
Description
CAPACITOR, 22
µF,
6.3 V
CAPACITOR, 33
µF,
6.3 V
CAPACITOR, 47
µF,
6.3 V
CAPACITOR, 100
µF,
6.3 V
CAPACITOR, 220
µF,
6.3 V
CAPACITOR, 330
µF,
6.3 V
CAPACITOR, 22
µF,
10 V
CAPACITOR, 33
µF,
10 V
CAPACITOR, 47
µF,
10 V
CAPACITOR, 100
µF,
10 V
CAPACITOR, 220
µF,
10 V
CAPACITOR, 10
µF,
16 V
CAPACITOR, 22
µF,
16 V
CAPACITOR, 33
µF,
16 V
CAPACITOR, 47
µF,
16 V
CAPACITOR, 100
µF,
16 V
CAPACITOR, 220
µF,
16 V
CAPACITOR, 4.7
µF,
25 V
CAPACITOR, 10
µF,
25 V
CAPACITOR, 22
µF,
25 V
CAPACITOR, 33
µF,
25 V
CAPACITOR, 47
µF,
25 V
CAPACITOR, 100
µF,
25 V
CAPACITOR, 3.3
µF,
35 V
CAPACITOR, 4.7
µF,
35 V
CAPACITOR, 10
µF,
35 V
CAPACITOR, 22
µF,
35 V
CAPACITOR, 33
µF,
35 V
CAPACITOR, 47
µF,
35 V
CAPACITOR, 0.1
µF,
50 V
Part Number
MCUMR6V3226M4X5
MCUMR6V3336M4X5
MCUMR6V3476M4X5
MCUMR6V3107M5X5
MCUMR6V3227M6.3X5
MCUMR6V3337M8X5
MCUMR10V226M4X5
MCUMR10V336M4X5
MCUMR10V476M5X5
MCUMR10V107M6.3X5
MCUMR10V227M8X5
MCUMR16V106M4X5
MCUMR16V226M4X5
MCUMR16V336M5X5
MCUMR16V476M6.3X5
MCUMR16V107M6.3X5
MCUMR16V227M8X5
MCUMR25V475M4X5
MCUMR25V106M4X5
MCUMR25V226M5X5
MCUMR25V336M6.3X5
MCUMR25V476M6.3X5
MCUMR25V107M8X5
MCUMR35V335M4X5
MCUMR35V475M4X5
MCUMR35V106M5X5
MCUMR35V226M6.3X5
MCUMR35V336M8X5
MCUMR35V476M8X5
MCUMR50V104M4X5
CAPACITOR, 0.22
µF,
50 V
CAPACITOR, 0.33
µF,
50 V
CAPACITOR, 0.47
µF,
50 V
CAPACITOR, 1
µF,
50 V
CAPACITOR, 2.2
µF,
50 V
CAPACITOR, 3.3
µF,
50 V
CAPACITOR, 4.7
µF,
50 V
CAPACITOR, 10
µF,
50 V
CAPACITOR, 22
µF,
50 V
MCUMR50V224M4X5
MCUMR50V334M4X5
MCUMR50V474M4X5
MCUMR50V105M4X5
MCUMR50V225M4X5
MCUMR50V335M4X5
MCUMR50V475M5X5
MCUMR50V106M6.3X5
MCUMR50V226M8X5
