MAX641AEPA+: Descriptionvoltage regulators - switching regulators 5V adjustable 10w step-Up switchin reg; CategoryPower/power management The power supply circuit; File Size2MB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX641AEPA+ Overview

voltage regulators - switching regulators 5V adjustable 10w step-Up switchin reg

MAX641AEPA+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	6 weeks
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	16.5 V
Minimum input voltage	2 V
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
length	9.375 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.45 A
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply current (Isup)	0.4 mA
surface mount	NO
Switch configuration	BOOST
Maximum switching frequency	45 kHz
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

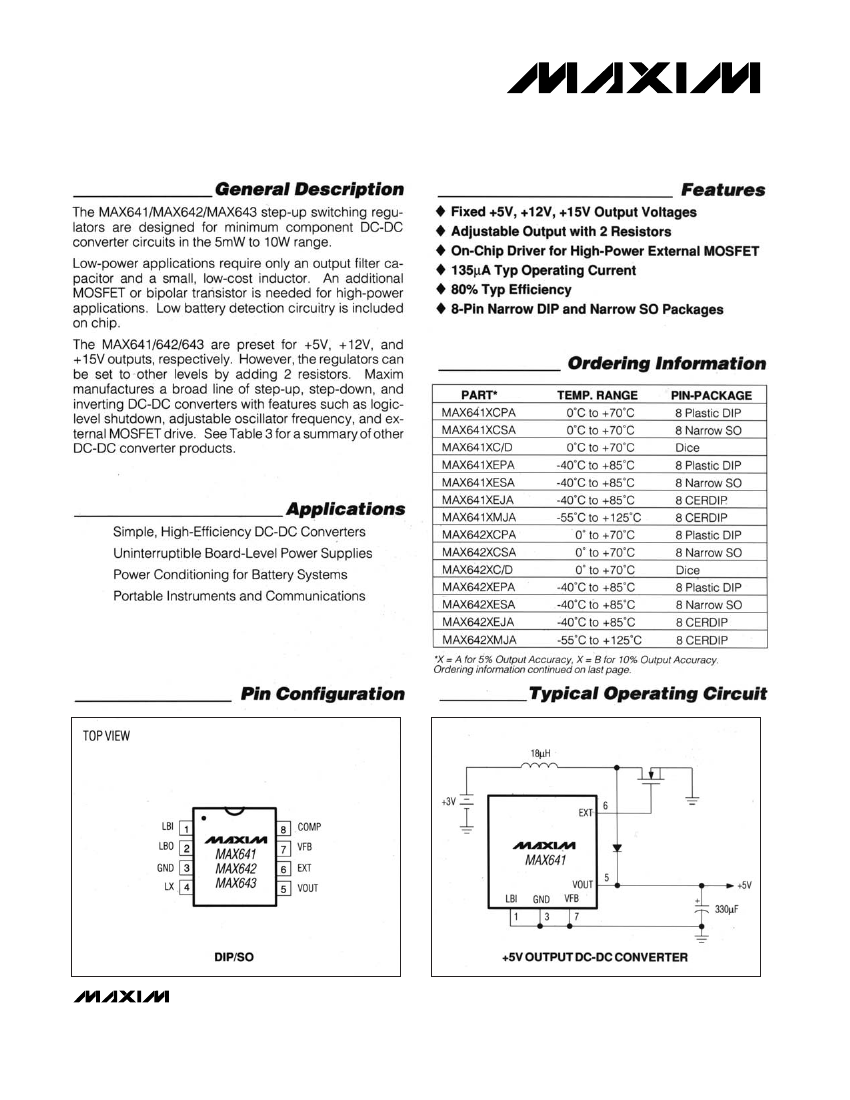

Fixed Output 10W CMOS

Step-Up Switching Regulators

MAX641/642/643

________________________________________________________________

Maxim Integrated Products

1

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

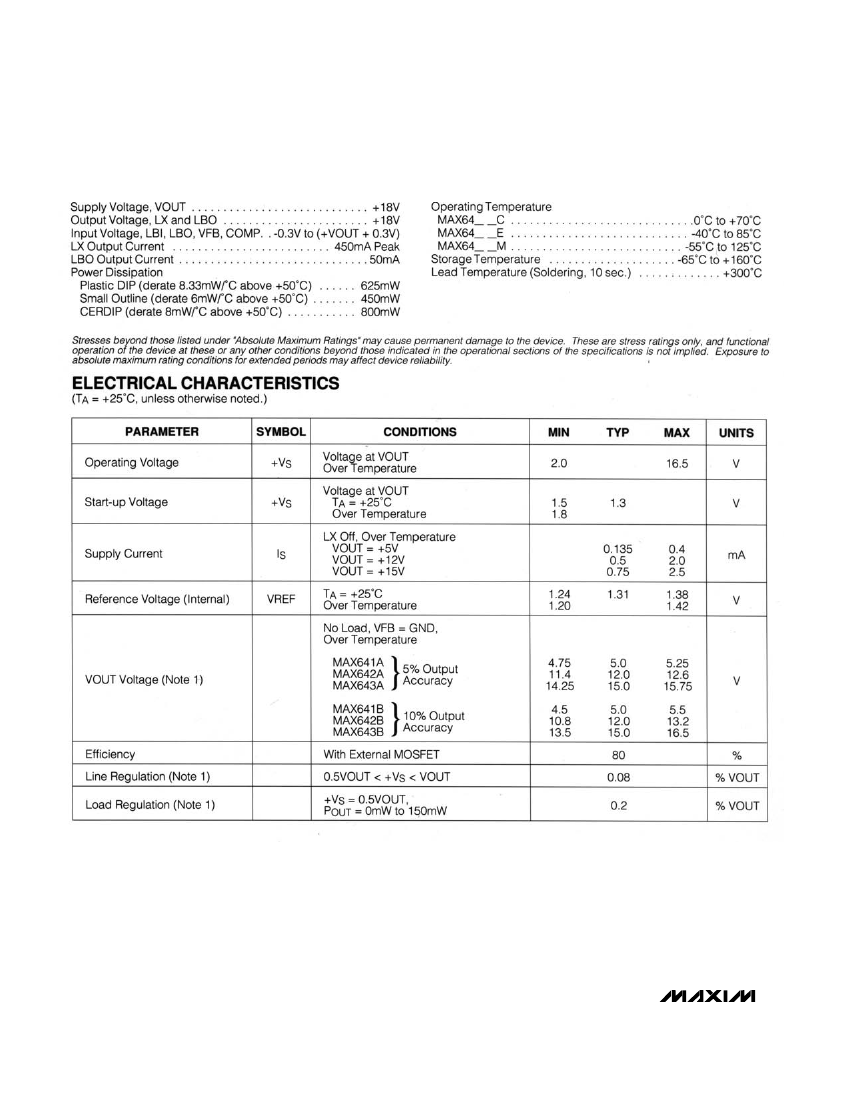

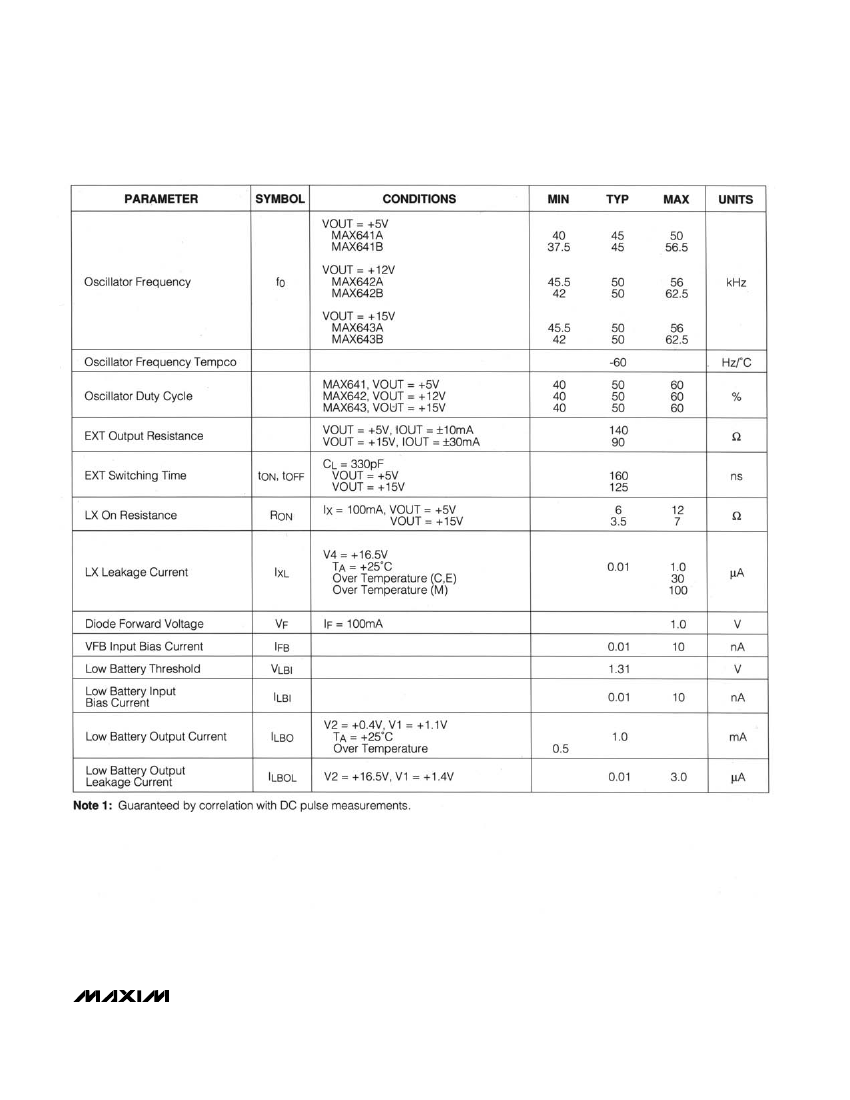

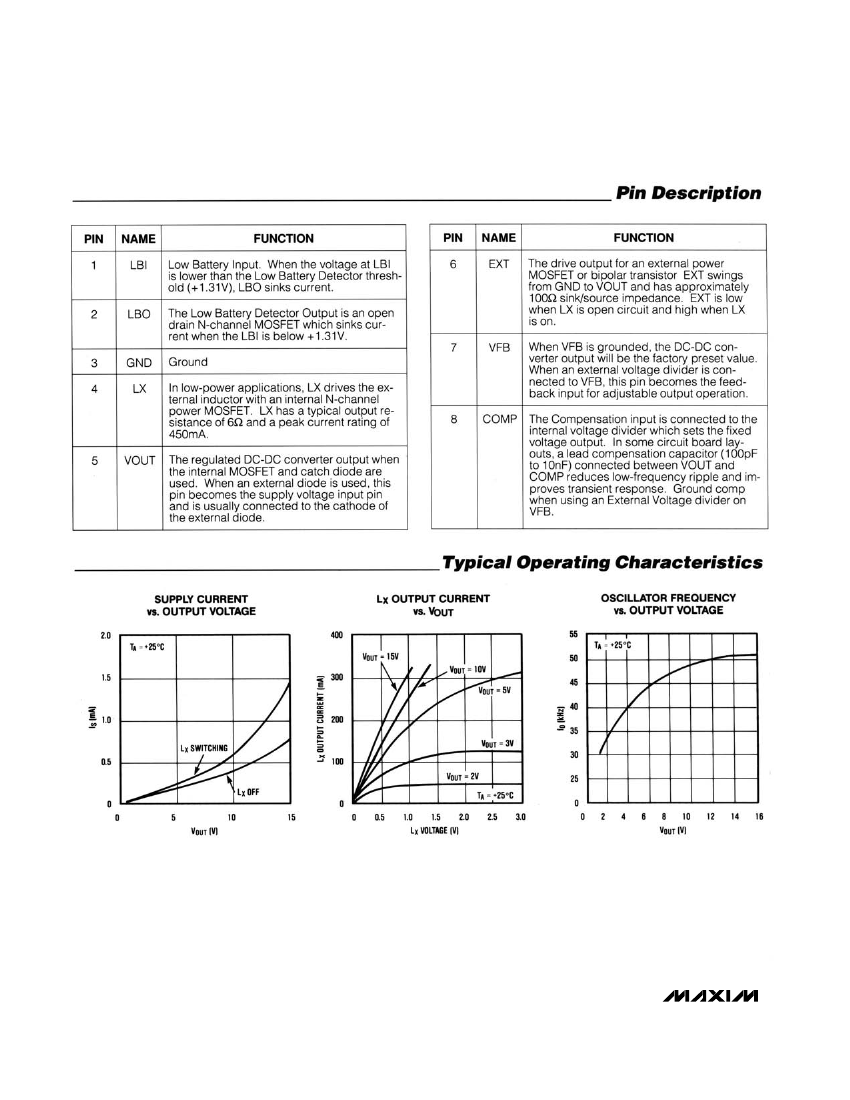

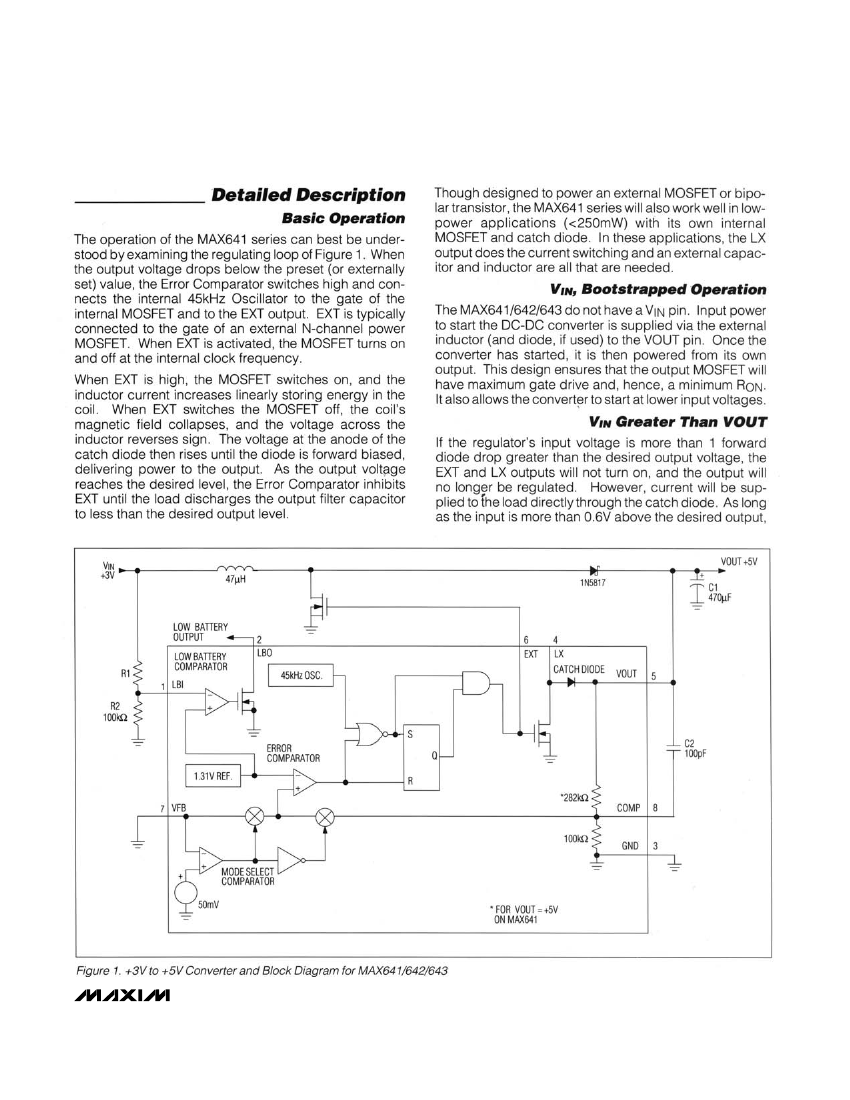

MAX641AEPA+ Related Products

	MAX641AEPA+	MAX641AESA+	MAX643ACSA+T	MAX643AESA+T	MAX642ACPA+	MAX642AEPA+
Description	voltage regulators - switching regulators 5V adjustable 10w step-Up switchin reg	voltage regulators - switching regulators 5V adjustable 10w step-Up switchin reg	voltage regulators - switching regulators single battery monitor	voltage regulators - switching regulators single battery monitor	voltage regulators - switching regulators 5V adjustable 10w step-Up switchin reg	voltage regulators - switching regulators 5V adjustable 10w step-Up switchin reg
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	DIP	SOIC	SOIC	SOIC	DIP	DIP
package instruction	DIP, DIP8,.3	SOP, SOP8,.25	SOP, SOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3	DIP, DIP8,.3
Contacts	8	8	8	8	8	8
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	6 weeks	6 weeks	9 weeks	9 weeks	6 weeks	6 weeks
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V
Minimum input voltage	2 V	2 V	2 V	2 V	2 V	2 V
JESD-30 code	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8
JESD-609 code	e3	e3	e3	e3	e3	e3
length	9.375 mm	4.9 mm	4.9 mm	4.9 mm	9.375 mm	9.375 mm
Humidity sensitivity level	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	70 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-	-40 °C
Maximum output current	0.45 A	0.45 A	0.45 A	0.45 A	0.45 A	0.45 A
Nominal output voltage	5 V	5 V	15 V	15 V	12 V	12 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	SOP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	SOP8,.25	SOP8,.25	SOP8,.25	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.572 mm	1.75 mm	1.75 mm	1.75 mm	4.572 mm	4.572 mm
Maximum supply current (Isup)	0.4 mA	0.4 mA	2.5 mA	2.5 mA	2 mA	2 mA
surface mount	NO	YES	YES	YES	NO	NO
Switch configuration	BOOST	BOOST	BOOST	BOOST	BOOST	BOOST
Maximum switching frequency	45 kHz	45 kHz	50 kHz	50 kHz	50 kHz	50 kHz
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	MATTE TIN	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm	7.62 mm
