MAGIC LED
PLB010050 Series
Product Datasheet
Description
Plessey MAGIC PLB010050 die are designed for a wide range of low power applications
such as decorative lighting, automotive interior, signage and indicators. The light is
emitted from the top surface only and close to a Lambertian distribution. The die is
suitable for assembling as single devices, or in strings or arrays for specific applications.
The dies are supplied on a blue tape in single intensity and colour bin, to provide close
uniformity.
Features
•
•
•
•
Blue LED die
GaN-on-Si technology
Single surface top-emitting
Wide wavelength range
Applications
•
•
•
•
•
•
Decoration Lighting
Instrument panel backlighting
Illumination symbols
Signage
Displays
Phosphor driving
Variant
Colour
Dominant Wavelength (nm)
Min.
450
460
470
Max.
460
470
480
PLB010050M
PLB010050P
PLB010050T
Blue Phosphor
Blue Visible
Blue Visible
Datasheet No 293123 Issue 1
1 of 9
27/06/2014
PLB010050 Series
| Product Datasheet
Absolute Maximum Ratings
T
amb
= +25
o
C unless otherwise stated
Parameter
DC Forward Current
Peak Pulse Forward Current
[1]
Reverse Voltage
Storage Temperature
Junction Temperature
[1]
Symbol
I
F
I
FP
V
R
T
stg
T
j
Minimum
-
-
-
-40
-40
Maximum
90
120
5
+105
+105
Unit
mA
mA
V
o
o
C
C
Pulse width
≤10ms,
duty cycle
≤10%
Electro-optical Characteristics
T
amb
= +25
o
C unless otherwise stated
Parameter
Forward Voltage
Reverse Current
Dominant wavelength
Symbol
V
F
I
R
Condition
I
F
= 60mA
V
R
= 5V
Min.
2.8
-
450
λ
d
I
F
= 60mA
460
470
Thermal Resistance
[1]
Typ.
3.1
-
-
-
-
11
Max.
3.6
10
460
470
480
-
Unit
V
µA
nm
R
thj-m
[1]
-
K/W
Junction to mounting face (excluding package)
Datasheet No 293123 Issue 1
Page 2 of
9
27/06/2014
PLB010050 Series
| Product Datasheet
Ordering Information
Name
PLB010050M
PLB010050P
PLB010050T
Order code
PLB010050MAJ000
PLB010050PAJ000
PLB010050TAJ000
Colour Range
M1, M2, M3 & M4
P1, P2
T1, T2
Luminous Intensity
Range
1B, 2B & 3B
2B, 3B & 4B
3B, 4B & 5B
Intensity Bin Groups
I
F
= 60mA, T
amb
= +25
o
C, unless otherwise stated
Luminous
Intensity Iv
[1]
(mcd)
Min.
1B
PLB010050M
2B
3B
PLB010050P
&
PLB010050T
[1]
Variant
Group
Radiant Power Range
(mW)
[1]
Min.
42
47
52
-
-
-
Max.
47
52
57
-
-
-
Max.
-
-
-
475
600
750
1060
-
-
-
440
475
600
750
2B
3B
4B
5B
Tolerance ±11% and packaged with a 1 millimeter radius silicone dome lens (R.I. 1.41)
Dominant Wavelength Bin Groups
I
F
= 60mA, T
amb
= +25
o
C, unless otherwise stated
Group
λ
d [1]
(nm)
Min.
450
452.5
455
457.5
460
465
470
475
Max.
452.5
455
457.5
460
465
470
475
480
M1
M2
M3
M4
P1
P2
T1
T2
[1]
Tolerance ±1nm
Datasheet No 293123 Issue 1
Page 3 of
9
27/06/2014
PLB010050 Series
| Product Datasheet
Characteristic Curves

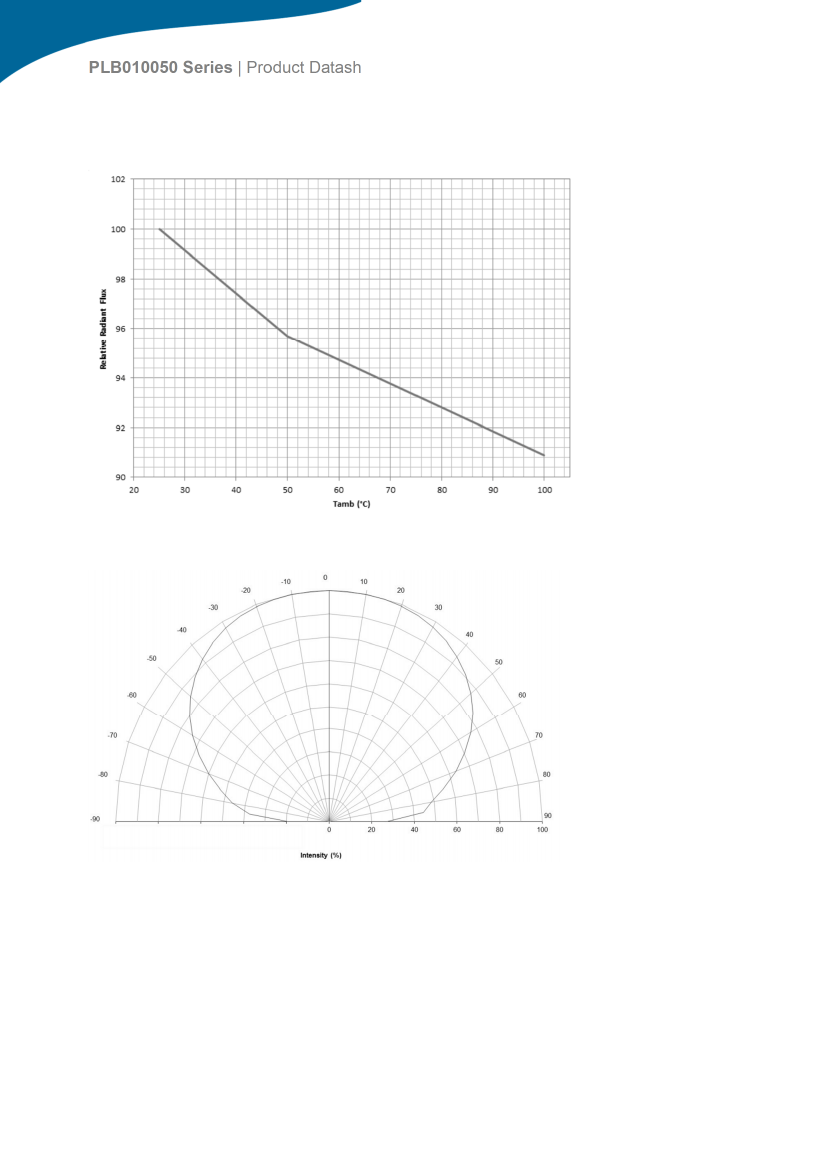

Figure 1: Relative radiant power at I
F
=60mA versus ambient temperature.
Figure 2: Normalised radiant intensity pattern distribution of a random die sample with
a dome lens encapsulation (R.I. 1.4).
Datasheet No 293123 Issue 1
Page 4 of
9
27/06/2014
PLB010050 Series
| Product Datasheet

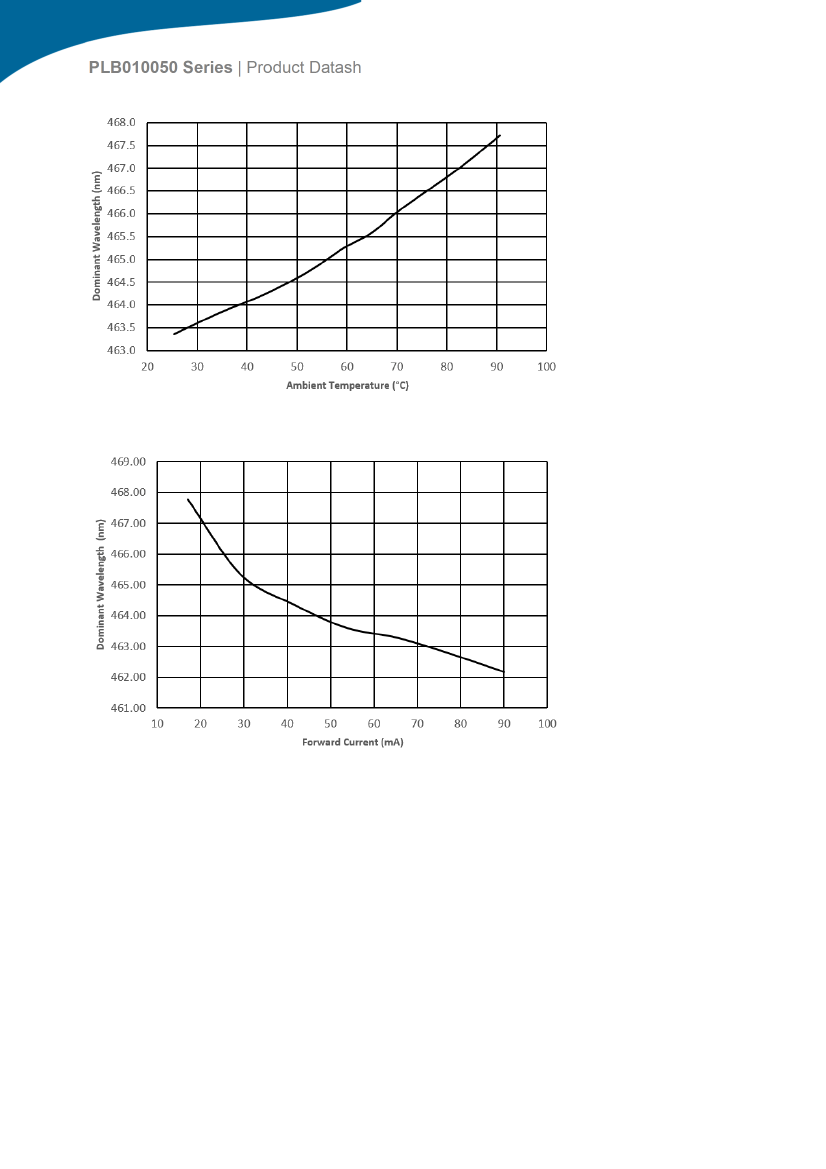

Figure 3: Dominant wavelength versus ambient temperature.
Figure 4: Dominant wavelength versus forward current at +25°C ambient.
Datasheet No 293123 Issue 1
Page 5 of
9
27/06/2014
