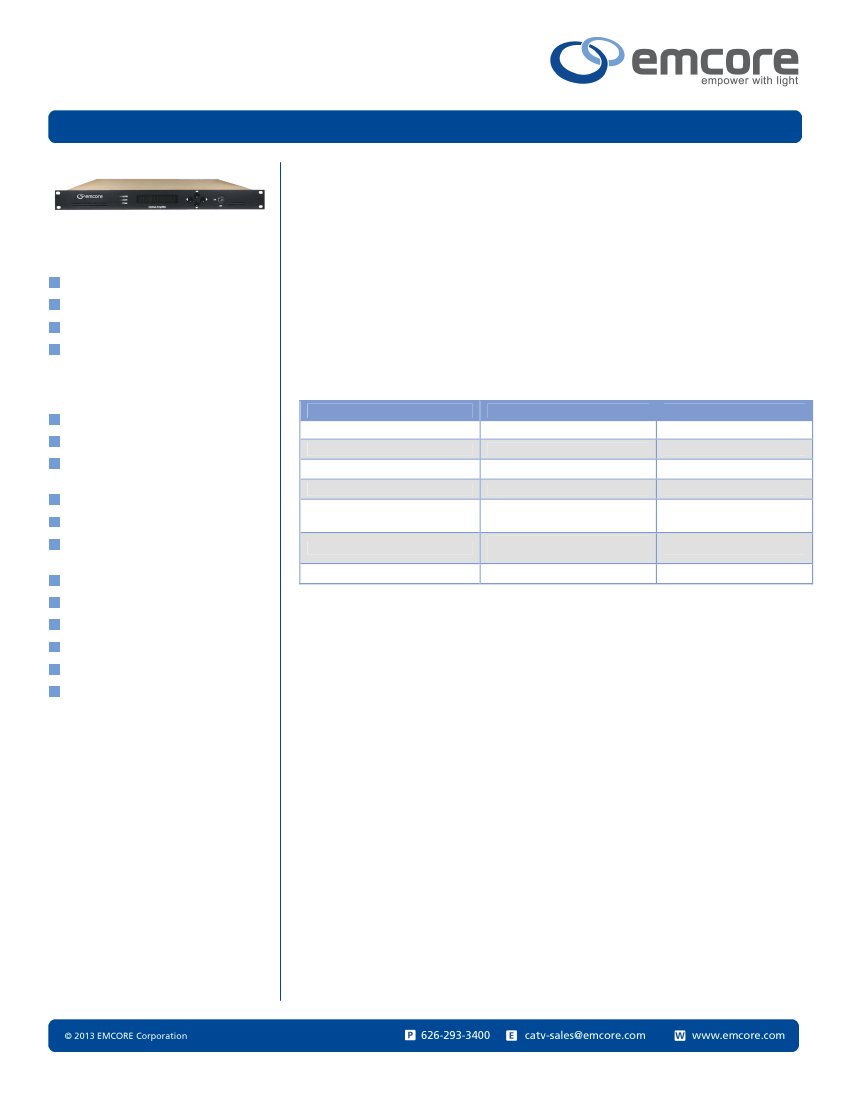

The EMCORE PONA 2114 PA Series Erbium Doped Fiber pre-Amplifier (EDFA)
is an ideal building block for OEM system integrators. The family of PONA 2114
PA series preamps is designed to meet the most demanding noise performance
requirements of any fiber link application, and perform all the functions required
of an optical pre-Amplifier for system integration. The PONA 2114 PA series
provides optical isolation on the output of the gain block for stable, low noise
operation. The output optical signal power levels are detected for monitoring and
control. The PONA 2114 PA series also provides monitors and associated
alarms for all vital characteristics. The relay outputs of the PONA 2114 PA series
provide electrical monitoring of alarm conditioning of the unit.
Features
Full Functionality 1 RU EDFA (pre-Amp)
Low Noise Figure (Typ < 3.3 dB)
Total Input Power Range:
-45 dBm to 0 dBm
+14 dBm Saturated Output Power (min)
Small Signal Gain 37 dB (min)
Standard RS-232 Communications
(RS-485 or I
2
C is Optional)
Key Lock Switch
VFD Panel Status Indicator
Low Electrical Power Consumption
Output Isolation >40 dB
Polarization Dependant Gain < 0.1 dB
Polarization Mode Dispersion < 0.5 ps
General and Mechanical Specifications
Property
Operating Wavelength
Operating Case Temperature
Storage Temperature
Operating Humidity
Voltage Supply Range
Optical Connectors
Dimensions in Inches
Requirement
1530 – 1562 nm
0C to 50C
-40C to 85C
20% to 85%
85 VAC to 265 VAC 50/60 Hz
-36 to -60 V DC
SC/APC; SC/UPC; FC/APC;
FC/UPC; E2000/APC
19.0”W x 14.76”D x 1.72”H
Comments
Standard
Standard
Non-condensing
Standard
Optional
User Specified
19” Rack-Mounted, 1U
| REV 2013.12
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
PONA 2114 PA Series EDFA
Erbium Doped Fiber pre-Amplifier
DATASHEET | DECEMBER 2013
FIBER OPTICS
Optical/Electrical Characteristics
1
Property
Operating Input Power
Operating Input Power
Saturated Output Power
Operating Wavelength Range
Noise Figure
Power Consumption
Symbol (Units)
Pin (dBm)
Pin (dBm)
Po (dBm)
nm
NF (dB)
Psys (W)
Limit
Max
Min
Min/Max
Max
Max
Specifications
0
-45
14
1530 – 1562
3.3
6
Comments
Minimum (Note 2)
Nominal
(note 3)
+50°C case
Notes:
1. Unless stated otherwise, all specifications apply over the full operating temperature and humidity ranges.
2. Measured @ 1550 nm, Pin -4 dBm and @ 25°C.
3. Measured @ 1550 nm, Pin -30 dBm and @ 25°C.

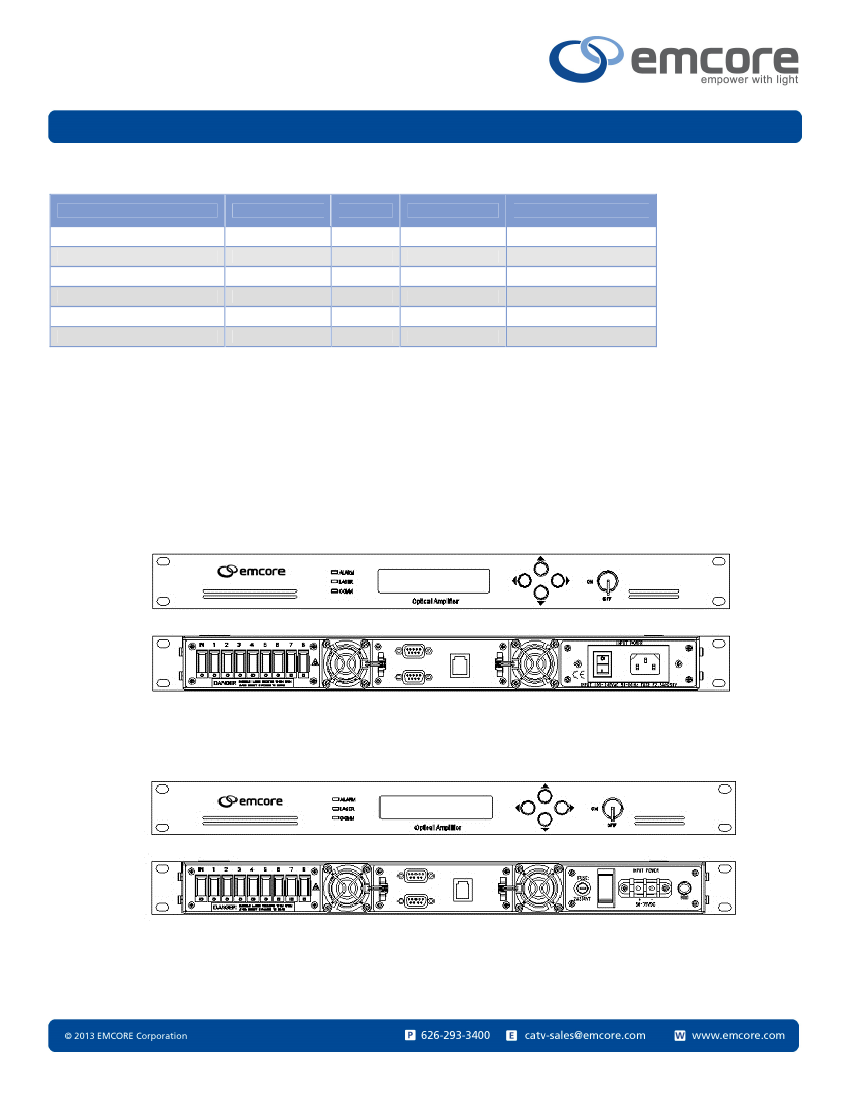

Outline Drawing
AC versions shown below with 8-port option
DC versions shown below with 8-port option
| REV 2013.12
Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.
PONA 2114 PA Series EDFA
Erbium Doped Fiber pre-Amplifier
DATASHEET | DECEMBER 2013
FIBER OPTICS
Compliance Information
89/336/EEC
73/23/EEC
EN 50083-2, (2001)
EN 55013
EN 61000-3-2
EN 55020
EN 61000-4-6
EN 61000-4-3
EN 61000-4-2
EN 61000-4-4
EN 60950
EN 60825-1
EN 60825-2
CDRH
Fit Rate:
Electromagnetic Compatibility Directive, amended by 92/31/EEC & 93/68/EEC
Low Voltage Directive, amended by 93/68/EEC
Cable networks for TV signals, sounds and interactive services, Part 2
Electromagnetic Compatibility for equipment.
Mains Conducted Emissions
Mains Frequency and its Harmonics, Conducted Emissions
Radiation from Active Equipment, Radiated Immunity
Immunity of Active Equipment, Radiated Immunity
Immunity of Active Equipment, Radiated Immunity
Electrostatic Discharge Immunity
Electrical Fast Transient / Burst Immunity
Low Voltage Directives
Laser Safety Requirement
Laser Safety Requirement
Laser Safety Requirement
90% level of confidence < 1700 @ 30C (PONA 2130)
Ordering Information
PONA 2114 - 1 -
Input Voltage
AC
– 90-260V 50/60 Hz
DC
– 48 V
-
- PA
Connector Type
SC –
SC/APC
FC
- FC/APC
EC –
E2000/APC
TC –
SC/UPC
GC –
FC/UPC
Laser Safety Information
This product meets the applicable requirements of 21 CFR 1010 & 1040 and is classified as a Class IV laser product based
on the maximum optical output power shown below. During use as intended, the laser energy is fully contained within the
fiber network such that there is no accessible laser radiation and would meet the requirements for a Class I laser product.
The laser product report has been submitted to the CDRH and the accession number is expected by October 2006.
Wavelength = 1530 ~ 1562 nm (dependant on input source)
Maximum Output Power = 30 mW (single output)
| REV 2013.12
