HI3-0508A-5+ datasheet, PDF - EEWORLD Datasheet

HI3-0508A-5+: Descriptionmultiplexer switch ics fault protected 8ch mux; CategoryAnalog mixed-signal IC The signal circuit; File Size438KB，11 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric View All

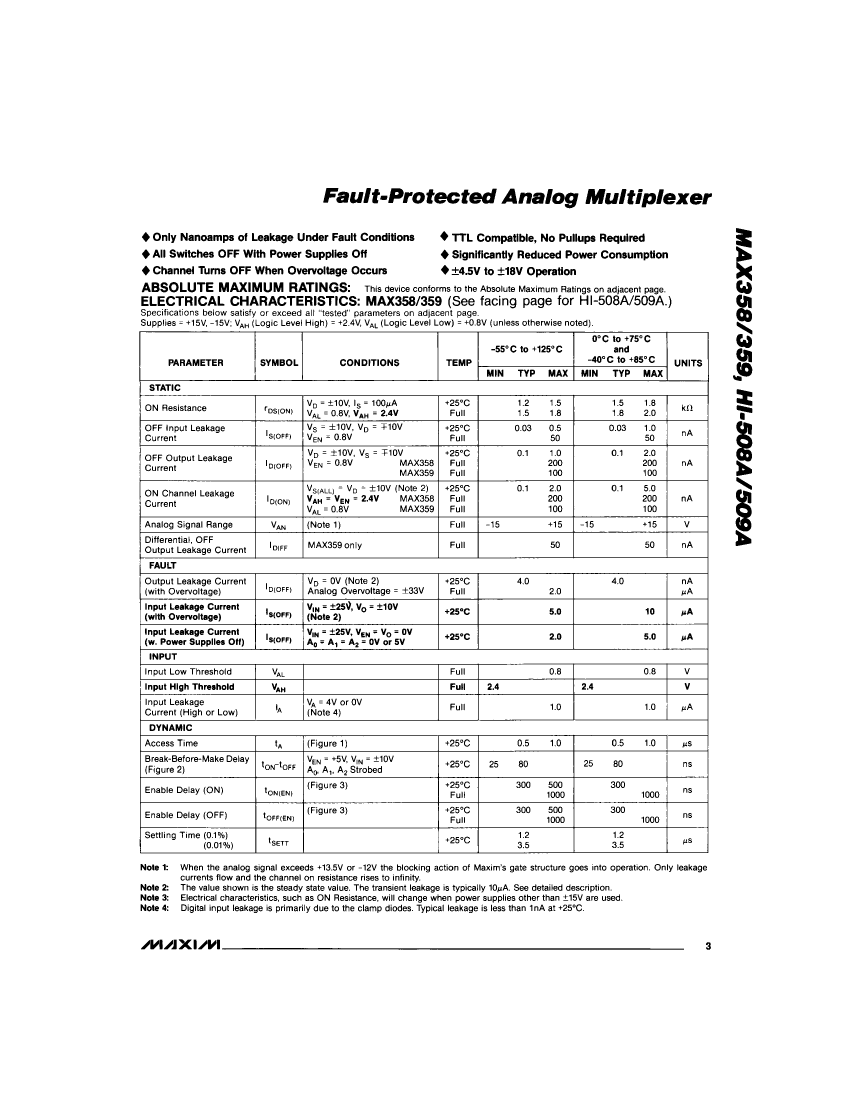

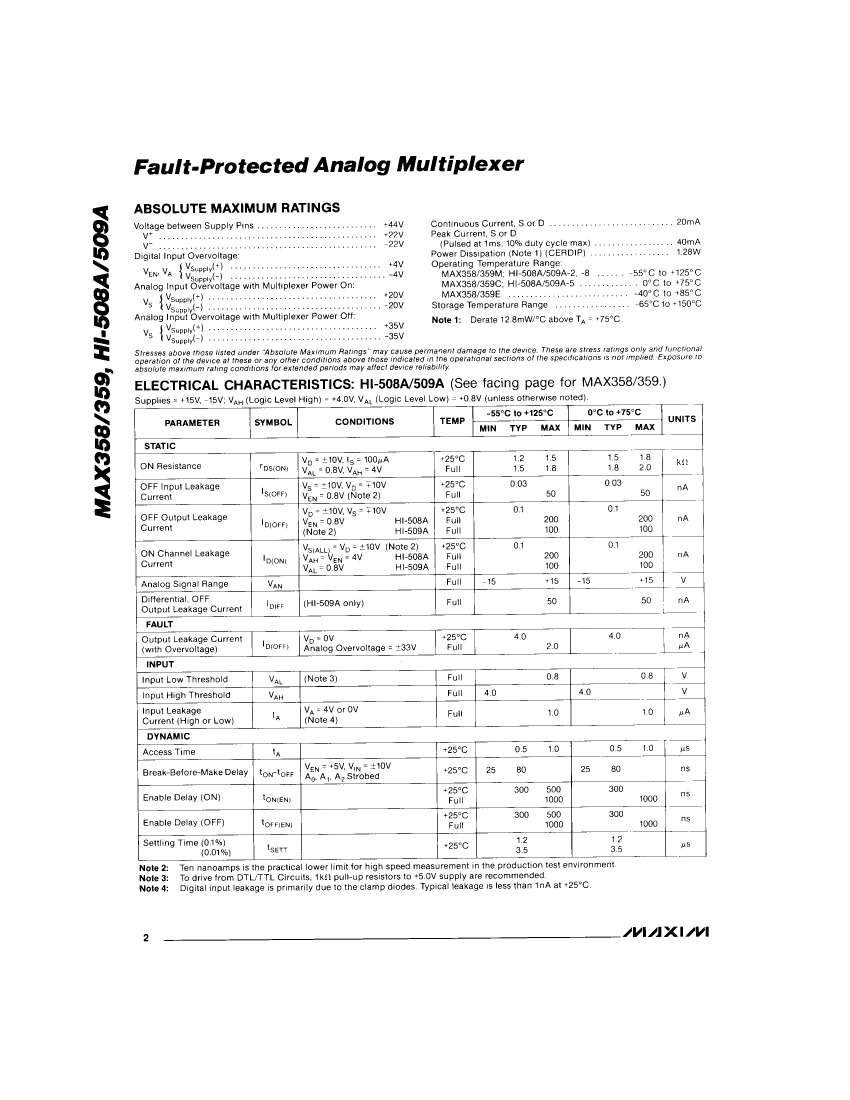

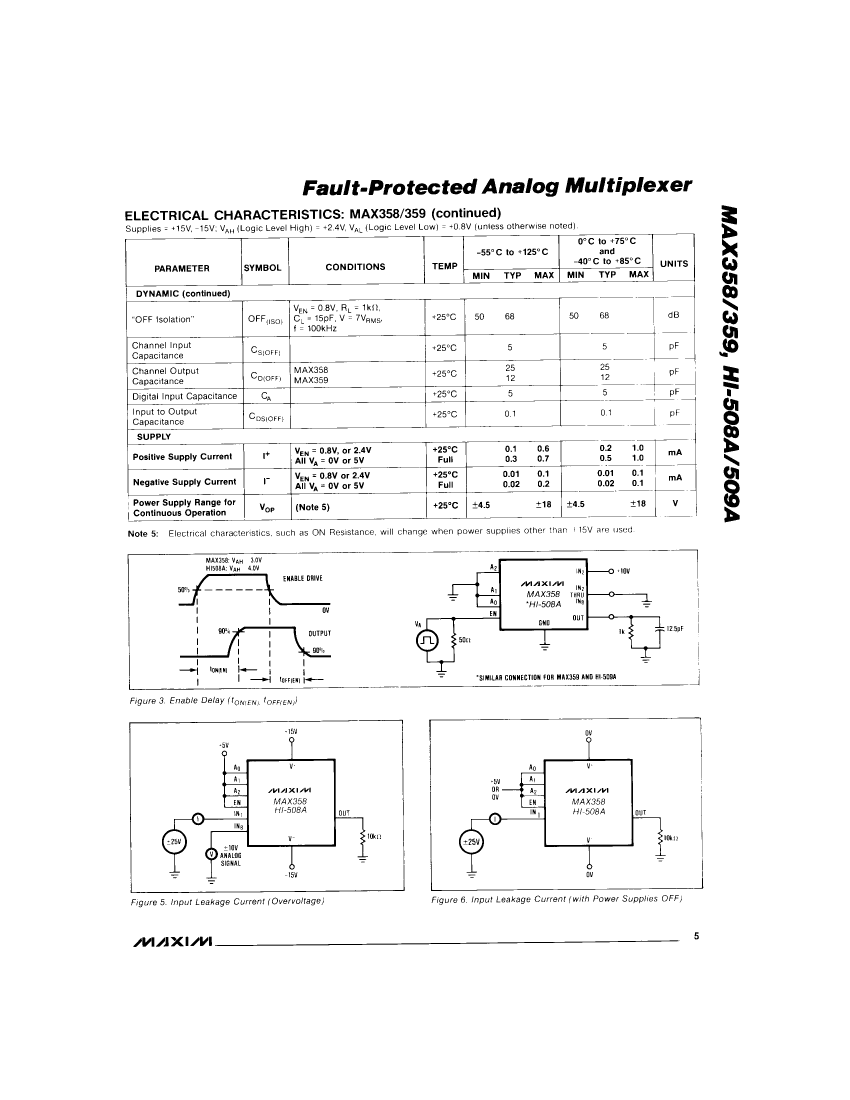

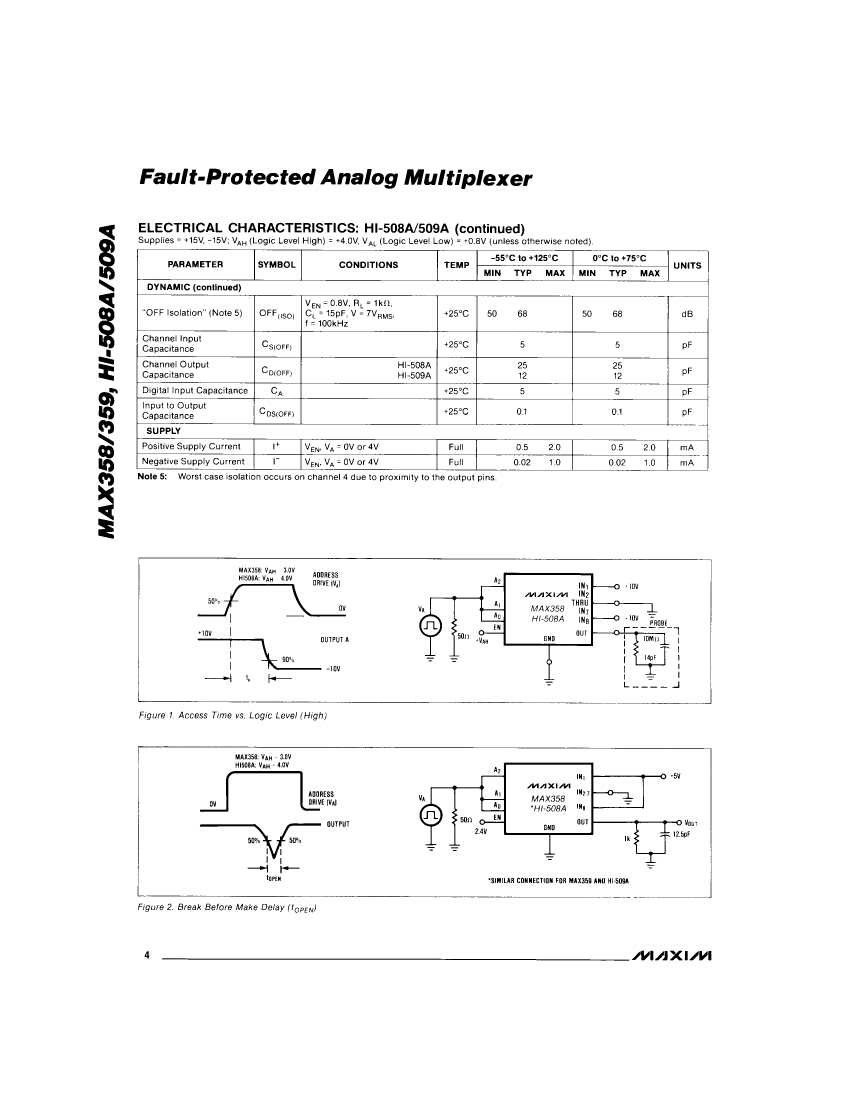

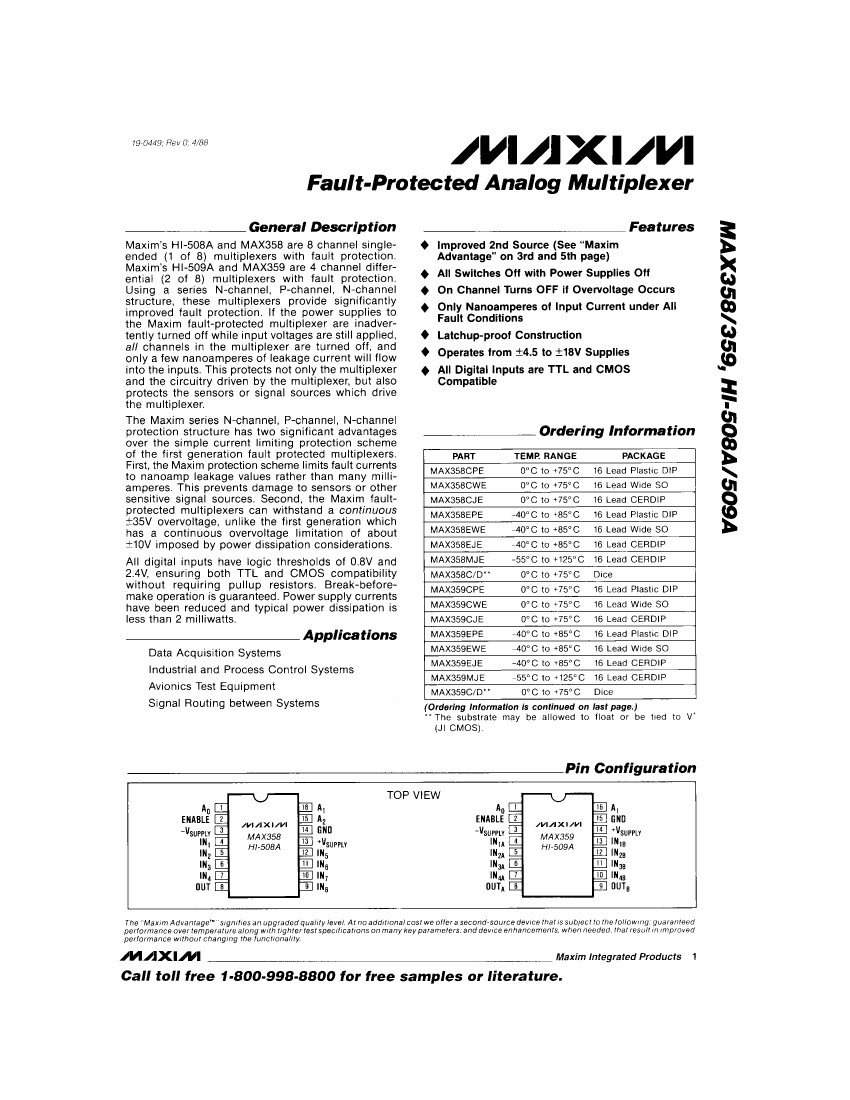

HI3-0508A-5+ Overview

multiplexer switch ics fault protected 8ch mux

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	1 week
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDIP-T16
JESD-609 code	e3
length	19.175 mm
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	68 dB
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply current (Isup)	2 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
