TS
SO
P1
6
SOT403-1
TSSOP16; Reel pack; SMD, 13"
Q1/T1 Standard product orientation
Orderable part number ending ,118 or J
Ordering code (12NC) ending 118
Rev. 1 — 8 April 2013
Packing information

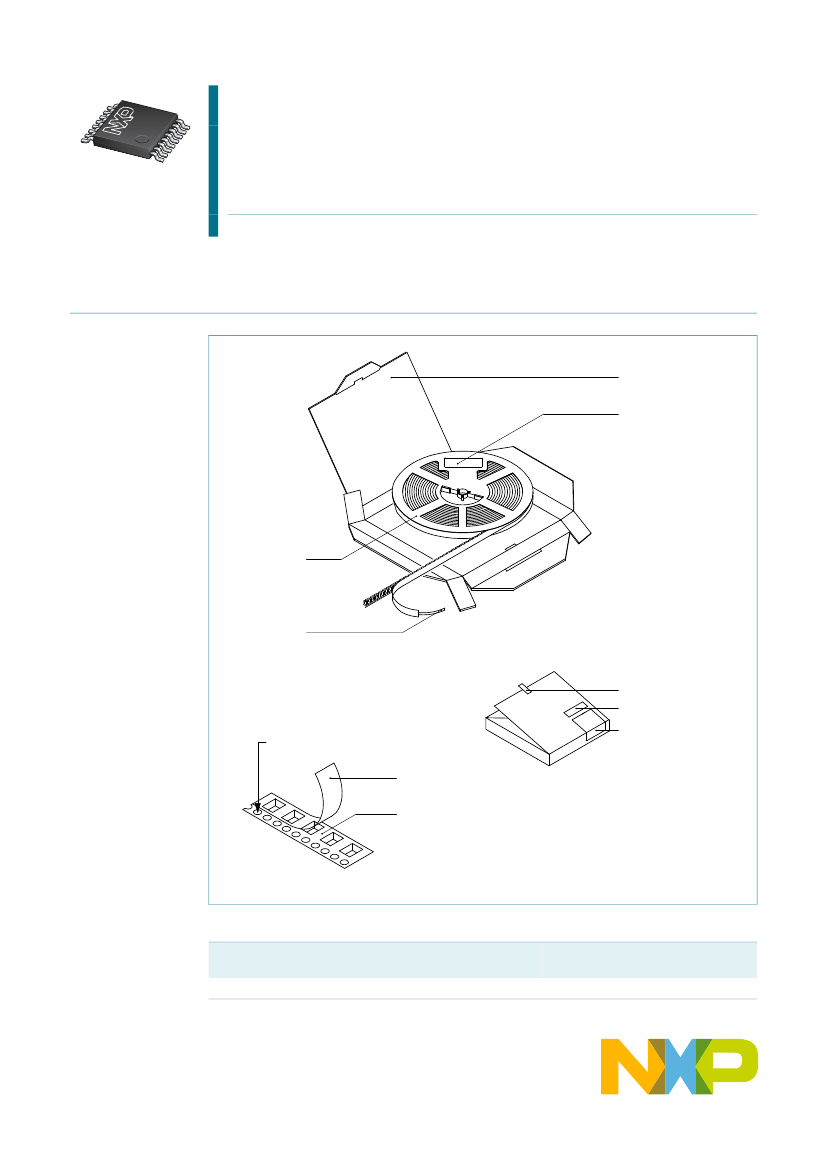

1. Packing method
Printed plano box
Barcode label
Reel
Tape
QA Seal
Preprinted ESD warning
Circular sprocket holes opposite the
label side of reel
Cover tape
PQ-label (permanent)
Carrier tape
001aak603
Fig 1.
Table 1.
Reel pack for SMD
Packing information
SPQ/PQ
(pcs)
2500
Reels
per box
1
Outer box dimensions
l x w x h (mm)
341 x 338 x 26
Reel dimensions
d x w (mm)
330 x 12
NXP Semiconductors
SOT403-1
TSSOP16; Reel pack; SMD, 13"
Q1/T1 Standard product orientation
Orderable part number ending ,118 or J
Ordering code (12NC) ending 118
2. Product orientation
SLQ
DDD
Fig 2.
Product orientation in carrier tape
3. Carrier tape dimensions
4 mm
A
0
K
0
W
B
0
P
1
direction of feed
T
001aao148
Fig 3.
Carrier tape dimensions
Table 2.
Carrier tape dimensions
In accordance with IEC 60286-3.
A
0
(mm)
6.9
B
0
(mm)
5.6
K
0
(mm)
1.6
T (mm)
-
P
1
(mm)
8
W (mm)
12
SOT403-1_118
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2013. All rights reserved.
Packing information
Rev. 1 — 8 April 2013
2 of 4
NXP Semiconductors
SOT403-1
TSSOP16; Reel pack; SMD, 13"
Q1/T1 Standard product orientation
Orderable part number ending ,118 or J
Ordering code (12NC) ending 118
4. Reel dimensions
D
Z
W
1.5 mm min
12.8 mm 20.2 mm
min
min
R 0.75 mm
detail Z
Schematic view of reel
001aaa751
Fig 4.
Schematic view of reel
Table 3.
Reel dimensions
In accordance with IEC 60286-3.
D (mm)
330
W (mm)
12
SOT403-1_118
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2013. All rights reserved.
Packing information
Rev. 1 — 8 April 2013
3 of 4
NXP Semiconductors
SOT403-1
TSSOP16; Reel pack; SMD, 13"
Q1/T1 Standard product orientation
Orderable part number ending ,118 or J
Ordering code (12NC) ending 118
5. Barcode label
Fixed text
Country of origin
i.e. "Made in....." or
"Diffused in EU [+]
Assembled in......
Packing unit (PQ) identification
2
nd
traceability lot number*
2
nd
(youngest) date code*
2
nd
Quantity*
Traceability lot number
Date code
With linear barcode
Quantity
With linear barcode
Type number
NXP 12NC
With linear barcode
NXP SEMICONDUCTORS
MADE IN >COUNTRY<
[PRODUCT INFO]
(33T) PUID: B.0987654321
(30T) LOT2
(31D) REDATE
(30D) DATE2 (32T) ORIG
(30Q) QTY2
(31T) PMC
(31P) MSL/PBT
(1T) LOT
MSL/PBT
(9D) DATE
(Q) QTY
HALOGEN FREE
(30P) TYPE
RoHS compliant
(1P) CODENO
Optional product information*
Re-approval date code*
Origin code
Product Manufacturing Code
MSL at the Peak Body solder
temperature with tin/lead*
MSL at the higher lead-free
Peak Body Temperature*
2D matrix with all data
(including the data identifiers)
Additional info if halogen
free product
Additional info on RoHS
Lead-free symbol
001aak714
Fig 5.
Box information barcode
NXP -ASSEMBLED IN >COUNTRY<
(30P)TYPE
HALOGEN FREE
(1T)LOT
(Q)QTY
(1P)CODENO
001aak715
EU/CN RoHS compliant
(9D)DATE
Fig 6.
Table 4.
Reel information barcode
Barcode dimensions
Reel barcode label
l x w (mm)
35 x 75
Box barcode label
l x w (mm)
100 x 75
Limited warranty and liability
Information in this document is believed to be accurate and reliable. However, NXP
Semiconductors does not give any representations or warranties, expressed or implied, as
to the accuracy or completeness of such information and shall have no liability for the
consequences of use of such information.
© NXP B.V. 2013.
All rights reserved.
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
Date of release: 8 April 2013
Document identifier: SOT403-1_118
