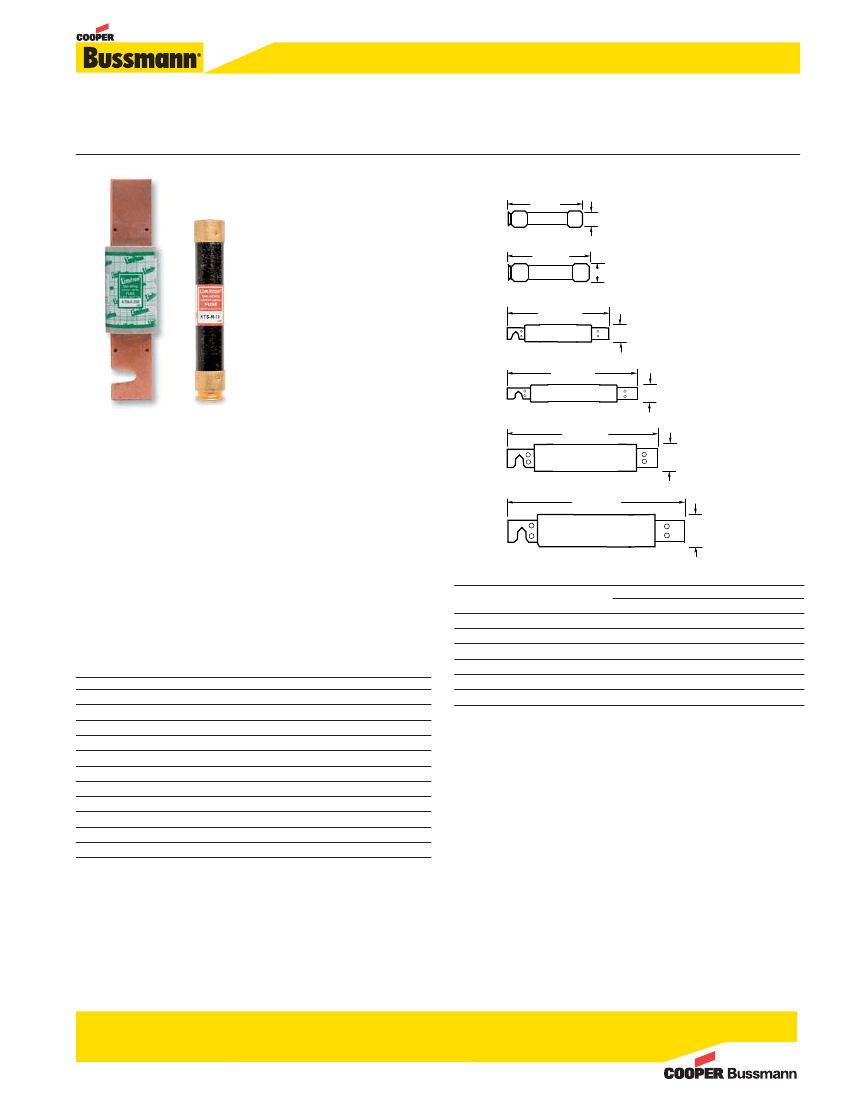

Limitron
®
Fast-Acting Fuses
600 Volt
Dimensional Data
5"
(± 0.31)
.81" (± 0.008)
1/10A to 30A
KTS-R
1-600A
5.5"
(± 0.31)
1.06" (± 0.008)
35A to 60A
7.88"
(±0.062)
1.000" (± 0.008)
70A to 100A
9.63"
(± 0.062)
1.500" (± 0.008)
110A to 200A
Catalog Symbol:
KTS-R
Fast-Acting
Current-Limiting
Ampere Rating:
1 to 600A
Voltage Rating:
600Vac (or less)*
Interrupting Rating:
200,000A RMS Sym.
Tube Material:
Glass Melamine
End Caps:
70/30 Brass
Operating Temp.:
–40°C to +85°C
Storage Temp.:
–55°C to +85°C
Agency Information:
CE, UL Listed, Std. 248-12, Class RK1, Guide JDDZ, File
E54273 CSA Certified, C22.2 No. 248.12, Class 1422-02,
File 53787
Catalog Numbers
KTS-R-1
KTS-R-2
KTS-R-3
KTS-R-4
KTS-R-5
KTS-R-6
KTS-R-8
KTS-R-10
KTS-R-12
KTS-R-15
KTS-R-20
KTS-R-25
KTS-R-30
KTS-R-35
KTS-R-40
KTS-R-45
KTS-R-50
KTS-R-60
KTS-R-70
KTS-R-75
KTS-R-80
KTS-R-90
KTS-R-100
KTS-R-110
KTS-R-125
KTS-R-150
KTS-R-175
KTS-R-200
KTS-R-225
KTS-R-250
KTS-R-300
KTS-R-350
KTS-R-400
KTS-R-450
KTS-R-500
KTS-R-600
11.63"
(±0.094)
2.000" (± 0.008)
225A to 400A
13.38"
(± 0.094)
2.500" (± 0.008)
450A to 600A
Carton Quantity and Weight (600Vac)
Amps
1–30
40–60
70–100
110–200
225–400
450–600
*Weight per carton.
Carton
Qty.
10
10
1
1
1
1
Weight*
Lbs.
1.45
2.63
0.5
1.4
2.75
4.25
Kg.
0.657
1.262
0.226
0.634
1.246
1.925
General Information:
• Single-element, fast-acting fuses with minimal time-delay.
• Provides a high degree of short-circuit current-limitation
(component protection).
• Particularly suited for circuits and loads with no heavy surge
currents of motors, transformers, solenoids, and welders.
• LIMITRON fuses are commonly used to protect circuit
breakers with lower interrupting ratings.
• If used in circuits with surge currents (motors, etc.) must be
sized to prevent unwanted opening and thus only provide
short-circuit protection.
• Incorporate Class R rejection feature. Can be inserted in non-
rejection type fuseholders. Thus, can physically and electri-
cally replace fast-acting Class H, K1, K5, RK5, and other
fast-acting fuses.
1002
SB02295
Page 1 of 2
Data Sheet 1044

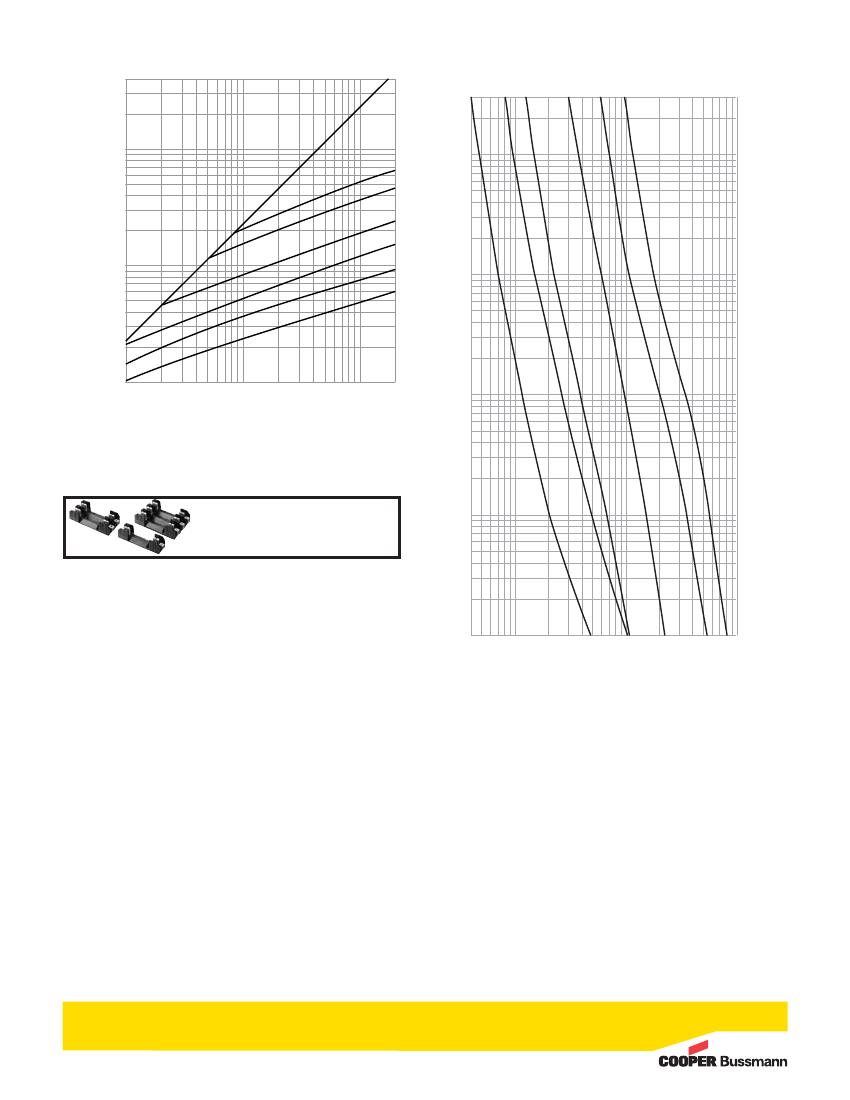

Current-Limitation Curves
INSTANTANEOUS PEAK LET-THROUGH CURRENT IN AMPS
400,000
B
Time-Current Characteristic Curves–Average Melt
100A
200A
400A
600A
AMPERE
RATING
30A
300
AMPERE
RATING
100
600
400
200
100
60
30
10
TIME IN SECONDS
1
.1
.01
10,000
1,000
Data Sheet 1044
100,000
10,000
A
100,000
RMS SYMMETRICAL CURRENTS IN AMPERES
A–B=ASYMMETRICAL AVAILABLE PEAK (2.3 x SYMM RMS AMPS)
Recommended fuseblocks for
Class R 600V fuses
See Data Sheet: 1111
200,000
1,000
10,000
1,000
60A
RMS SYMMETRICAL CURRENT IN AMPERES
