GWLGX-S1888-Y/G datasheet, PDF

Datasheet> All Categories > The connector> The connector> GWLGX-S1888-Y/G

GWLGX-S1888-Y/G: Descriptionmodular connectors / ethernet connectors G/JK RT; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

GWLGX-S1888-Y/G Overview

modular connectors / ethernet connectors G/JK RT

GWLGX-S1888-Y/G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	8 PORT, 8 POSITION EACH, SHIELDED
Board mount options	PEG
body width	0.53 inch
subject depth	0.62 inch
body length	1.27 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	GWLGX
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal length	0.103 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

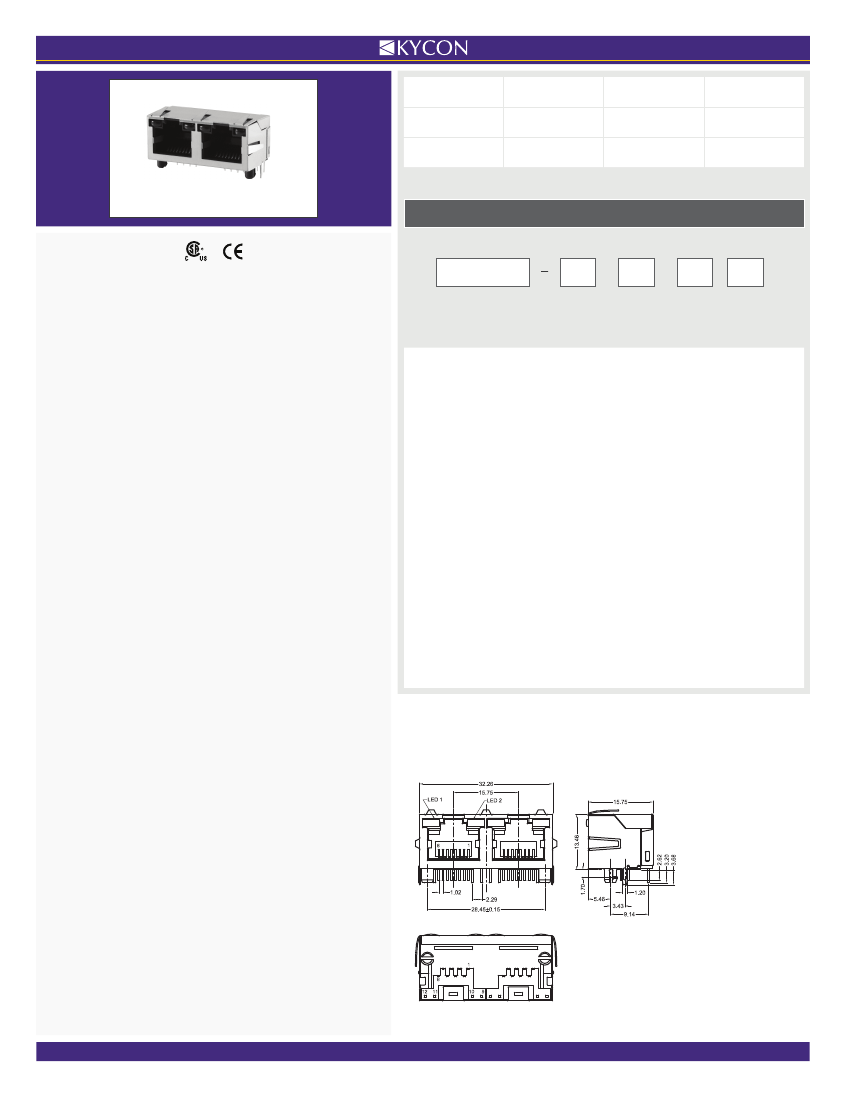

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

GWLGX-S1288-G/G

Part Number Builder

LR78160

GWLGX

Series

Shield

Option

No. of

Ports

No. of

Positions

& Contacts

G/G

LED Color

Option

MODULAR JACKS AND PLUGS:

GWLGX Series

Right Angle Ganged Jack with LED

Product Features

Easy Viewing LEDs to Act as Power/Transmit Indicators

Snap-In Retention Tabs

Available Fully Shielded for EMI/RFI Protection

CSA/NRTL Certified File No. LR78160

Series

GWLGX

- Ganged Modular Jack with LED, Tab Up

Shield Option

Fully Shielded with Top and Side Grounding Tabs

Number of Ports

- 2 Port

- 4 Port

- 8 Port

Performance Specifications

Materials and Finish

Housing Material

Thermoplastic, UL 94V-0 Rated, Black Color

Shield Material

Copper Alloy, Nickel Plated

Contact Material

Phosphor Bronze

Number of Positions/Contacts

- 8 Positions / 8 Contacts

LED Color

G/G

- Left: Green, Right: Green

Y/G

- Left: Yellow, Right: Green

G/Y

- Left: Green, Right: Yellow

G/R

- Left: Green, Right: Red

R/G

- Left: Red, Right: Green

Contact Kycon for Other Options

Electrical Characteristics

Insulation Resistance

500 Megohms Min.

Contact Resistance

20 milliohms Max.

Current Rating

1.5A

Voltage Rating

125V DC

Operating Temperature

-40°C to +85°C

Durability Rating

500 Mating Cycles Min.

GWLGX Series

Dimensions in mm

GWLGX-S1288x-x

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

2013

GWLGX-S1888-Y/G Related Products

	GWLGX-S1888-Y/G	GWLGX-S1888-Y/Y	GWLGX-S1488-R/Y	GWLGX-S1488-R/G	GWLGX-S1488-G/R
Description	modular connectors / ethernet connectors G/JK RT	modular connectors / ethernet connectors G/JK RT	modular connectors / ethernet connectors G/JK RT	modular connectors / ethernet connectors G/JK RT	modular connectors / ethernet connectors G/JK RT
Is it Rohs certified?	conform to	conform to	-	conform to	conform to
Maker	Kycon	Kycon	-	Kycon	Kycon
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	-	compli	compli
ECCN code	EAR99	EAR99	-	EAR99	EAR99
Other features	8 PORT, 8 POSITION EACH, SHIELDED	8 PORT, 8 POSITION EACH, SHIELDED	-	4 PORT, 8 POSITION EACH, SHIELDED	4 PORT, 8 POSITION EACH, SHIELDED
Board mount options	PEG	-	-	PEG	PEG
body width	0.53 inch	-	-	0.53 inch	0.53 inch
subject depth	0.62 inch	-	-	0.62 inch	0.62 inch
body length	1.27 inch	-	-	1.27 inch	1.27 inch
Body/casing type	JACK	JACK	-	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	-	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	-	-	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	-	-	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO	-	NO	NO
Durability	500 Cycles	-	-	500 Cycles	500 Cycles
empty shell	NO	NO	-	NO	NO
Filter function	NO	NO	-	NO	NO
IEC compliance	NO	NO	-	NO	NO
Insulation resistance	500000000 Ω	-	-	500000000 Ω	500000000 Ω
Insulator color	BLACK	-	-	BLACK	BLACK
insulator material	POLYETHYLENE	POLYETHYLENE	-	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	-	NO	NO
Manufacturer's serial number	GWLGX	GWLGX	-	GWLGX	GWLGX
Mixed contacts	NO	NO	-	NO	NO
Installation option 1	LOCKING	-	-	LOCKING	LOCKING
Installation option 2	MOUNTING FLANGE	-	-	MOUNTING FLANGE	MOUNTING FLANGE
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	BOARD	BOARD
Number of ports	8	-	-	4	4
Maximum operating temperature	85 °C	-	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	-	-	STAGGERED	STAGGERED
Plating thickness	FLASH inch	-	-	FLASH inch	FLASH inch
Rated current (signal)	1.5 A	-	-	1.5 A	1.5 A
Guideline	UL	-	-	UL	UL
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	-	NICKEL	NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY
Terminal length	0.103 inch	-	-	0.103 inch	0.103 inch
Terminal pitch	2.032 mm	-	-	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	64	64	-	32	32
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0
Base Number Matches	1	1	-	1	1
