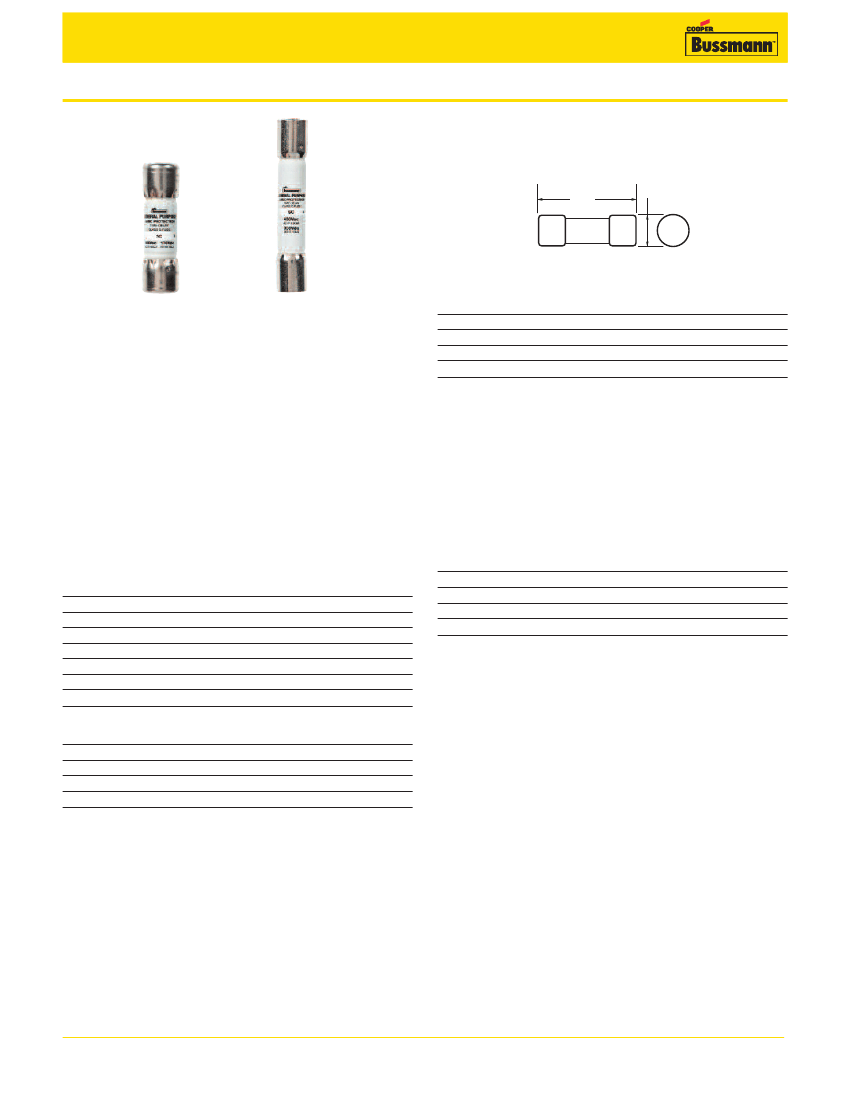

SC Class G
SC — 600Vac/480Vac,
1
⁄
2
-60A Size Rejecting Fuses
Dimensions - in
A
(Length)
0.41”
(10.41mm)
Description:
Basic protection Class G size-rejecting, current
limiting fuses. ½ to 6A Fast-acting, 7 to 60A time-delay. Time-
delay – 12 seconds (minimum) at 200% of rated current.
Catalog Symbol:
SC-(amp)
Ratings:
Volts — 600Vac/170Vdc (½-20A)
— 480Vac/300Vdc (25-60A)
Amps — ½-60A
IR — 100kA Vac RMS Sym.
— 10kA Vdc
Agency Information:
CE, UL Listed, Std. 248-5, Class G, Guide JDDZ, File E4273
CSA Certified, C22.2 No. 248.5, Class 1422-01, File 53787
Catalog Numbers (amps)
SC-
1
⁄
2
SC-1
SC-1
1
⁄
2
SC-2
SC-2
1
⁄
2
SC-3
SC-4
SC-5
SC-6
SC-7
SC-8
SC-10
SC-12
SC-15
SC-20
SC-25
SC-30
SC-35
SC-40
SC-45
SC-50
SC-60
Amp Rating
½-15
20
25 to 30
35 to 60
A
1.31 (33.3)
1.41 (35.8)
1.62 (41.1)
2.25 (57.1)
Features:
• Compact branch-circuit units with high interrupting rating
and current-limitation
• With up to a 600V rating, they can be used in 120/208V,
120/240V and 277/480V circuits
• Size rejection by length helps prevent overfusing
• In general, SC fuses are about
1
⁄
2
the size of the 600V NEC
®
fuse type
• SC fuses 7 amps and above have a degree of overload
time-delay which permits them to pass temporary overloads
Recommended Fuse Blocks
Fuse Amps
1
⁄
2
-15
20
25-30
35-60
1-Pole
BG30011_
BG30021_
BG30031_
G30060-1C_
2-Pole
BG30012_
BG30022_
BG30032_
G30060-2C_
3-Pole
BG30013_
BG30023_
BG30033_
G30060-2C_
For additional information on the BG and G Series of Class G
fuse blocks, see Data Sheet # 1006.
Carton Quantity and Weight
Amp Rating
Carton Qty.
½-15
20
25–30
35–60
4
4
2
2
0713
BU-SB13733
Page 1 of 3
Data Sheet # 1024
SC Class G
SC — 600Vac/480Vac,
1
⁄
2
-60A Size Rejecting Fuses

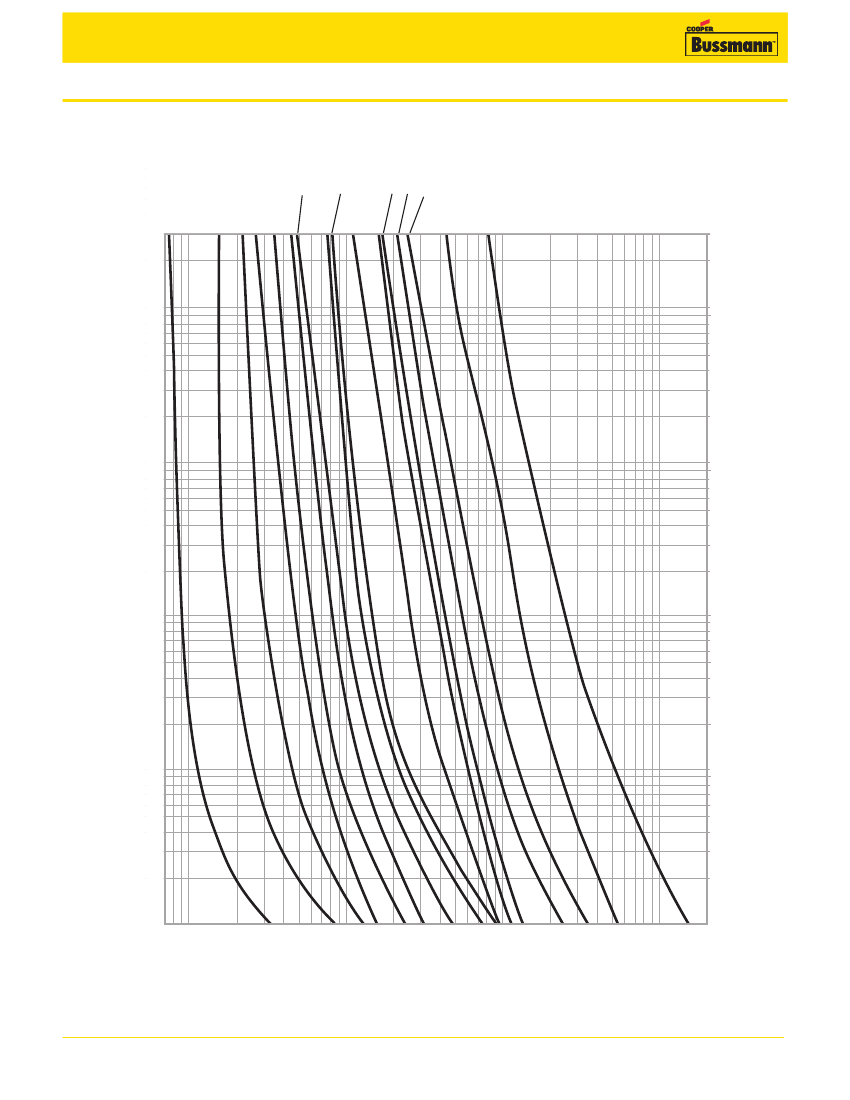

Current-Limitation Curves
10,000
INSTANTANEOUS PEAK LET-THROUGH
CURRENT IN AMPS
B
60
30
20
15
AMP RATING
1,000
A
100
1,000
RMS SYMMETRICAL CURRENTS IN AMPS
A–B=ASYMMETRICAL AVAILABLE PEAK (2.3 X SYMM RMS AMPS)
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information
contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
0713
BU-SB13733
Page 3 of 3
Data Sheet # 1024
100,000
10,000
100
