Time-Delay Fuses
Class G – 600 Volt,
1
⁄
2
- 20 Amps
480 Volt, 25 - 60 Amps

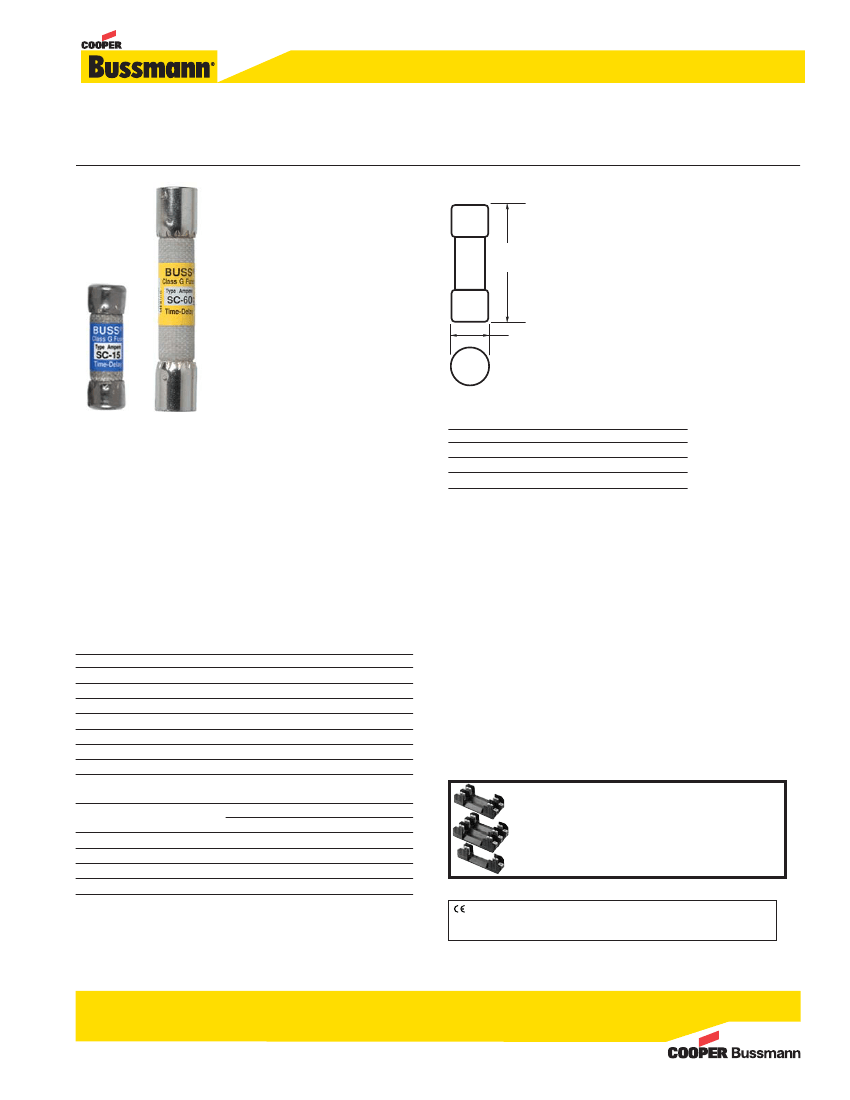

Dimensional Data
SC
A
(Length)
.41"
(10.41mm)
Fuse (Amps)
A
1.31∑
1.41∑
1.62∑
2.25∑
Catalog Symbol:
SC
Current-Limiting
Ampere Rating:
⁄Ω™ to 60A (fast-acting),
7 to 60A (time-delay)
Voltage Ratings:
SC ⁄Ω™ to 20 600Vac, 170Vdc
SC 25 to 60
480Vac, 300Vdc
Interrupting Rating:
100,000A RMS Sym. AC, 10,000A dc
Agency Information:
UL Listed, Std. 248-5, Class G, Guide JDDZ, File E4273
CSA Certified, C22.2 No. 248.5, Class 1422-01, File 53787
Catalog Numbers
SC-⁄Ω™
SC-1
SC-1⁄Ω™
SC-2
SC-2⁄Ω™
SC-3
SC-4
SC-5
SC-6
SC-7
SC-8
SC-9
SC-10
SC-12
SC-15
SC-20
SC-25
SC-30
SC-35
SC-40
SC-45
SC-50
SC-60
—
SC-⁄Ω™ to 15
SC-20
SC-25 to 30
SC-35 to 60
General Information:
• Compact branch-circuit units with high interrupting rating
and current-limitation.
• With 600V rating, they can be used in 120/208, 120/240
and 277/480V circuits.
• Length variations relative to case size make the “rejec-
tion” type fuses.
• In general, SC fuses are about ⁄Ω£ the size of the 600V
NEC fuse type.
• SC fuses with ampere ratings above 6A have a
degree of overload time-delay which permits them to
pass temporary overloads. At 200% load, they have a
minimum opening time of 12 seconds.
Carton Quantity and Weight
Catalog
Number
⁄Ω™–15
20
25–30
35–60
†Weight per carton.
Carton
Qty.
4
4
2
2
Weight†
Lbs.
0.060
0.064
0.040
0.075
Kg.
0.0272
0.029
0.018
0.0340
Recommended fuseblocks/fuseholders for
Class G fuses
See Data Sheets listed below
• Open fuseblocks - 1106
• In-line fuseholders - 1123, 1124
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
© 2011 Cooper Bussmann
www.cooperbussmann.com
0104
SB04105
Page 1 of 3
Data Sheet 1024

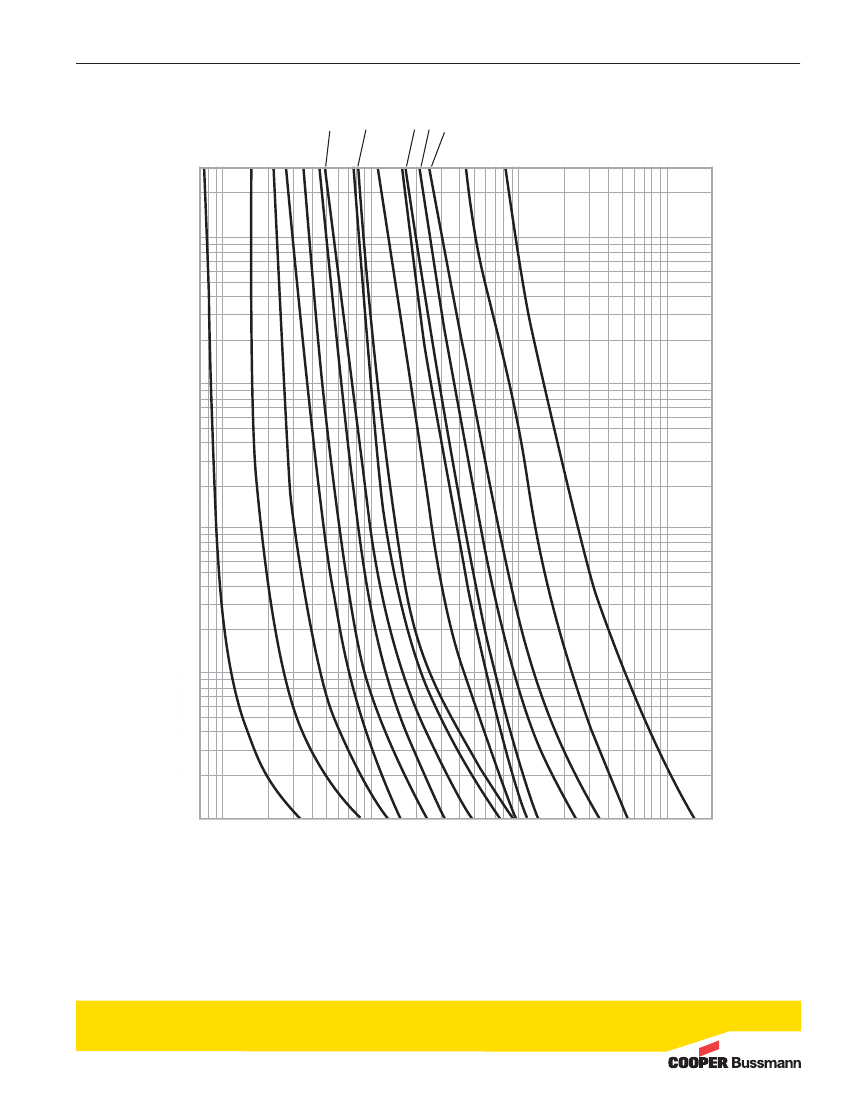

Time-Current Characteristic Curves– Total Clearing
1A
1-1/2A
2A
2-1/2A
3A
4A
5A
6A
8A
10A
12A
15A
20A
30A
1/2A
300
100
TIME IN SECONDS
10
1
.1
.01
.7 1
60A
10
100
1,000 2,000
CURRENT IN AMPERES
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of
this document are by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical informa-
tion that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change design or construction of
any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice,
any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
© 2011 Cooper Bussmann
www.cooperbussmann.com
0104
SB04105
Page 3 of 3
Data Sheet 1024
