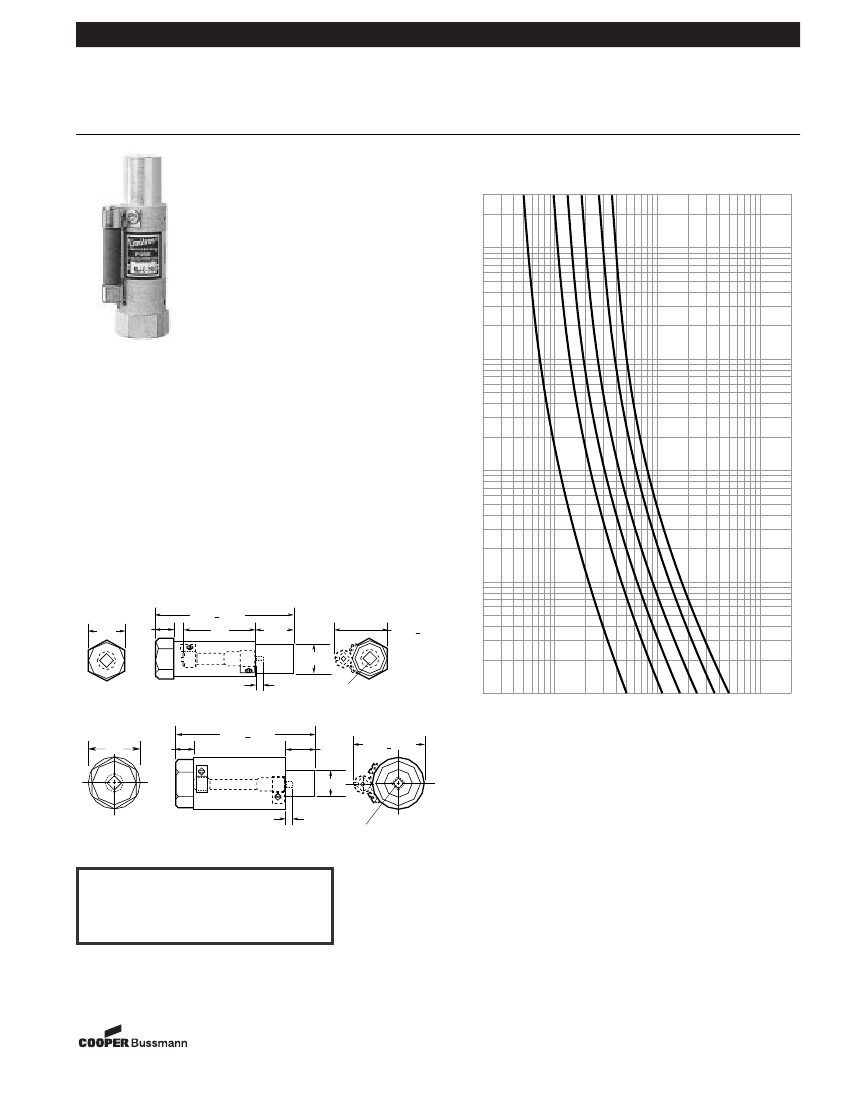

Bussmann
®
LIMITRON
®
Capacitor Fuses
KGJ
KGJ-E
Time-Current Characteristic Curves–Average Melt
50
75
100
150
200
25
AMPERE
RATING
300
100
10
Catalog Symbol:
KGJ, KGJ-E
Fast-Acting
Voltage Rating:
600Vac or less
Agency Information:
UL Recognized, 15-300A Guide JFHR2, File E56412
Available Amperes*:
20, 35, 50, 60, 75, 80, 100, 125, 150,
175, 200, 225, 250, 300
Interrupting Rating:
200,000A RMS Symmetrical
General Information:
• For use with threaded capacitors.
• Use the KGJ-E when indication is desired.
*KGJ-E not available in 75A.
TIME IN SECONDS
1
.1
Dimensional Data
3.81"
+
0.03"
1.0"
0.5"
2.0"
1.03"
0.81"
Threads ⁄/™" -13
⁄⁄/¡§" deep
15A - 150A
3.81"
+
0.03"
1.25"
0.5"
0.81"
1.91" + 0.03"
0.19"
Threads ‹/•" -16
⁄/™" deep
1.47" +
0.03"
10,000
CURRENT IN AMPERES
0.81"
Threads ⁄/™" -12
⁄⁄/¡§" deep
175A - 300A
0.19"
Threads ‹/•" -16
⁄/™" deep
Suggested Maximum Torque
Values (Inch Pounds): 3/8-16: 170 in-lbs
1/2-13,-400 in-lbs
Indicator Holding Screws:
40 in-lbs
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
8-08-02
SB02341
Form No. KGJ-E
Page 1 of 1
Data Sheet: 1046
20,000
1,000
100
20
.01
