851-83-012-30-001191 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 851-83-012-30-001191

851-83-012-30-001191: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size112KB，2 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html; Environmental Compliance

Download Datasheet Parametric View All

851-83-012-30-001191 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	851-83-012-30-001191	-	-	View	Buy Now

851-83-012-30-001191 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

851-83-012-30-001191 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1334907848
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Switzerland
YTEOL	9.4
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	851
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

23/07/2013

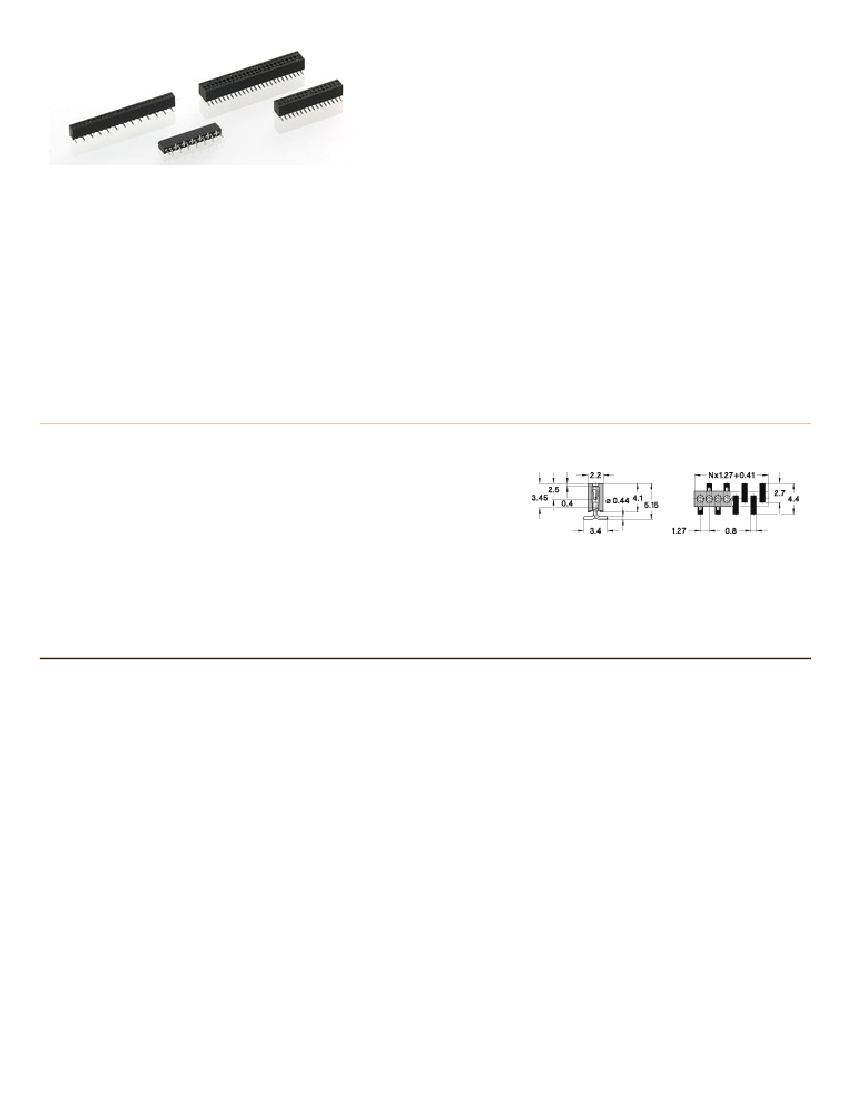

Spring-Loaded Connectors - PRECI-DIP SA - swiss world connects

Your selected product

PCB Connectors - Surface mount perpendicular gull-wing

Series 851

851-PP-NNN-30-001101

Single row

1.27 mm, Surface mount perpendicular gull-wing

Ultraminiature PCB socket connectors SMD mount.

Technical specs.:

Insulator:

Flammability:

Sleeve:

Contact:

Mating pin Ø:

Insertion force:

Withdrawal force:

Mechanical life:

Rated current:

Contact resistance:

Dielectric strength:

Black glass filled polyester PCT-GF30-FR

UL 94V-O

Brass CuZn36Pb3 (C36000)

Clip (3 finger): Beryllium copper (C17200)

0.35 to 0.50 mm

0.5 N typ.

0.2 N typ.

(polished steel gauge Ø 0.41 mm)

Min. 500 cycles

Max. 20 mΩ

Min. 500 V RMS

Coplanarity SMD terminations: Max. 0.1 mm (measured on 25 mm long connectors)

www.precidip.com/AppHost/9695,1/Scripts/Modules/Catalog/default.aspx?s=851-PP-NNN-30-001101&i=345&p=123#1

1/2
