BK/GMC-V-2A: Descriptioncartridge fuses 250vac 2A med time delay; CategoryCircuit protection; File Size76KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric View All

BK/GMC-V-2A Overview

cartridge fuses 250vac 2A med time delay

BK/GMC-V-2A Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	N
Body Style	Cylindrical Leaded
Current Rating	2 A
Voltage Rating AC	250 V
Mounting Style	Through Hole
Fuse Type	Medium / Normal Blow
Fuse Size / Grou	5 mm x 20 mm
Dimensions	21.1 mm L x 5.54 mm D
Case Diamete	5.54 mm
Case Length	21.1 mm
Indicator Style	Without Indic
Interrupt Rating	100 A
Packaging	Bulk
Produc	Specialty Fuses
Resistance	43 mOhms
Factory Pack Quantity	100
Termination Style	Axial
Type	North American Ferrule Fuse
Unit Weigh	1 g

Preview

Download Datasheet

View All

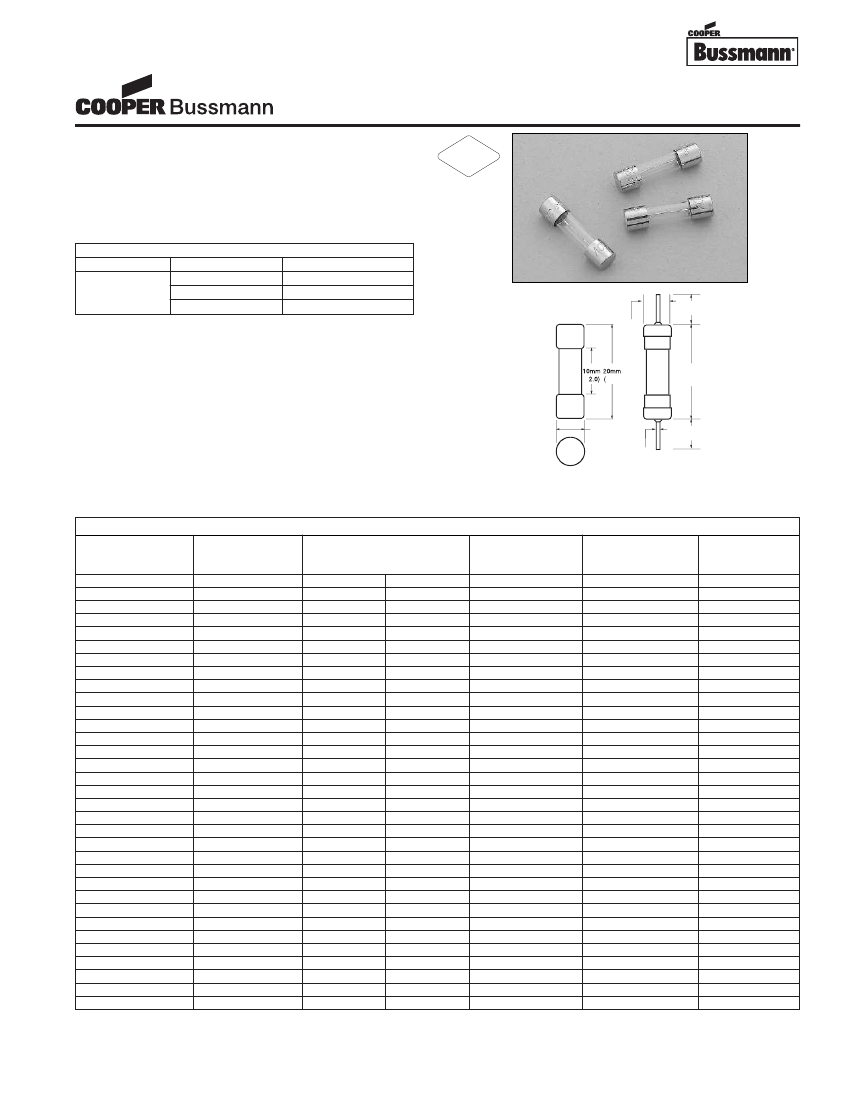

5mm x 20mm Fuses

GMC Series Medium Time Delay, Glass Tube

Description

• Medium time delay, low breaking capacity

• Optional axial leads available

• 5mm x 20mm physical size

• Glass tube, nickel-plated brass endcap construction

• Designed to UL/CSA 248-14

ELECTRICAL CHARACTERISTICS

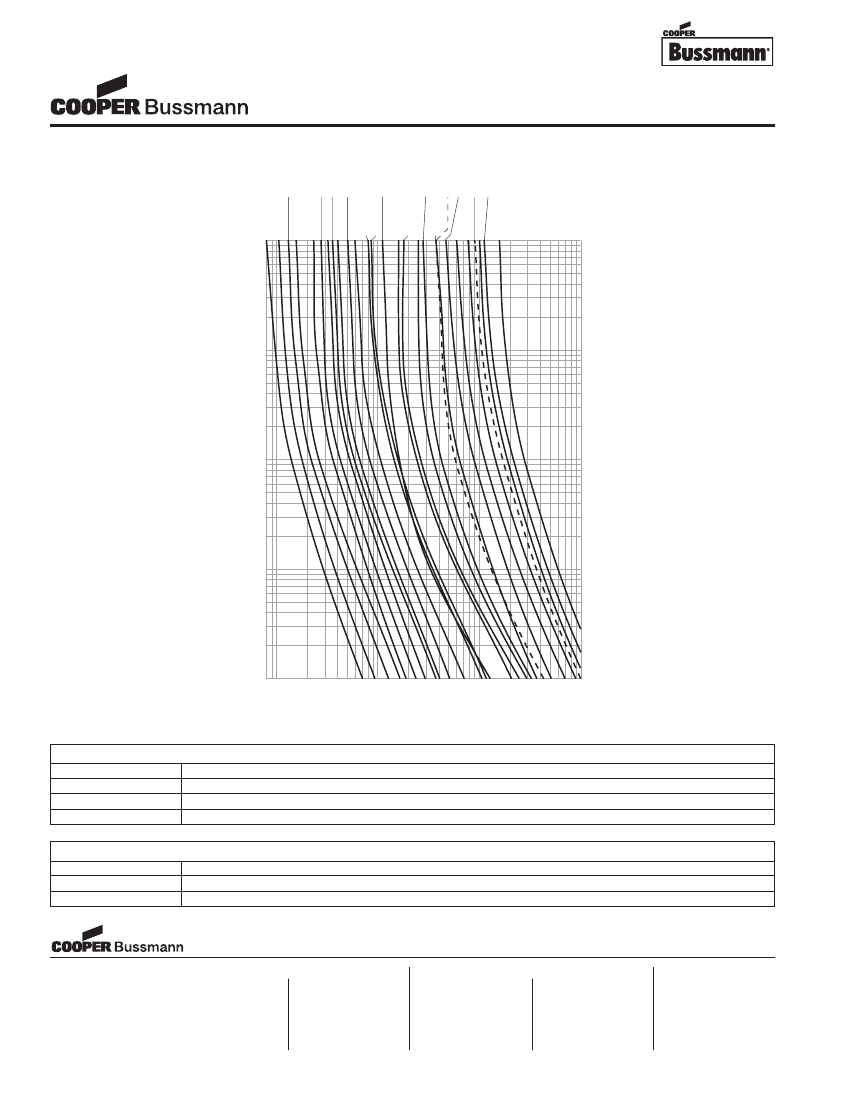

Opening Time

Rated Current % of Amp Rating

None

100%

63mA - 10A

135%

60 minutes maximum

200%

2 minutes maximum

RoHS

2002/95/EC

Dimensions

mm

⁄

(inches)

5.54mm

(±.20)

38.10mm

0m

(±.3

±

38)

Agency Information

• UL Listed, Guide JDYX, File E19180, 63mA-6.3A

• UL Recognized Card: (7A-10A) Guide JDYX2,

File E19180

• CSA Certified, Class 1422-01, File E65063, 63mA-6.3A

• MITI Approval, 1A-10A

• CCC Approval, 500mA-6.3A

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. GMC-2-R)

Voltage

Rating

AC

250V

125V

AC Interrupting

Rating*

250V

125V

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

-

10,000A

-

10,000A

-

10,000A

-

10,000A

-

200A

-

200A

-

200A

(±

±

0.5)

21.10mm

0m

1

(±.81)

5.2mm

(+0.1/-0.2)

0.65mm

(REF)

38.10mm

0mm

(±.38)

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm

Typical DC Cold

Resistance

(ohms)**

10.350

-

4.775

3.400

2.555

2.295

1.395

0.965

0.838

0.685

0.615

0.335

0.282

0.246

0.213

0.180

0.156

0.098

0.076

0.067

0.043

0.035

0.026

0.025

0.022

0.019

0.014

0.013

0.012

0.009

0.007

Typical

Pre-Arc I

2

t

AC†

0.0027

0.0050

0.0094

0.014

0.022

0.032

0.046

0.081

0.18

0.41

0.60

0.66

0.85

1.8

3.4

5.4

5.8

8.9

13

19

23

25

36

58

88

110

150

200

300

Maximum

Voltage

Drop (mV)‡

1400

1200

1000

800

730

650

490

580

480

510

370

360

340

320

290

250

200

190

160

130

120

110

SPECIFICATIONS

Product Code

GMC-63mA

GMC-80mA

GMC-100mA

GMC-125mA

GMC-150mA

GMC-160mA

GMC-200mA

GMC-250mA

GMC-300mA

GMC-315mA

GMC-400mA

GMC-500mA

GMC-600mA

GMC-630mA

GMC-700mA

GMC-750mA

GMC-800mA

GMC-1A

GMC-1.25A

GMC-1.5A

GMC-1.6A

GMC-2A

GMC-2.5A

GMC-3A

GMC-3.15A

GMC-3.5A

GMC-4A

GMC-5A

GMC-6A

GMC-6.3A

GMC-7A

GMC-8A

GMC-10A

*

**

†

‡

Interrupting ratings: Interrupting ratings for 63mA - 6.3A were measured at 70% - 80% power factor on AC. The interrupting ratings for 7A - 10A were measured at 100% power factor on AC.

DC Cold Resistance (Measured at <10% of rated current)

Typical Pre-Arching I

2

t (I

2

t was measured at listed interrupting rating and rated voltage)

Maximum Voltage drop (Voltage drop was measured at 20°C ambient temperature at rated current)
