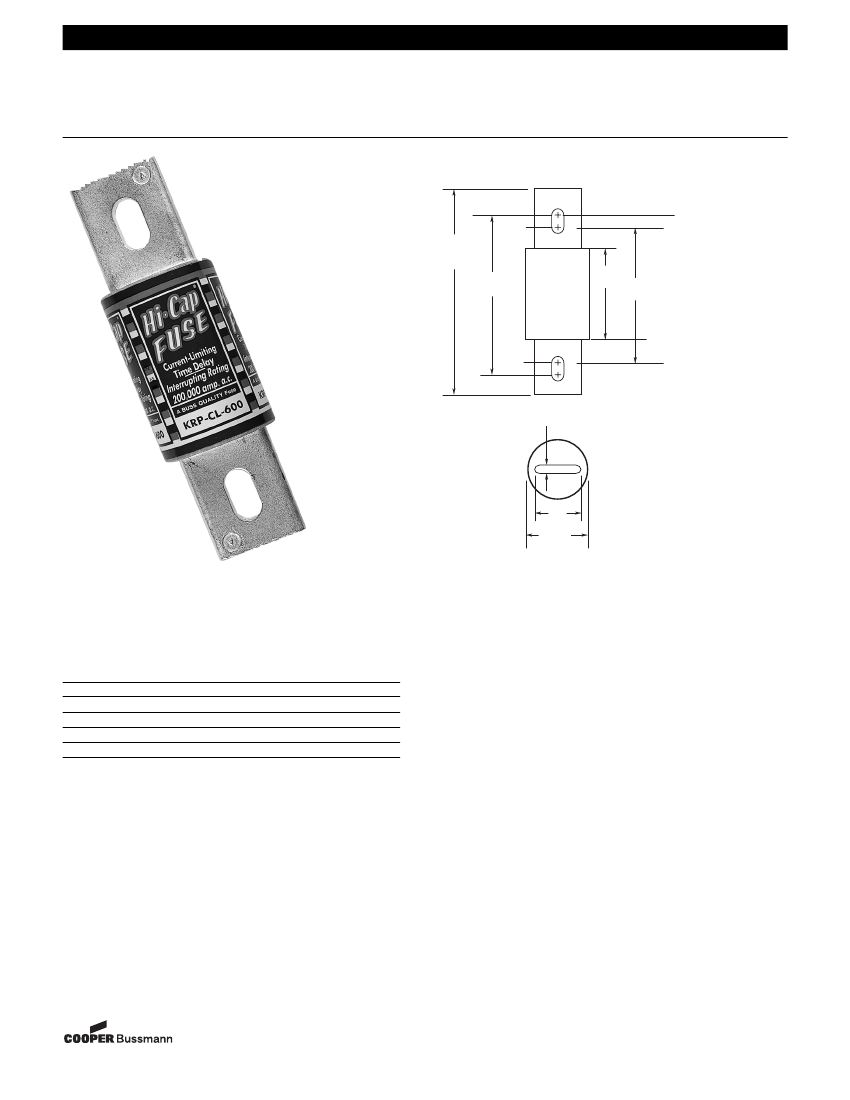

Bussmann
®
HI-CAP
®
KRP-CL
Dimensional Data
All other tolerances (±0.02)
Current-Limiting, Time-Delay Fuses
600 Volt, 150 to 600 Amps
8.63"
(±0.09)
100A
600A
6.75"
3.75"
5.75"
.38"
Terminal:
Width (±0.06)
Thickness (±0.03)
2"
2.5"
2.78"
Max.
Catalog Symbol:
KRP-CL
Current-Limiting
Ampere Rating:
150 to 600 Amperes
Voltage Rating:
600 Volts AC (or less)
Interrupting Rating:
200,000A RMS Sym.
Ampere Ratings
Cat. No. (Symbol & Amps)
KRP-CL-150
KRP-CL-200
KRP-CL-225
KRP-CL-250
Weight of each is 3.75 lbs.
KRP-CL-300
KRP-CL-350
KRP-CL-400
KRP-CL-450
KRP-CL-500
KRP-CL-600
—
—
KRP-CL HI-CAP Fuses
These fuses have the same performance characteristics as
KRP-C fuses. (Current U.L. Standards do not cover Class L
fuse ratings below 601 amperes.) They are used in applica-
tions where there is a need for Class L dimension fuses with
100 to 600 ampere ratings. All KRP-CL fuses have the same
dimensions as 800 ampere Class L fuses.
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin
is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
to
12-21-98
SB98107
Rev. A
Form No. KRP-CL
Page 1 of 1
BIF Doc #1016
