BK/MDA-15BX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BK/MDA-15BX

BK/MDA-15BX: Descriptioncartridge fuses small dimension fuse; CategoryCircuit protection; File Size325KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric View All

BK/MDA-15BX Overview

cartridge fuses small dimension fuse

BK/MDA-15BX Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Cartridge Fuses
RoHS	N
Body Style	Cylindrical
Current Rating	15 A
Voltage Rating AC	250 V
Mounting Style	Holder / Cli
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	3AB (6.3 mm x 32 mm)
Dimensions	31.75 mm L x 6.35 mm D
Case Diamete	6.35 mm
Case Length	31.75 mm
Indicator Style	Without Indic
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	100
Termination Style	Cli
Type	Electronic Time Delay Ferrule Fuse
Unit Weigh	3.175 g

Preview

Download Datasheet

View All

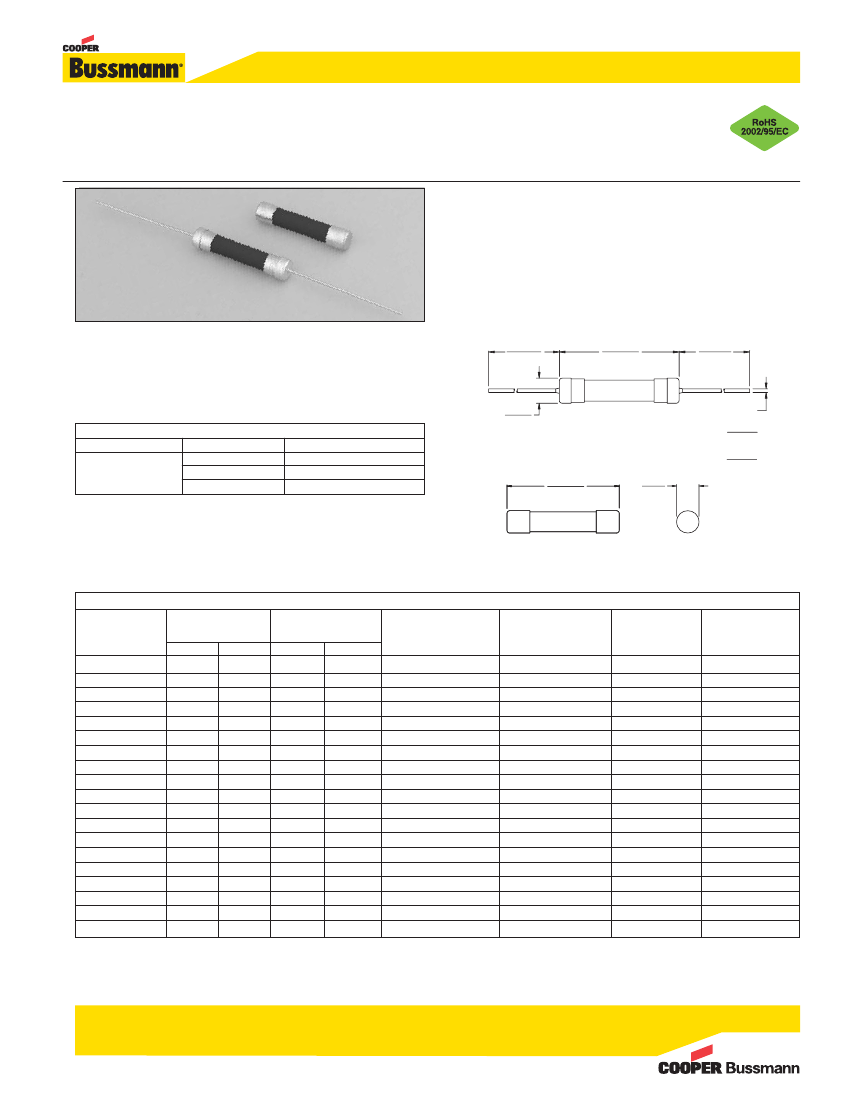

1/4” x 1 1/4” Time-Delay Ceramic Tube Fuses

MDA Series

Environmental Data

• Shock: 1/100A and 8/10A – MIL-STD-202, Method 213,

Test Condition I; 1A thru 30A – MIL-STD-202, Method 213,

Test Condition J

• Vibration: 1/100A and 8/10A – MIL-STD-202, Method 201;

1/4A thru 30A – MIL-STD-202, Method 204, Test Condition C

(Except 5g, 500Hz)

Dimensions - mm (in)

Drawing Not to Scale

Description

•

Time-delay

Optional axial leads available

1/4” x 1-1/4” (6.35 x 31.75mm) physical size

Ceramic tube, nickel-plated brass endcap construction

UL Listed product meets standard 248-14

Rated Current

1/4 - 30A

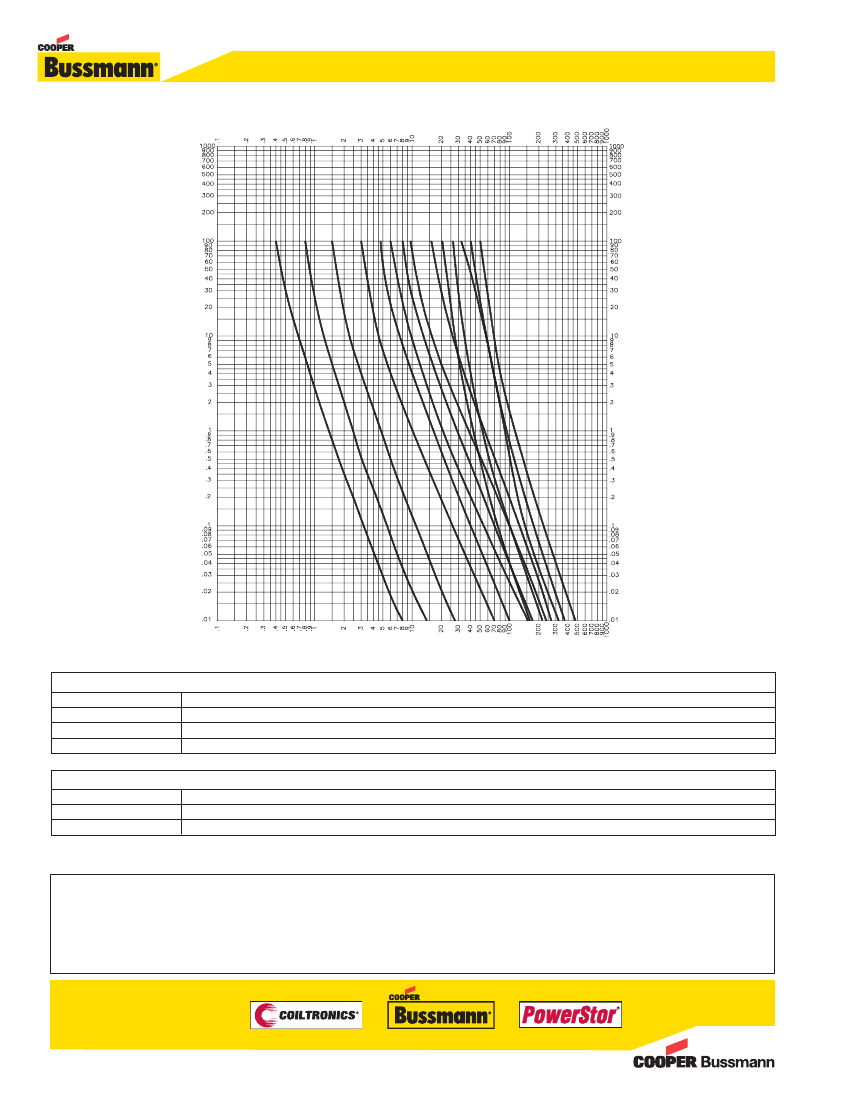

Electrical Characteristics

Amp Rating

Opening Time

100%

None

135%

60 Minutes Max.

200%

120 Seconds Max.

38.10

(1.500)

32.82

(1.292)

38.10

(1.500)

6.76

(0.266)

DIA. OF LEADS

0.81

0–15 AMP:

(0.032)

20–30 AMP: 1.02

(0.040)

31.75

(1.250)

6.35

(0.250)

Agency Information

•

UL Listed Card: MDA

- 20A (Guide JDYX, File E19180)

UL Recognized Card: MDA 25 - 30A (Guide JDYX2, File E19180)

CSA Certification Card: MDA

- 20 (Class No. 1422-01)

CSA Component Acceptance: MDA 25-30A (Class No. 1422-30)

Ordering

• Specify packaging, product and option code.

Specifications

Part

Number

MDA-1/4-R

MDA-1/2-R

MDA-3/4-R

MDA-1-R

MDA-1-1/2-R

MDA-2-R

MDA-2-1/2-R

MDA-3-R

MDA-4-R

MDA-5-R

MDA-6-R

MDA-7-R

MDA-8-R

MDA-10-R

MDA-12-R

MDA-15-R

MDA-20-R

MDA-25A-R

MDA-30A-R

†

‡

Voltage Rating

Vac

Vdc

250

125

250

125

250

125

AC Interrupting

Rating* (amps)

250V

125V

10000

100

10000

100

10000

200

10000

200

10000

200

10000

200

10000

200

10000

200

10000

200

10000

200

10000

750

10000

750

10000

1500 10000

DC Interrupting

Rating (amps) 125V

10000

Typical DC Cold

Resistance** (Ω)

8.7

1.78

0.82

0.56

0.2565

0.17

0.068

0.0525

0.03575

0.0256

0.02035

0.0165

0.013

0.00925

0.00755

0.00565

0.004065

0.0031

0.002465

Typical

Typical Voltage

Melting I t† AC

Drop‡

0.748

4.00

2.53

1.42

8.58

1.31

12.21

1.03

27.5

0.691

70.4

0.623

31.79

0.213

44.99

0.182

147.4

0.162

380.49

0.145

587.73

0.141

638.33

0.137

1038.4

0.134

1620.43

0.135

125.18

0.128

336.82

0.107

483.45

0.095

734.69

0.105

1096.7

0.110

Interrupting Ratings (Measured at 70% - 80% power factor on AC. The interrupting ratings for 25A, 30A were measured at 90% - 100% power factor on AC)

DC Cold Resistance (Measured at <10% of rated current)

Typical Melting I

t (A

Sec) (I

t was measured at listed interrupting rating and rated voltage)

Typical Voltage Drop (Voltage drop was measured at 25°C ambient temperature at rated current)

0711

BU-SB11875

Page 1 of 2

Data Sheet 2002
