BK/AGW-3

Description
cartridge fuses small dimension fuse
CategoryCircuit protection
File Size232KB,2 Pages
ManufacturerBussmann (Eaton)
Download Datasheet Parametric View All

BK/AGW-3 Overview

cartridge fuses small dimension fuse

BK/AGW-3 Parametric

Parameter NameAttribute value
ManufactureCooper Bussm
Product CategoryCartridge Fuses
RoHSN
Body StyleCylindrical
Current Rating3 A
Voltage Rating AC32 V
Mounting StyleHolder / Cli
Fuse TypeFast Blow
Fuse Size / Grou7AG (6.35 mm x 22 mm)
Dimensions0.88 in L x 0.25 in D
Case Diamete0.25 i
Case Length0.88 i
Indicator StyleWithout Indic
PackagingBulk
ProducSpecialty Fuses
Factory Pack Quantity100
Termination StyleCli
TypeElectronic Automotive Ferrule Fuse
Unit Weigh1.814 g

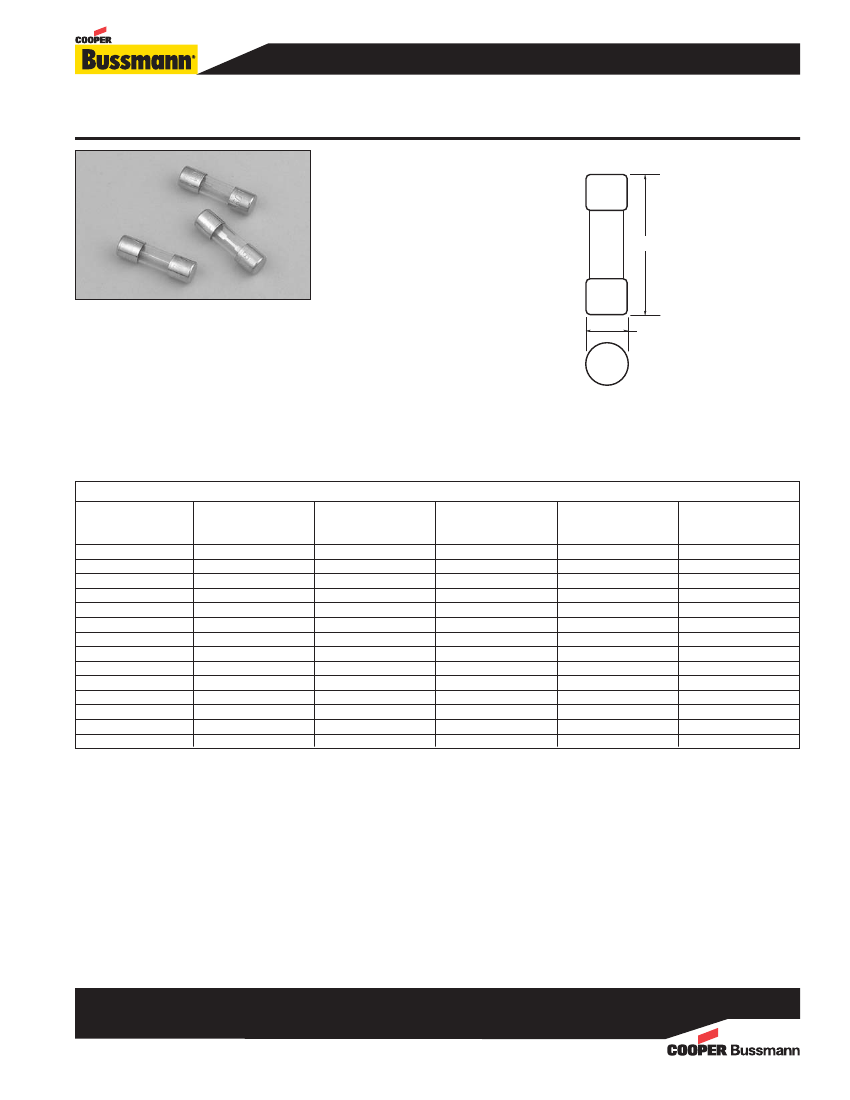

Fast-Acting
1
4
˝ x
7
8
˝ Glass Tube Fuses
AGW Series
Dimensions - in
0.88"
Description
• Fast-acting
1
4
" x
7
8
" (6.3 x 22.2mm) physical size
• Glass tube, nickel-plated brass endcap construction
• Mounts in inline holders HHB, HHH, HRK or
1
4
" clips
Ordering
Specify product code
• Insert packaging code prefix before part number.
E.g., BK/AGW-1
0.25"
Specifications
Product Code
AGW-1
AGW-1-1/2
AGW-2
AGW-2-1/2
AGW-3
AGW-4
AGW-5
AGW-6
AGW-7-1/2
AGW-10
AGW-15
AGW-20
AGW-25
AGW-30
Voltage
Rating
Vac
32
32
32
32
32
32
32
32
32
32
32
32
32
32
Interrupting
Rating (amps)at
Rated Voltage AC
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
Typical DC Cold
Resistance
Ω
(Ω)*
0.1175
0.0695
0.0490
0.0346
0.0318
0.0207
0.0158
0.0124
0.0101
0.0069
0.0041
0.0029
0.0023
0.0018
Typical
Melt I
2
t
AC
7.4
0.220
8.44
57.438
72
7.3
105
204.48
213.75
406
585
832
1056.25
2745
Typical
Voltage
Drop (V)**
0.152
0.098
0.138
0.130
0.119
0.024
0.0112
0.096
0.104
0.103
0.087
0.078
0.077
0.076
* DC Cold Resistance (Measured at <10% of rated current)
** Typical Voltage drop (Voltage drop was measured at 25°C ambient temperature at rated current)
0610
SB-BU091105
Page 1 of 2
Data Sheet 2040
