NSD16: Descriptionspecialty fuses 16a 550vac fuse; CategoryCircuit protection; File Size16KB，1 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric Compare View All

NSD16 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NSD16	-	-	View	Buy Now

NSD16 Overview

specialty fuses 16a 550vac fuse

NSD16 Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Specialty Fuses
RoHS	Yes
Body Style	Cartridge Blade Fuses
Current Rating	16 A
Voltage Rating AC	550 V
Mounting Style	Holde
Termination Style	Knife Blade Offse
Fuse Type	Time Delay / Slow Blow
Fuse Size / Grou	HRC
Indicator Style	Without Indic
Dimensions	34.6 mm L x 13.8 mm D
Case Diamete	13.8 mm
Case Length	34.6 mm
Interrupt Rating	80 kA at 550 VAC
Packaging	Bulk
Produc	Specialty Fuses
Factory Pack Quantity	20
Type	High Rupture Capacity Fuse Link
Unit Weigh	22.680 g

Preview

Download Datasheet

View All

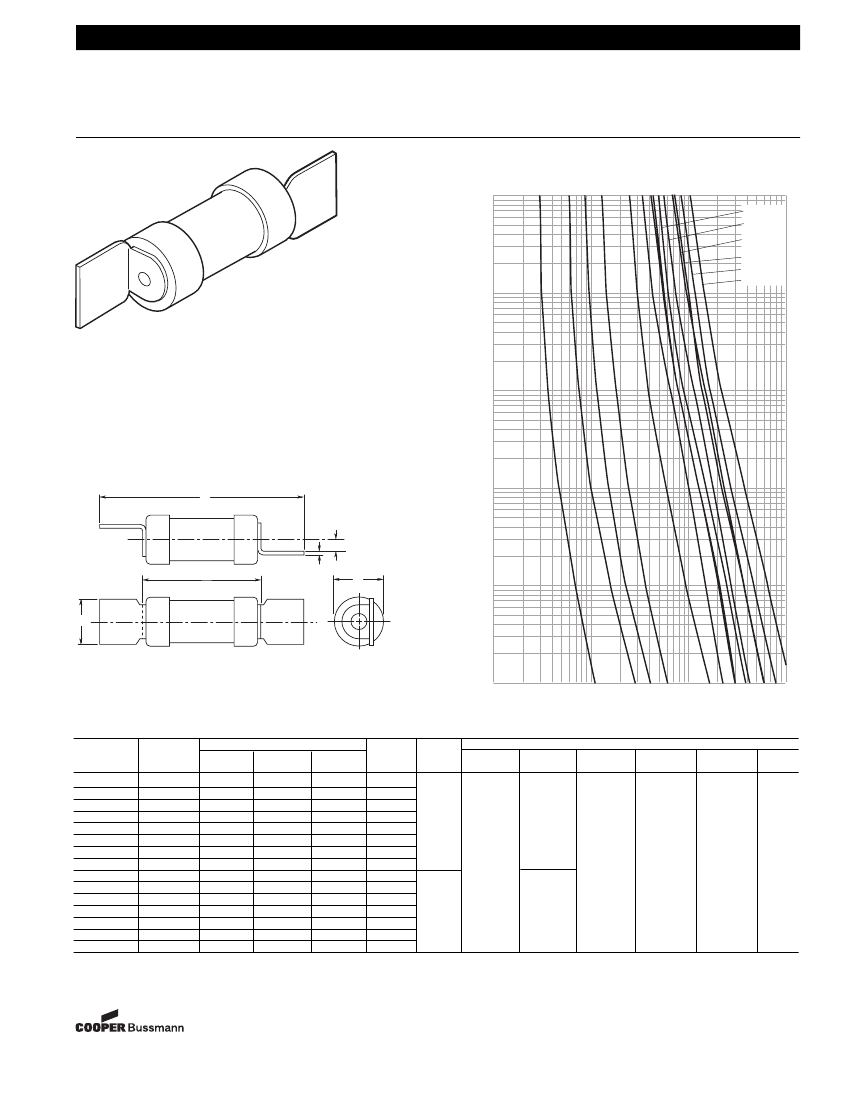

Bussmann

®

Industrial HRC Fuse

13.8 x 58.7mm, BS88:

Offset Blade Tags

Part 6,

NSD

IEC 269-1

Time-Current Characteristic Curve

(Full Size Curves Available)

1,000

16

20

25

32

40

4

6

10

2

CURRENT

RATING

20M25

20M32

20M36

32M36

32M40

32M50

32M63

100

Dimensional Data:

D

TIME IN SECONDS

CATALOG SYMBOL: NSD

INDUSTRIAL HRC FUSE

OFFSET BLADE TAGS

PACKAGE QUANTITY: 20

80kA INTERRUPTING RATING

MOUNTS IN CAMLOC OR SAFELOC SERIES HOLDERS

10

1

N

A

F

B

.1

E

Electrical Characteristics

Catalog

Number

NSD2

NSD4

NSD6

NSD10

NSD16

NSD20

NSD25

NSD32

NSD20M25

NSD20M32

NSD20M36

NSD32M36

NSD32M40

NSD32M50

NSD32M63

Ampere

Rating

2

4

6

10

16

20

25

32

20M25

20M32

20M36

32M36

32M40

32M50

32M63

I

2

T (Amp

2

Seconds)

Pre-

Total At

Arcing

415V

1.3

4.6

8

27

29

100

120

400

120

470

260

1070

560

2300

710

3000

570

2350

770

3000

1150

5000

1150

5000

1500

6000

2700

8700

5000

13,550

Total At

550V

5

30

115

490

730

1700

3550

5000

—

Nom

Watts

Loss

0.9

1.4

1.8

2.1

1.8

2

2.9

1.2

0.95

0.88

2.4

1.9

1.4

1.0

Rated

Voltage

A

B

CURRENT IN AMPERES

Dimensions (Inches/mm)

D

E

F

N

550AC

34.6

.54

13.8

58.5

12.7

.03

.8

.14

3.5

415AC

34.6

.69

17.5

The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to

clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any

products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-

ed, it should be tested by the user in all possible applications.

12-28-98

SB98107

Rev. A

Form No. NSD

Page 1 of 1

BIF Doc #4100

1,000

100

10

1

.01
