256 K
×
4-Bit Dynamic RAM
Low Power 256 K
×
4-Bit Dynamic RAM
HYB 514256B/BJ-50/-60/-70
HYB 514256BL/BJL-50/-60/-70
Advanced Information
262 144 words by 4-bit organization
•
Fast access and cycle time
50 ns access time
95 ns cycle time (-50 version)
60 ns access time
110 ns cycle time (-60 version)
70 ns access time
130 ns cycle time (-70 version)
•
Fast page mode cycle time
35 ns (-50 version)
40 ns (-60 version)
45 ns (-70 version)
•
Low power dissipation
max. 495 mW active (-50 version)
max. 440 mW active (-60 version)
max. 385 mW active (-70 version)
max. 5.5 mW standby
max. 1.1 mW standby for L-version
•
•
•
•
•
•
•
Single + 5 V (± 10 %) supply with a built-in
V
BB
generator
Output unlatched at cycle end allows two-
dimensional chip selection
Read-modify-write, CAS-before-RAS
refresh, RAS-only refresh, hidden-refresh
and fast page mode capability
All inputs, outputs and clocks
TTL-compatible
512 refresh cycles/8 ms
512 refresh cycles/64 ms
for L-version only
Plastic Packages:
P-DIP-20-2,
P-SOJ-26/20-1
Ordering Information
Type
HYB 514256B-50
HYB 514256B-60
HYB 514256B-70
HYB 514256BJ-50
HYB 514256BJ-60
HYB 514256BJ-70
HYB 514256BL-50
HYB 514256BL-60
HYB 514256BL-70
HYB 514256BJL-50
HYB 514256BJL-60
HYB 514256BJL-70
Ordering Code
Q67100-Q1044
Q67100-Q530
Q67100-Q433
Q67100-Q1054
Q67100-Q536
Q67100-Q537
on request
Q67100-Q542
Q67100-Q543
on request
Q67100-Q608
Q67100-Q607
Package
P-DIP-20-2
P-DIP-20-2
P-DIP-20-2
P-SOJ-26/20-1
P-SOJ-26/20-1
P-SOJ-26/20-1
P-DIP-20-2
P-DIP-20-2
P-DIP-20-2
P-SOJ-26/20-1
P-SOJ-26/20-1
P-SOJ-26/20-1
Description
DRAM (access time 50ns)
DRAM (access time 60 ns)
DRAM (access time 70 ns)
DRAM (access time 50 ns)
DRAM (access time 60 ns)
DRAM (access time 70 ns)
DRAM (access time 50 ns)
DRAM (access time 60 ns)
DRAM (access time 70 ns)
DRAM (access time 50 ns)
DRAM (access time 60 ns)
DRAM (access time 70 ns)
Semiconductor Group
55
01.95
HYB 514256B/BL/BJ/BJL-50/-60/-70
256 K
×
4-DRAM
The HYB 514256B/BJ/BL/BJL is the new generation dynamic RAM organized as 262 144 words by
4-bit. The HYB 514256B/BJ/BL/BJL utilizes CMOS silicon gate process technology as well as
advanced circuit techniques to provide wide operating margins, both internally and for the system
user. Multiplexed address inputs permit the HYB 514256B/BJ/BL/BJL to be packaged in a standard
plastic P-DIP-20-2,or plastic P-SOJ-26/20-1. This package size provides high system bit densities
and is compatible with commonly used automatic testing and insertion equipment. System oriented
features include single + 5 V (± 10 %) power supply, direct interfacing with high-performance logic
device families such as Schottky TTL. These HYB 514256BL/BJL are specially selected for battery
backup applications.
Pin Definitions and Functions
Pin No.
A0-A8
RAS
OE
I/O1-I/O4
CAS
WE
Function
Address Inputs
Row Address Strobe
Output Enable
Data Input/Output
Column Address Strobe
Read/Write Input
Power Supply (+ 5 V)
Ground (0 V)
No Connection
V
CC
V
SS
N.C.
Semiconductor Group
56
HYB 514256B/BL/BJ/BJL-50/-60/-70
256 K
×
4-DRAM

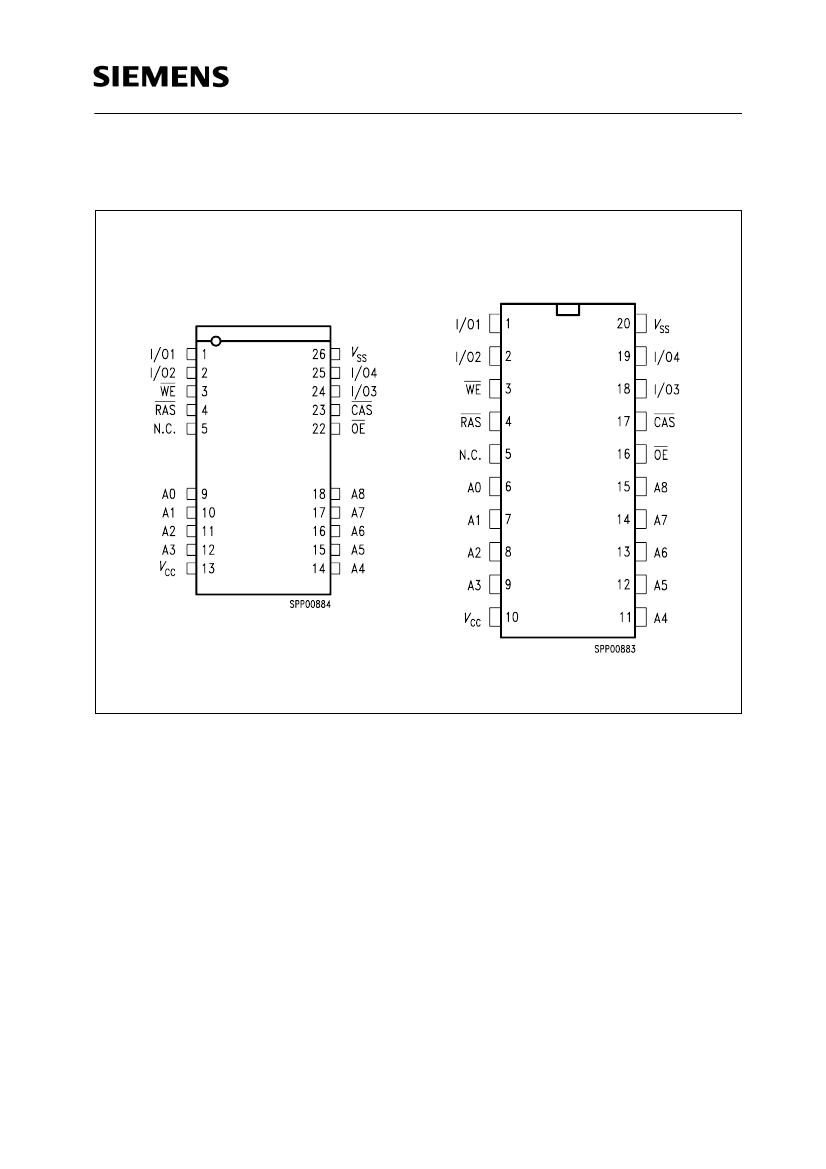

Pin Configuration
(top view)
P-SOJ-26/20-1
P-DIP-20-2
Semiconductor Group
57
HYB 514256B/BL/BJ/BJL-50/-60/-70
256 K
×
4-DRAM

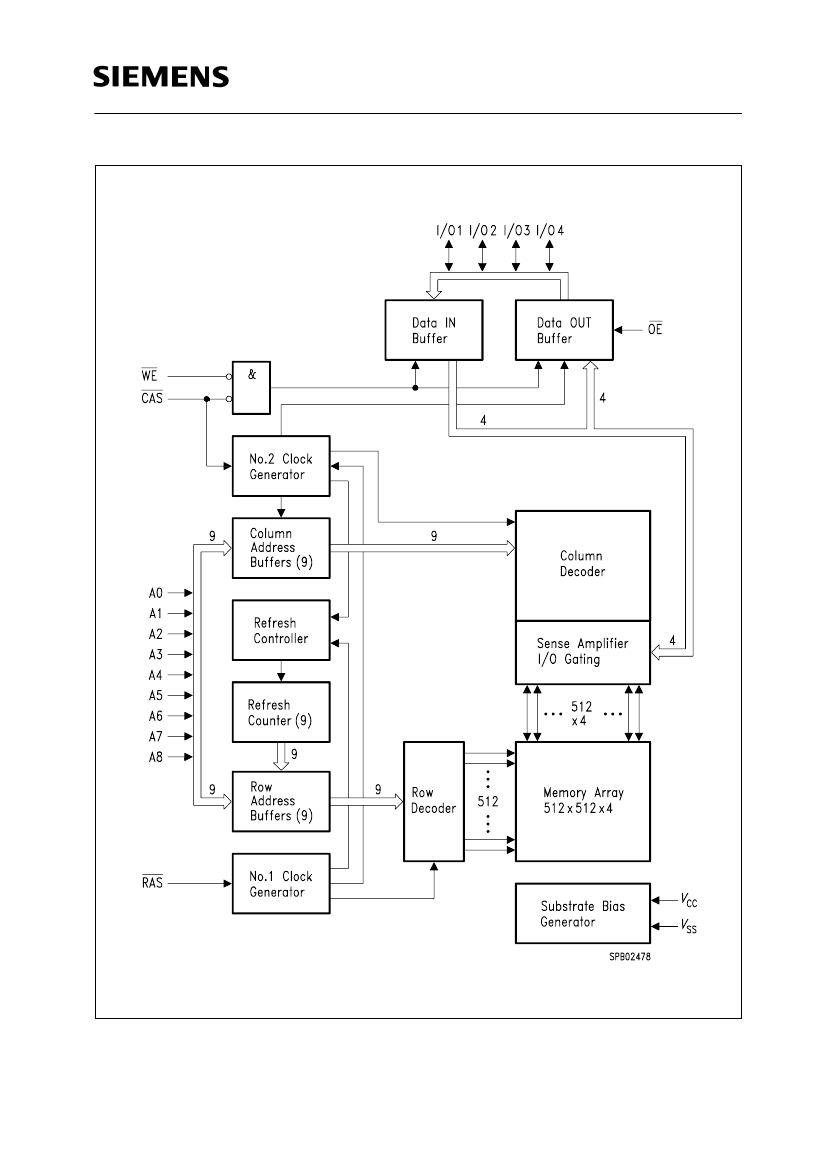

Block Diagram
Semiconductor Group
58
HYB 514256B/BL/BJ/BJL-50/-60/-70
256 K
×
4-DRAM
Absolute Maximum Ratings
Operating temperature range .........................................................................................0 to + 70 ˚C
Storage temperature range......................................................................................– 55 to + 150 ˚C
Soldering temperature ............................................................................................................260 ˚C
Soldering time .............................................................................................................................10 s
Input/output voltage ........................................................................................................ – 1 to + 7 V
Power supply voltage...................................................................................................... – 1 to + 7 V
Power dissipation..................................................................................................................... 0.6 W
Data out current (short circuit) ................................................................................................ 50 mA
Note:
Stresses above those listed under “Absolute Maximum Ratings” may cause permanent
damage of the device. Exposure to absolute maximum rating conditions for extended periods may
affect device reliability.
DC Characteristics
T
A
= 0 to 70 ˚C;
V
SS
= 0 V;
V
CC
= 5 V
±
10 %
Parameter
Input high voltage
Input low voltage
Output high voltage (
I
OUT
= – 5 mA)
Output low voltage (
I
OUT
= 4.2 mA)
Input leakage current, any input
(0 V
≤
V
IN
≤
6.5 V, all other pins = 0 V)
Output leakage current
(DO is disabled, 0 V
≤
V
OUT
≤
V
CC
)
Average
V
CC
supply current:
-50 version
-60 version
-70 version
(RAS, CAS, address cycling:
t
RC
=
t
RC
min.)
Average
V
CC
supply current, RAS only mode:
-50 version
-60 version
-70 version
(RAS cycling: CAS =
V
IH
:
t
RC
=
t
RC
min.)
Symbol
Limit Values
min.
max.
6.5
0.8
–
0.4
10
10
2.4
– 1.0
2.4
–
– 10
– 10
Unit Test
Condition
V
V
V
V
µA
µA
1)
1)
1)
1)
1)
V
IH
V
IL
V
OH
V
OL
I
I(L)
I
O(L)
I
CC1
1)
–
–
–
–
–
–
–
90
80
70
2
90
80
70
mA
mA
mA
mA
mA
mA
mA
2) 3)
2) 3)
2) 3)
Standby
V
CC
supply current (RAS = CAS =
V
IH
)
I
CC2
–
2)
2)
2)
I
CC3
Semiconductor Group
59
