5-1933442-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-1933442-3

5-1933442-3: Descriptionmodular connectors / ethernet connectors 8P mod plg sld wire cat 6 4.7-5.3mm kit; CategoryThe connector; File Size360KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

5-1933442-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1933442-3	-	-	View	Buy Now

5-1933442-3 Overview

modular connectors / ethernet connectors 8P mod plg sld wire cat 6 4.7-5.3mm kit

5-1933442-3 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Modular Connectors / Ethernet Connectors
RoHS	Yes
Produc	Modular Plugs
Performance Category	Cat 6
Number of Positions	8
Shielding	Shielded
Gende	Plug
Current Rating	1.5 A
Voltage Rating	150 V
Housing Material	Polycarbonate (PC)
Col	Cle
Flammability Rating	UL 94 V-0
Insulation Resistance	500 MOhms
Operating Temperature Range	- 40 C to + 60 C
Pitch	1.02 mm
Factory Pack Quantity	100

Preview

Download Datasheet

View All

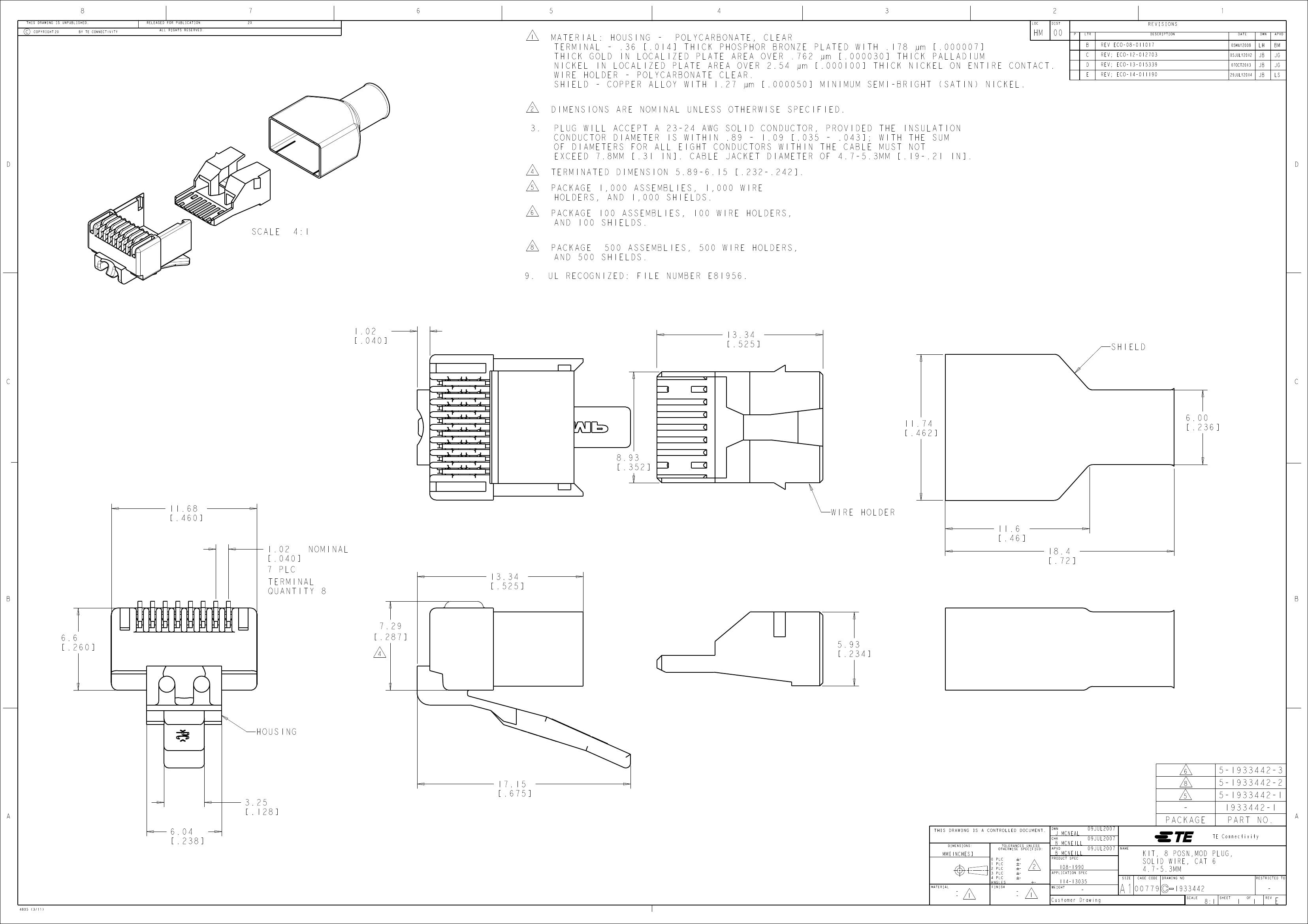

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY TE CONNECTIVITY

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

MATERIAL: HOUSING - POLYCARBONATE, CLEAR

TERMINAL - .36 [.014] THICK PHOSPHOR BRONZE PLATED WITH .178 µm [.000007]

THICK GOLD IN LOCALIZED PLATE AREA OVER .762 µm [.000030] THICK PALLADIUM

NICKEL IN LOCALIZED PLATE AREA OVER 2.54 µm [.000100] THICK NICKEL ON

WIRE HOLDER - POLYCARBONATE CLEAR.

SHIELD - COPPER ALLOY WITH 1.27 µm [.000050] MINIMUM SEMI-BRIGHT (SATIN)

DIMENSIONS ARE NOMINAL UNLESS OTHERWISE SPECIFIED.

PLUG WILL ACCEPT A 23-24 AWG SOLID CONDUCTOR, PROVIDED THE INSULATION

CONDUCTOR DIAMETER IS WITHIN .89 - 1.09 [.035 - .043]; WITH THE SUM

OF DIAMETERS FOR ALL EIGHT CONDUCTORS WITHIN THE CABLE MUST NOT

EXCEED 7.8MM [.31 IN]. CABLE JACKET DIAMETER OF 4.7-5.3MM [.19-.21 IN].

TERMINATED DIMENSION 5.89-6.15 [.232-.242].

PACKAGE 1,000 ASSEMBLIES, 1,000 WIRE

HOLDERS, AND 1,000 SHIELDS.

PACKAGE 100 ASSEMBLIES, 100 WIRE HOLDERS,

AND 100 SHIELDS.

PACKAGE 500 ASSEMBLIES, 500 WIRE HOLDERS,

AND 500 SHIELDS.

UL RECOGNIZED: FILE NUMBER E81956.

ENTIRE CONTACT.

NICKEL.

REV ECO-08-011017

REV; ECO-12-012703

REV; ECO-13-015339

REV; ECO-14-011190

05MAY2008

05JULY2012

07OCT2013

29JULY2014

SCALE

4:1

1.02

[ .040 ]

13.34

[ .525 ]

SHIELD

11.74

[ .462 ]

8.93

[ .352 ]

6.00

[ .236 ]

11.68

[ .460 ]

1.02

NOMINAL

[ .040 ]

7 PLC

WIRE HOLDER

11.6

[ .46 ]

18.4

[ .72 ]

TERMINAL

QUANTITY 8

13.34

[ .525 ]

6.6

[ .260 ]

7.29

[.287]

5.93

[ .234 ]

HOUSING

5-1933442-3

5-1933442-2

5-1933442-1

1933442-1

PART NO.

3.25

[ .128 ]

6.04

[ .238 ]

17.15

[ .675 ]

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

J MCNEAL

B MCNEILL

108-1990

09JUL2007

NAME

PACKAGE

TE Connectivity

MM[INCHES]

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-13035

Customer Drawing

00779

SIZE

CAGE CODE

KIT, 8 POSN,MOD PLUG,

SOLID WIRE, CAT 6

4.7-5.3MM

DRAWING NO

RESTRICTED TO

1933442

SCALE

4805 (3/11)

8:1

SHEET

REV
