µCom-10Gb +
Harsh Environment 10Gb
Ethernet Micro Connectors
15mm
µCom-Series
is a new range of connectors designed to address the latest trends of the industry :
miniaturization
and
high speed,
with the highest resistance for use in the
harshest environments.
µCom-10Gb +
is the first product of this new range.
MAIN FEATURES
10Gb+ exceeds 10Gb/s Ethernet following IEEE 802.3an-2006 :
10GBase-T
Cat.6A connector according to TIA568C.2 and ISO/IEC11801 standard
Environmental testing based on
MIL-DTL-38999 series III
military specifications
Miniature :
15 mm(.59˝) max
external diameter
FEATURES AND BENEFITS
4 pairs totally insulated throughout the connector
minimum cross-talk between the four pairs
Patent pending special interfacial shapes
minimum perturbation at the interface of each
pair
Thread coupling mechanism
2000 mating cycles & high vibration resistance
Machined Brass shells and RoHS compliant plating
shell to shell continuity and 500h salt spray
resistance
Machined & gold plated Solder and Crimp contacts
design & performance according to the innercon-
tact of M39029/77-429#16 M39029/76-425#16 38999
contact
Solder contact : max AWG24
Crimp contact : AWG 24 to 26
IP68 sealing mated and unmated for receptacles
1500 Vrms Dielectric Withstanding voltage
Temperature range : - 55°C / + 125°C
MARKETS & APPLICATIONS
DEFENSE :
C4ISR, Battlefield Communications, Shipboard, Ground Vehicles Vetronics.
AERONAUTICAL :
In Flight Entertainment, Avionics, Communication Systems.
RAIL MASS TRANSIT :
Passenger Information Systems, Communication Systems.
www.amphenol-socapex.com
Amphenol
Socapex
µCom-10Gb +

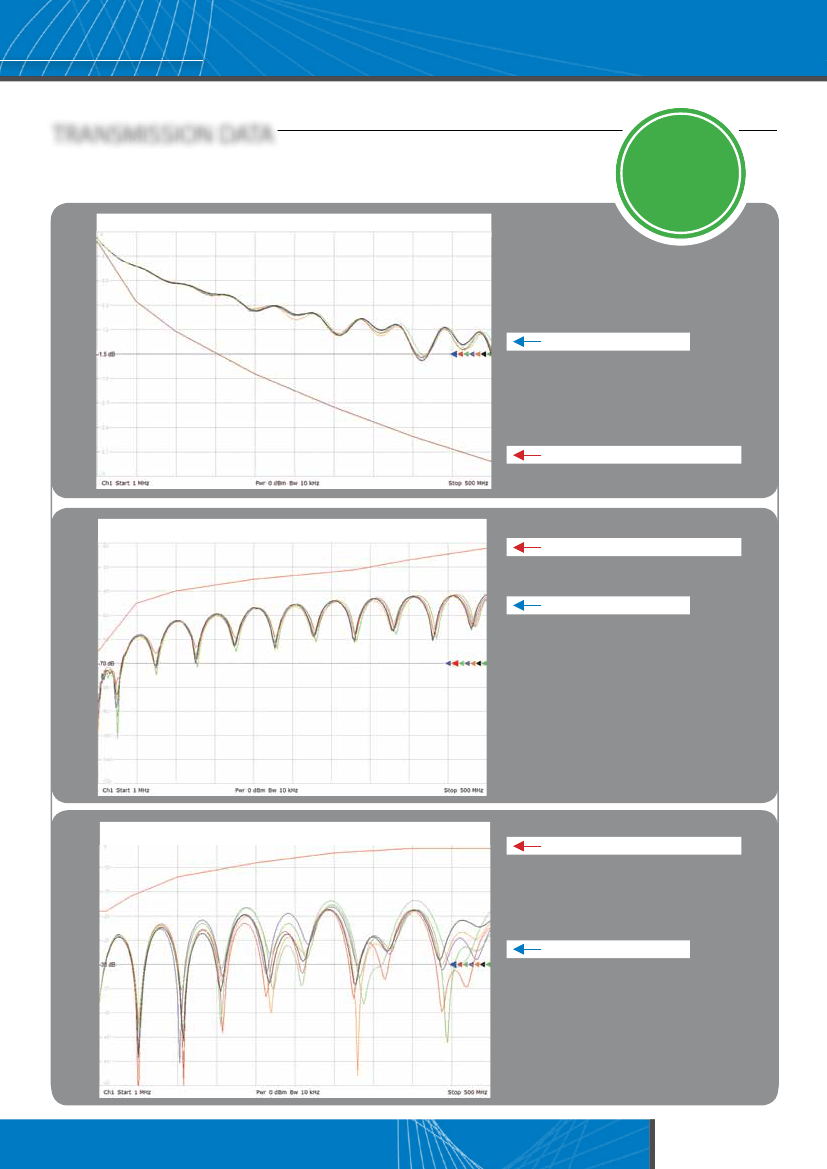

TRANSMISSION DATA
Amphenol
Socapex
Excee
d
10Gb/ s
Ether s
requi net
remen
t
Insertion loss
√
Amphenol performance
IEEE 802.3an Standard requirement
Next 1-2
IEEE 802.3 an Standard requirement
IEEE 802.3an Standard requirement
Amphenol performance
Amphenol performance
Return loss
IEEE 802.3 an Standard requirement
IEEE 802.3an Standard requirement
Amphenol performance
Amphenol performance
2
µCom-10Gb +
FEMALE RECEPTACLES
Amphenol
Socapex
Female receptacle for printed circuit board
Part number:
UCOM-10G+ R
P
x
x: see the 'How to order' below to complete your part number
Panel mount female receptacle with metallic band backshell
Part number:
UCOM-10G+ R x x
x: see the 'How to order' below to complete your part number
HOW TO ORDER Female receptacles
UCOM - 10G+
Shell
R:
receptacle (push pull or thread)
Contacts termination
P:
PCB
S:
solder
C:
crimp
Shell plating
B:
black nickel
G:
olive drab cadmium
U:
unplated brass
R
P
B
NOTA:
•
UCOM
for order designation
•
μCom
for marking on connectors
3
µCom-10Gb +
Amphenol
Socapex
MALE PLUGS
Plug with cable gland backshell
Part number:
UCOM-10G+ P T x x
G
x
x: see the 'How to order' below to complete your part number
Plug with metallic band backshell
Part number:
UCOM-10G+ P T x x
B
x: see the 'How to order' below to complete your part number
HOW TO ORDER Male plugs
UCOM - 10G+
Shell
P:
plug
Mating
(for plugs only)
T:
thread
Contacts termination
C:
crimp
S:
solder
Shell plating
B:
black nickel
G:
olive drab cadmium
U:
unplated brass
Backshell type
G:
gland
B:
band
Cable diameter
(for
gland backshell only)
A:
for cable diam 7.5mm
B:
to be defined
P
T
C
B
G
A
NOTA:
•
UCOM
for order designation
•
μCom
for marking on connectors
4
µCom-10Gb +
Amphenol
Socapex
FEMALE IN-LINE RECEPTACLES
Female in-line receptacle with cable gland backshell
Part number:
UCOM-10G+ L x x
G
x
x: see the 'How to order' below to complete your part number
Female in-line receptacle with metallic band backshell
Part number:
UCOM-10G+ L x x
B
x: see the 'How to order' below to complete your part number
HOW TO ORDER Female in-line receptacles
UCOM - 10G+
Shell
L:
in line receptacle
Contacts termination
C:
crimp
S:
solder
Shell plating
B:
black nickel
G:
olive drab cadmium
U:
unplated brass
Backshell type
G:
gland
B:
band
Cable diameter
(for
gland backshell only)
A:
for cable diam 7.5mm
B:
to be defined
L
S
B
G
A
NOTA:
•
UCOM
for order designation
•
μCom
for marking on connectors
5
