REVISION AG
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM ALLOWABLE BOW: 0.005[.13] IN/IN AFTER ASSEMBLY.
3. MAXIMUM PIN ROTATION IN BODY: 2°
4. MINIMUM PUSHOUT FORCE: 1LB
5. CUT PARTS WITH METAL WASHERS TOWARDS OPERATOR ALLOWING
FLASH TO BE ON POST AWAY FROM CRITICAL AREA (METAL WASHERS).
C 6. INSERT PINS SO THAT BANDOLIER MARKS ARE LIMITED IN THE POST
AREA (SEE TABLE 3).
MTMM-1XX-XX-XX-X-XXX-XX-XXX
No OF POSITIONS
-01 THRU -50
TERMINAL SPEC
LEAD STYLE (SEE TABLE 1)
PLATING SPECIFICATION
-G: 20µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-T: MATTE TIN ON CONTACT AND TAIL.
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-H: 30µ" SELECTIVE GOLD IN CONTACT AREA,
3µ" SELECTIVE GOLD ON TAIL.
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-TM: MATTE TIN ON CONTACT AND TAIL.
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL.
OPTION
POLARIZATION
SPECIFY POS -XXX TO BE OMITTED
OPTION
**-MW: METAL WASHER
(-D & -Q BODY SPECS ONLY)
(SEE FIG 4, SHT 2)
(30 POS PER ROW MAX)
TAIL MUST BE .090[2.29] - .300[7.62]
POST HEIGHT
XXX = "A" (SEE TABLE 1)
BODY SPECIFICATION
-S: SINGLE (TMM-50-S, SEE FIG 1)
-D: DOUBLE (TMM-50-D, SEE FIG 2, SHT 2)
-Q: QUAD (TMM-50-Q, SEE FIG 3, SHT 2)
C
(NO OF POS x .0787[2.000])
+.0000[0.000]
-.0100[0.254]
.0787 2.000 REF
02
01
T-1S13-XX-XX-2
.020 0.50 SQ
REF (TYP)
** -MW OPTION, DO NOT DESIGN IN. SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS 02/08/2002
C
"A"±.005[0.124]
(.0000[0.000] MIN)
"L"
TAIL REF
.0590 1.499
REF
2 MAX SWAY
(EITHER DIRECTION)
2 MAX SWAY
(EITHER DIRECTION)
.0787 2.000 REF
-S: SINGLE ROW OPTION

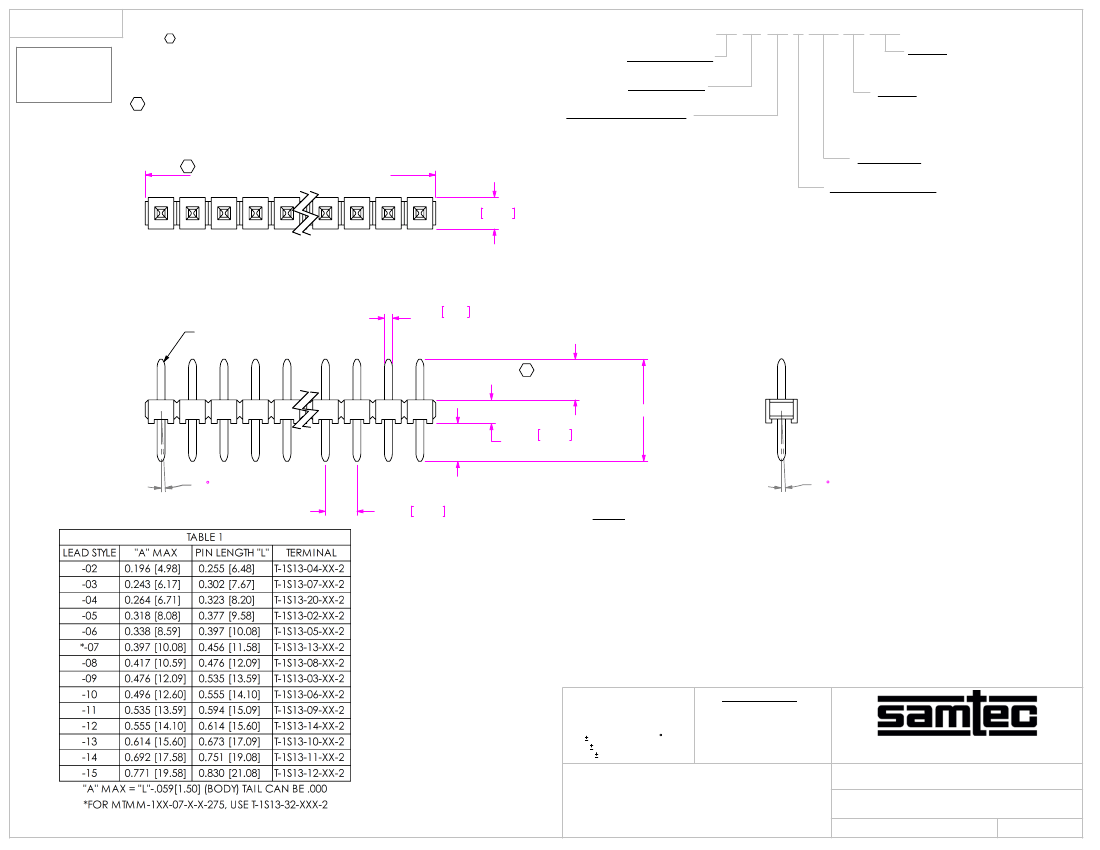

MTMM-1XX-02-XX-S-100 SHOWN
FIG 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
MATERIAL:
DECIMALS
ANGLES
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
TERMINAL: PHOS BRONZE
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
2MM TERMINAL STRIP ASSEMBLY
MTMM-1XX-XX-XX-X-XXX-XX-XXX
SHEET
1
OF
2
F:\DWG\MISC\MKTG\MTMM-1XX-XX-XX-X-XXX-XX-XXX-MKT.SLDDRW
BY:
REIDINGER 12/01/1993
REVISION AG
02
04
01
03
.1550 3.937 REF
.0787 2.000 REF
01
05
.3150 8.000 REF
.0787 2.000
REF (TYP)

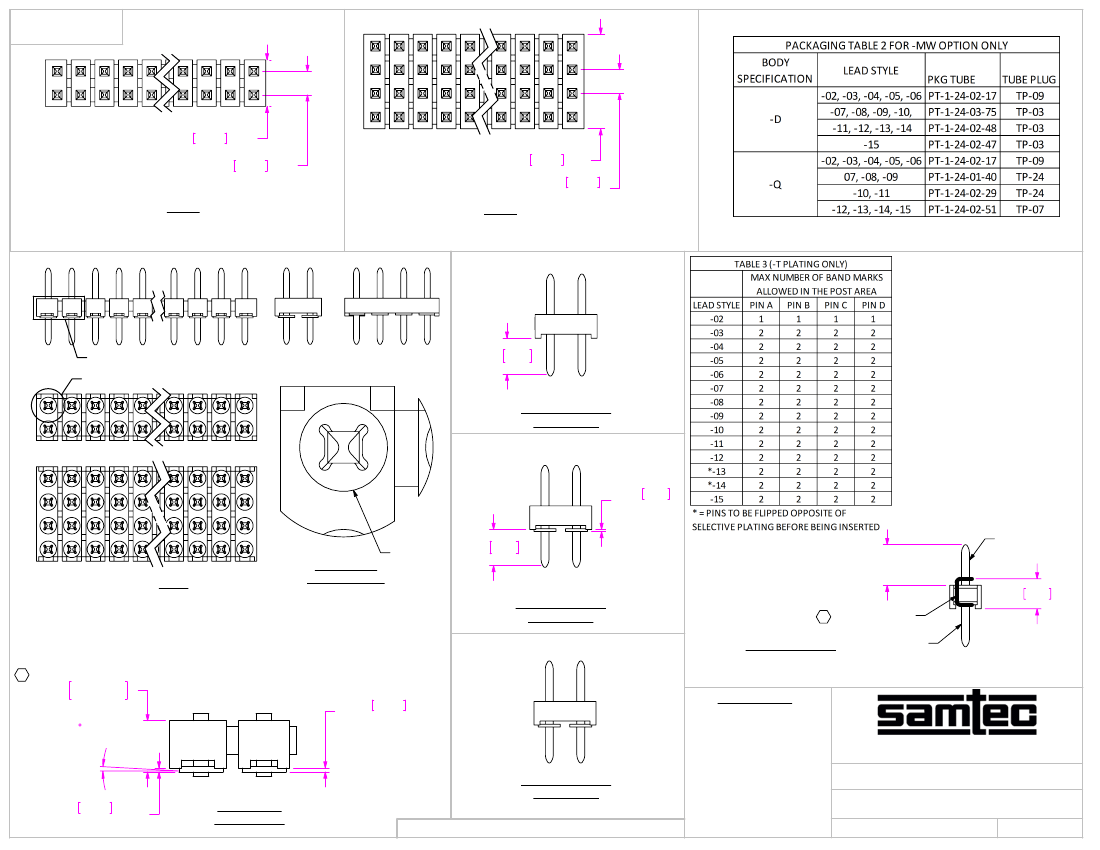

-D: DOUBLE ROW OPTION
MTMM-1XX-02-XX-D-100 SHOWN
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 2
-Q: QUAD ROW OPTION
MTMM-1XX-02-XX-Q-100 SHOWN
(SAME AS FIG 1, DIFFERENT AS SHOWN)
FIG 3
'A'
'B'
.090 2.29
IN PROCESS 1
SCALE 4:1
.005 0.13
MAX
.090 2.29
POST AREA
"A" REF
(SEE TABLE 1, SHT 4)
C
+.0080
+0.203
.0590
- .0050
1.499
- 0.127
-MW: METAL WASHER OPTION
MTMM-1XX-02-XX-X-100-MW SHOWN
(ONE PER POSITION)
(-D &-Q PODY SPEC ONLY, SEE NOTE 5)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
** -MW OPTION, DO NOT DESIGN IN. SAMTEC WILL
ONLY SUPPORT EXISTING BUSINESS 02/08/2002
FIG 4
DETAIL 'B'
SCALE 16 : 1
SQT-MW
IN PROCESS 2
SCALE 4:1
.075 1.91 REF
C BANDOLIER REF
(-T PLATING ONLY)
(SEE NOTE 6 & TABLE 3)
IN PROCESS 4
TAIL AREA
2 MAX SWAY
(EITHER DIRECTION)
.0050 0.127 MAX
MEASURE AT TAIL
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
.0050 0.127 MAX
MEASURE AT TAIL
DETAIL 'A'
SCALE 8 : 1
REPRESS TO PROPER TAIL DIM
F:\DWG\MISC\MKTG\MTMM-1XX-XX-XX-X-XXX-XX-XXX-MKT.SLDDRW
IN PROCESS 3
SCALE 4:1
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
2MM TERMINAL STRIP ASSEMBLY
MTMM-1XX-XX-XX-X-XXX-XX-XXX
SHEET
2
OF
2
BY:
REIDINGER 12/01/1993
