C781 datasheet, PDF - EEWORLD Datasheet

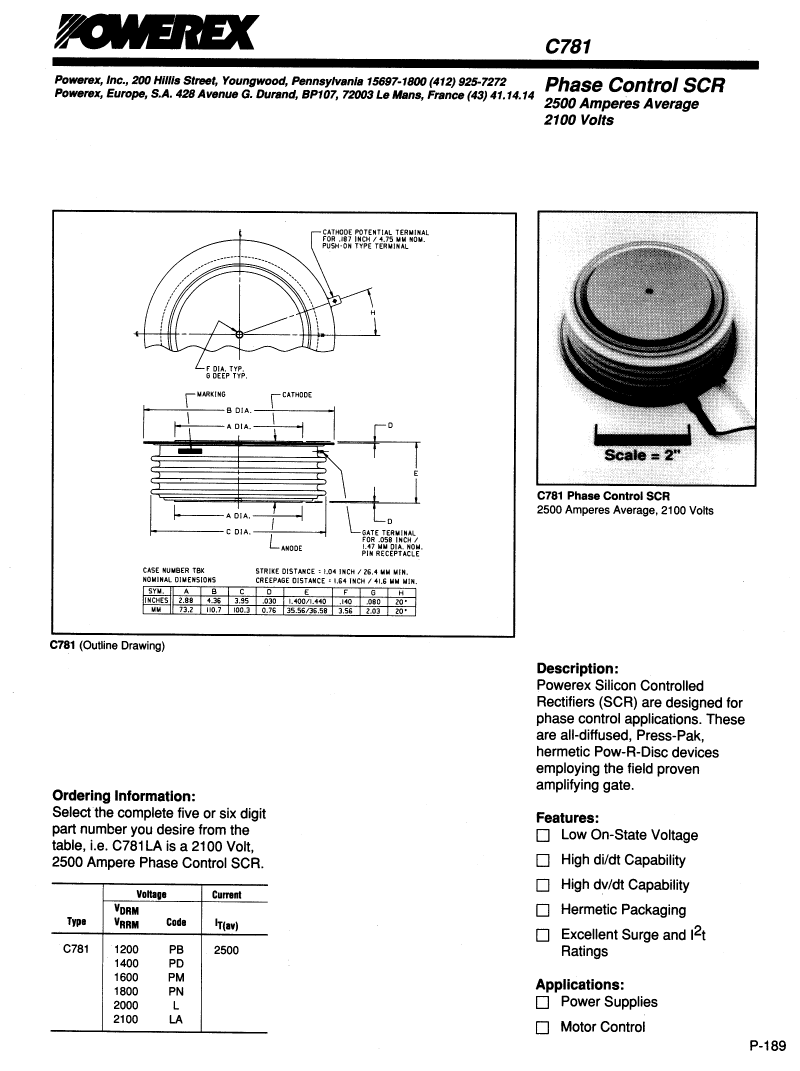

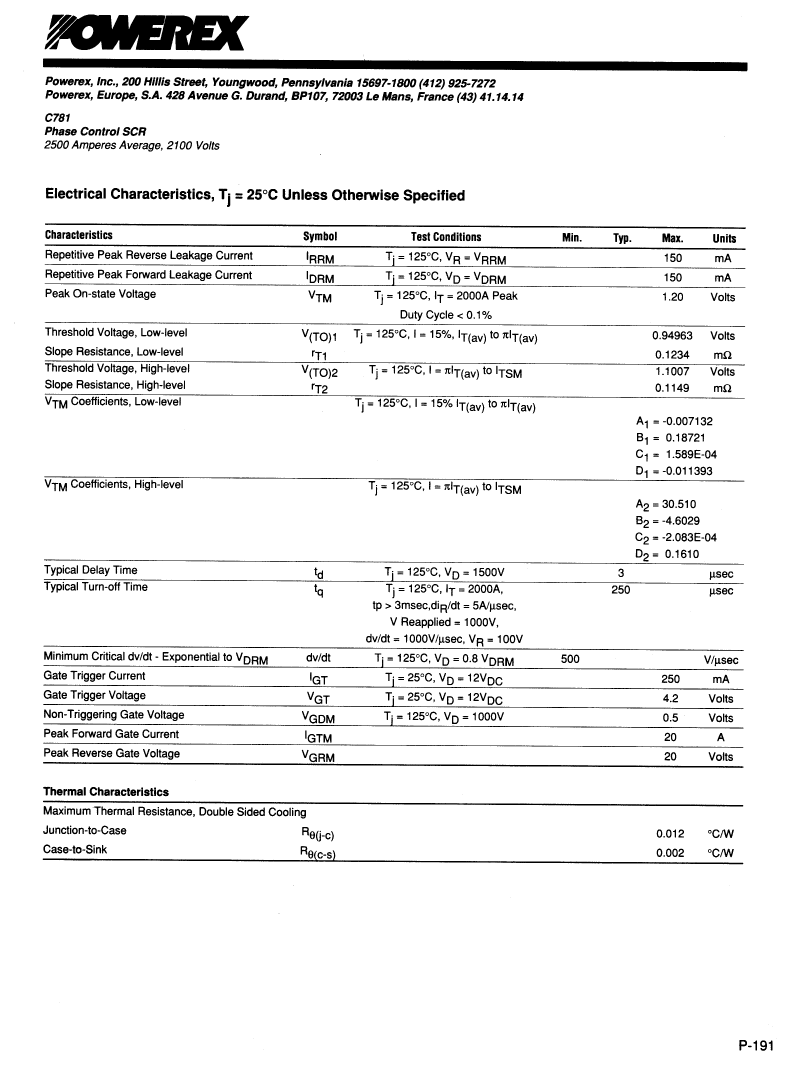

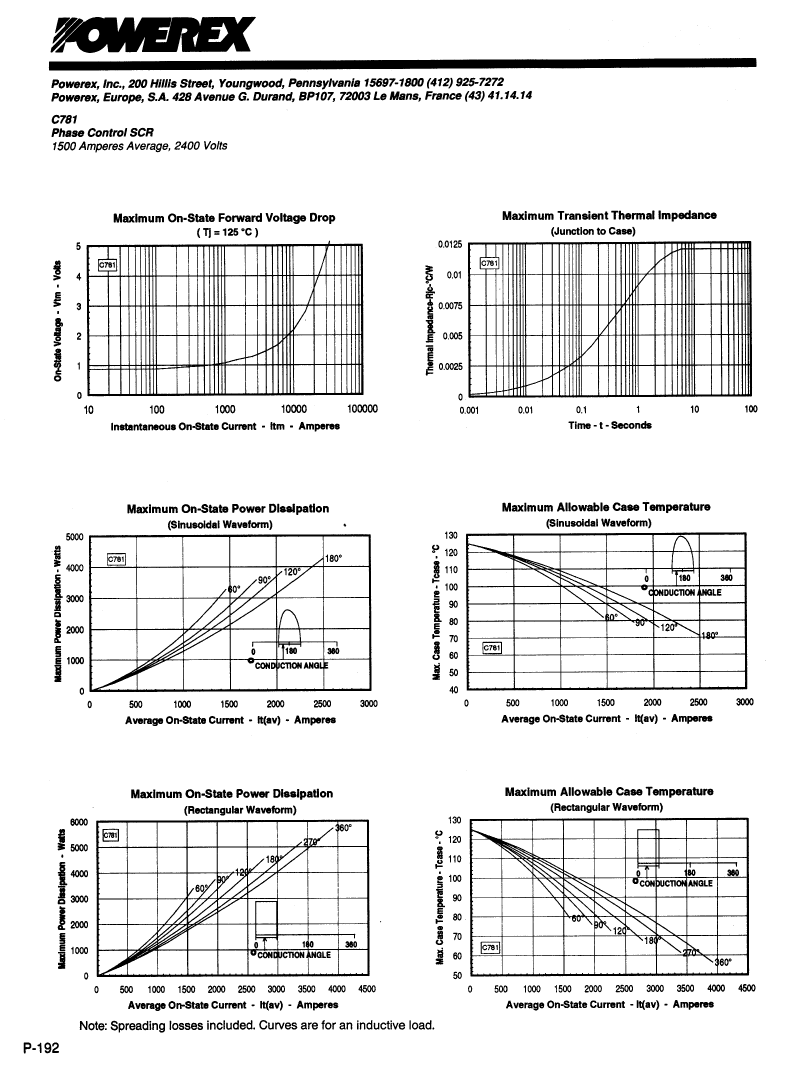

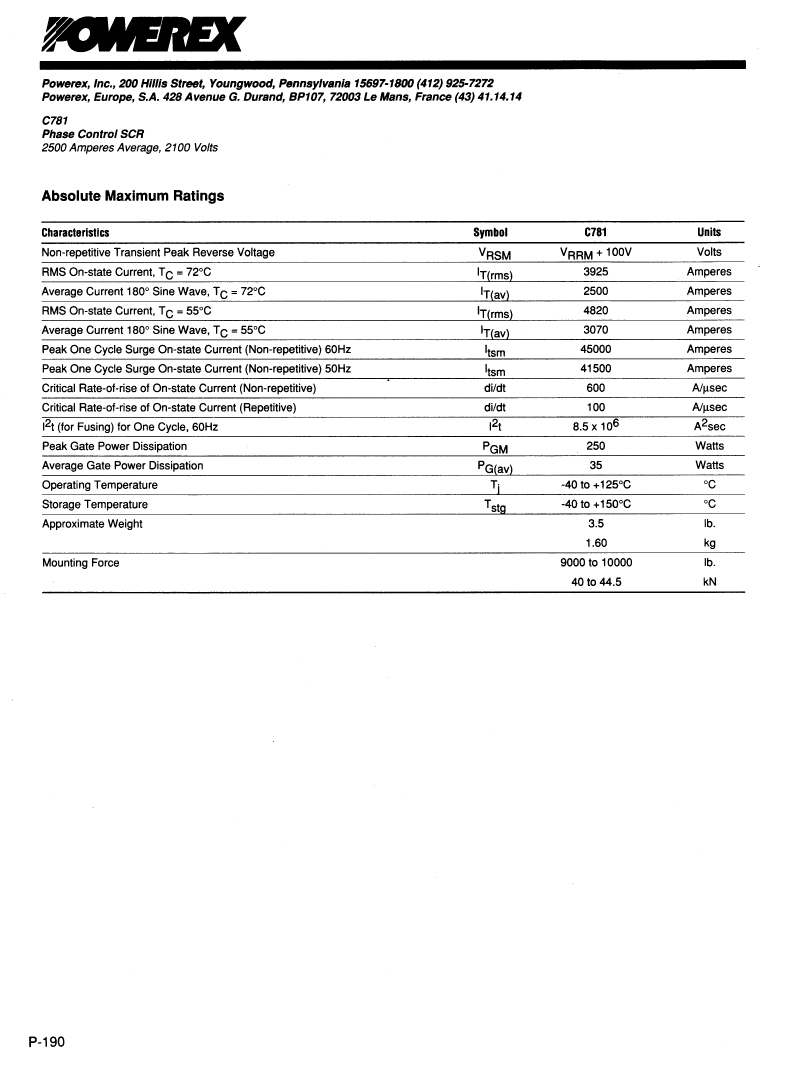

C781: DescriptionPhase Control SCR 2500 Amperes Average 2100 Volts; File Size463KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Compare View All

C781 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C781	-	-	View	Buy Now

C781 Overview

Phase Control SCR 2500 Amperes Average 2100 Volts

Preview

Download Datasheet

View All

C781 Related Products

	C781	C781LA	C781PD	C781L	C781PB
Description	Phase Control SCR 2500 Amperes Average 2100 Volts	Phase Control SCR 2500 Amperes Average 2100 Volts	Phase Control SCR 2500 Amperes Average 2100 Volts	Phase Control SCR 2500 Amperes Average 2100 Volts	Phase Control SCR 2500 Amperes Average 2100 Volts
Maker	-	POWEREX	POWEREX	POWEREX	POWEREX
package instruction	-	DISK BUTTON, O-CXDB-X3	DISK BUTTON, O-CXDB-X3	DISK BUTTON, O-CXDB-X3	DISK BUTTON, O-CXDB-X3
Contacts	-	3	3	3	3
Reach Compliance Code	-	unknow	unknow	unknow	unknow
Nominal circuit commutation break time	-	250 µs	250 µs	250 µs	250 µs
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	-	500 V/us	500 V/us	500 V/us	500 V/us
Maximum DC gate trigger current	-	250 mA	250 mA	250 mA	250 mA
Maximum DC gate trigger voltage	-	4.2 V	4.2 V	4.2 V	4.2 V
JESD-30 code	-	O-CXDB-X3	O-CXDB-X3	O-CXDB-X3	O-CXDB-X3
Maximum leakage current	-	150 mA	150 mA	150 mA	150 mA
On-state non-repetitive peak current	-	45000 A	45000 A	45000 A	45000 A
Number of components	-	1	1	1	1
Number of terminals	-	3	3	3	3
Maximum on-state current	-	2500000 A	2500000 A	2500000 A	2500000 A
Maximum operating temperature	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	-	ROUND	ROUND	ROUND	ROUND
Package form	-	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	-	4820 A	4820 A	4820 A	4820 A
Off-state repetitive peak voltage	-	2100 V	1400 V	2000 V	1200 V
Repeated peak reverse voltage	-	2100 V	1400 V	2000 V	1200 V
surface mount	-	YES	YES	YES	YES
Terminal form	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Trigger device type	-	SCR	SCR	SCR	SCR
