FM-Sound IF with SCART Switch and Volume Control
File Size265KB,10 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Compare View All

Q67000-A5137 Overview

FM-Sound IF with SCART Switch and Volume Control

FM-Sound IF with SCART Switch
and Volume Control
TBA 121-5
Bipolar IC
Features
q
q
q
q
Outstanding limiting qualities
Few external components
Integrated de-emphasis resistor
Low harmonic distortion factor
P-DIP-16
Type
TBA 121-5
Ordering Code
Q67000-A5137
Package
P-DIP-16
Functional Description
FM-IF amplifier, consisting in a limiter amplifier with FM demodulator. The AF section contains a
SCART-record/playback switch as well as AF output with volume control. The control of the volume
is controlled via an analog control input, and the SCART switch is controlled via a switch input.
Application
Application of the IC is intended in mono TV sets.

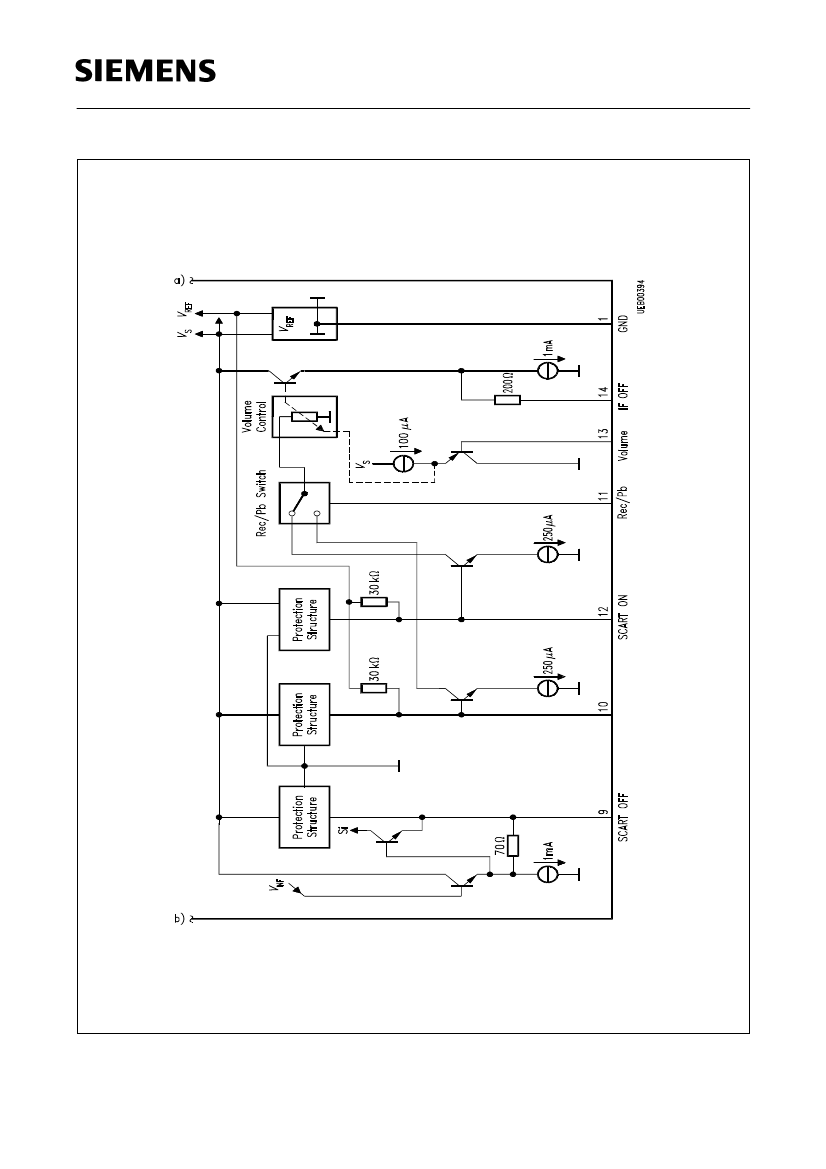

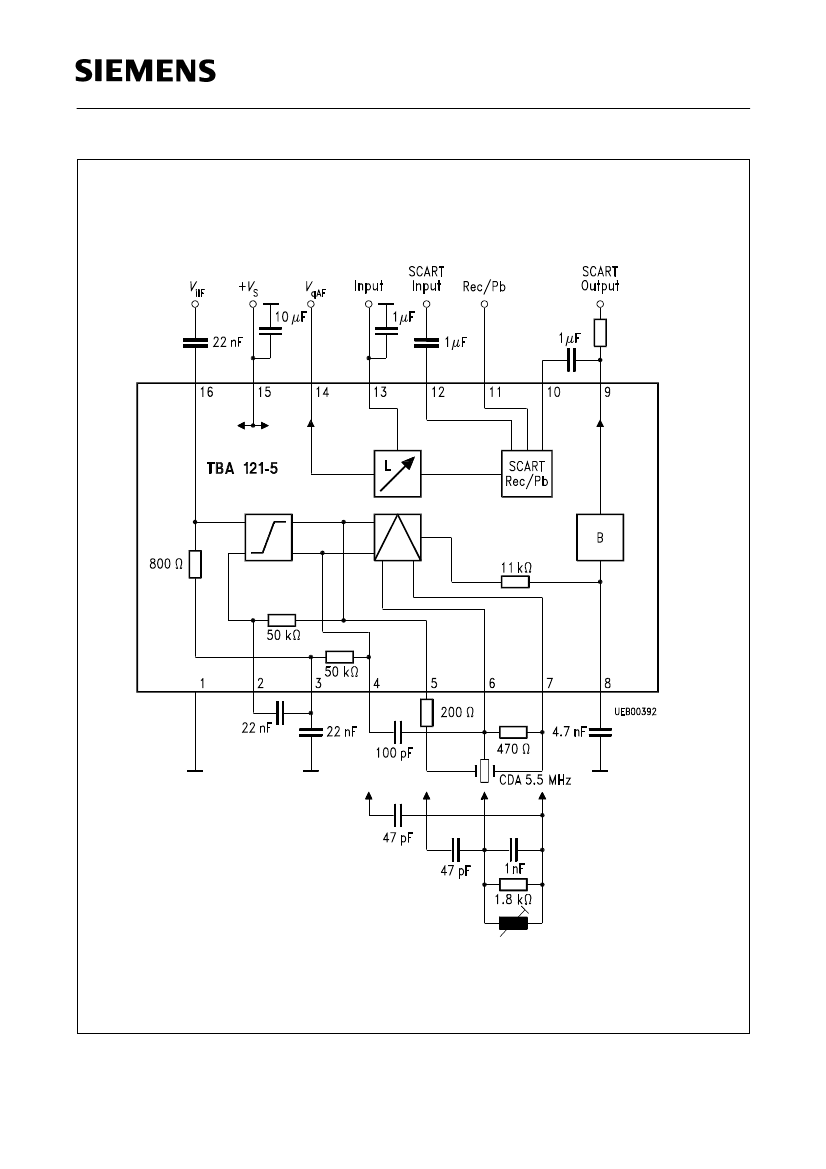

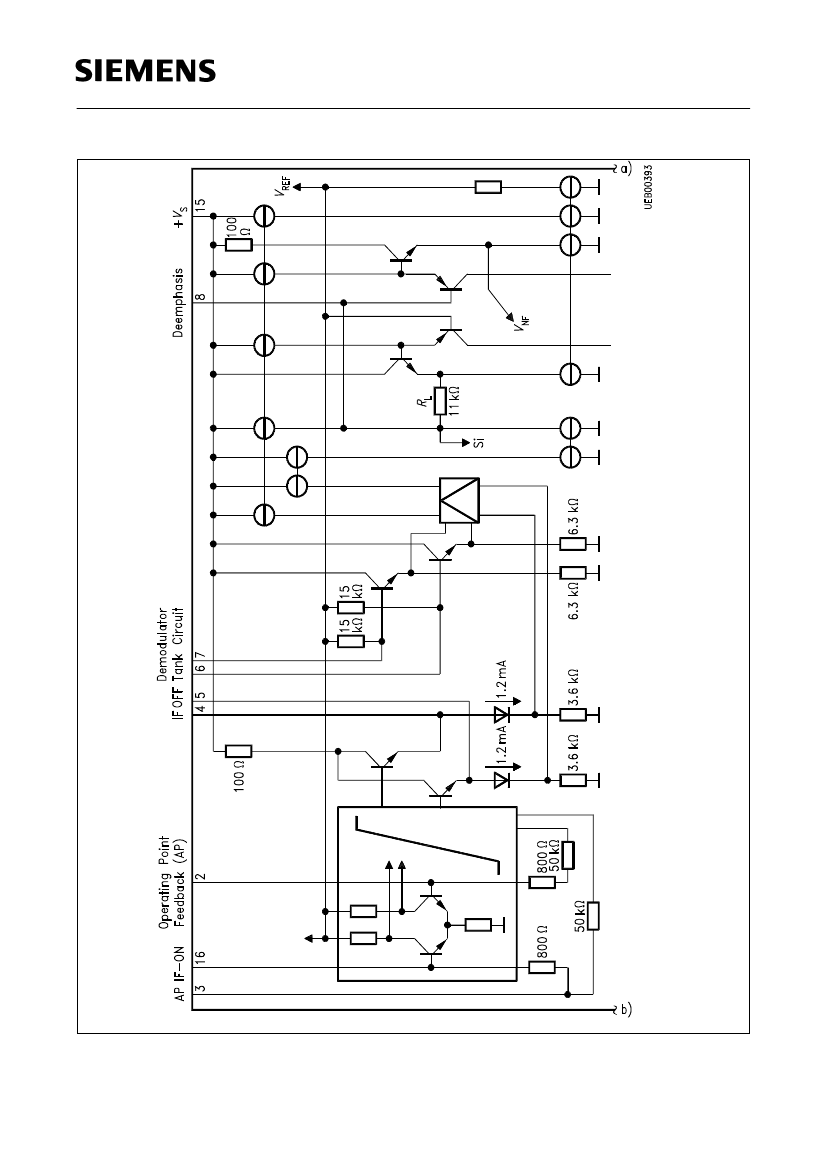

Circuit Description
In its FM section, the component contains an eight stage, symmetrical limiter amplifier with
subsequent coincidence demodulator. The AF section contains an analog switch for the SCART-
recording / playback function as well as an analog volume control with AF output.
Semiconductor Group
91
06.94
