Q62705-K321: DescriptionPEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT; CategoryThe sensor; File Size61KB，3 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Compare View All

Q62705-K321 Overview

PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT

Preview

Download Datasheet

View All

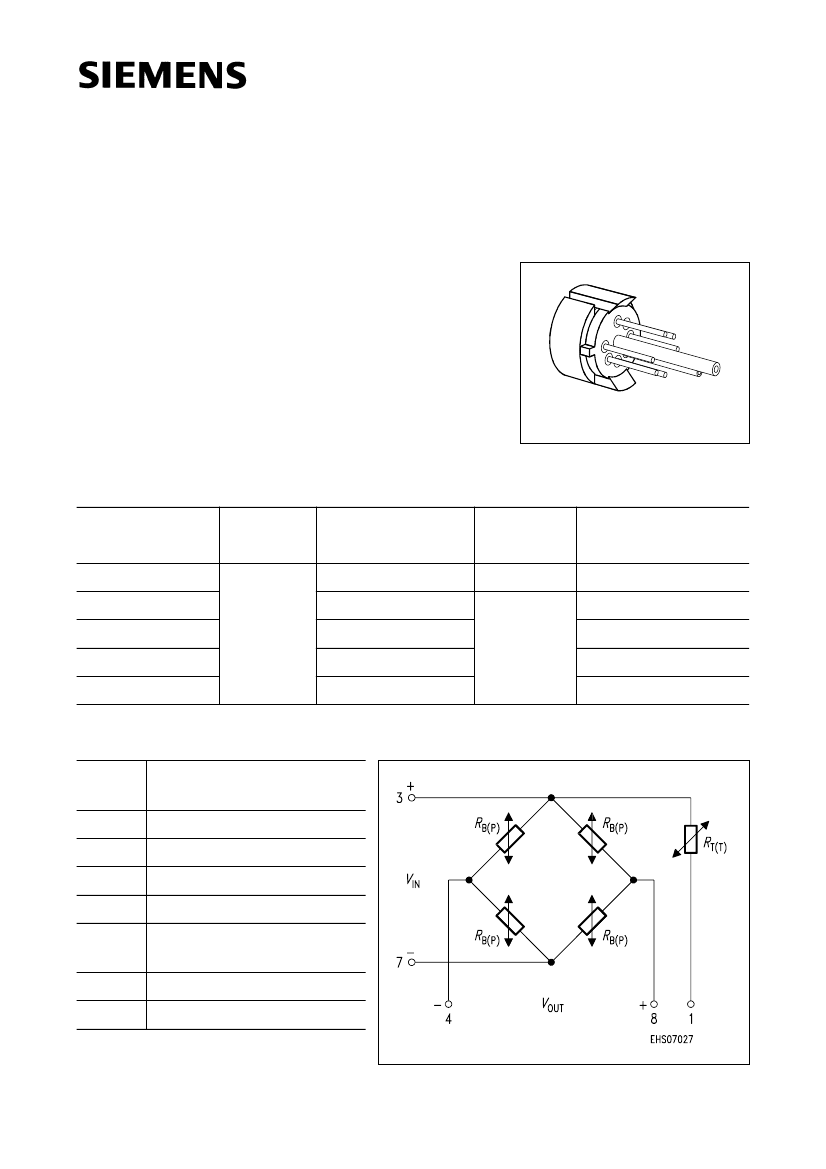

Silicon Piezoresistive

Pressure Sensor

KPY 62-RK

KPY 66-RK

Features

•

Low pressure and temperature hysteresis

Fast response

High sensitivity and linearity

Fatigue free monocrystaline silicon diaphragm

giving high load cycle stability

• High long term stability

• Built in silicon temperature sensor

• Metal housing

Similar to TO-39-3

Type and

Marking

KPY 62 RK

KPY 63 RK

KPY 64 RK

KPY 65 RK

KPY 66 RK

Pin Configuration

Symbol

Pressure Range

…

600

…

1.6

…

Unit

mbar

bar

Ordering Code

Q62705-K319

Q62705-K320

Q62705-K321

Q62705-K322

Q62705-K292

…

Temp.- Sensor

(typ.

= 2 kΩ)

Not connected

; Temperature sensor

−

OUT

No pin

Shielding, to be connected

to +

−

OUT

Semiconductor Group

1998-05-11

Q62705-K321 Related Products

	Q62705-K321	Q62705-K319	Q62705-K320	Q62705-K292	KPY64RK	KPY62RK	KPY66RK	KPY62-RK	KPY65RK	KPY63RK
Description	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-8.7Psi, 0.5%, ROUND, THROUGH HOLE MOUNT	PEIZORESISTIVE PRESSURE SENSOR, 0-23.2Psi, 0.5%, ROUND, THROUGH HOLE MOUNT
Maker	-	-	-	-	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS	SIEMENS
Reach Compliance Code	-	-	-	-	unknown	unknow	unknow	unknow	unknown	unknow
Maximum accuracy(%)	-	-	-	-	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%
body height	-	-	-	-	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm
Body length or diameter	-	-	-	-	9.3 mm	9.3 mm	9.3 mm	9.3 mm	9.3 mm	9.3 mm
shell	-	-	-	-	METAL	METAL	METAL	METAL	METAL	METAL
Linearity(%)	-	-	-	-	0.5 %	0.5 %	0.5 %	0.5 %	0.5 %	0.5 %
Installation features	-	-	-	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	-	-	-	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output type	-	-	-	-	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE	ANALOG VOLTAGE
Package Shape/Form	-	-	-	-	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Maximum pressure range	-	-	-	-	58.01 Psi	8.7 Psi	362.59 Psi	8.7 Psi	145.03 Psi	23.2 Psi
Maximum supply voltage	-	-	-	-	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	-	-	-	-	NO	NO	NO	NO	NO	NO
Termination type	-	-	-	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
