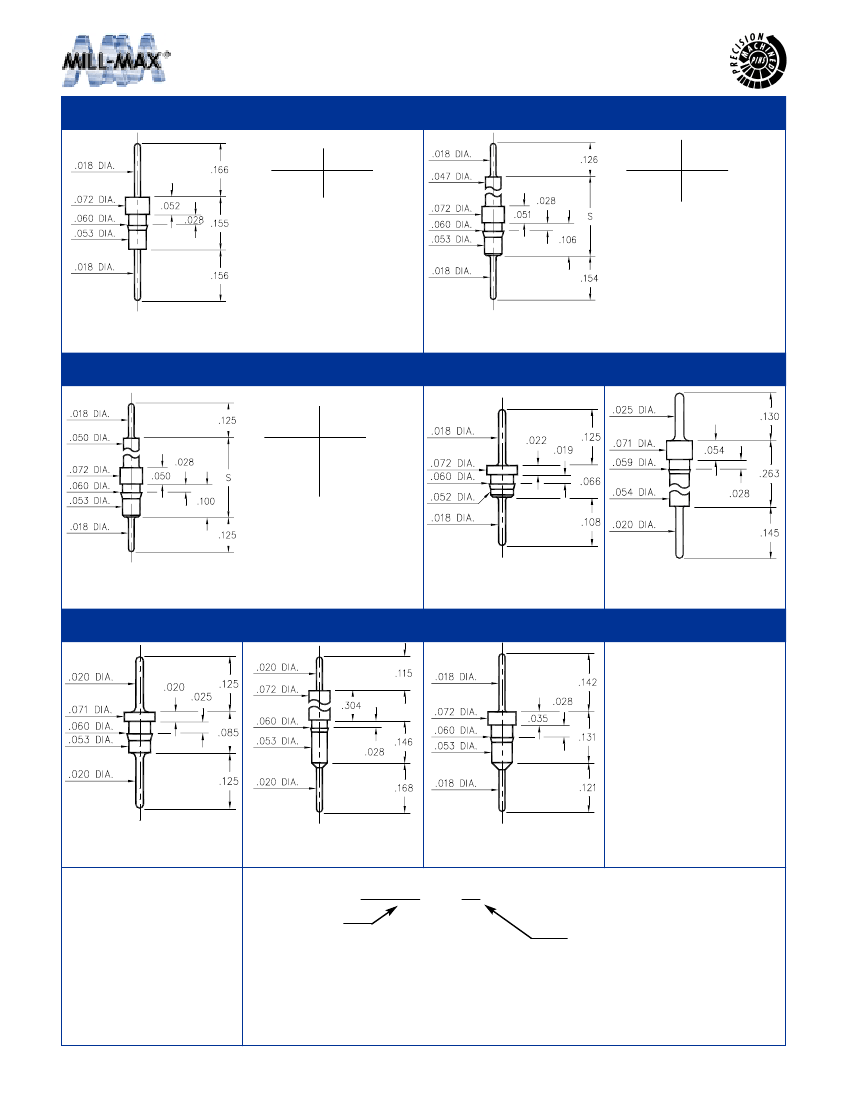

PRINTED CIRCUIT PINS
0504/0505
Basic Part
Pin
Number
Material
0504-0
Ph Br. 544
Brass 360
0505-0
5510/5511
Basic Part
Number
Standoff
Height
S
5510-0
5511-0
.331
.606
050X-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
551X-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
4259
Basic Part
Number
Standoff
Height
S
3516
4259-1
4259-2
4259-3
4259-4
.210
.335
.585
.835
8859
4259-X-00-XX-00-00-03-0
Press-fit in .057 mounting hole
3516-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
8859-0-00-XX-00-00-03-0
Press-fit in .056 mounting hole
6585
3403
3404
6585-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
Pin material is Ph Br 544 (B2)
3403-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
3404-0-00-XX-00-00-03-0
Press-fit in .057 mounting hole
SPECIFICATIONS
PIN MATERIAL:
Brass Alloy 360, 1/2 Hard
(Except where noted)
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 00 - XX - 00 - 00 - 03 - 0
BASIC PART #
SPECIFY PIN FINISH:
01
200µ"
TIN/LEAD OVER
NICKEL
15
10µ"
GOLD OVER
NICKEL
21
20µ"
GOLD OVER
NICKEL
34
50µ"
GOLD OVER
NICKEL
