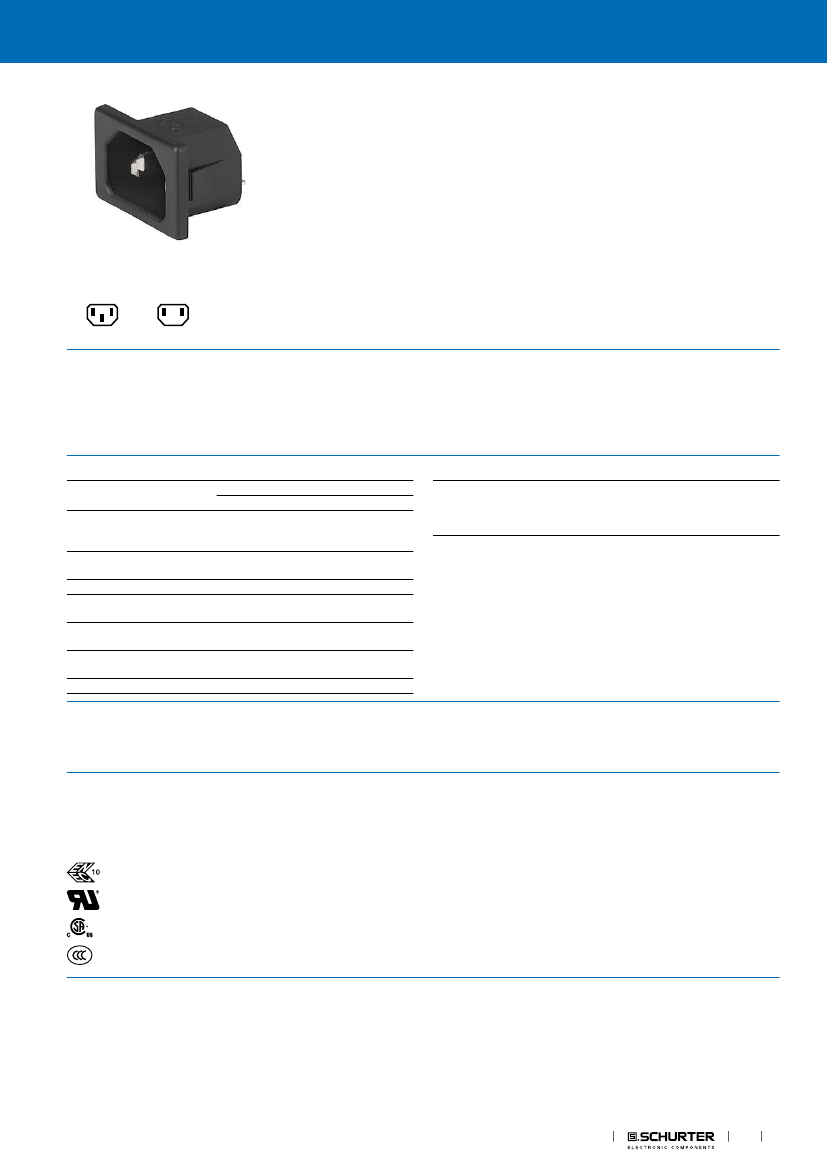

IEC Appliance Inlet C14/C18, Snap-in Mounting, Front Side, Solder or Quick-connect or Screw-on Terminal
Snap-in version
C14
70° C
C18
Approvals and Compliances
70° C
See below:
Description
- Panel mount :
Snap-in version , Front Side
- 1 Function :
- Appliance Inlet , Pin temperature 70 °C , protection class I or II
- Solder, Quick Connect or Screw Terminals
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50/60 Hz
15 A / 250 VAC; 60 Hz
> 2.5 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
Solder, Quick Connect or Screw Ter-
minals
Snap-in version
0.8 - 1.5/1.6 - 2.0 mm
PA6, black or grey, UL 94V-0
appliance inlet/-outlet
C14 / C18 acc. to IEC 60320-1
UL 60320-1, CSA C22.2 no. 60320-1
(for cold conditions) pin-temperature 70
°C, 10 A, Protection Class I or II
Allowable Operation Tempe-
rature
IP-Protection
Insulation cover
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 1061
Approval Logo
Certificates
VDE Approvals
UL Approvals
CSA Approvals
CQC Approvals
Certification Body
VDE
UL
CSA
CQC
Description
Certificate Number: 40011871
UL File Number: E96454
CSA Certification Record: 27324
CCC Certificate Number: 2012010204576576
Product standards
Product standards that are referenced
Connectors
1
1061
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
UL 60320-1
CSA C22.2 no. 60320-1
Description
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
Appliance couplers for household and similar general purposes
Standard for Attachment Plugs and Receptacles
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Dimensions [mm]
Quick connect or solder terminals
34.6
E
Wandstärke
panel thickness
19.3
23
0.8 -1.5 mm
1.6 - 2.0 mm
Ausbruchmasse
panel cutout
28.8
29.6
+0.2
x 19.4
x 19.4
+0.2
mm
mm
+0.2
+0.2
R
1
18.2
3
26
E: Solder terminals short: 23.7 mm
E: Solder terminals long: 27.1 mm
E: Quick connect terminals 4.8x0.8 mm: 27.9 mm
E: Quick connect terminals 6.3x0.8 mm: 28.9 mm
Bolts and nuts
34.6
28.9
Wandstärke
panel thickness
19.3
23
0.8 -1.5 mm
1.6 - 2.0 mm
Ausbruchmasse
panel cutout
28.8
29.6
+0.2
x 19.4
x 19.4
+0.2
mm
mm
+0.2
+0.2
R
1
24.9
3
26
2
Connectors
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
1061
Config. Code
1061
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
1061
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Type
Type
protection class II
protection class I
Configuration
key
B
X
1061
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal Ground
without terminal
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
screw terminal
Symbols similar as in table A
Configuration
key
0
2
3
8
9
A
1061
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal L
Configuration
key
2
short solder terminal (L = 4.8 mm)
1061
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Color
Color
Black
Configuration
key
A
B
long solder terminal (L = 8.5 mm)
3
Blade terminal (4.8 x 0.8 mm)
8
Grey
Blade terminal (6.3 x 0.8 mm)
screw terminal
9
A
1061
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Style
Style
snap-in standard type
Configuration
key
3
1061
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal N
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
Blade terminal (4.8 x 0.8 mm)
Blade terminal (6.3 x 0.8 mm)
screw terminal
Symbols similar as in table A
Configuration
key
2
3
8
9
A
1061
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Features
Features
without V-Lock
V-Lock
V
Configuration
key
All Variants
Type
protection class II
protection class II
protection class I
protection class I
protection class I
protection class I
protection class I
protection class I
protection class I
Terminals L / N
short solder termi-
nal (L = 4.8 mm)
Blade terminal (6.3
x 0.8 mm)
short solder termi-
nal (L = 4.8 mm)
short solder termi-
nal (L = 4.8 mm)
long solder termi-
nal (L = 8.5 mm)
long solder termi-
nal (L = 8.5 mm)
Blade terminal (4.8
x 0.8 mm)
Blade terminal (6.3
x 0.8 mm)
Blade terminal (6.3
x 0.8 mm)
Terminal Ground
without terminal
without terminal
short solder termi-
nal (L = 4.8 mm)
short solder termi-
nal (L = 4.8 mm)
long solder termi-
nal (L = 8.5 mm)
long solder termi-
nal (L = 8.5 mm)
Blade terminal (4.8
x 0.8 mm)
Blade terminal (6.3
x 0.8 mm)
Blade terminal (6.3
x 0.8 mm)
Color
Black
Black
Black
Grey
Black
Grey
Black
Black
Grey
Style
snap-in standard type
snap-in standard type
snap-in standard type
snap-in standard type
snap-in standard type
snap-in standard type
snap-in standard type
snap-in standard type
snap-in standard type
Features
-
-
-
-
-
-
-
-
-
Config. Code
1061-B-2200-A-3
1061-B-9900-A-3
1061-X-2220-A-3
1061-X-2220-B-3
1061-X-3330-A-3
1061-X-3330-B-3
1061-X-8880-A-3
1061-X-9990-A-3
1061-X-9990-B-3
Order Number
6162.0003
6162.0004
6162.0005
6162.0006
6162.0007
6162.0008
6162.0009
6162.0010
6162.0011
█
█
Connectors
3
1061
Type
protection class II
Terminals L / N
long solder termi-
nal (L = 8.5 mm)
Terminal Ground
without terminal
Color
Black
Style
snap-in standard type
Features
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
Config. Code
1061-B-3300-A-3
Order Number
6162.0160
The listet variants should be available from stock Other versions on request
www.schurter.com/contact
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER

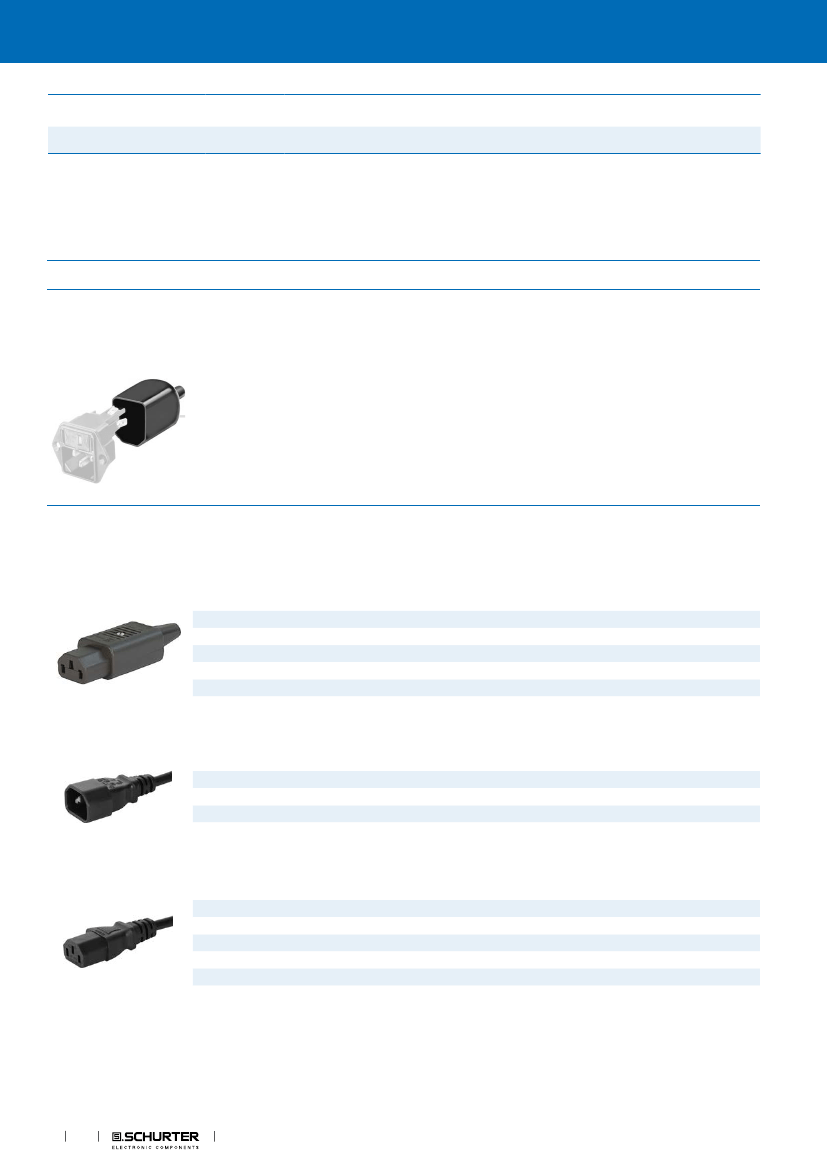

Packaging unit
Accessories
50 Pcs
Description
Assorted Covers
Rear Cover
Mating Outlets/Connectors
Category / Description
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
IEC Connector C15 for hot conditions 120°C, Rewireable, Straight
IEC Connector C15 for hot conditions 120°C, Rewireable, Angled
Connector further types to 1061
4782
4785
4300-06
4781
4784
...
Interconnection Cord Overview complete
Cord Sets 10 A, Interconnection, 2.0 m, IEC H05VV-F3G1.0, black
Cord Sets 10 A, Interconnection, 1.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, Interconnection, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Interconnection Cord further types to 1061
6007.0204
6007.0212
6007.0214
Power Supply Cord Overview complete
Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, Europlug, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, uninsulated wires, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, uninsulated wires, 2.0 m, Connector IEC C13, H05VV-F3G1.0, black
Cord Sets 10 A, United Kingdom, 2.5 m, Connector IEC C13, H05VV-F3G1.0, black
Power Supply Cord further types to 1061
6004.0215
6003.0215
6000.0224
6000.0214
6044.0215
...
4
Connectors
Connectors (Inlets/Outlets)
https://www.schurter.com /PG07
1061
Category / Description
Power Supply or Interconnection Cord Overview complete
Cord Sets 10 A, United Kingdom, 2.0 m, Connector IEC H05VV-F3G1.0, black
Power Supply or Interconnection Cord further types to 1061
6044.0204
Mating Outlets/Connectors shuttered
Power Cord Overview complete
Power cord with IEC connector C17, V-Lock, straight
Power Cord further types to 1061
VAC17KS
