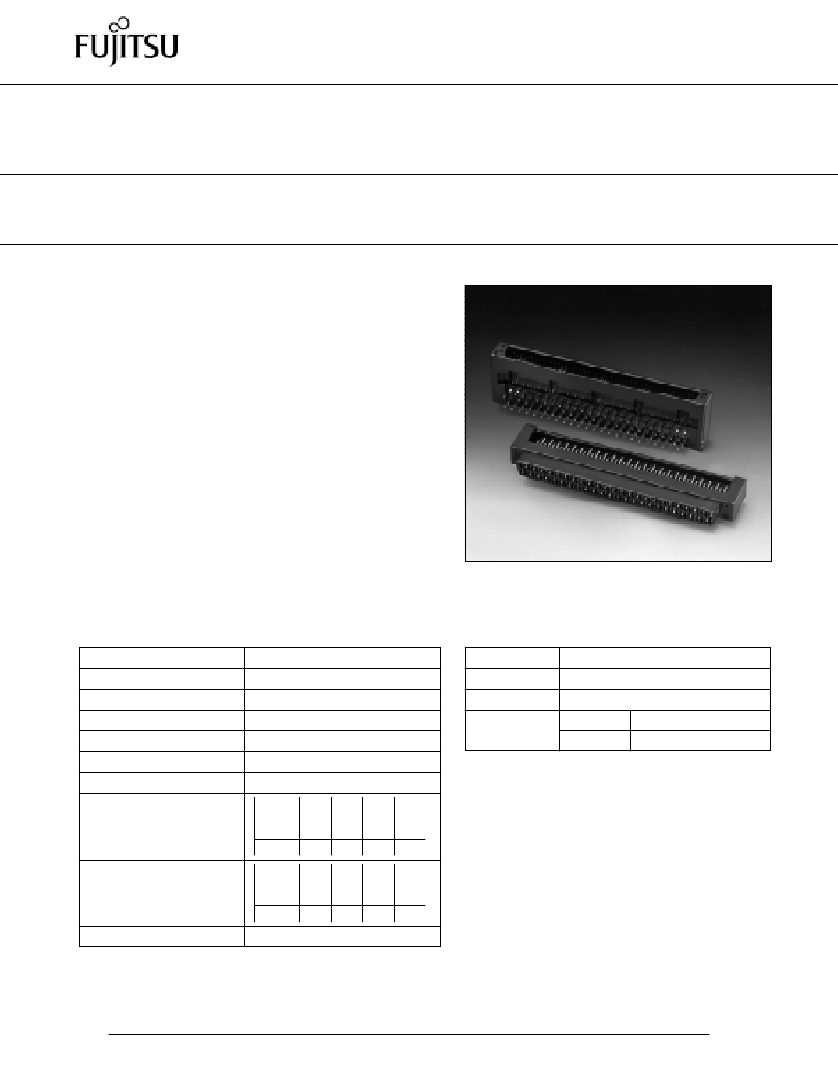

FOR BOARD-TO-BOARD CONNECTION
230 SERIES
s
FEATURES
• 1.27 mm (0.050 in.) pitch contact arrangement in two
rows enables high-density mounting.
• Connectors with 34 to 96 contacts are available for
various purposes.
• Connectors with 68 contacts comply with SCSI III
interface.
• Connectors with 96 contacts comply with S-bus
interface.
• Each of the contacts on the female connector are
alternately inset for two-step coupling, significantly
reducing insertion force.
• Terminals are spaced in a four-row staggered
arrangement (2.54 mm
×
1.905 mm) (0.100 in.
×
0.075
in.) for easy PC board design.
• Insulation is UL-approved (94V-0).
s
SPECIFICATIONS
Item
Specifications
–55°C to +105°C
DC
1A
AC 240 V
30 mΩ max. (DC 6 V, 0.1 A)
1000 MΩ min. (DC 500 V)
AC 750 V for 1 minute
Number
of
contacts
Force
Number
of
contacts
Force
34
3.0
34
48
4.0
48
68
5.5
68
96
7.0
96
s
MATERIALS
Item
Materials
Polyester (UL94V-0)
Copper alloy
Contact
Terminal
Gold plating
Palladium plating
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric withstand voltage
Insulator
Conductor
Plating
Insertion force [kg max.]
Withdrawal force [kg min.]
0.68 0.96 1.36 1.92
Applicable PC board (standard)
1.6 mm (0.063 in.)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
1
230 Series
s
ORDERING CODE
FCN-23 4 P 068-G / 0
0: Mold type (standard)
Note: Straight types are also available, including SMT types. See pages 36 and 37.
Plating
G: Gold plating
Number of contacts: 34, 48, 68, 96
Body
Tail type
P: Plug
J: Socket
4: Straight
5: Right-angle
230 series connector
Fujitsu connector
s
APPLICATIONS
Board-to-board connection
• Vertical PCB connection
• Horizontal PCB connection
FCN-235P0
-G/0
FCN-235J0
FCN-235P0
Plug
-G/0
Plug
FCN-235P0
-G/0
-G/0
7.3 mm
Plug
14.5 mm
(0.570 in.)
FCN-234J0
-G/0
Socket
16.6 mm
(0.653 in.)
FCN-234J0
-G/0
Socket
Socket
• Parallel PCB connection
FCN-234P0
15.0 mm
(0.591 in.)
-G/0
Plug
Socket
FCN-234J0
-G/0
• Parallel board connection (for a connector with 96 contacts)
Board interval (mm (in.))
15.0
18.75
39.10
Plug
Plug
(0.287)
39.10 mm
(1.539 in.)
Mounting dimension
Plug
15.0 mm
(0.591 in.)
Socket
18.75 mm
(0.738 in.)
Socket
Socket
Plug
Part number
Socket
Specifications
subject to change
FCN-234P0XX-G/0
FCN-234P096-G/0
FCN-234P096-G/Y
FCN-234P096-G/ZA
FCN-234J096-G/UA
FCN-234J096-G/VA
FCN-234J096-G/Y
FCN-234P096-G/0
FCN-234P096-G/Y
FCN-234P096-G/ZA
FCN-234J096-G/U1
FCN-234J0XX-G/0
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
2
230 Series

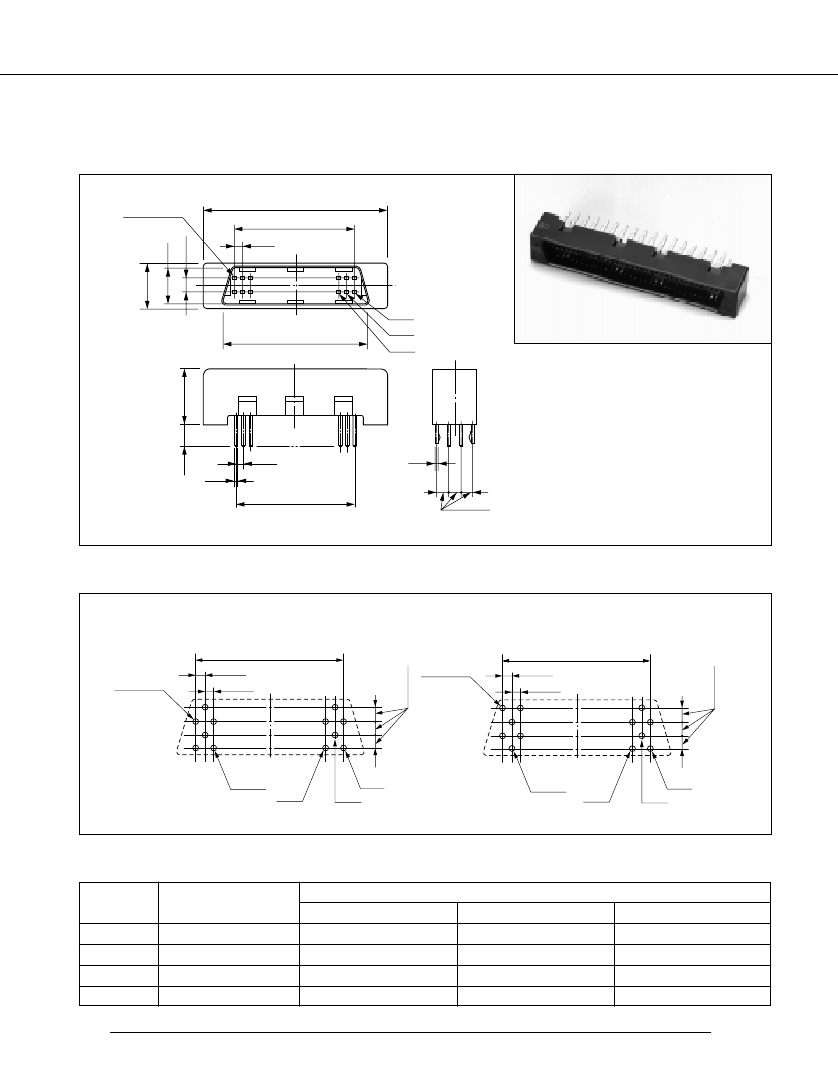

FCN-234P096-G/* STRAIGHT PLUG — S-BUS
s
DIMENSIONS
2.54(0.10)
5.70(0.22)
64.06(2.52)
1.27 x (48-1) = 59.69
0.05 x (48-1) = 2.35
1.27(0.05)
1st CONTACT POSITION
9.30(0.37)
7.30(0.29)
71.00(2.80)
1.27(0.05)
φ1.20(0.05)
33.59(1.32)
1.905(0.075)
0.40(0.02)
1.905(0.075)
1.905(0.075)
1.27 x (48-1) = 59.69
0.05 x (48-1) = 2.35
Unit: mm (in.)
s
MOUNTING HOLE LAYOUT
59.69
±0.01
(2.35
±0.004
)
1.905(0.075)
1.27(0.05)
1.27(0.05)
33.59 (1.32)
1st CONTACT POSITION
With
Post
1.905(0.075)
φ1.57
±0.05
φ(0.06
±0.002
)
φ0.80
±0.05
φ(0.031
±0.002
)
1.905(0.075)
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
A
Polarization Post
FCN-234P096-G/0
FCN-234P096-G/XA
FCN-234P096-G/Y
0
3.4(0.13)
4.0(0.16)
B
Lead Length
3.4(0.13)
2.8(0.11)
3.4(0.13)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
4
230 Series
FCN-234P096-G/ZA SMT PLUG
s
DIMENSIONS
82.50(3.25)
77.47(3.06)
66.66(0.62)
(REGISTRATION
POST POSITION)
3.90(0.15)
4.20(0.17)
φ1.20
(φ0.47)
C 0.30
(C 0.01)
2.75(0.11)
2.54(0.10)
5.70(0.22)
1.73
(0.07)
1.27(0.05)
A
1.27 x (48-1) = 59.69
(0.05 x (48-1) = 2.35)
7.30(0.29)
8.89(0.35)
64.06(2.52)
(2.75)
(0.11)
A
φ1.20
(φ0.47)
1.60
(0.063)
5.00(0.20)
φ3.00
(φ0.12)
9.30(0.37)
(REGISTRATION POST POSITION)
φ1.20
(φ0.47)
φ0.50
(φ0.02)
6.46(0.25)
8.94(0.35)
1.27(0.05)
1.27 x (48-1) = 59.69
(0.05 x (48-1) = 2.35)
70.00(2.76)
5.50(0.217)
Unit: mm (in.)
s
PCB PATTERN LAYOUT
4 - f 1.35
(4 - f 0.053)
77.47(3.05)
70.00(2.76)
2 -
φ
3.20
(2 -
φ
0.13)
1.27 x (48-1) = 59.69
(0.05 x (48-1) = 2.35)
0.80(0.031)
1.60(0.06)
1.73(0.07)
1.27(0.050)
Unit: mm (in.)
s
PART NUMBER
No. of Contacts
96
Part Number
FCN-234P096-G/ZA
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
5.50(0.217)
6.64(0.25)
5
