237-21-050DS-05 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 237-21-050DS-05

237-21-050DS-05: DescriptionCard Edge Connector, 50 Contact(s), 2 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size1MB，20 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

237-21-050DS-05 Overview

Card Edge Connector, 50 Contact(s), 2 Row(s), Female, Straight, Solder Terminal

237-21-050DS-05 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknow
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	237
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

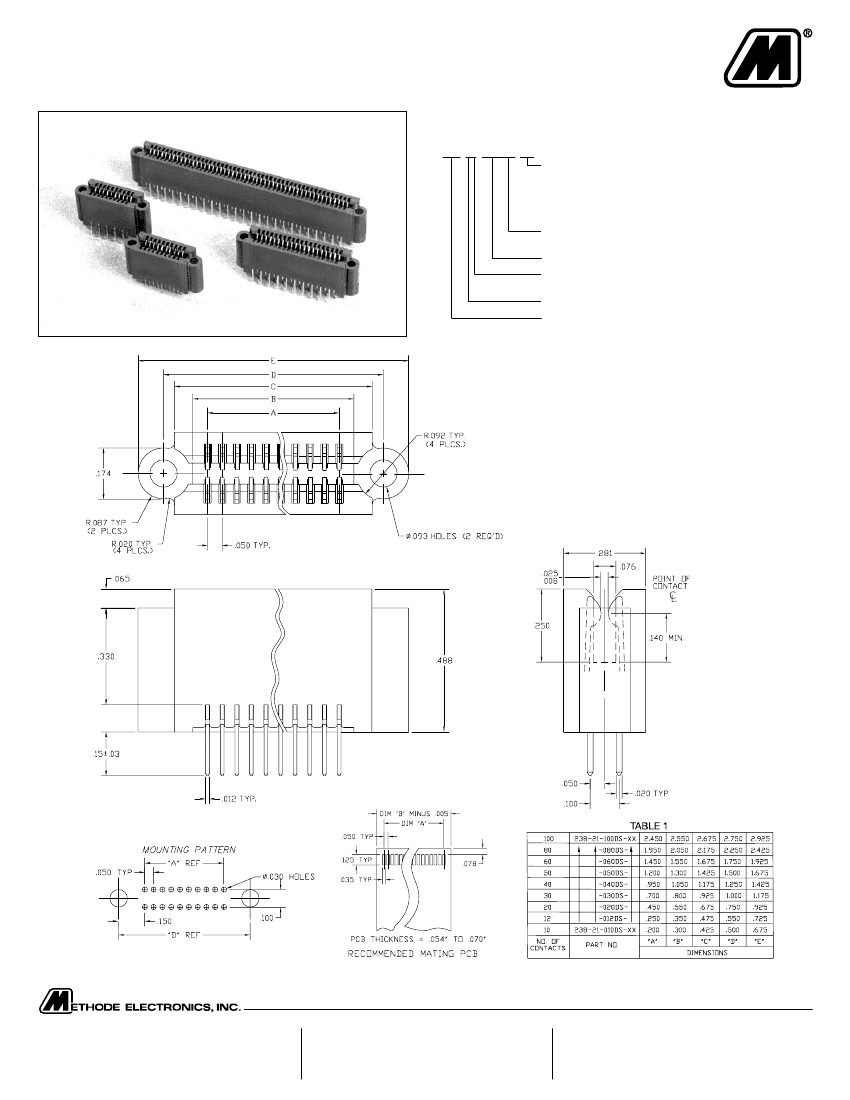

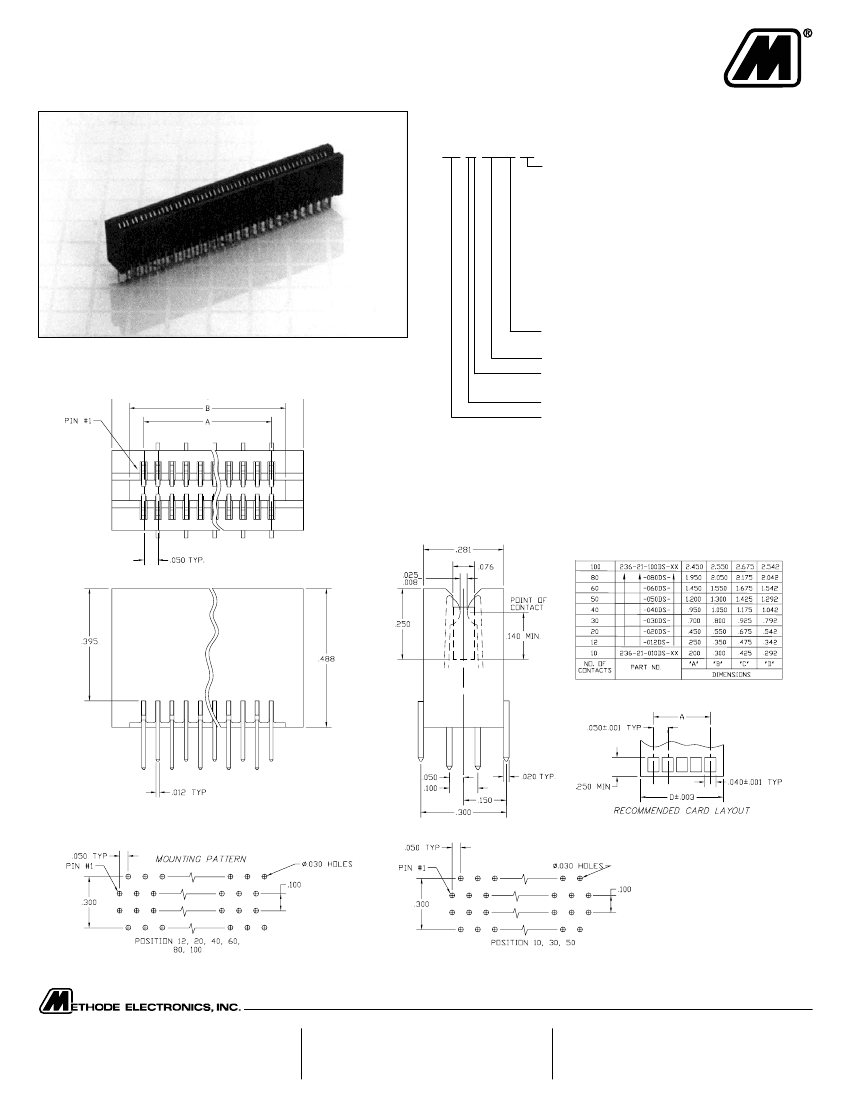

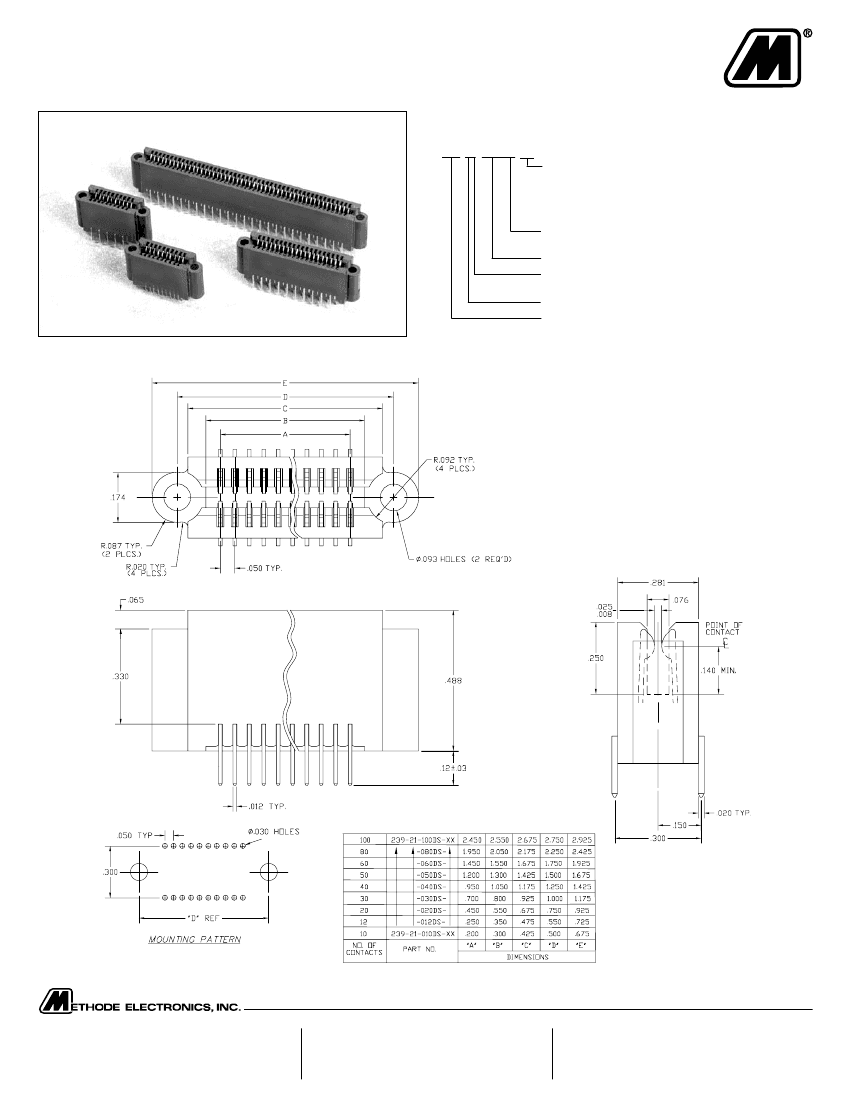

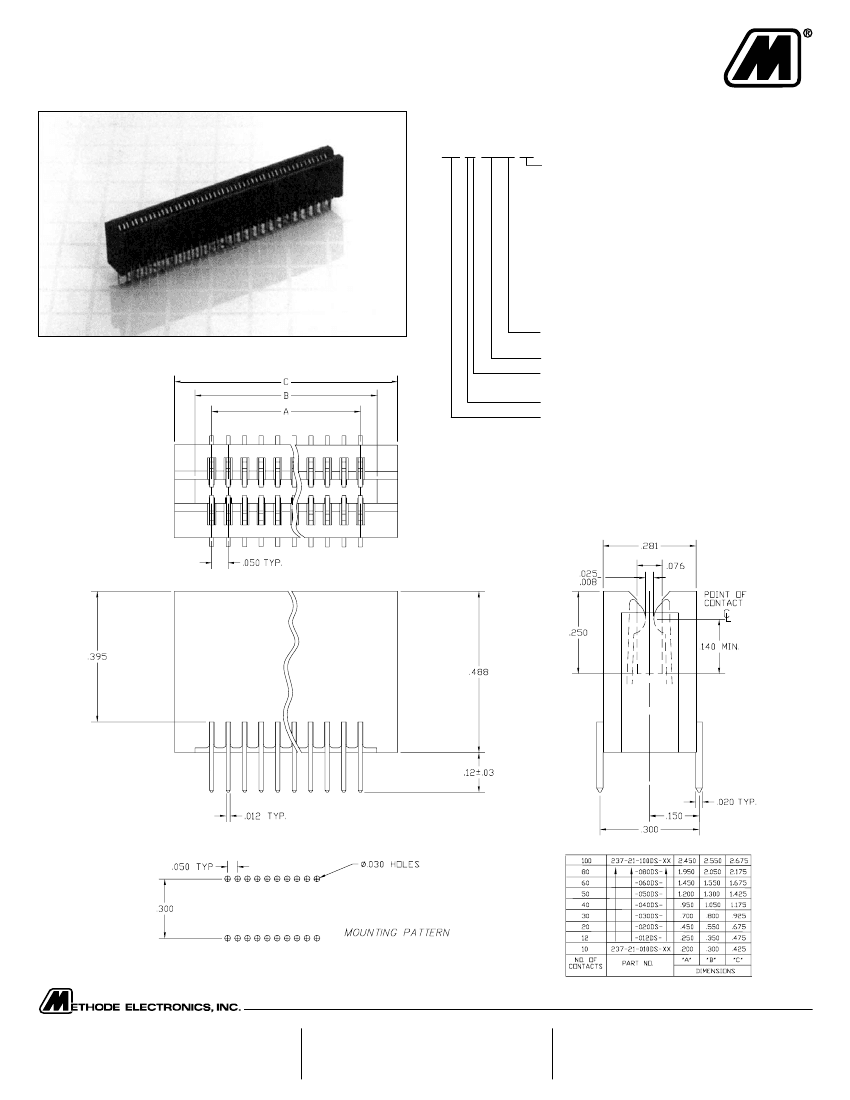

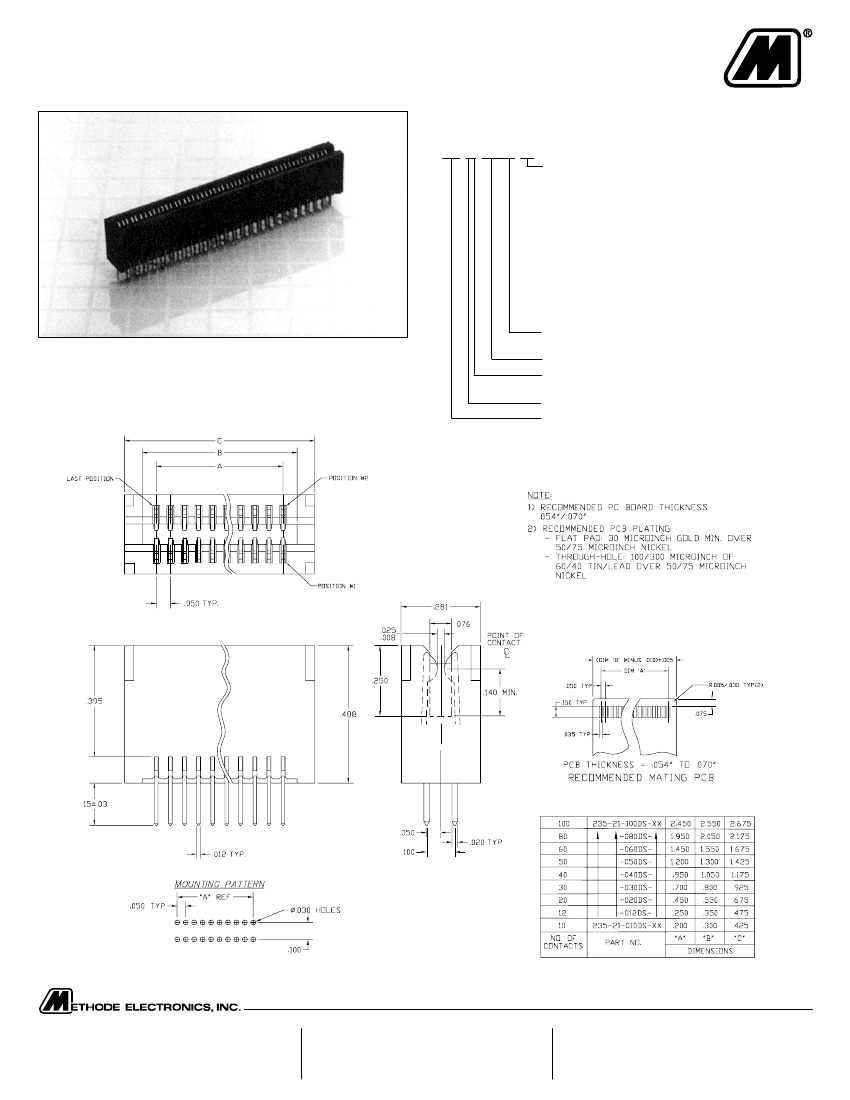

.050" (1.27mm) Series 235

Ultra Thin Card Edge Connector

DIP SOLDER TERMINALS WITHOUT MOUNTING EARS

PART NUMBER LEGEND

235-21-XXXDS-XX

PLATING OPTIONS

01 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH

GOLD FLASH TAILS.

03 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH

GOLD FLASH TAILS.

05 = .000050 GOLD IN CONTACT AREA OVER NICKEL WITH

GOLD FLASH TAILS.

20 = .000010 GOLD IN CONTACT AREA OVER NICKEL WITH

TIN LEAD PLATED TAILS.

23 = .000030 GOLD IN CONTACT AREA OVER NICKEL WITH

TIN LEAD PLATED TAILS.

25 = .000050 GOLD IN CONTACT AREA OVER NICKEL WITH

TIN LEAD PLATED TAILS.

TAIL STYLES

DS = DIP SOLDER

TOTAL NUMBER OF CONTACTS

(SEE TABLE 1)

INSULATOR MATERIAL

= POLYESTER

NO. OF ROWS

SERIES NUMBER

TABLE 1

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
