FKS2F021001B00MN

Description
Film Capacitor, Polyethylene Terephthalate, 250V, 20% +Tol, 20% -Tol, 0.01uF, 2812,
CategoryPassive components    capacitor
File Size615KB，8 Pages
ManufacturerWIMA
Websitehttps://www.wima.de/
Environmental Compliance
Download Datasheet Parametric View All

FKS2F021001B00MN Overview

Film Capacitor, Polyethylene Terephthalate, 250V, 20% +Tol, 20% -Tol, 0.01uF, 2812,

FKS2F021001B00MN Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid899493198
package instruction, 2812
Reach Compliance Codecompliant
Country Of OriginGermany
ECCN codeEAR99
YTEOL6.9
capacitance0.01 µF
Capacitor typeFILM CAPACITOR
dielectric materialsPOLYETHYLENE TEREPHTHALATE
high7.5 mm
JESD-609 codee3
length7.2 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Package formRadial
method of packingRoll
positive tolerance20%
Rated (AC) voltage (URac)160 V
Rated (DC) voltage (URdc)250 V
seriesFKS2
size code2812
Terminal surfaceTin (Sn)
Terminal pitch5 mm
width3 mm

FKS2F021001B00MN Preview

WIMA FKS 2
Polyester (PET) Film and Foil
Capacitors for Pulse Applications
in PCM 5 mm
Special Features
˜
Pulse duty construction
˜
According to RoHS 2011/65/EC
D
Electrical Data
Capacitance range:
1000 pF to 0.047
mF
(E12-values on request)
Rated voltages:
100 VDC, 250 VDC, 400 VDC
Capacitance tolerances:
± 20%, ±10%, ±5%
Operating temperature range:
–55+ C to +100+ C (+125° C available
subject to special enquiry)
Test specifications:
In accordance with IEC 60384-11
Climatic test category:
55/100/56 in accordance with IEC
Insulation resistance
at +20+ C:
3 x 10
4
M¸
(mean value: 8 x 10
5
M¸)
Measuring voltage: 100 V/1 min.
Test voltage:
2 U
r
, 2 sec.
Maximum pulse rise time:
1000 V/
m
sec for pulses equal to the
rated voltage
Dissipation factors
at +20+ C: tan
d
at f
1 kHz
10 kHz
100 kHz
C
0.047
mF
7 x 10
-3
15 x 10
-3
20 x 10
-3
Typical Applications
For general DC-applications e.g.
˜
Coupling
˜
Decoupling
Construction
Dielectric:
Polyethylene-terephthalate (PET) film
Capacitor electrodes:
Metal foil
Internal construction:
Voltage derating:
A voltage derating factor of 1.25 % per K
must be applied from +85+ C for DC
voltages and from +75+ C for AC
voltages.
Reliability:
Operational life
300 000 hours
Failure rate
5 fit (0.5 x U
r
and 40+ C)
Plastic film
Metal foil electrode
Terminating wire
Encapsulation:
Solvent-resistant, flame-retardant plastic
case with epoxy resin seal, UL 94 V-0
Terminations:
Tinned wire.
Marking:
Colour: Red. Marking: Silver.
Epoxy resin seal: Yellow.
Mechanical Tests
Pull test on pins:
10 N in direction of pins according to
IEC 60068-2-21
Vibration:
6 hours at 10 ... 2000 Hz and 0.75 mm
displacement amplitude or 10 g in
accordance with IEC 60068-2-6
Low air density:
1kPa = 10 mbar in accordance with
IEC 60068-2-13
Bump test:
4000 bumps at 390 m/sec
2
in
accordance with IEC 60068-2-29
Packing
Available taped and reeled.
Detailed taping information and graphs
at the end of the catalogue.
For further details and graphs please
refer to Technical Information.
28
11.12
WIMA FKP 4
FKS 2
Continuation
D
General Data
Capacitance
1000
1500
2200
3300
4700
6800
0.01
0.015
0.022
0.033
0.047
pF
„
„
„
„
„
mF
„
„
„
„
W
2.5
2.5
2.5
2.5
2.5
2.5
3
3.5
4.5
5.5
7.2
H
6.5
6.5
6.5
6.5
6.5
6.5
7.5
8.5
9.5
11.5
13
100 VDC/63 VAC*
L PCM**
Part number
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
5
5
5
5
5
5
5
5
5
5
5
FKS2D011001A00_ _ _ _
FKS2D011501A00_ _ _ _
FKS2D012201A00_ _ _ _
FKS2D013301A00_ _ _ _
FKS2D014701A00_ _ _ _
FKS2D016801A00_ _ _ _
FKS2D021001B00_ _ _ _
FKS2D021501C00_ _ _ _
FKS2D022201E00_ _ _ _
FKS2D023301H00_ _ _ _
FKS2D024701K00_ _ _ _
W
2.5
2.5
2.5
2.5
2.5
2.5
3
3.5
4.5
5.5
7.2
H
6.5
6.5
6.5
6.5
6.5
6.5
7.5
8.5
9.5
11.5
13
250 VDC/160 VAC*
L
PCM**
Part number
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
5
5
5
5
5
5
5
5
5
5
5
FKS2F011001A00_ _ _ _
FKS2F011501A00_ _ _ _
FKS2F012201A00_ _ _ _
FKS2F013301A00_ _ _ _
FKS2F014701A00_ _ _ _
FKS2F016801A00_ _ _ _
FKS2F021001B00_ _ _ _
FKS2F021501C00_ _ _ _
FKS2F022201E00_ _ _ _
FKS2F023301H00_ _ _ _
FKS2F024701K00_ _ _ _
Capacitance
1000
1500
2200
3300
4700
6800
0.01
0.015
0.022
0.033
pF
„
„
„
„
„
mF
„
„
„
W
2.5
2.5
2.5
2.5
2.5
3
3.5
4.5
5.5
7.2
H
6.5
6.5
6.5
6.5
6.5
7.5
8.5
9.5
11.5
13
400 VDC/200 VAC*
L PCM**
Part number
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
5
5
5
5
5
5
5
5
5
5
FKS2G011001A00_ _ _ _
FKS2G011501A00_ _ _ _
FKS2G012201A00_ _ _ _
FKS2G013301A00_ _ _ _
FKS2G014701A00_ _ _ _
FKS2G016801B00_ _ _ _
FKS2G021001C00_ _ _ _
FKS2G021501E00_ _ _ _
FKS2G022201H00_ _ _ _
FKS2G023301K00_ _ _ _
* AC voltage: f = 50 Hz; 1.4 x U
rms
+ UDC
U
r
** PCM = Printed circuit module = pin spacing
Dims. in mm.
The values of the WIMA FKM 2 range according to the
main catalogue 2009 are still available on request.
Impedance change with frequency
(general guide).
Part number completion:
Tolerance:
20 % = M
10 % = K
5%=J
bulk = S
6-2 = SD
W
L
H
d = 0.5
l
6
-2
Packing:
Pin length:
Taped version see page 148.
d
5
PCM
at the pin exit points
(
±
0.5)
Rights reserved to amend design data without prior notification.
11.12
29
D
Recommendation for Processing
and Application of
Through-Hole Capacitors
Soldering Process
A preheating of through-hole WIMA
capacitors is allowed for temperatures
T
max
100 ° C.
In practice a preheating duration of
t
5 min. has been proven to be best.
Single wave soldering
Soldering bath temperature: T
260 ° C
Immersion time:
t
5 sec
Double wave soldering
Soldering bath temperature: T
260 ° C
Immersion time:
2 x t
3 sec
Due to different soldering processes and
heat requirements the graphs are to be
regarded as a recommendation only.
Wave soldering
T
260
240
220
200
180
160
140
120
100
80
60
40
20
[°C]
see detail-
enlargement
2s
3s
10 s
t
30
60
90
120
150
180
210
240 [sec]
Typical temperature/time graph for double wave soldering
WIMA Quality and Environmental Philosophy
ISO 9001:2008 Certification
ISO 9001:2008 is an international basic
standard of quality assurance systems for
all branches of industry. The approval
according to ISO 9001:2008 of our
factories by the VDE inspectorate certifies
that organisation, equipment and moni-
toring of quality assurance in our factories
correspond to internationally recognized
standards.
WIMA Environmental Policy
All WIMA capacitors, irrespective of
whether through-hole devices or SMD,
are made of environmentally friendly
materials. Neither during manufacture
nor in the product itself any toxic
substances are used, e.g.
–
–
–
–
–
Lead
PCB
CFC
Hydrocarbon chloride
Chromium 6+
–
–
–
–
–
PBB/PBDE
Arsenic
Cadmium
Mercury
etc.
RoHS Compliance
According to the RoHS Directive 2011/65/EC
certain hazardous substances like e.g. lead,
cadmium, mercury must not be used any
longer in electronic equipment as of July 1st,
2006. For the sake of the environment WIMA
has refraind from using such substances since
years already.
WIMA WPCS
The WIMA Process Control System (WPCS)
is a quality surveillance and optimization
system developed by WIMA. WPCS is a
major part of the quality-oriented WIMA
production. Points of application of WPCS
during production process:
”
”
”
”
”
”
”
incoming material inspection
metallization
film inspection
schoopage
pre-healing
pin attachment
cast resin preparation/
encapsulation
”
100% final inspection
”
AQL check
We merely use pure, recyclable materials
for packing our components, such as:
”
”
”
”
carton
cardboard
adhesive tape made of paper
polystyrene
WIMA Kondensatoren sind bleifrei
konform RoHS 2011/65/EC
WIMA capacitors are lead free
in accordance with RoHS 2011/65/EC
Tape for lead-free WIMA capacitors
We almost completely refrain from using
packing materials such as:
”
foamed polystyrene (Styropor®)
”
adhesive tapes made of plastic
”
metal clips
DIN EN ISO 14001:2004
WIMA’s environmental management has
been established in accordance with the
guidelines of DIN EN ISO 14001:2004 to
optimize the production processes with
regard to energy and resources.
14
11.12
D

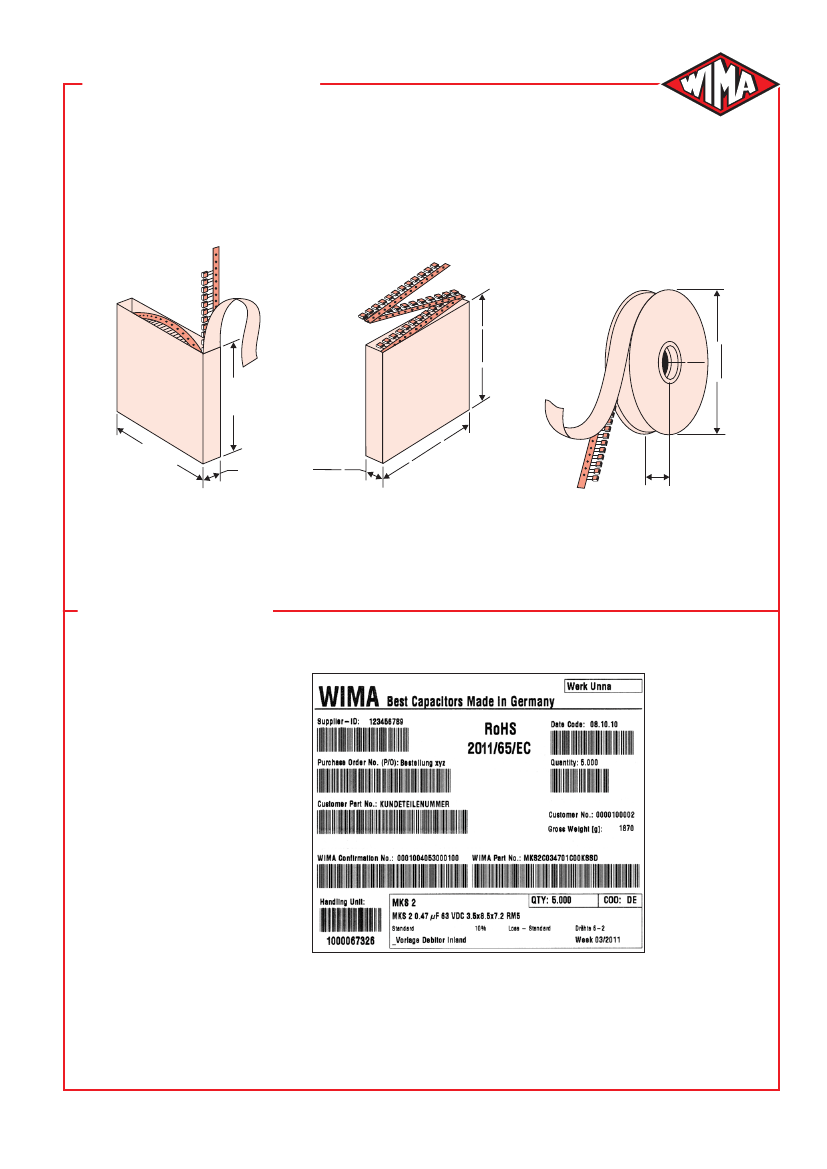

Typical Dimensions for
Taping Configuration
P
2
P
Vh
H
H
1
W
2
P
1
Diagram 1:
PCM 2.5/5/7.5mm
W
0
D
0
F
P
0
P
d
P
W
W
1
H
1
t
P
1
P
1
H
d
F
P
0
P
2
F
P
2
d
P
0
Diagram 2: PCM 10/15 mm
Diagram 3: PCM 22.5 and 27.5*mm
*PCM 27.5 taping possible with two feed holes between components
Dimensions for Radial Taping
Designation
Carrier tape width
Hold-down tape width
Hole position
Hold-down tape position
Feed hole diameter
Pitch of component
Feed hole pitch
Feed hole centre
to pin
Hole centre to
component centre
Feed hole centre to bottom
edge of the component
Feed hole centre to top
edge of the component
Pin spacing at
upper edge of carrier tape
Pin diameter
Component alignment
Total tape thickness
Package
(see also page 149)
Unit
Dims in mm.
„
Symbol
PCM 2.5 taping
W
W
0
W
1
W
2
D
0
P
P
0
P
1
P
2
H
H
1
F
d
Dh
t
18.0
p0.5
6.0
for hot-sealing
adhesive tape
PCM 5 taping
18.0
p0.5
6.0
for hot-sealing
adhesive tape
PCM 7.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 10 taping*
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 15 taping*
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 22.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
PCM 27.5 taping
18.0
p0.5
12.0
for hot-sealing
adhesive tape
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
12.7
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
25.4
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
25.4
p1.0
12.7
cumulative pitch
p0.3
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
38.1
p1.5
12.7
p0.3
7.8
p0.7
19.05
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
30.0 to 43.0
22.5
p0.8
0.8
–0.05
p
3.0 max.
0.7
p0.2
54
p2
B 60
p2
68
p2
depending
on PCM and
component dimensions
+0,08
cumulative pitch
error max.
1.0 mm/20 pitch
9.0
p0.5
0.5 to 3.0 max.
4.0
p0.2
*
38.1
p1.5
or 50.8
p1.5
12.7
p0.3
5.3
p0.7
19.05
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
35.0 to 45.0
27.5
p0.8
0.8
–0.05
p
3.0 max.
0.7
p0.2
+0.08
cumulative pitch
error max.
1.0 mm/20 pitch
5.1
p0.5
6.35
p1.3
16.5
p0.3
18.5
p0.5
H+H
component
< H
1
32.25 max.
2.5
p0.5
0.4
p0.05
p
2.0 max.
0.7
p0.2
3.85
p0.7
6.35
p1.3
16.5
p0.3
18.5
p0.5
H+H
component
< H
1
32.25 max.
5.0
+0.8
–0.2
2.6
p0.7
6.35
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
24.5 to 31.5
7.5
p0.8
„
7.7
p0.7
12.7
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
25.0 to 31.5
10.0
p0.8
+0.06
„
5.2
p0.7
12.7
p1.3
16.5
p0.5
18.5
p0.5
H+H
component
< H
1
26.0 to 37.0
15
p0.8
+0,06
0.5
p0.05
p
2.0 max.
0.7
p0.2
ROLL/AMMO
0.5
p0.05
or
0.6
–0.05
0.5
p0.05
or
0.6
–0.05
0.8
–0.05
p
3.0 max.
0.7
p0.2
AMMO
+0,08
p
3.0 max.
0.7
p0.2
p
3.0 max.
0.7
p0.2
52
p2
B 58
p2
or
66
p2
REEL
P
360 max.
P
30
p1
B
52
p2
58
p2
depending on
comp. dimensions
REEL
P
360 max.
P
30
p1
REEL
P
500 max.
P
25
p1
see details page 150.
Please clarify customer-specific deviations with the manufacturer.
Diameter of pins see General Data.
148
11.12
*
PCM 10 and PCM 15 can be crimped to PCM 7.5.
Position of components according to PCM 7.5 (sketch 1). P
0
= 12.7 or 15.0 is possible
D
Types of Tape Packaging of
Capacitors for Automatic
Radial Insertion
˜
ROLL Packaging
˜
AMMO Packaging
˜
REEL Packaging
340 max.
370 max.
30
±
1
25
±
1
340 max.
34
0m
ax.
50 max.
50 max.
70 max.
.
ax
0 m ax.
34 0 m
49
B
BAR CODE (Labelling)
Labelling of package units in
plain text and with
alphanumerical Bar Code
Scanner decoding of
„
„
„
„
„
„
„
„
–
–
–
–
–
–
WIMA supplier number
Customer‘s P/O number
Customer‘s part number
WIMA confirmation number
WIMA part number
Lot number
Date code
Quantity
article
capacitance value
rated voltage
dimensions
capacitance tolerance
packing
BARCODE „Code 39”
In addition part description of
as well as gross weight and customer‘s
name are indicated in plain text.
11.12
360 max.
500 max.
149
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Motor stator string resistance voltage reduction starting control circuit

Phone hangup voice reminder circuit diagram

Photovoltaic cell-silicon transistor control circuit

Echo signal detection circuit of ultrasonic ranging system

High speed logarithmic amplifier circuit

EXB851 application circuit

I want to know the displacement sensor selection (effective measurement range 512mm), it is too difficult to choose
The requirement for selecting a sensor is that the measuring range must be at least greater than 512MM, the error must be within 1mm for every 32mm movement, and the total error must be within 6mm for...
崔一 Sensor
Biosensor technology cares for "vulnerable groups" and is expected to be used for in-vehicle monitoring
Exmovere Ltd. has announced the launch of a web-based biosensor watch service that meets the medical monitoring needs of the elderly.The Exmocare watch can monitor pulse, heart rate variability and sk...
frozenviolet Automotive Electronics
EVB connects to *.cdb database?
Private Sub Command1_Click() Dim cnMobileSales As ADOCE.Connection Dim strPath As String Dim rs As ADOCE.Recordset Set cnMobileSales = CreateObject("ADOCE.Connection.3.0") Set rs = CreateObject("ADOCE...
hsd325 Embedded System
School has started~ The beasts are back in the cage~~ The sound of reading is so nice~
School has started, my little beast has gone to school~ There is a school behind my community. Today, I was so happy to hear the students reading and playing~~~Learning is really fun~~Learning makes m...
okhxyyo Talking
Comparison Unit
Can I ask which timer of the EV comparison unit can be set? In which register should I set it? I looked at an example and it seems that there is no setting option for the register involved. So what is...
bsfbaby713 Analogue and Mixed Signal
Urgent! I need to design a keyboard LED indicator based on a single-chip computer using C language! Attached is the circuit diagram! Please help!
The program for the 7*6 matrix keyboard has been compiled. Each key value is stored in an array such as key[7][6]. Now there is a 7*5 matrix keyboard LED indicator. How to make the corresponding indic...
staring321 MCU
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. TLE-1105-G-F250-Q
  2. SS2P3L-M3-85A
  3. XPGBWT-01-R250-00KC2
  4. D3899924MF11JA
  5. CRCA12S1003361150E
  6. RNN55C2102BRM76
  7. BLU2010P-7232-AT10Q
  8. RNR70C1211DPM76
  9. AME8815BECT390Z
  10. MB25T/R7
  11. A3961WRC-2P-G20-P150M127Y54
  12. A2012WVA-F-11P-BK

Popular Articles

  1. Configuration and use of GPIO (MC9S08AW60)
  2. Common wiring of PLC input and output terminals
  3. STM8 lights up the first LED
  4. Analysis of Fault Characteristics of Low Voltage Cable Fault Tester
  5. Easy to install: Rutronik offers the Samwha JR series of snap-in capacitors
  6. Apple Support app 4.4.2 update can show AirPods generation
  7. SCHOTT's performance in China has broken records for four consecutive years, with the Chinese market growing by more than 24% in fiscal year 2021
  8. Xiaomi's flexible screen bracelet's appearance patent is authorized
  9. SPI communication protocol basics
  10. Analysis of the principle of lane line detection by lidar in automotive electronics

Technical ResourceMore

  1. Huawei GSM Digital Mobile Communication Principles.rar
  2. Research on the application of multi-carrier FMCW in MIMO radar
  3. 103 Specifications of Sifang Protection and Measurement and Control Device
  4. Design of embedded Linux smart home control system
  5. Composition and application of 80C51 timer counter
  6. Research on digital-analog hybrid system and its simulation in automatic flight control system
  7. Design of valve opening instrument based on TLC1549
  8. Research on smart noise jamming method for pulse Doppler radar
  9. Research on a general graphics platform for power system calculation based on CIM
  10. ADO.NET Database Example Tutorial

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2676  1193  697  392  2857  54  25  15  8  58
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
