Part Number:
Status:
Description:
Documents:
3D Model
Drawing (PDF)
39500-0007
Active
3.50mm Pitch Eurostyle™ Horizontal Plug, 7 Circuits
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Component Type
Product Name
Type
UPC
Terminal Blocks
39500
N/A
Plug
ESE, Eurostyle™Pluggable
Euro Block
822350424349

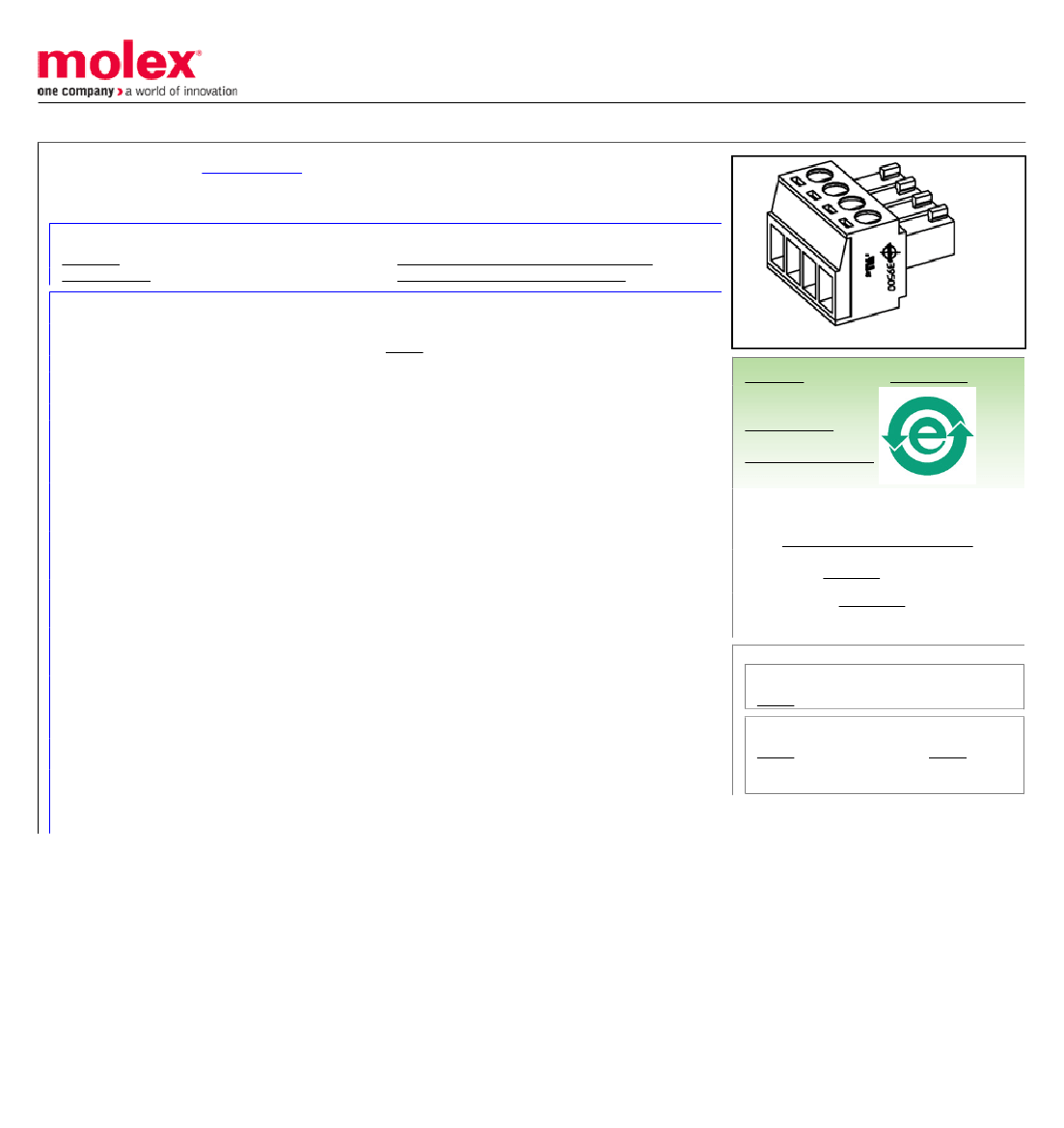

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Low-Halogen
China RoHS
Series
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
7
Vertical
None
1
Horizontal
No
3.50mm
3.50mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24, 30
0.05 - 1.50
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Search Parts in this Series
39500Series
Mates With
39501 Vertical PCB Header, 39502
Horizontal PCB Header, Most 3.50mm Pitch
Industry Standard PCB Headers
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001
SD-39500-001
