35650-51 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 35650-51

35650-51: DescriptionRF connector accessories bnc plug; CategoryThe connector; File Size92KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

35650-51 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35650-51	-	-	View	Buy Now

35650-51 Overview

RF connector accessories bnc plug

35650-51 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connector Accessories
RoHS	Yes
Produc	Accessories
Accessory Type	Dust Cap with Chai
RF Series	BNC
Gende	Male
Body Material	Brass
Body Finish	Nickel
Impedance	50 Ohms

Preview

Download Datasheet

View All

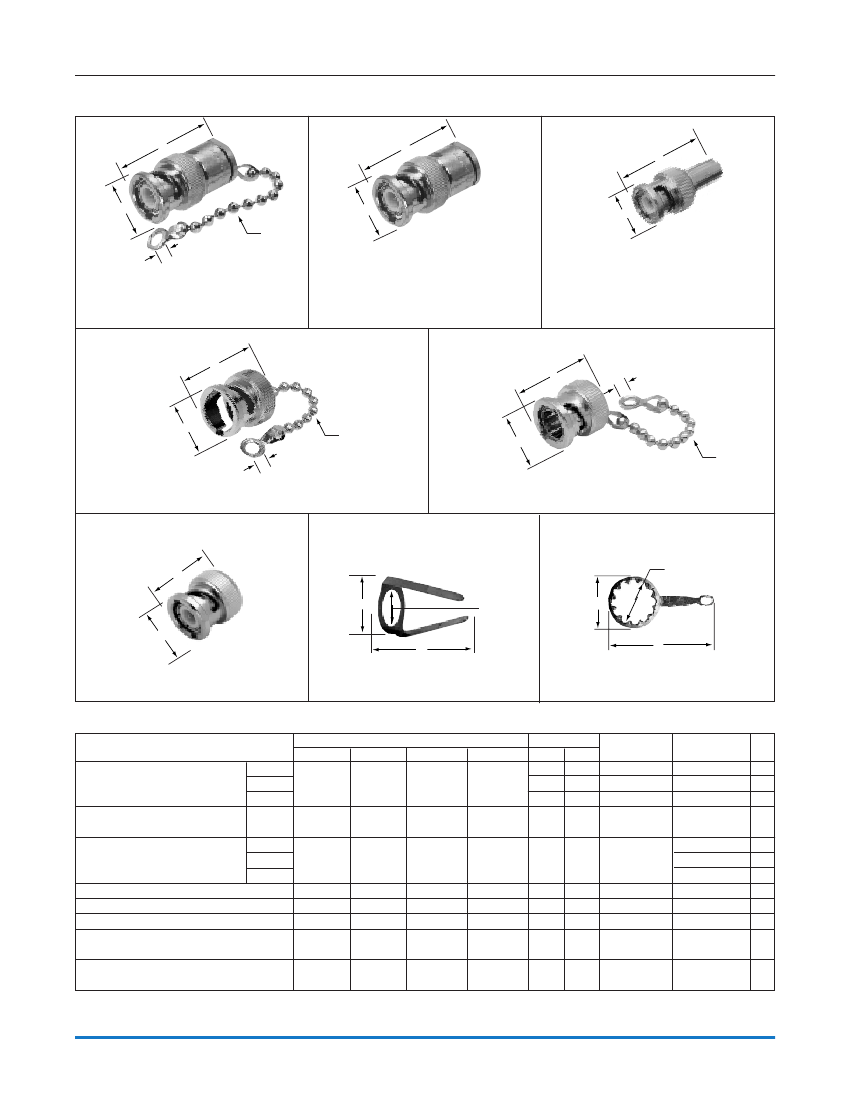

BNC 50 ohm

Caps & Accessories

Fig. 1

Amphenol

Fig. 2

Fig. 3

BNC Res. Term. Caps & Chains

35650-51

35650-75

4700-51

Fig. 4

BNC Resistor Term. Male Cap

46650-51

50Ω

Fig. 5

BNC Resistor Term. Male Caps

46650-51RFX

50Ω

46650-75RFX

75Ω

46650-93RFX

93Ω

BNC Male Cap and Chain

31-6

Fig. 6

Fig. 7

BNC Male Shorting Cap and Chain

31-17

Fig. 8

.375

.390.

(9.9)

dia.

BNC Male Shorting Cap

5275

Grounding Lug

31-759

Grounding Lug

31-10152-RFX

BNC CAPS & ACCESSORIES

Description

50Ω

Male Cap & Chain

Resistor Terminated, 1% 1/2watt

Male Cap, Resistor Terminated,

1% 1 watt

75Ω

51Ω

50Ω

75Ω

93Ω

.688(17.5)

.594(15.1)

.961(24.4)

1.156(29.4)

.563(14.3)

.578(14.7)

.130(3.3)

.144(3.7)

—

2.25(57.2)

2.50(63.5)

—

CW-123/U

CW-159/U

—

(IBM 2245373)

—

1.12(28.6)

.562(14.3)

—

1.19(30.2)

.562(14.3)

.144(3.7)

3.50(88.9)

Dimensions, inches (millimeters)

Notes

Plt.

Ins.

Military

Number

—

MX-554

—

Amphenol

Number

35650-51*

35650-75*

4700-51*

Fig.

46650-51*

46650-51RFX

46650-75RFX

46650-93RFX

31-6*

31-17*

5275*

31-759

31-10152-RFX*

Male Cap, Resistor Terminated,

1% 1 watt

Male Cap & Chain

Male Shorting Cap & Chain

Male Shorting Cap

1.11(28.1)

.571(14.5)

—

D23

—

Pkg. of 25 Lugs Used Inside Panel on Front Mount

Bulkhead Receptacles to Ground Cable Shield*

Pkg. of 25 Lugs Used Inside Panel on Front Mount

Bulkhead Receptacles for Ground Wire to Circuit

IBM 3110787 * recognized under the component program of U.L., Inc.

distributor stocked

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

122

35650-51 Related Products

	35650-51	35650-75	46650-93RFX	4700-51	31-759	46650-75RFX	46650-51RFX	46650-51
Description	RF connector accessories bnc plug	RF connector accessories cap/chain adapt	RF connector accessories mle resis term cap	RF connector accessories res cap W/chain bnc	RF connector accessories grounding lug	RF connector accessories mle resis term cap	RF terminators terminator plug 50 ohm 1 watt	RF connector accessories resis term cap adapt
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Connector Accessories	RF Connector Accessories	RF Connector Accessories	RF Connector Accessories	RF Connector Accessories	RF Connector Accessories	RF Terminators	RF Connector Accessories
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
RF Series	BNC	BNC	BNC	BNC	BNC	BNC	BNC	BNC
Produc	Accessories	Accessories	Accessories	Accessories	Accessories	Accessories	-	Accessories
Accessory Type	Dust Cap with Chai	Dust Cap with Chai	C	Dust Cap with Chai	Ground Lug	C	-	C
Gende	Male	Male	Male	Male	-	-	Plug	Male
Body Finish	Nickel	Nickel	Nickel	-	-	Nickel	Nickel	-
Impedance	50 Ohms	75 Ohms	93 Ohms	50 Ohms	-	75 Ohms	50 Ohms	50 Ohms
