NOTES:
1.
2.
PACKAGE CABLE ASSEMBLY IN BAG.TAG IN BAG WITH "AMPHENOL CONNEX,
CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.
145101-01-XX.XX AND DATE CODE"
145101-01-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
RELEASE TO MFG.
19-Jul-10
--
CL
SCALE
0.750
LENGTH Y (SEE TABLE)
1
TYP(2)
2
TYP(2)
3
X
SEE TABLE
TYP(2)
LENGTH TABLE
PART NUMBER
145101-01-06.00
145101-01-12.00
145101-01-24.00
145101-01-36.00
LENGTH Y (IN.)
6.000 0.150
12.000 0.150
24.000 0.250
36.000 0.500
HST LENGTH X (IN.)
0.130
0.130
0.330
0.330
*ADDITIONAL LENGTHS AVAILABLE BY CHANGING XX.XX TO THE
LENGTH IN INCHES,CONTACT AMPHENOL CONNEX MARKETING
FOR A QUOTE.
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 750 VRMS
OTHER
009-954-341
009-881-205
142186
PART NUMBER
A/R
A/R
2
QTY
3
2
1
ITEM
HEAT SHRINK TUBE
RG-316 CABLE
SMB CRIMP PLUG
DESCRIPTION
FINISH
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
.015 (0,381 mm)
.005 (0,127 mm)
1
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
DATE
TITLE
CLEMENT
ENGINEER
REFERENCE
19-Jul-10
DATE
CLEMENT
APPROVED
19-Jul-10
DATE

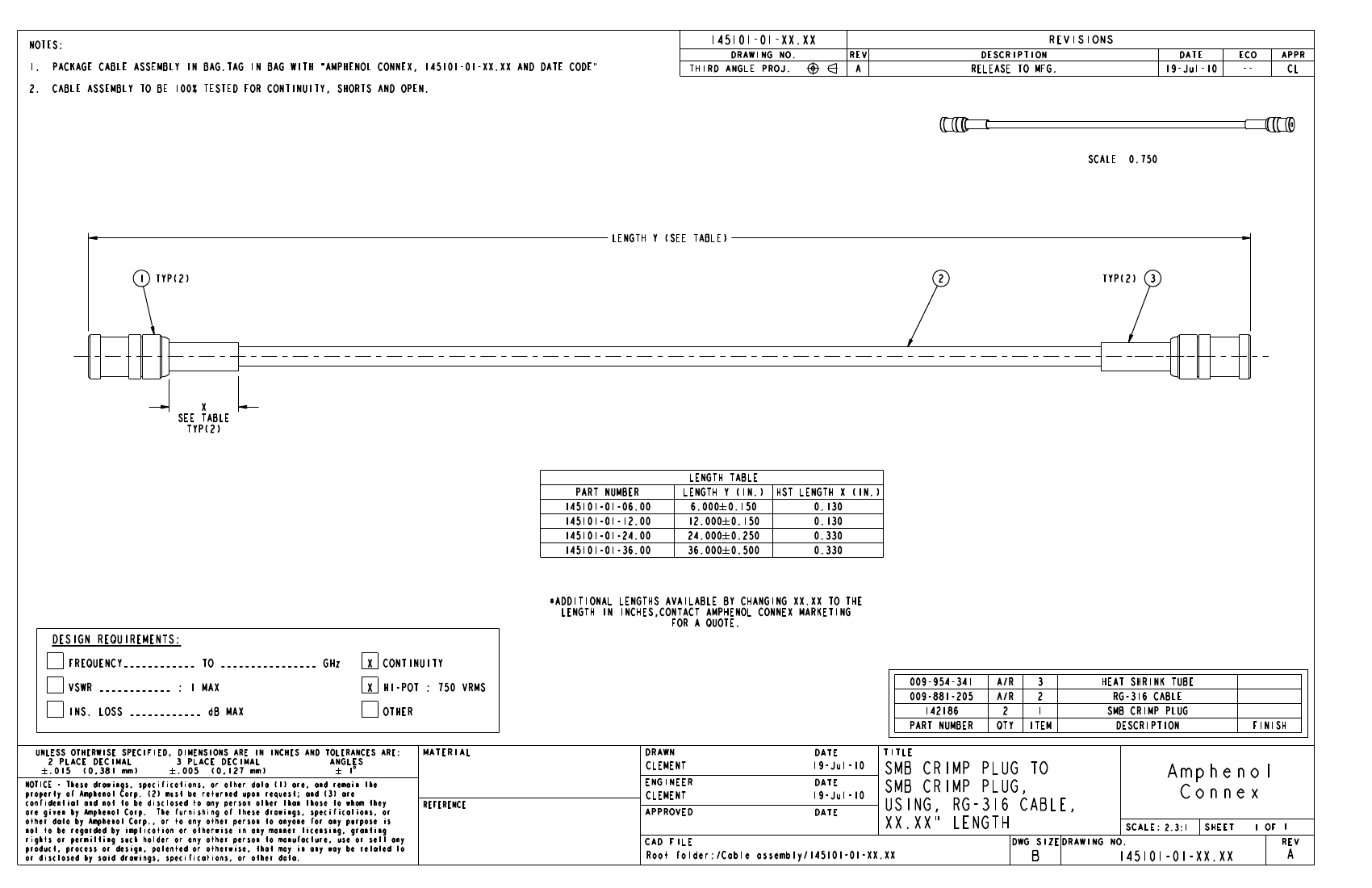

SMB CRIMP PLUG TO
SMB CRIMP PLUG,
USING, RG-316 CABLE,
XX.XX" LENGTH
DWG SIZE
DRAWING NO.
Amphenol
Connex
SCALE:
2.3:1
SHEET
OF
1
1
REV
CAD FILE
Root folder:/Cable assembly/145101-01-XX.XX
B
145101-01-XX.XX
A
