175101-10-48.00 Overview

RF cable assemblies N str plug to N str plug lmr 400 48"

175101-10-48.00 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
RoHS	Yes
Cable Type	LMR-400
Frequency Range	DC to 11 GHz
Impedance	50 Ohms
Length	48 i
Connector A Body Style	Straigh
Connector A Series	N
Connector B Body Style	Straigh
Connector B Series	N
Connector A Gende	Plug (Male)
Connector A Polarity	Normal
Connector B Gende	Plug (Male)
Connector B Polarity	Normal
Polarity	Normal

Preview

Download Datasheet

View All

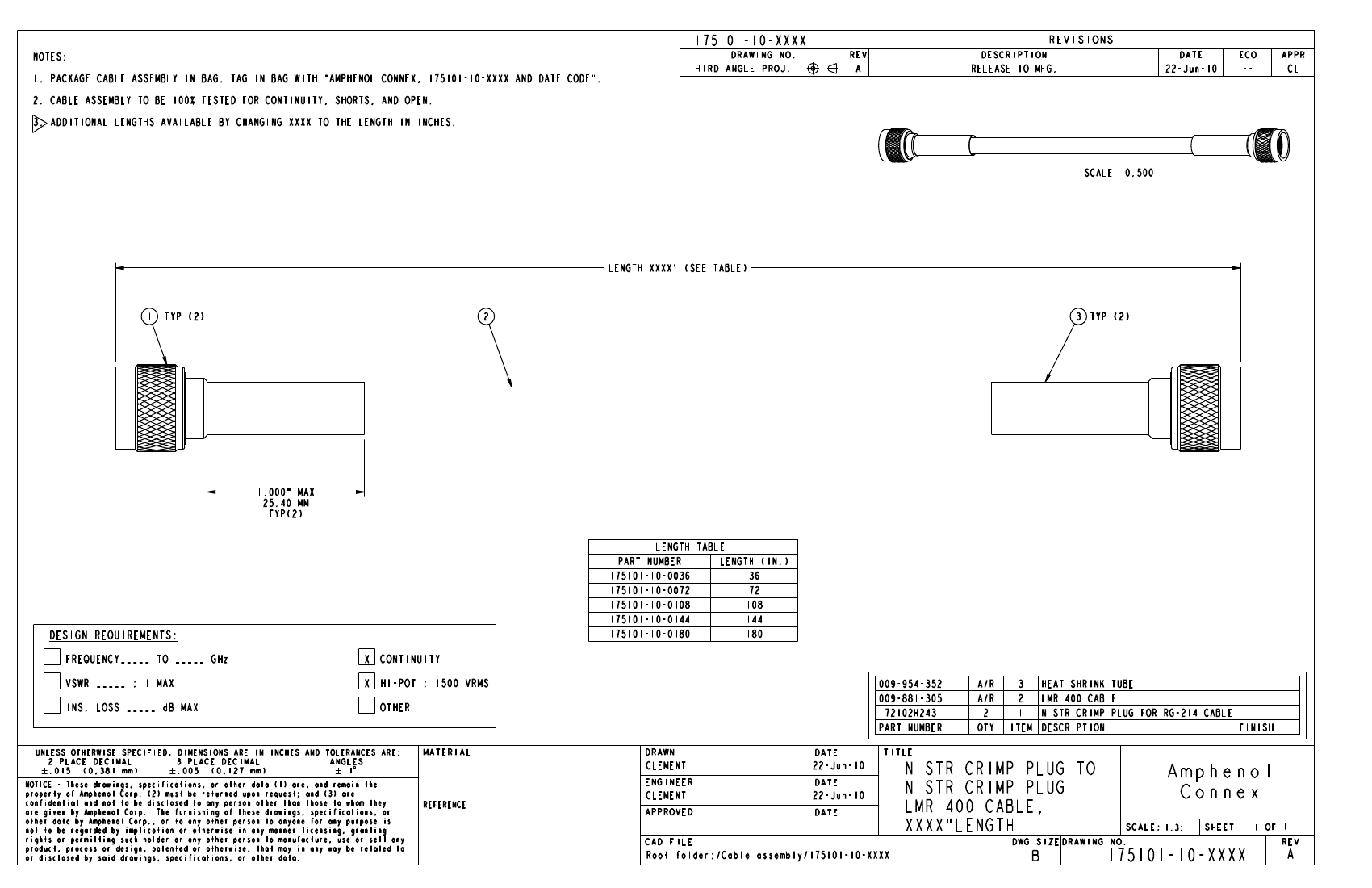

175101-10-XXXX

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,

2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS, AND OPEN.

3. ADDITIONAL LENGTHS AVAILABLE BY CHANGING XXXX TO THE LENGTH IN INCHES.

175101-10-XXXX AND DATE CODE".

DRAWING NO.

THIRD ANGLE PROJ.

REV

DESCRIPTION

REVISIONS

DATE

ECO

APPR

A

RELEASE TO MFG.

22-Jun-10

--

CL

SCALE

0.500

LENGTH XXXX" (SEE TABLE)

1

TYP (2)

2

3 TYP (2)

1.000" MAX

25.40 MM

TYP(2)

LENGTH TABLE

PART NUMBER

175101-10-0036

175101-10-0072

175101-10-0108

175101-10-0144

LENGTH (IN.)

36

72

108

144

180

DESIGN REQUIREMENTS:

FREQUENCY_____ TO _____ GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

175101-10-0180

X

CONTINUITY

X

HI-POT : 1500 VRMS

OTHER

009-954-352

009-881-305

172102H243

PART NUMBER

A/R

2

QTY

3

2

1

HEAT SHRINK TUBE

LMR 400 CABLE

N STR CRIMP PLUG FOR RG-214 CABLE

FINISH

ITEM DESCRIPTION

UNLESS OTHERWISE SPECIFIED, DIMENSIO

NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

.015 (0,381 mm)

.005 (0,127 mm)

1

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

e

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

DATE

TITLE

CLEMENT

ENGINEER

REFERENCE

22-Jun-10

DATE

CLEMENT

APPROVED

22-Jun-10

DATE

N STR CRIMP PLUG TO

N STR CRIMP PLUG

LMR 400 CABLE,

XXXX"LENGTH

DWG SIZE

DRAWING NO.

Amphenol

Connex

SCALE:

1.3:1

SHEET

OF

1

REV

CAD FILE

Root folder:/Cable assembly/ 175101-10-XXXX

B

175101-10-XXXX

A

175101-10-48.00 Related Products

	175101-10-48.00	175101-10-24.00	175101-10-72.00	175101-10-12.00	175101-10-36.00	175101-10-06.00
Description	RF cable assemblies N str plug to N str plug lmr 400 48"	RF cable assemblies N str plug to N str plug lmr 400 24"	RF cable assemblies N strt plug - N strt plug on lmr 400, 72"	RF cable assemblies N str plug to N str plug lmr 400 12"	RF cable assemblies N str plug to N str plug lmr 400 36"	RF cable assemblies N str plug to N str plug lmr 400 6"
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Yes	Yes	Yes	Yes	Yes	Yes
Cable Type	LMR-400	LMR-400	LMR-400	LMR-400	LMR-400	LMR-400
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Length	48 i	24 i	72 i	12 i	36 i	6 i
Connector A Body Style	Straigh	Straigh	Straigh	Straigh	Straigh	Straigh
Connector A Series	N	N	N	N	N	N
Connector B Body Style	Straigh	Straigh	Straigh	Straigh	Straigh	Straigh
Connector B Series	N	N	N	N	N	N
Connector A Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Frequency Range	DC to 11 GHz	DC to 11 GHz	-	DC to 11 GHz	DC to 11 GHz	DC to 11 GHz
Connector A Polarity	Normal	Normal	-	Normal	Normal	Normal
Connector B Polarity	Normal	Normal	-	Normal	Normal	Normal
Polarity	Normal	Normal	-	Normal	Normal	Normal
