Small Coaxial Connectors for Automotive Antenna
CONNECTOR
MB-0196-3
December 2008
CE2 Series
RoHS Compliant
Board Connector
Cable Connector
Relay Connector

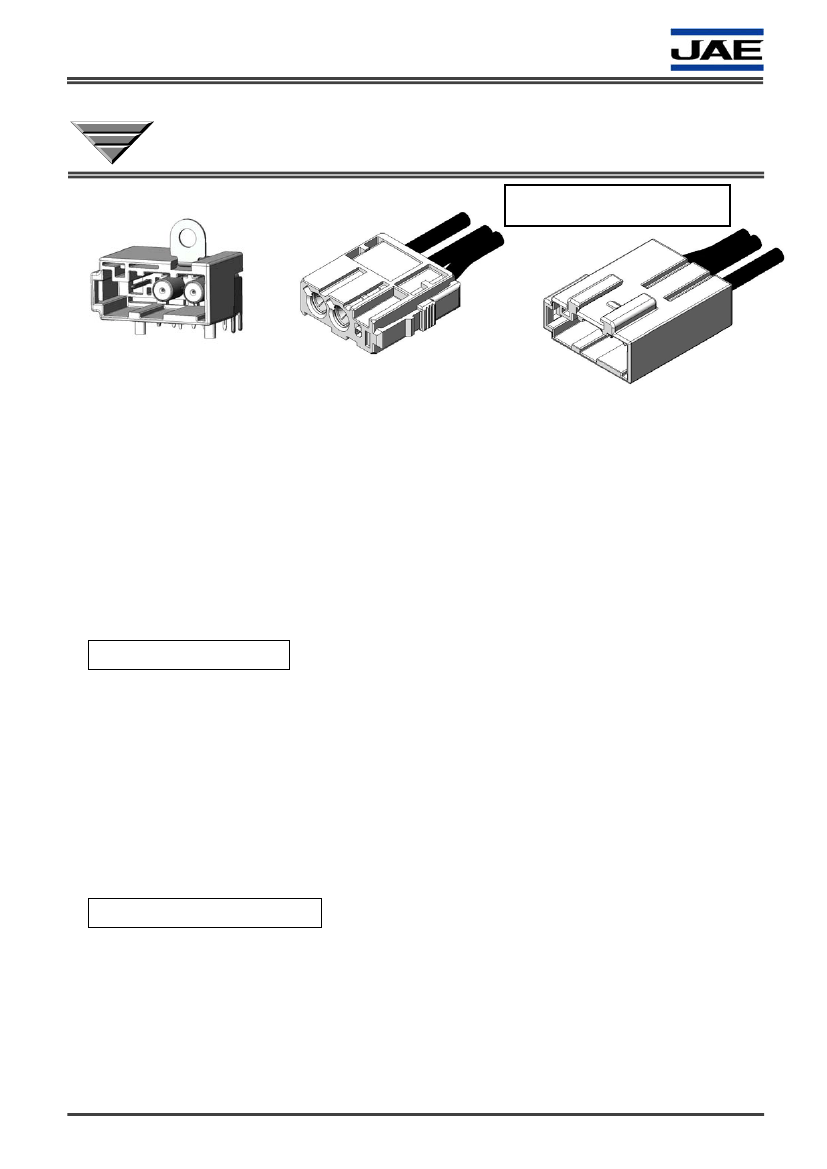

JAE has developed the CE2 Series small coaxial connector for automotive antenna
applications.
It is designed for an antenna with frequency up to 1GHz for terrestrial digital media
broadcasting, car audio, and car navigation.
The CE2 is available with one or two contact positions and a terminal for power.
Two types of metal bracket shapes are available for the board connector.
It is a rugged product with reinforced terminal pulling endurance and improved noise
resistance.
Features
Applicable frequency range up to 1GHz.
Compact type available in several combinations of position and variations,
including two types of bracket shapes (board connector) for screw fixing to panel.
Reinforced-type coaxial connector that endures pulling strength over 100N.
Noise resistance characteristic improved by outer terminal that covers entire cable
core area.
Meets the performance required for an automotive connector.
General Specifications
No. of Contacts: 1, 2 pos.
(each available with terminal for power)
Applicable Frequency: DC to 1GHz
Characteristic Impedance: 75 ohm
VSWR: 1.5 max.
Insertion Loss: 0.3 dB max.
Dielectric Withstanding Voltage:
AC1000Vr.m.s. (per minute)
Insulation Resistance: 100M ohm min.
Applicable Cable: EM-1.5CS-QFBE
or 1.5C-2V equivalent coaxial connector
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
1/9
MB-0196-3

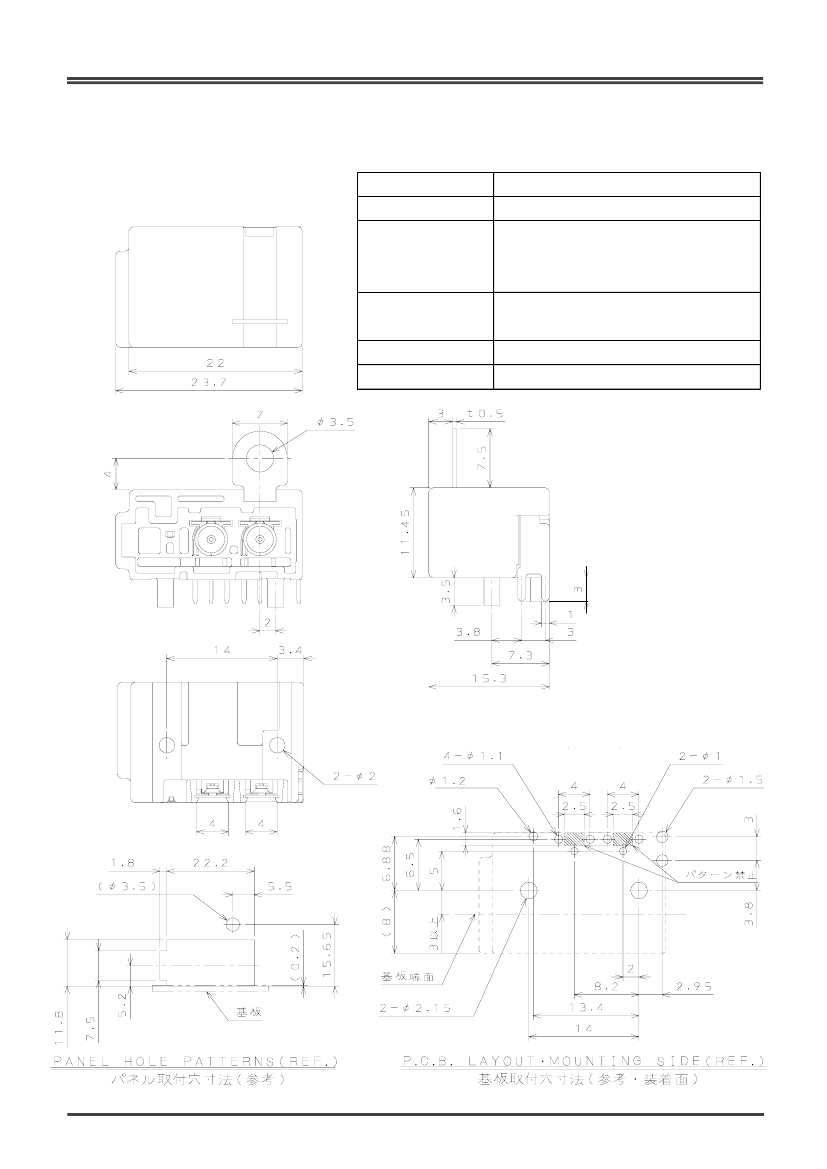

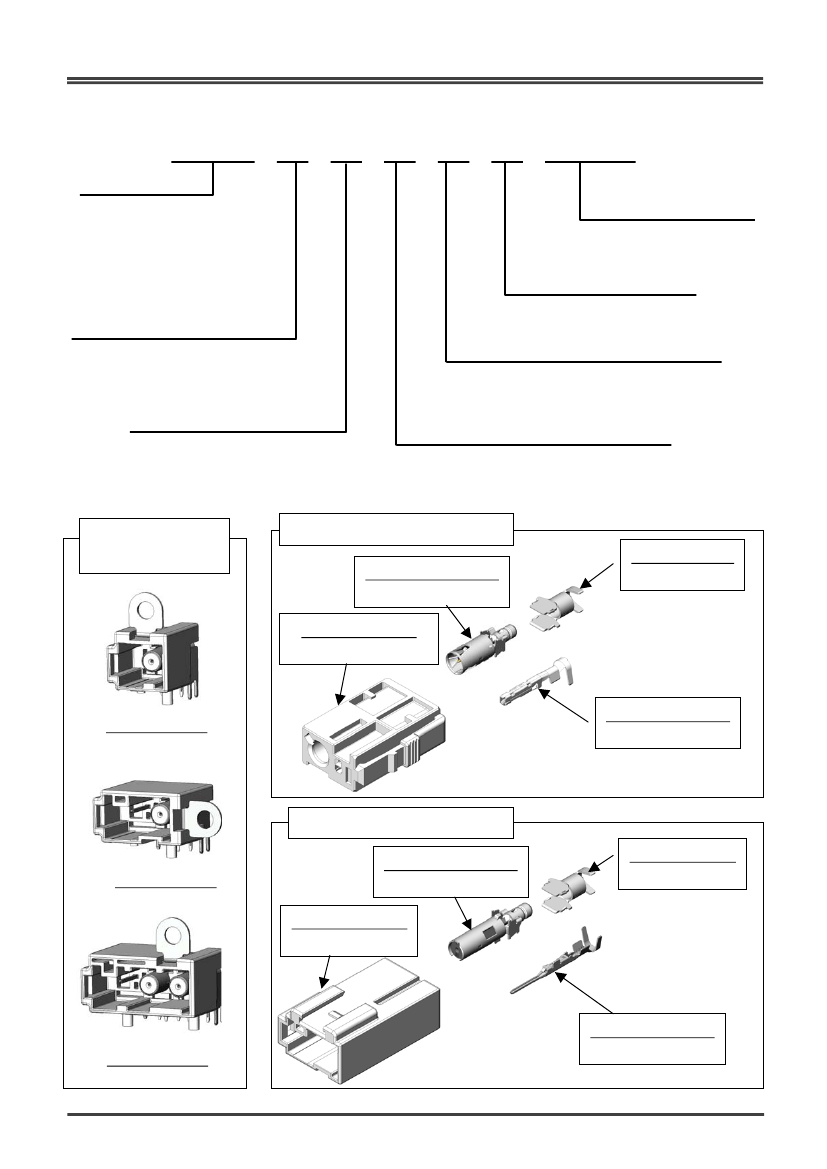

Board Connector (Typical Example)
■ CE2S211C02
(Coaxial 2 pos., Power Terminal 1 pos.,
Material / Finish
With Bracket [Upward])
Component
Housing
Inner Terminal
(Coaxial)
Outer Terminal
(Coaxial)
Power Terminal
Braket
30%GF PBT(Color: Light Gray)
Copper alloy /
Contact area: Au plating over Ni
Solder area: Sn plating over Ni
Copper alloy / Sn plating
Copper alloy / Sn plating
Copper alloy / Sn plating
