fixed terminal blocks WR-tbl smt 8pin 5mm terminal block cnctr
CategoryThe connector
File Size176KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

691709710308 Online Shopping

Suppliers Part Number Price MOQ In stock
691709710308 - - View Buy Now

691709710308 Overview

fixed terminal blocks WR-tbl smt 8pin 5mm terminal block cnctr

691709710308 Parametric

Parameter NameAttribute value
ManufactureWurth Electronics
Product CategoryFixed Terminal Blocks
RoHSYes
Number of Positions8
Pitch5 mm
Connection MethodScrew
Termination StyleThrough Hole
Wire Gauge Range30-14
Current Rating6 A
Voltage Rating300 V
Mounting Method-
Mounting AngleHorizontal
Contact PlatingTi
Housing MaterialBrass
ColBlack
Flammability RatingUL 94 V-0
PackagingReel
1
2
3
4
TECHNICAL CHARACTERISTICS
5
MATERIAL
INSULATOR: HI TEMP PA46
FLAMABILITY RATING: UL94-V0
COLOR: BLACK
METAL HOUSING: BRASS (CuZn)
TERMINAL SCREW: STEEL ZINC PLATING "-" SLOT TYPE
WIRE GUARD: STAINLESS STEEL
SURFACE OF SOLDER TAIL PLATING: TIN
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 115°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
UL
CURRENT RATING:
6A
WORKING VOLTAGE:
300VAC
WITHSTANDING VOLTAGE:
1.6KV
CONTACT RESISTANCE:
20 mOhm MAX
STANDARD
CERTIFIED E315414 / MODEL NUMBER 7097
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
TORQUE:
WIRE STRIPE LENGTH: 7-8mm
SCREW: M3
PITCH: 5.0mm
SOLDERING: REFLOW SOLDERING
PACKAGING: TAPE & REEL WITH CAP
SERIE 7097
30-14 AWG / 0.05-2.0MM²
30-14 AWG / 0.05-2.0MM²
3.5Lb.In / 0.4Nm
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
17-AUG-10
21-JUN-10
DATE
DIMENSION
PDF
FILE
GG
JP
BY
APPROVAL: RJ
SCALE:
SHEET: 1/1
DRAW: MARVIN
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

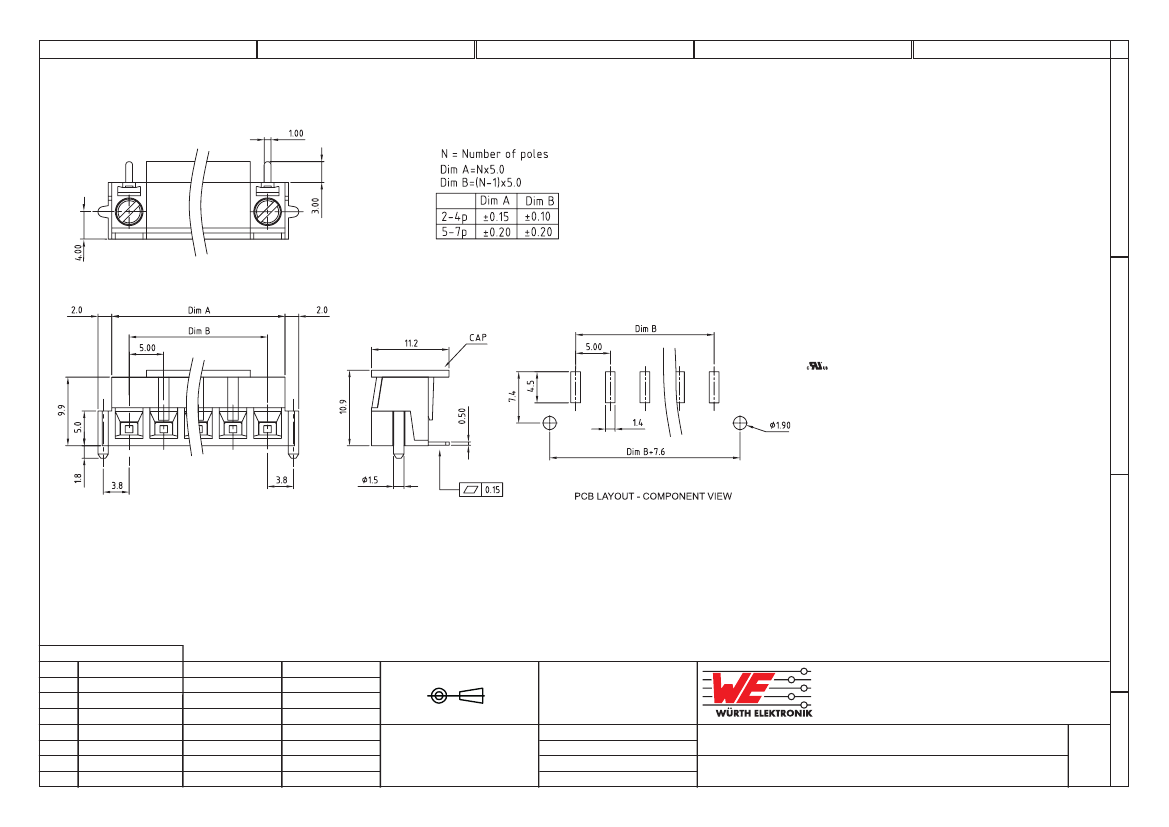

DESCRIPTION: SERIE 7097 -SMD 5.0MM HORIZONTAL ENTRY MODULAR
WITH PRESSURE CLAMP - 2.0MM² WIRES WR-TBL
WERI PART NO: 691 709 710 3xx
SIZE
A4
D
