Power Distribution & Terminal Blocks
Power Distribution Blocks
600Vac/dc
Catalog Symbol:
Power Distribution Blocks
Voltage Rating:
600 Vac/dc maximum
SCCR:
10kA (except for select products noted)
Agency Information:
UL Recognized, Guide XCFR2, File E221592
CSA Certified, Class 6228-01, File 15364
PDB
Example:

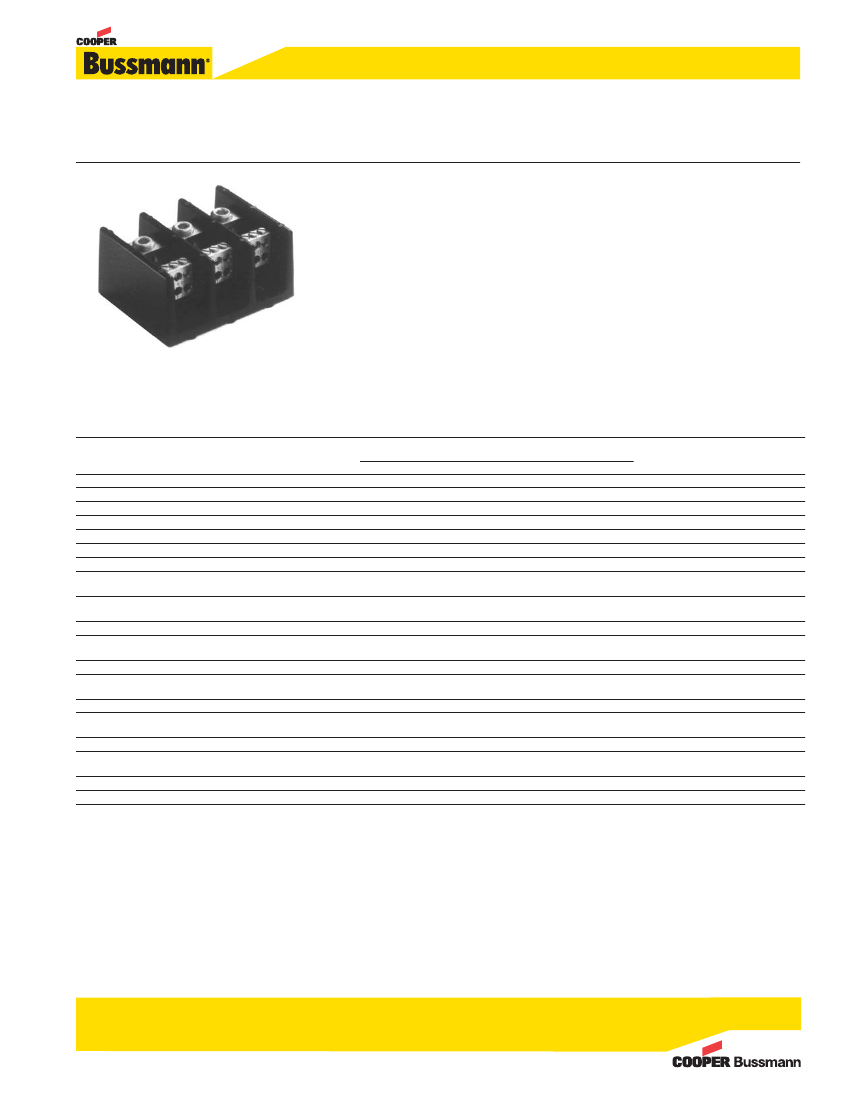

A 3-pole, 16023 series is 16023-3. The
line
side
of the device has (1) conductor opening per pole that accepts
350kcmil - #6 CU/AL. The
load
side of the device has (6)
conductor openings per pole that each accepts #4 - #14 CU
or #4 - #12 AL.
Power Distribution Blocks (600V) Catalog Data
Catalog
Number
16021
16023
16220*
16321*
16323*
16325
16330
16332
16335
16370*
16371*
16372
16373
16375
16376
16377
16528
16530
16541
1-Pole
NA
NA
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
–1
2-Pole
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
3-Pole
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
–3
4-Pole
-4
-4
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
Connection
Line
2/0 - #14CU, 2/0 - #8AL
350kcmil - #6CU-AL
2/0 - #14CU, 2/0 - #8AL
2/0 - #14CU, 2/0 - #8AL
350kcmil - #6CU-AL
(2) 2/0 - #14CU, 2/0 - #8AL
500kcmil - #6CU-AL
350kcmil - #6CU-AL
500kcmil - #6CU-AL
350kcmil - #6CU-AL
350kcmil - #6CU-AL
350kcmil - #6CU-AL
350kcmil - #6CU-AL
600kcmil - #2CU-AL
600kcmil - #2CU-AL
(2)300kcmil - #4CU-AL
(2) 600kcmil - #2CU-AL
(2) 500kcmil - #6CU-AL
500kcmil - #6CU-AL
Load
(6) #4 - #14CU, #4 - #8AL
(6) #4 - #14CU, #4 - #12AL
(4) #4 - #14CU, #4 - #8AL
(6) #4 - #14CU, #4 - #8AL
(6) #4 - #14CU, #4 - #12AL
(6) #4 - #14CU, #4 - #8AL
(6 )#2 - #14CU, #2 - #12AL
(3) #2 - #14CU, #2 - #8AL
(2) 1/0 - #14CU, 1/0 - #8AL
(3) #2 - #14 CU, #2 - #8AL
(2) 1/0 - #14CU, 1/0 - #8AL
(12) #4 - #14CU, #4 - #12AL
(6) #2 - #14CU, #2 - #8AL
(3) 1/0 - #14CU, 1/0 - #8AL
(21) #10 - #14CU, #10AL
(3) 1/0 - #14CU-AL
(14) #10 - #14CU, #10AL
(12) #4 - #14CU, #4 - #12AL
(6) #2 - #14CU, #2 -8AL
(3) 1/0 - #14CU, 1/0 - #8AL
(12) #4 - #14CU, #4 - #12AL
(4) 3/0 - #6CU-AL
(4) #4 - #14CU-AL
(12) #4 - #14CU-AL
(21) #6 - #14CU-AL
Connector
Material and
Ampacity
AL-175A
AL-310A
AL-175A
AL-175A
AL-310A
AL-350A
AL-380A
AL-310A
AL-380A
AL-310A
AL-310A
AL-310A
AL-310A
AL-420A
AL-420A
AL-570A
AL-840A
AL-760A
AL-380A
CSA
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
UL
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
*SCCR up to 200kA. See additional information on data sheet #1049.
How To Order:
Catalog Number + # of Poles
Example:
16021-3 (complete part number)
Dimensional information on page 3
Optional covers:
160
162
163
165
Series:
Series:
Series:
Series:
CPB160 - (pole)
CPB162 - (pole)
CPDB - (pole)
CPDB165 (1 for each pole)
1011 SB004093
Page 1 of 3
Data Sheet 1117
Power Distribution & Terminal Blocks
Splicer Terminal Blocks
600Vac/dc
Catalog Symbol:
Splicer Terminal Blocks
Voltage Rating:
600Vac/dc maximum
SCCR:
10kA (except for select products noted)
Agency Information:
UL Recognized, Guide XCFR2, File E221592
CSA Certified, Class 6228-01, File 15364

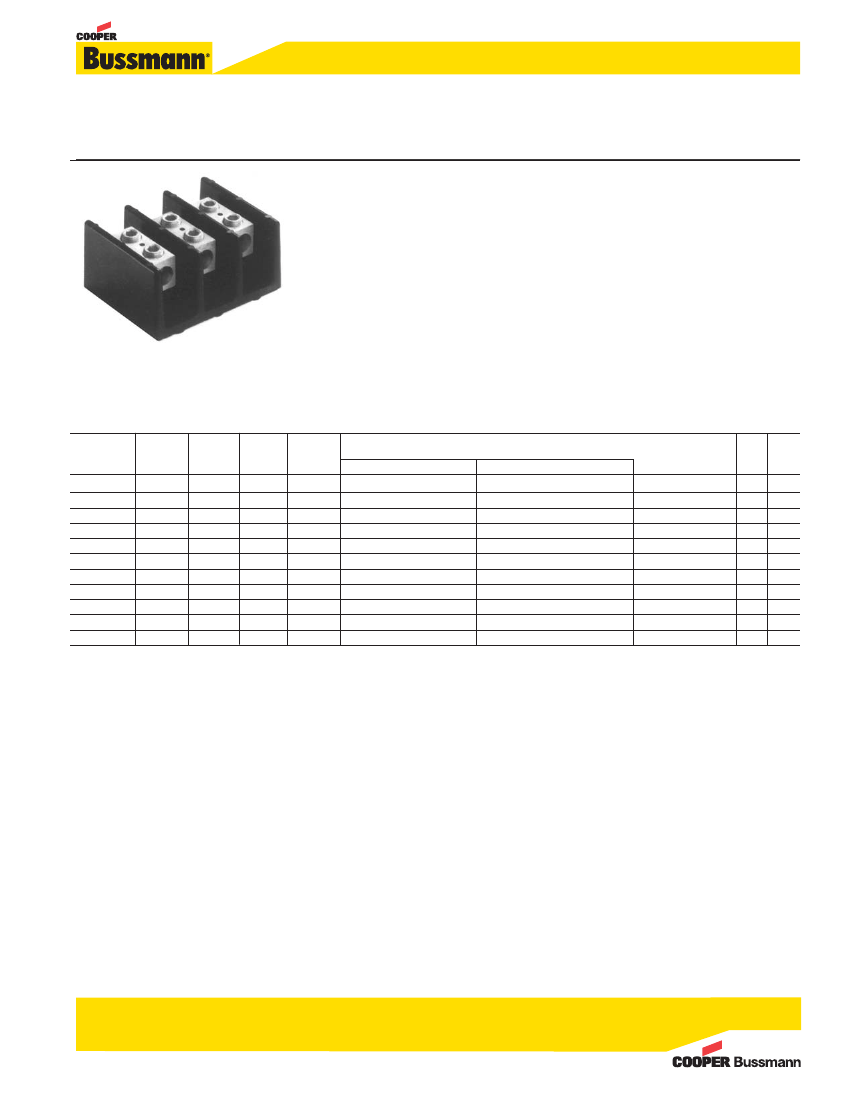

Picture shown:
3-Pole - 1 opening on line per phase
1 opening on load per phase
PDB
Power Distribution Blocks (600V) Catalog Data
Catalog
Number
16000
16003
16005
16200
16201
16204*
16301
16303
16306
16500
16504
Connection
1-Pole 2-Pole 3-Pole 4-Pole Line
NA
NA
NA
-1
-1
-1
-1
-1
-1
-1
-1
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-3
-4
-4
-4
NA
NA
NA
NA
NA
NA
NA
NA
2/0 - #8CU-AL
250kcmil - #6CU Only
350kcmil - #6CU-AL
#2 - #14CU, #2 - #8AL
1/0 - #14CU Only
2/0 - #8CU-AL
250kcmil - #6CU Only
350kcmil - #6CU-AL
(1)500kcmil - #6CU-AL
(2) 350kcmil - #4CU-AL
(2) 500kcmil - #6CU-AL
Load
2/0 - #8CU-AL
250kcmil - #6CU Only
350kcmil - #6CU-AL
#2 - #14CU, #2 - #8AL
1/0 - #14CU Only
2/0 - #8CU-AL
250kcmil - #6CU Only
350kcmil - #6CU-AL
(1)500kcmil - #6CU-AL
(2) 350kcmil - #4CU-AL
(2) 500kcmil - #6CU-AL
Connector
Material and
Ampacity
AL-175A
CU-255A
AL-310A
AL-115A
CU-150A
AL-175A
CU-255A
AL-310A
AL-380A
AL-620A
AL-760A
•
•
•
•
•
•
•
•
•
•
•
—
—
—
—
—
—
•
•
•
•
•
*SCCR up to 200kA. See additional information on data sheet #1049.
Dimensional information on page 3
Optional covers:
160
162
163
165
Series:
Series:
Series:
Series:
CPB160 - (pole)
CPB162 - (pole)
CPDB - (pole)
CPDB165 (1 for each pole)
1011 SB004093
Page 2 of 3
Data Sheet 1117
CSA
UR
Power Distribution & Terminal Blocks
Connector-Stud and Stud-Stud Blocks
600Vac/dc
Catalog Symbol:
Connector–Stud Block
Voltage Rating:
600Vac/dc maximum
SCCR:
10kA (except for select products noted)
Agency Information:
UL Recognized, Guide XCFR2, File E221592
CSA Certified, Class 6228-01, File 15364

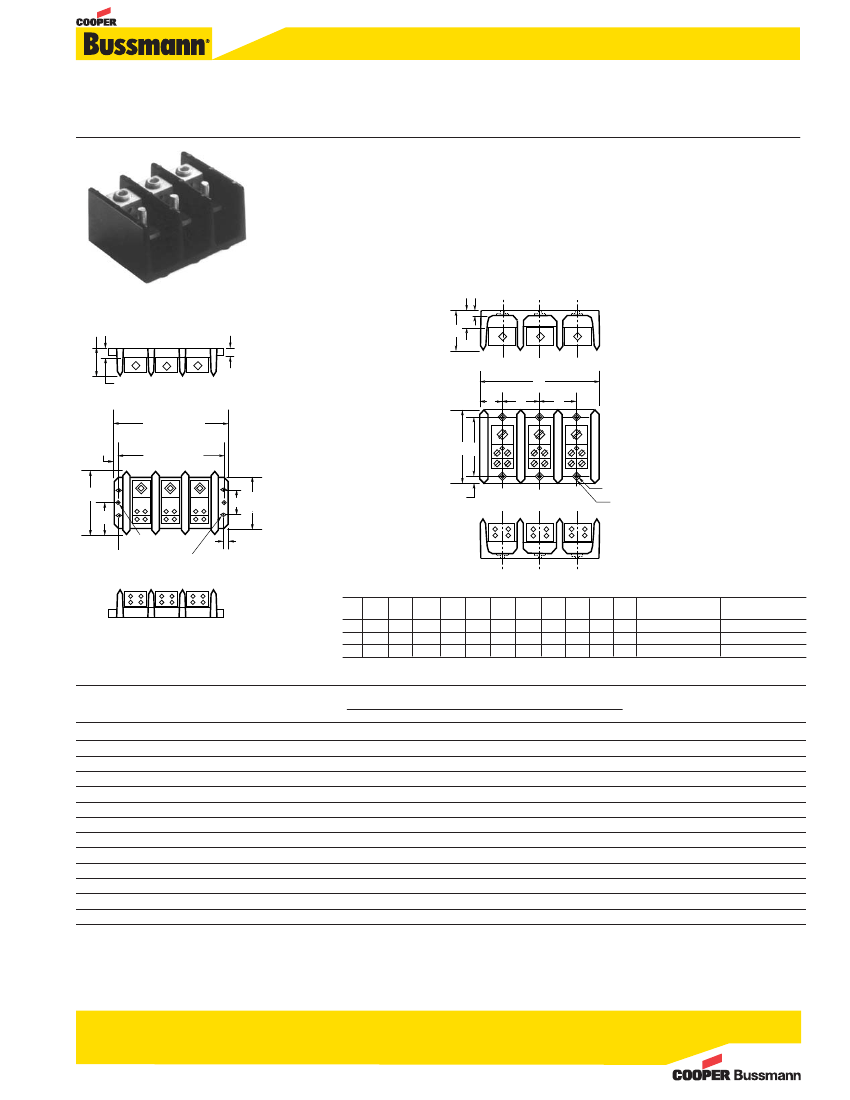

Series 162, 163, and 165 Dimensional Data
(Available 1, 2, and 3 pole)
Series 160 (Available 2, 3, and 4 pole)
Dimensional Data
2.12"
LINE
SIDE
0.5"
0.69"
F
4.12" (2-Pole)
5.37" (3-Pole)
6.62" (4-Pole)
.25"
3.62" (2-Pole)
4.87" (3-Pole)
6.12" (4-Pole)
A B
E
C
E
D
H J
PDB
LINE
SIDE
2.8"
1" 2.0"
1.4"
0.27" Dia.
(2 Holes)
Slot 0.22" x 0.38".
(4 Places)
0.38"
L C'Bore
G
K Dia.
LOAD
SIDE
Dimensions for Series 162, 163, and 165
LOAD
SIDE
Cat.
No.
162
163
165
A
2.88
4.0
5.5
B
2.25
3.38
4.75
C1
C2
C3
D
E
0.81
1.62
2.69
F
G
H
J
K
L
160 Series Bases have mounting holes outside the barriers.
Other bases (162 through 165) have mounting holes within
barriers–see dimensional drawings.
1.07 1.88
1.98 3.60
3.10” 5.79”
2.70 1.75
5.21 3.32
8.48” 2.93”
0.53 0.31 0.84 0.31
0.20
0.41
0.99 0.31 0.87 0.35 Slot .20” wide x .41” long Slot .42” wide x .62” long
1.55” 0.38 1.19” .44” Slot .20” wide x .33” long Slot .41” wide x .53” long
Connector-Stud Blocks (600V) Catalog Data
Catalog
Number
Connector – Stud
16280*
16281
16378
16383
16582
Stud – Stud
16290
16390
16394
16395
16591
16593
*SCCR up to 200kA
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by
definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design
applications. Cooper Bussmann reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products.
Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it
should be tested by the user in all possible applications.
© 2011 Cooper Bussmann
www.cooperbussmann.com
-1
-1
-1
-1
-1
-1
-2
-2
-2
-2
-2
-2
-3
-3
-3
-3
-3
-3
⁄Ω¢ - 20 ≈ ‹Ω¢
Stud
‹Ω• - 16 ≈ 1⁄Ω•
Stud
⁄Ω™ - 13 ≈ 1⁄Ω¡§
Stud
‹Ω• - 16 ≈ 1‡Ω¡§
Stud
‹Ω• - 16 ≈ 1‡Ω¡§
Stud
⁄Ω™ - 13 ≈ 1
Stud
⁄Ω¢ - 20 ≈ ‹Ω¢
Stud
‹Ω• - 16 ≈ 1⁄Ω•
Stud
⁄Ω™ - 13 ≈ 1⁄Ω¡§
Stud
(2)
⁄Ω¢ - 20 ≈ ·Ω¡§
Stud
(2)
‹Ω• - 16 ≈ 1‡Ω¡§
Stud
⁄Ω™ - 13 ≈ 1
Stud
CU-150A
CU-250A
CU-400A
CU-310A
CU-400A
CU-600A
•
•
•
•
•
•
—
•
•
•
—
•
-1
-1
-1
-1
-1
-2
-2
-2
-2
-2
-3
-3
-3
-3
-3
2/0 - #14CU-AL
2/0 - #14CU-AL
500
kcmil
- #6CU-AL
500
kcmil
- #6CU-AL
(2) 500
kcmil
- #6CU-AL
⁄Ω¢ - 20 ≈ ‹Ω¢
Stud
⁄Ω¢ - 20 Tapped hole
(2)
⁄Ω¢ - 20 ≈ 1
Stud
(1)
‹Ω• - 16 ≈ 1
Stud
(2)
‹Ω• - 16 ≈ 1fiΩ•
Stud
AL-175A
AL-175A
AL-380A
AL-380A
AL-760A
•
•
•
•
•
—
—
•
•
•
Connection
Line
Connector
Material and
Ampacity
CSA
UL
1-Pole
2-Pole
3-Pole
Load
1011 SB04093
Page 3 of 3
Data Sheet 1117
