3.5MM Spring Type Flush Mount Plug with
Unshrouded Header
January 25, 2012

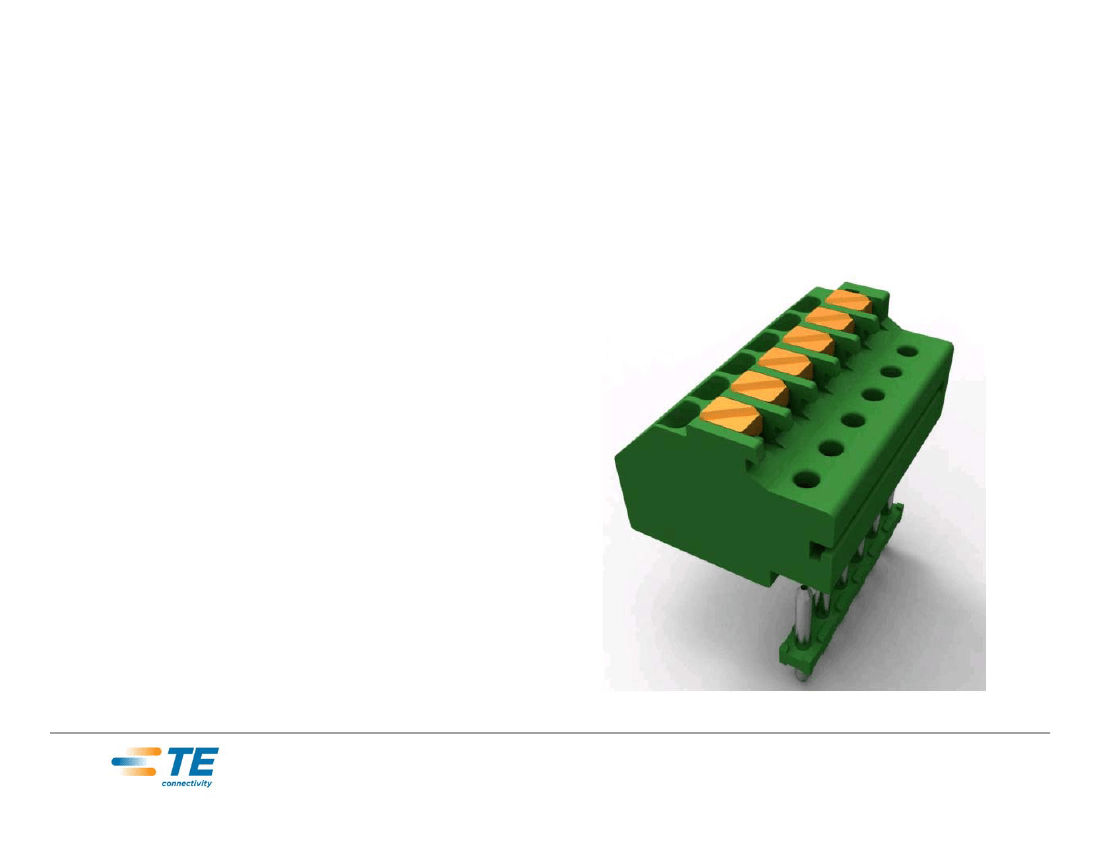

3.5MM Spring Type Flush Mount Plug with Mating Header
Product Details
• Wire Range 20-16 AWG solid or stranded
• Current Rating 2A, 150V
• Contact resistance 15 Milliohms Max
• Header is available in two styles:
-standard narrow base
-wider base for stability
- both headers are reflow compatible
Initial Launch Product Details
• Plug is available in 2 through 8 position
-Part is modular therefore the color can be customized by position on high
volume requests
• Header is available in standard 7mm mating pin height and in 10.6mm height
-7mm height has standard base and is available in 2 through 8 position sizes
-10.6mm height has a wider base for stability and is available in 2 through 8
positions

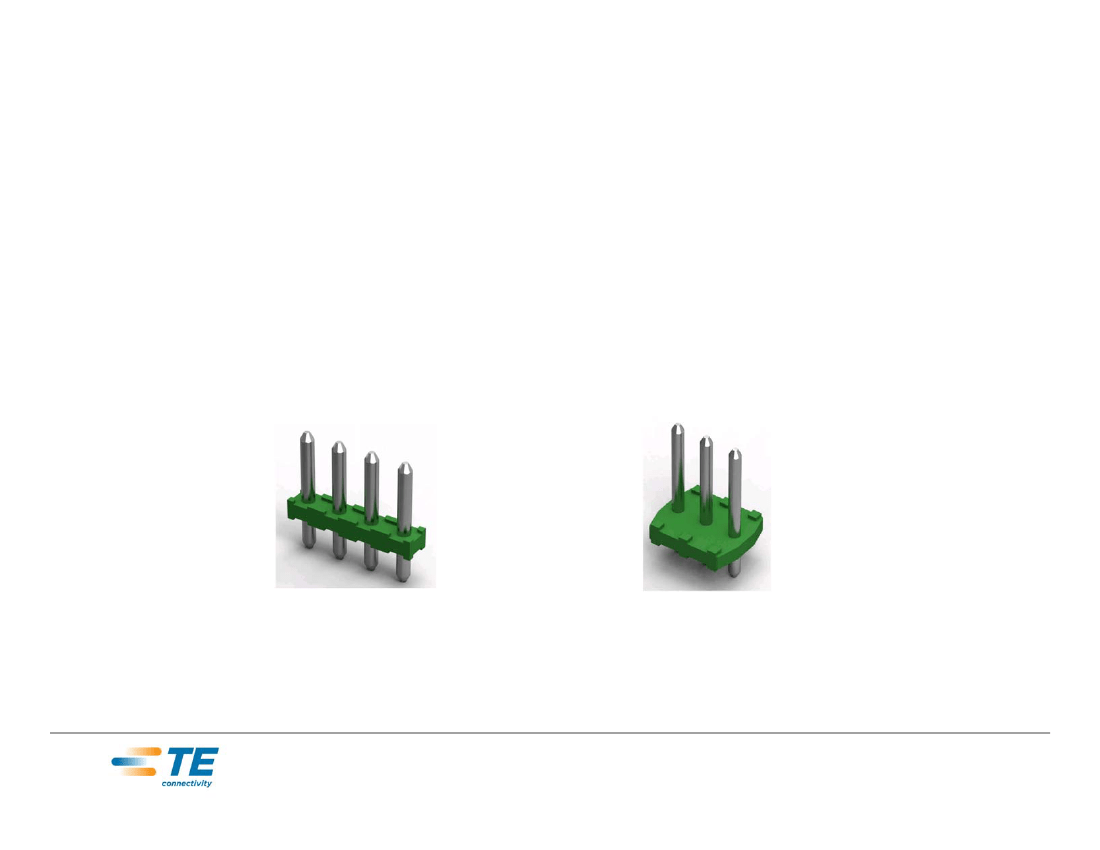

Standard 7mm Post Header
10.6mm Post Mating Header
Information is TE Confidential & Proprietary
Do Not Reproduce or Distribute
page 3 / January 25, 2012
Features and Benefits
• Quality
– 100% visual inspection to ensure correct product every time.
• Customizable
– Allows for customization of color within the product to
meet specialized high volume customer requests.
• Sustainable Advantage
– reduces labor cost of installation
• Performance
– Provides superior wire retention compared to similar
spring type product

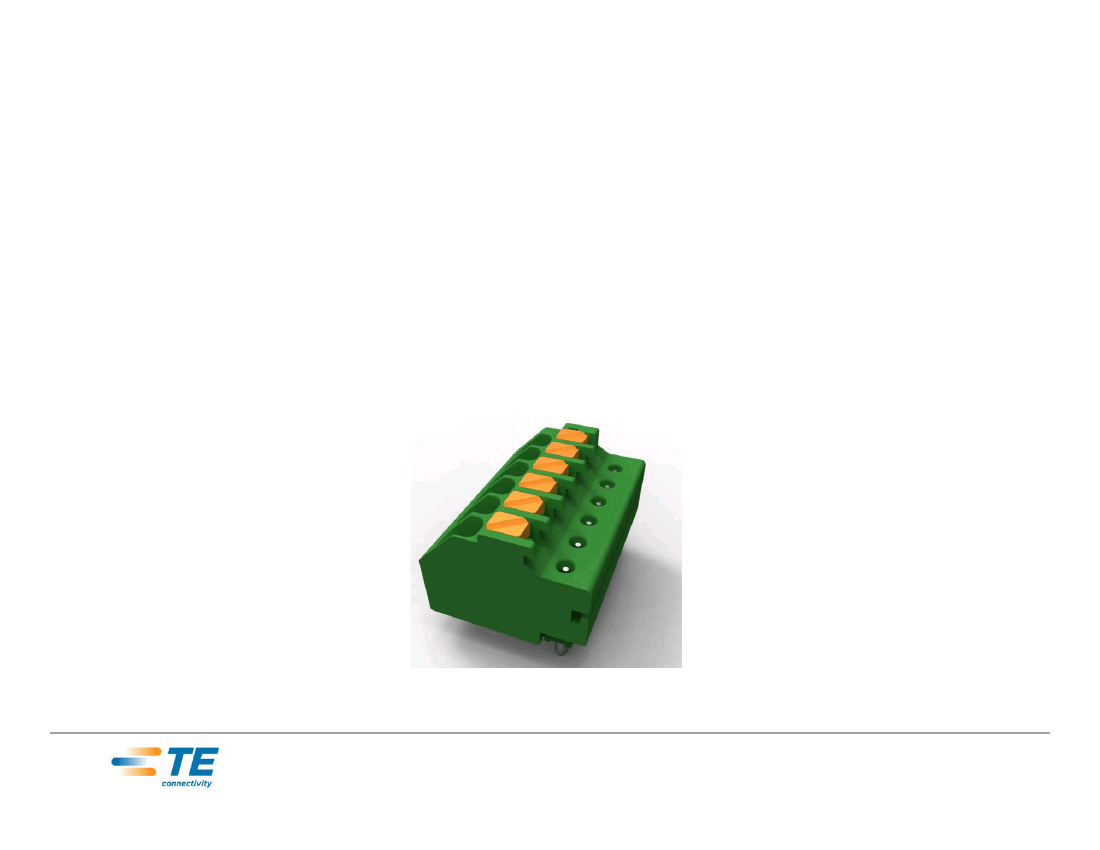

Mated Part
Information is TE Confidential & Proprietary
Do Not Reproduce or Distribute
page 4 / January 25, 2012
Target Customers and Markets
•Automation and Drives technology
•Control boxes for HVAC and Thermostats
•Controls for TV or Radio Production
•Signal Controls
Information is TE Confidential & Proprietary
Do Not Reproduce or Distribute
page 5 / January 25, 2012
